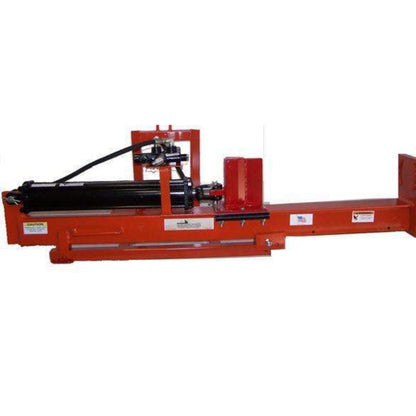

Wood Splitters Direct 20 Ton Horizontal Vertical Tractor 3pt Log Splitter (3PT20HV)

Wood Splitters Direct 20 Ton Horizontal Vertical Tractor 3pt Log Splitter (3PT20HV)

1 Review
12% Sale

Only 9999 left!

Regular price $1,979.99
Regular price $2,249.99 Sale price $1,979.99
Sale Sold out
View full details

Popular Add on

Add-Ons Bundle

Bundle Offer

$0.00

$0.00

Recently Viewed

Our 20 ton (3PT20HV) HV log splitter for tractors made by Ram Splitter have become a popular choice over the years.

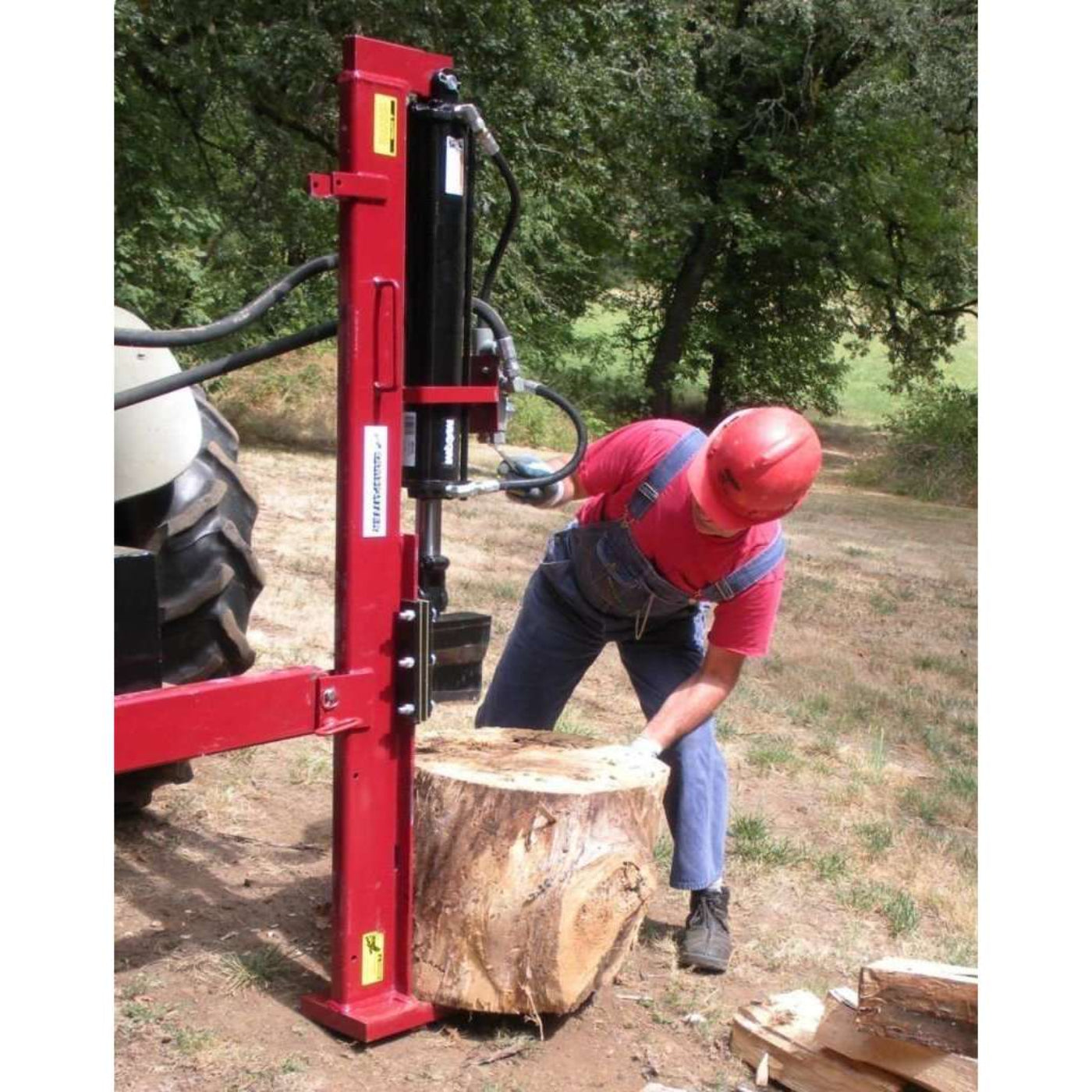

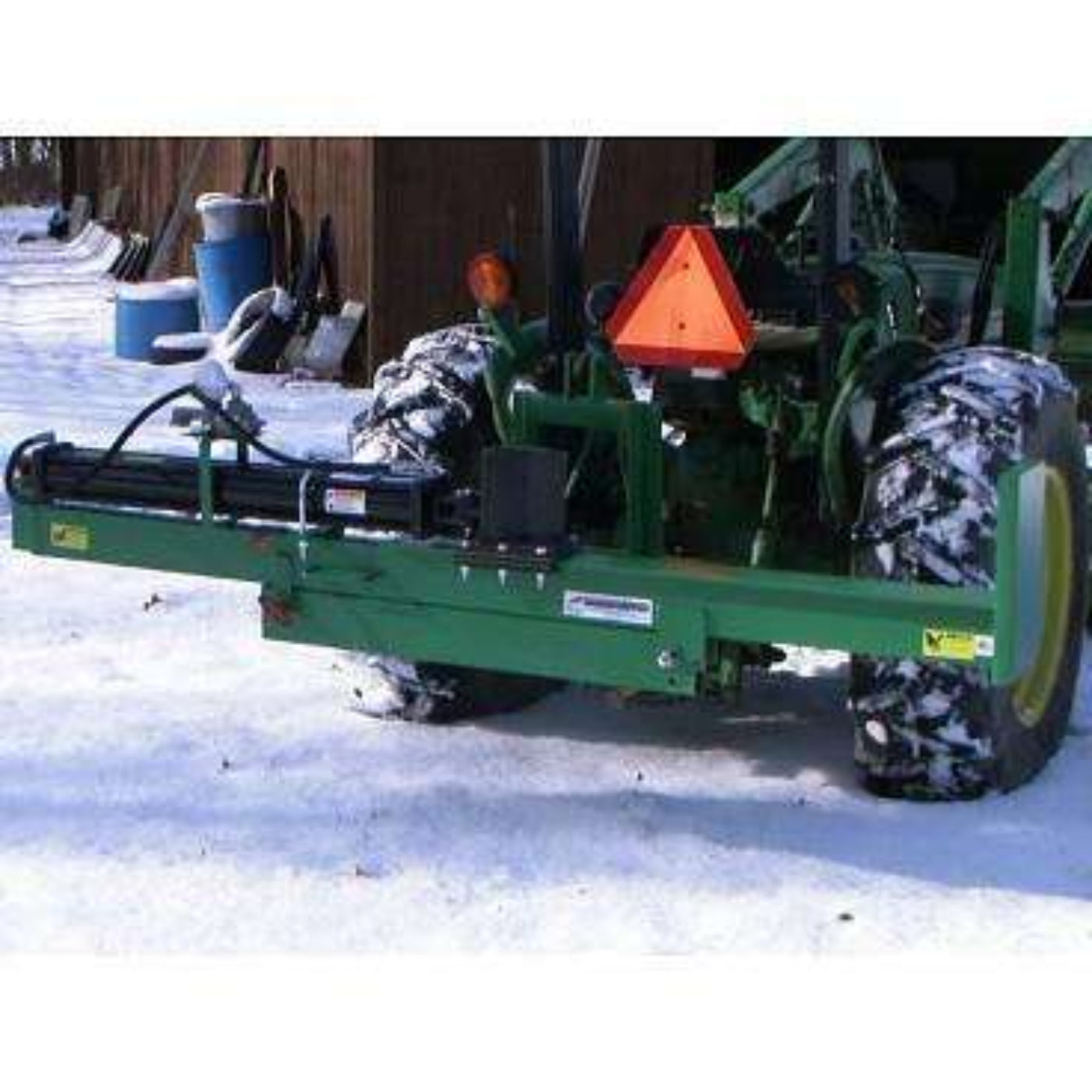

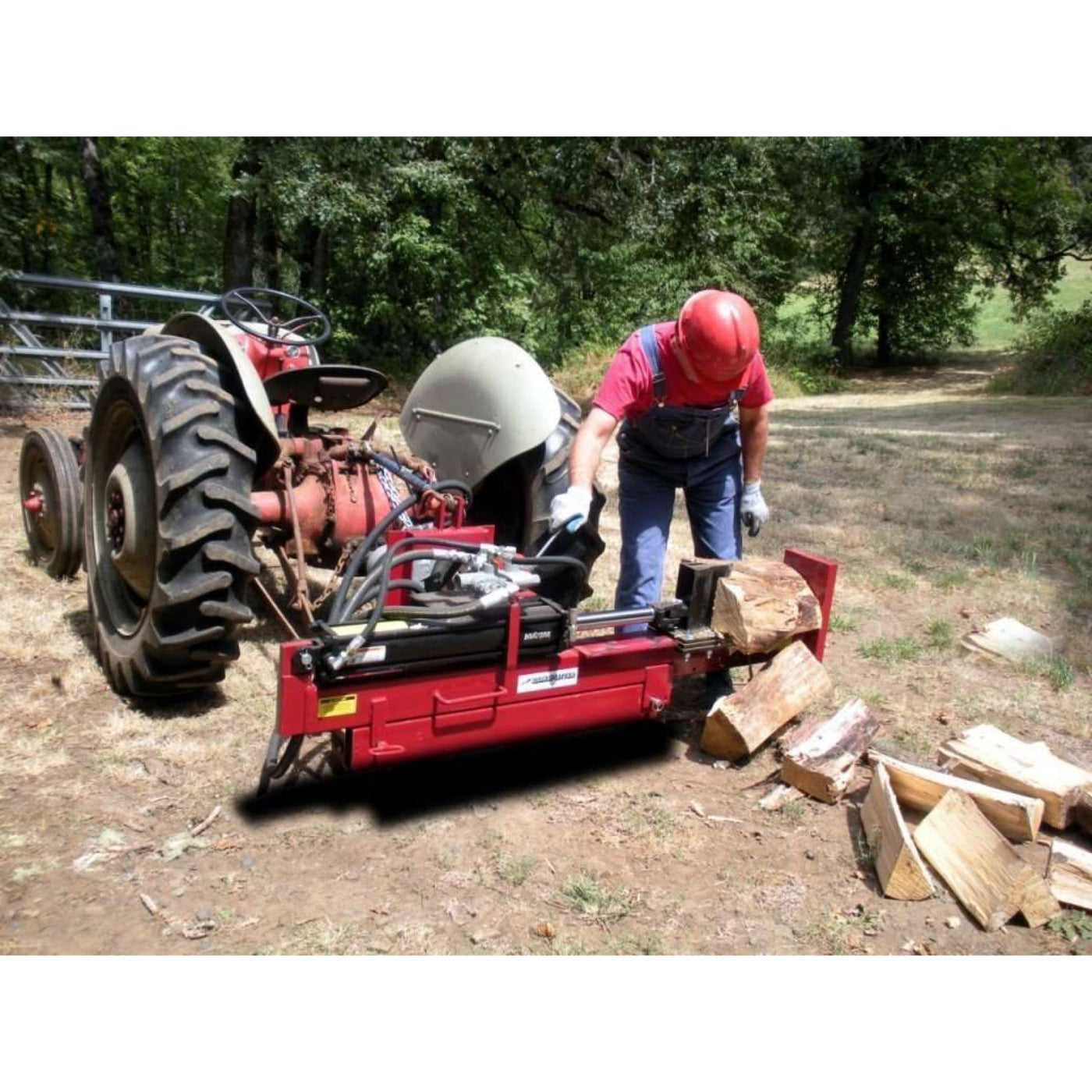

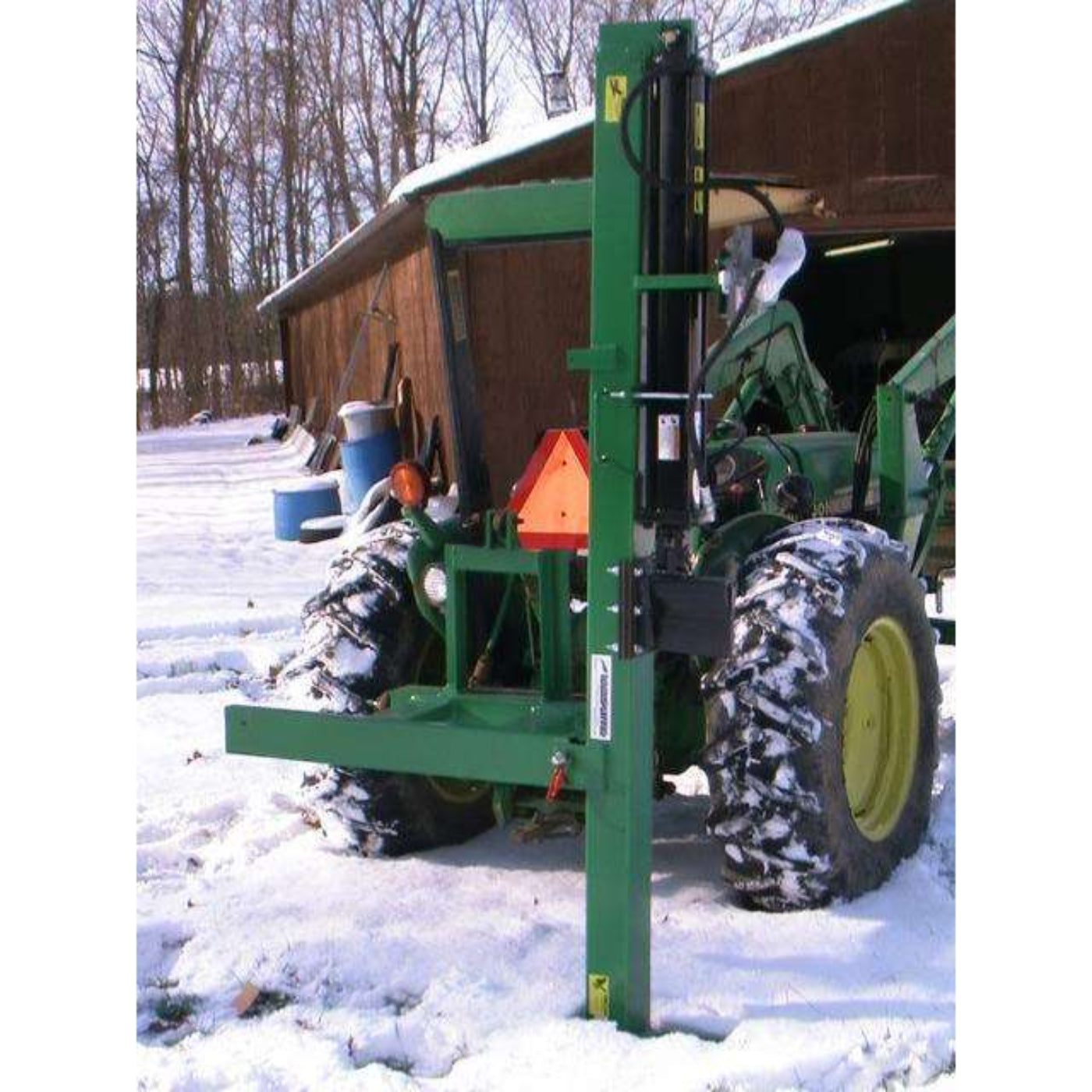

This 3 point log splitter unit will split both in the horizontal and vertical position for those large rounds you really don't feel like lugging up on the beam.

The standard pins we use are category 1 but can be changed out to 2 or 3, anything else you will have to change out to match your tractor. The hose ends (connectors) are not included.  Top link pins or anything else that is related to your tractor for hardware are not included.   All connections including hoses are included with PTO kits.

It is recommended that you have a flow rate of 7.5GPM or higher for this log splitter.  If your tractor is not properly equipped you do have a choice to run the PTO kit (costs extra) which is self contained and includes a PTO pump.  Tractor required to be 25hp or higher to run PTO kits.

Features
  • Beam Structure: Tubular design 2" wide x 5" tall. 6" Top plate reinforced heavy-duty
  • Splitting Wedge: 8" High
  • Operating Position: Horizontal / Vertical
  • Force / Tonnage: 20 Ton (Approx depending on tractor PSI)
  • Cylinder: 4" x 24" (Optional 30")
  • Cycle Time: 10-15 Seconds (Approx depends on tractor GPM)





Specifications
Tonnage 20 Ton (Approx depending on tractor PSI)
Beam Structure Tubular design 2" wide x 5" tall. 6" Top plate reinforced heavy-duty
Splitting Wedge 8" High
Operating Position Horizontal / Vertical
Force / Tonnage 20 Ton (Approx depending on tractor PSI)
Cylinder 4" x 24" (Optional 30")
Cycle Time 10-15 Seconds (Approx depends on tractor GPM)
Log Opening 25 inch (31 inch optional)
Working Height You adjust with your 3 point hitch
Safety Control Valve Detent, Auto Return
Operation Weight 400 LBS
Made in USA Yes
Color Choice: Black, Orange, Green, Blue
4 Way Wedge Optional
PTO Driven Optional
Log Cradles Optional


:
