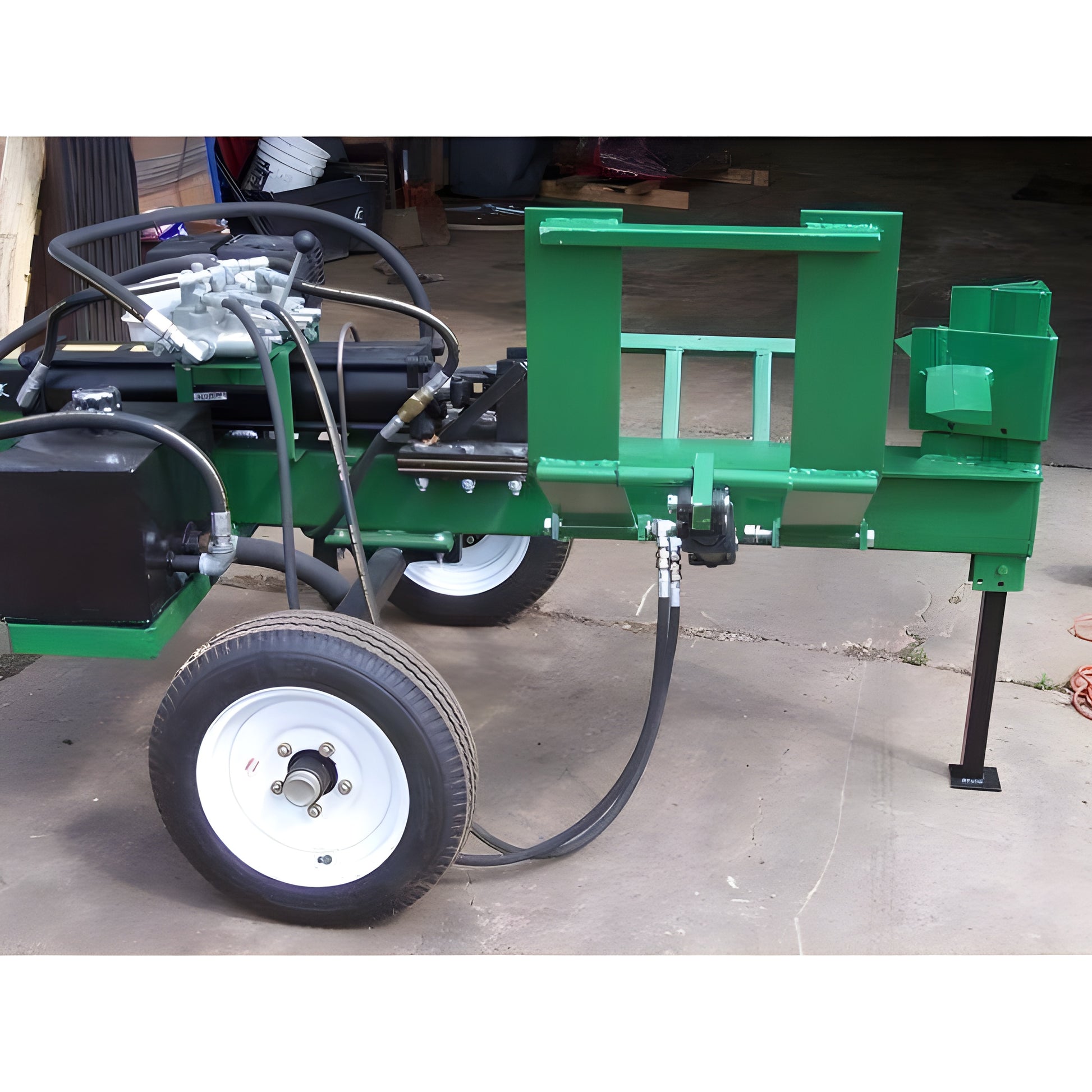

This wood splitter is Ram Splitters flag ship model and is built commercial tough. The average cycle time on this unit is 10-12 seconds due to its 22GPM pump size. This gas log splitter will spit in the horizontal position and comes with log lifting arm.
This log splitter also comes with double handled control valve locks. This means you can do a complete cycle (split) automatically by doing a full extend and retract on it's own! This machine comes standard with larger tires, 4 way splitting wedge, Hour Meter, Automatic Dual valve, front wheel stand, and hydraulic log lifter.
Beam Structure | 3" wide x 6" tall - 6" Top Plate Tubular Design |
---|---|
Splitting Wedge | 12" High |
Operating Position | Horizontal with Lift |
Force / Tonnage | 30 Ton (Up to 60,000 lbs) |
Cylinder | 5" x 24" 2" Rod |
Cycle Time | 10-12 Seconds (Approx) |
Log Opening | 26 Inches |
Wheels & Tires | High-Speed, 4 ply 12" |
Road Towable | Yes - Tow package included |
Motor | Subaru EX 14 HP or Honda GX 13 HP |
Operating Size | 50" wide and 84" long |
Hydraulic System | 14 Gallon Tank + Cylinder, and Hoses |
Safety Control Valve | Double Handle Dual Locking |
2 Stage Pump | 22 Gallons Per Minute |
Operation Weight | 850 LBS |
Made in USA | Yes! |
Working Height | 22" |
Log Cradles | Included other side of lift |
4 Way Wedge | Included |
Electric Start | Included |
