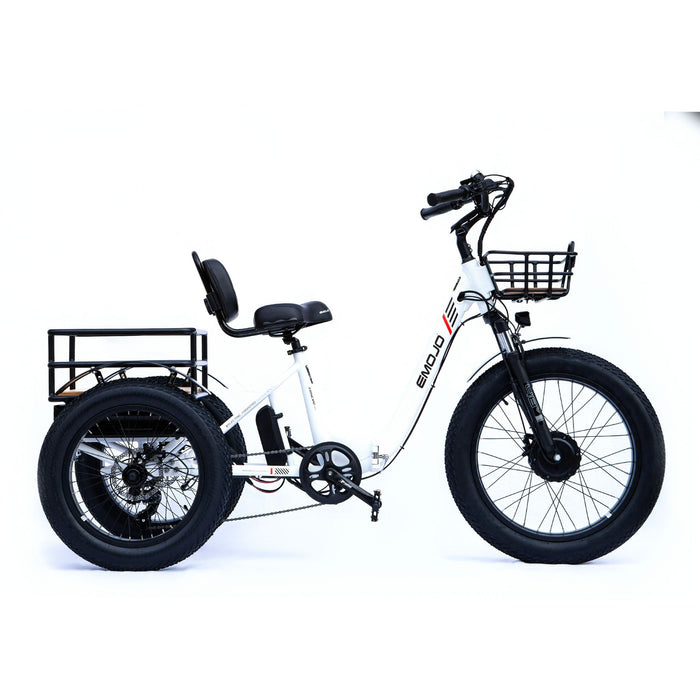

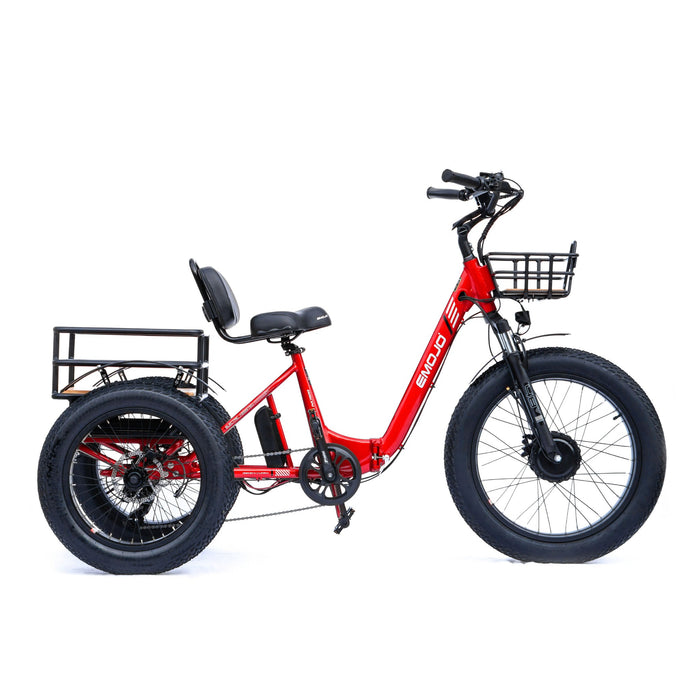

Emojo Bison Pro 750W Foldable Step Thru Trike With Long Range Battery

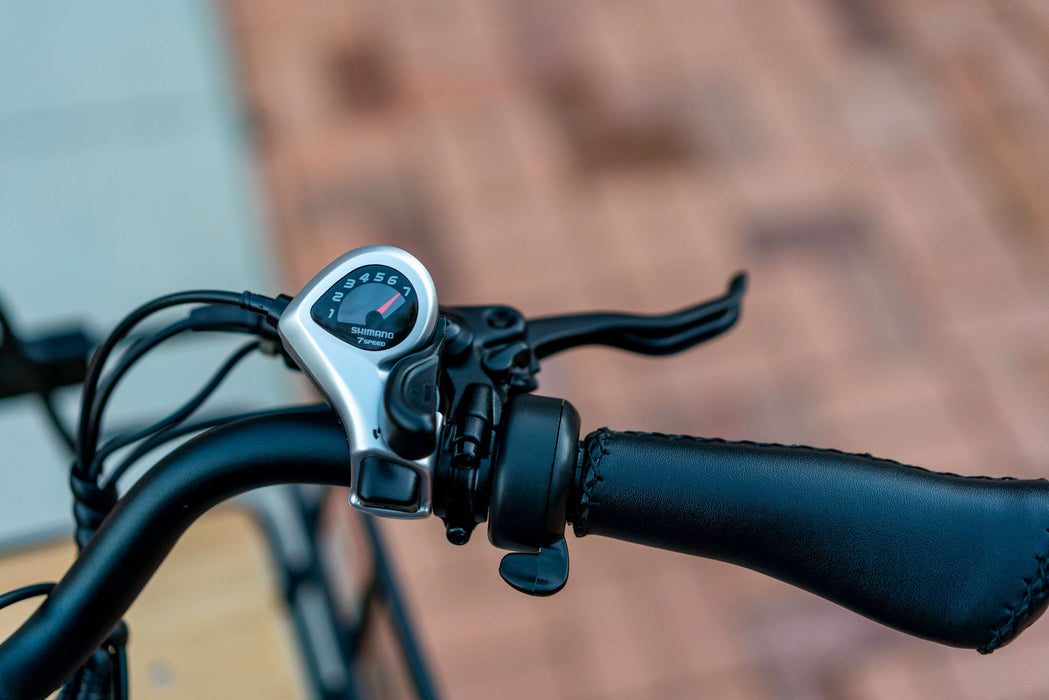

The all-new Emojo Bison series - where fashion meets functionality. Designed for adventurous souls with impeccable taste, Bison is a stylish and sleek Step Thru Trike that packs a powerful punch. Its durable build ensures long-lasting performance while delivering the exhilarating boost you crave. With its convenient step-through foldable frame, effortless on-and-off is a breeze, allowing you to store it effortlessly in your trunk or a cozy corner of your garage. Equipped with powerful disc brakes, 7-speed Shimano® gearing, and an intuitive LCD display featuring 5 PAS levels, speedometer, odometer, trip time, and more, Bison ensures a seamless riding experience. And don't fret about range anxiety, as the robust battery provides up to 45 miles of travel with pedal assist. Ready for spontaneous adventures?

Features

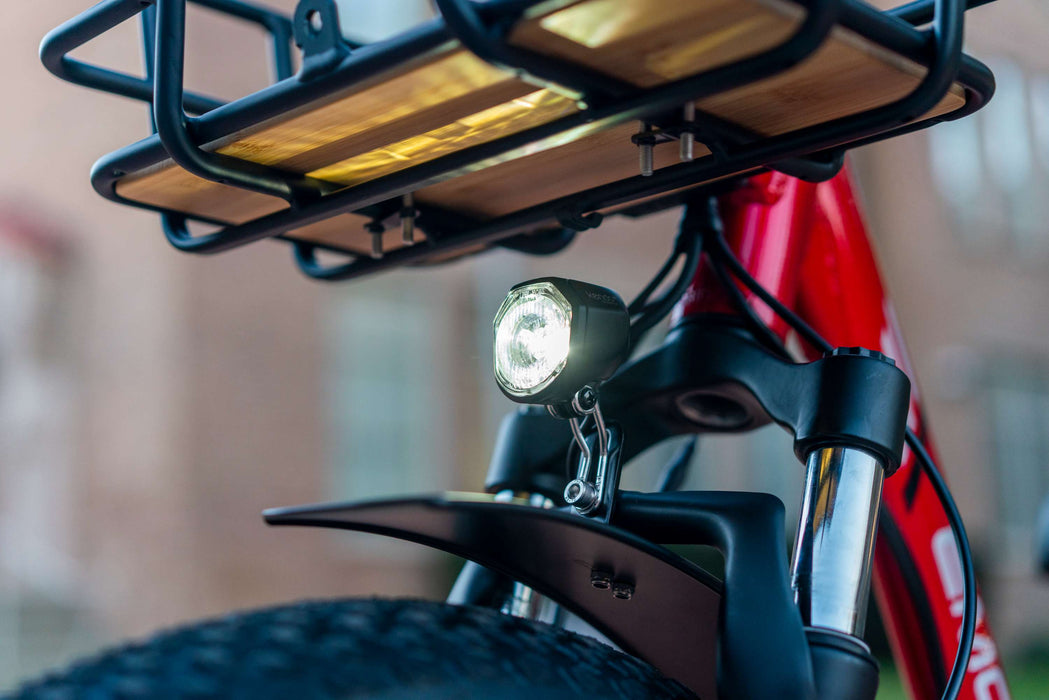

Built in headlight: The ultra bright LED headlight is powered by the main battery and controlled at your fingertips.

Front basket: Made of sturdy chromoly alloy, comes standard in your Bison to add cargo convenience. Up to 15lbs. of payload cargo capacity.

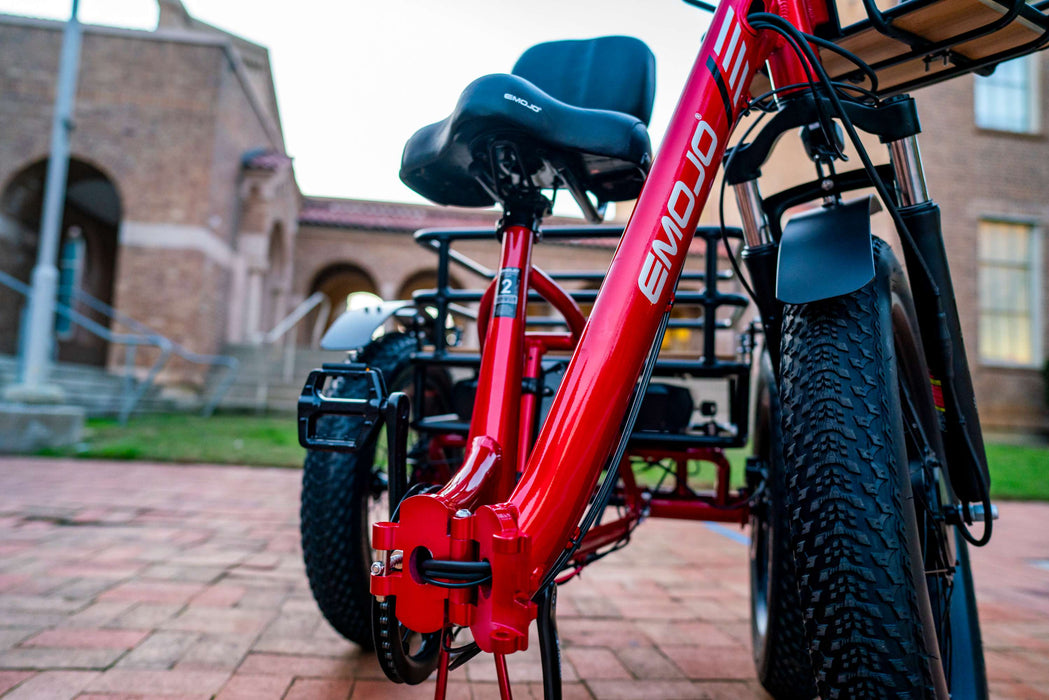

Foldable step-thru frame: Easy-on, easy-off, the low step-thru frame makes you start and end your riding with no effort. The frame folds to reduce the footprint of your Ram e-bike, allowing for easy storage or transporting it.

Hydraulic brakes: Standard on the Bison Pro, the hydraulic brakes require minimal effort to operate while offering a strong breaking power.

Rear Brake Light: The ultra bright LED rear brake light with built in reflector adds safety to your Bison. Be seen at night and alert drivers and other riders when you are applying your brakes. Entirely powered by the main battery.

Thumb throttle: All the power at your fingertips, you can use the throttle only or pedal along. The leatherette soft grips are ergonomic and soft to the touch.

Specifications:

• Motor: Bafang DC Brushless
• Motor power: 750W
• Rated Voltage: 48V
• Range: 45 miles*
• Battery charging time: 4 - 6hours
• Battery type: Lithium-ion
• Battery capacity: 48V/23.2Ah
• Battery brand XNW (brand with quality insurance)
• Dimensions (inch): 76L X 30 W X 47 H
• Frame: Aluminum 6061
• Vehicle weight: 110lbs (with battery)
• Transmission type: 7-speed
• Brake type: Hydraulic Disc (front /rear)
• Tire size: (Fr)/ (Rr) 20 x 4.0" rear / 24 x 4.0" front
• Rear wheelbase:  30"
• Stand over height 15in
• Seat to ground Min: 27in / Max: 36in
• Front basket 14.5 x 10.5 x 4.5in
• Rear basket 21 x 17.5 x 7.5in
• Handlebar height Min: 41in / Max: 46in
• Max. user weight: 330lbs
• Assembly required

Optional Accessories

• Emojo Picnic Bag
• Emojo Electric Tricycle Assembly Service

*All range estimates are contingent upon rider and towing weight, wind speed and terrain.

About Emojo

Return Policy

1. EMOJO ’s return policy allows you to return your electric bicycle within 7 natural days of receiving the purchased vehicle only if the manufacturer fails to solve any mechanical or technical problem related to manufacturing defect or severe shipping damages.
2. Contact Support for a Return and Exchange Authorization (REA) Form at support@hundredhustle.com. Once REA is issued, we will email you a REA number with return instructions. You must have the REA number on the form when shipping back the bike.
3. Return Shipping Charge
   • a. Customer will be responsible for return shipping charges.
   • c. The returned unit must be in a like-new condition, include all original packing, accessories and documentation. Any shipping damages during the return may incur a deduction from the total refund. The customer will be responsible for any damages during the return resulting in a deduction in your refund.
   • d. If the return claim is valid, the customer will receive a refund for the amount of the purchase price minus a repacking and restocking fee of 25%.
   • e. After the returned bike is received, inspected and processed, a refund will be issued in approximately 2-4 weeks.

For a claim related to shipping damages you must present pictures of the damaged product at the time of the delivery. Please request a Return and Exchange and Authorization. (Contact customer support for a REA form).

If the warranty is void for any reason the customer shall bear any repair or replacement costs resulting from vehicle misuse, negligence or abuse.
Always follow care and preventive maintenance procedures.
Always keep receipts from any services performed to the vehicle by an authorized distributor or service center.

Warranty Policy

To make a warranty claim always keep handy the bike model, date of purchase, bike serial number, and receipt information. The warranty is limited to the terms listed below:

The warranty is limited to the terms listed below:

• Frame, Suspension, Motor: 1 year for parts. 3 months for labor.
• Controller, Charger: 1 year for parts.
• Battery: Warranty on the battery starts the date of purchase of the vehicle as new. The battery is sealed and cannot be opened or fixed. The battery should not have a percentage of nominal charge retention of 60% or less. Misuse of the battery, negligence or attempt to open or repair it will void the warranty.
• General: The bicycle is backed up by a 1-year main warranty, certain components listed on this chart or consumables may be subject to a different period of coverage or not included in this warranty.
• Consumables: Components subject to wear are not covered by the warranty: Tires, inner tubes, brake lines, brake pads, basket, wheel lining tape, light bulbs, LEDS, fuses, etc.

If the warranty is void for any reason the customer shall bear any repair or replacement costs resulting from vehicle misuse, negligence or abuse.
Always follow care and preventive maintenance procedures.
Always keep receipts from any services performed to the vehicle by an authorized distributor or service center.

The warranty will be voided by any of the following circumstances:

1. Failure to follow all directions or recommendations listed in the user manual.
2. Cycling collision, accident or vehicle damage caused by careless parking
3. Acts in violation of laws
4. Never registered your ebike
5. DIY repairs on electronics
6. Abusive use the bicycle in off-road terrain, mud, snow, water, sand, gravel and water
7. If the bicycle is used as rental unit
8. Damages caused by natural disasters such as earthquakes, lightning, fire, flooding and other hazards .
9. Rust and/or paint fading caused to heavy exposure to rain, hail, snow or direct sunlight for prolonged periods of time.
10. Overloading beyond recommended capacity .
11. Damages caused by nails, needles, broken glass , debris , sharp rocks or other foreign objects .
12. If the bicycle is used but not limited to stunts, jumping from ramps, stairs or elevated ramps.
13. If vehicle is used in competitions or racing.
14. If vehicle has been modified for any purposes on the motor, electrical system, suspension frame, and battery.
15. Use of other components not approved by the manufacturer.
16. Damages resulted from improper care and handling.

Due to the nature of the product some components must be exclusive from the manufacturer such as but not limited to the battery, motor, main gauge cluster, controllers, Led headlights, brake drums or disc rotors and pads etc. Other components such as tires, tubes, saddle, racks, baskets may be used from market-ready or compatible products previous approval from the retailer or manufacturer.

The above Warranty information is from EMOJO at the time of writing. However, please refer to https://www.emojobike.com/pages/emojo-bikes-warranty to ensure you are reviewing the latest version of the policy, in case there have been any recent changes.

All warranties are with the bike company/manufacturer, in this case, with EMOJO, and not with Hundred Hustle.

Please Hundred Hustle to assist you with filing a Return.  The manufacturer can be contacted directly for a Warranty Claim.  Please register your electric bike with the manufacturer upon receipt of your e-bike.
