CHAUVET DJ 4BAR USB DMX LED Wash Light System w/Tripod, Travel Bags & Footswitch -66598

CHAUVET DJ 4BAR USB DMX LED Wash Light System w/Tripod, Travel Bags & Footswitch -66598

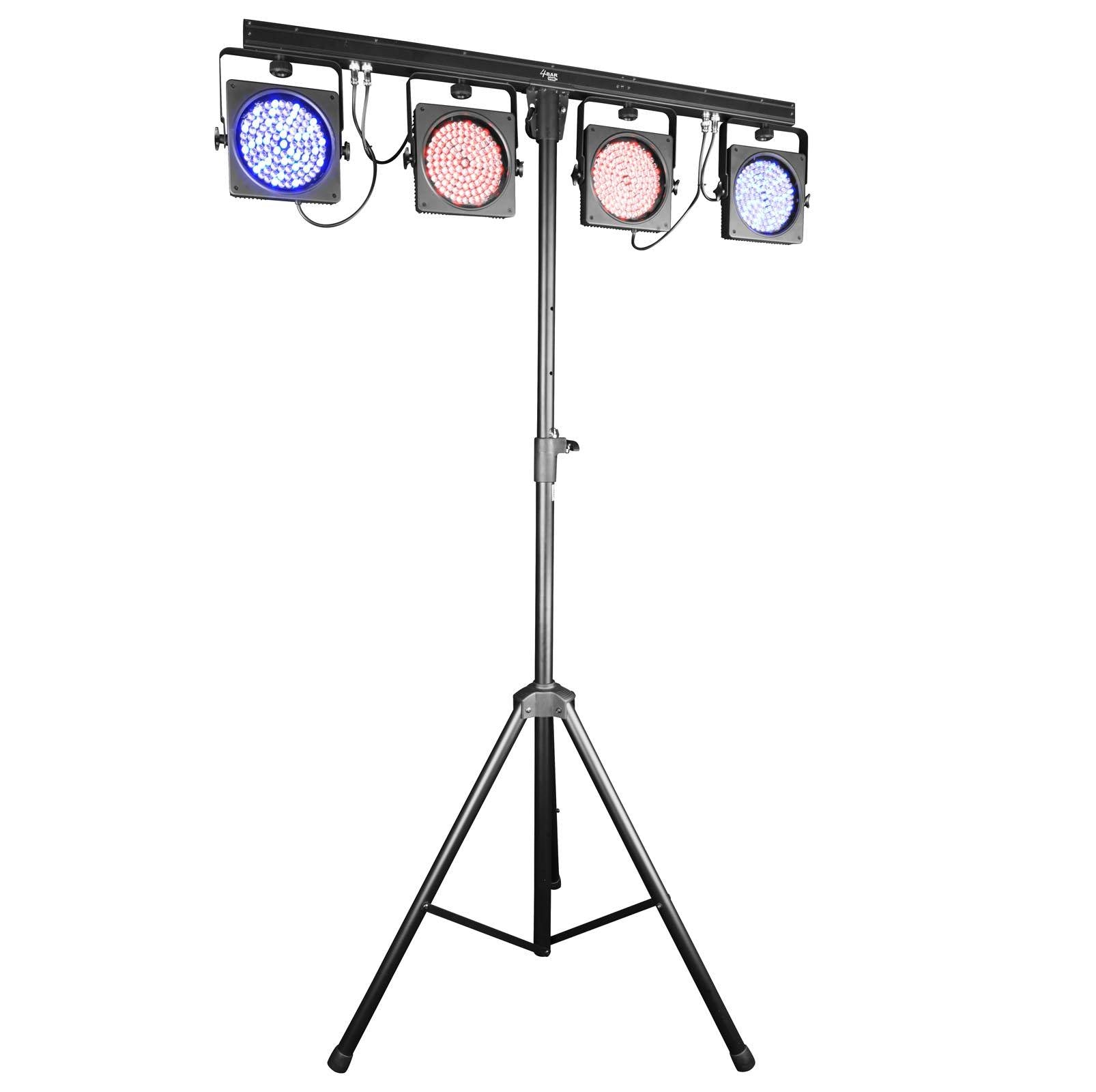

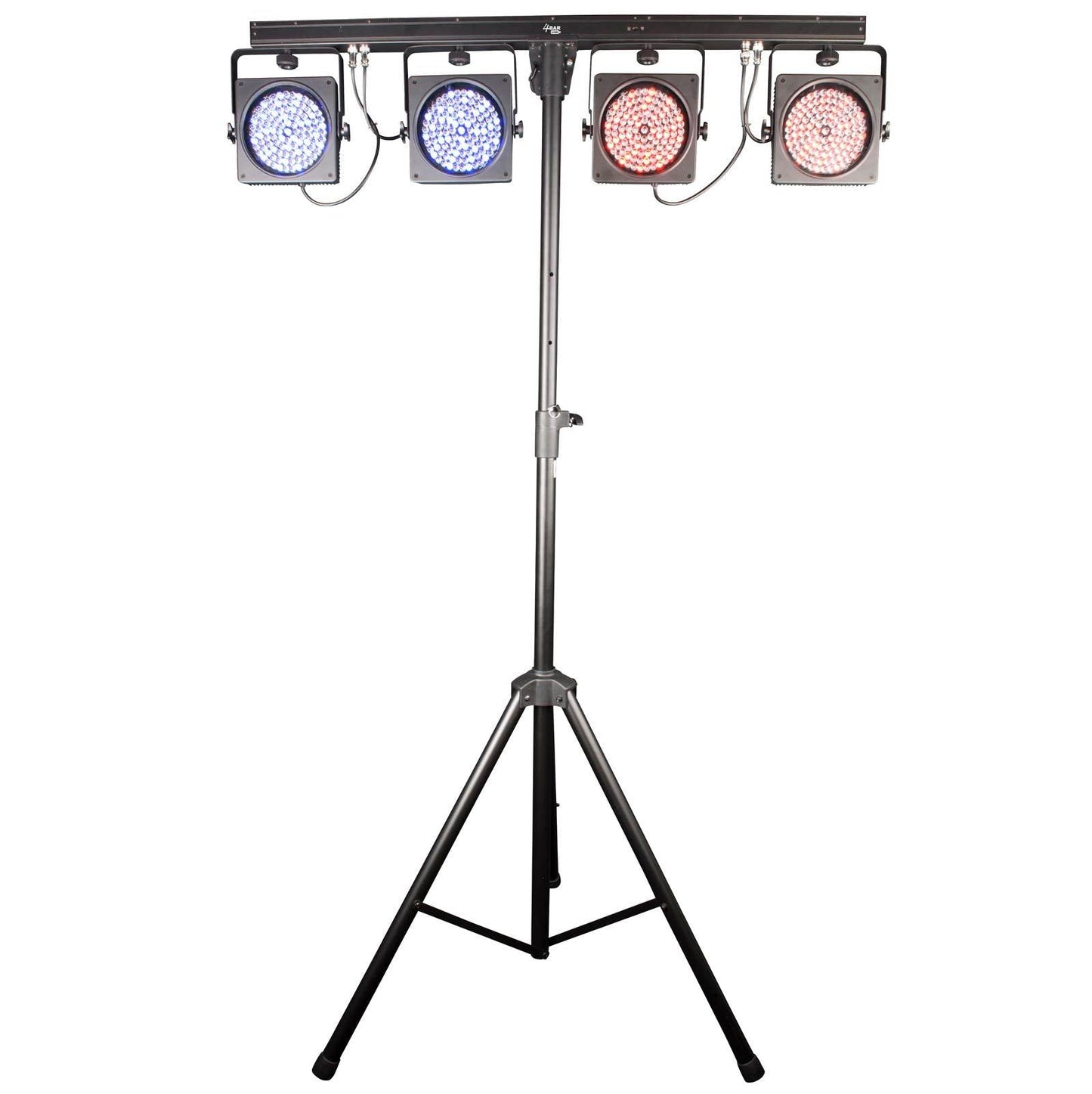

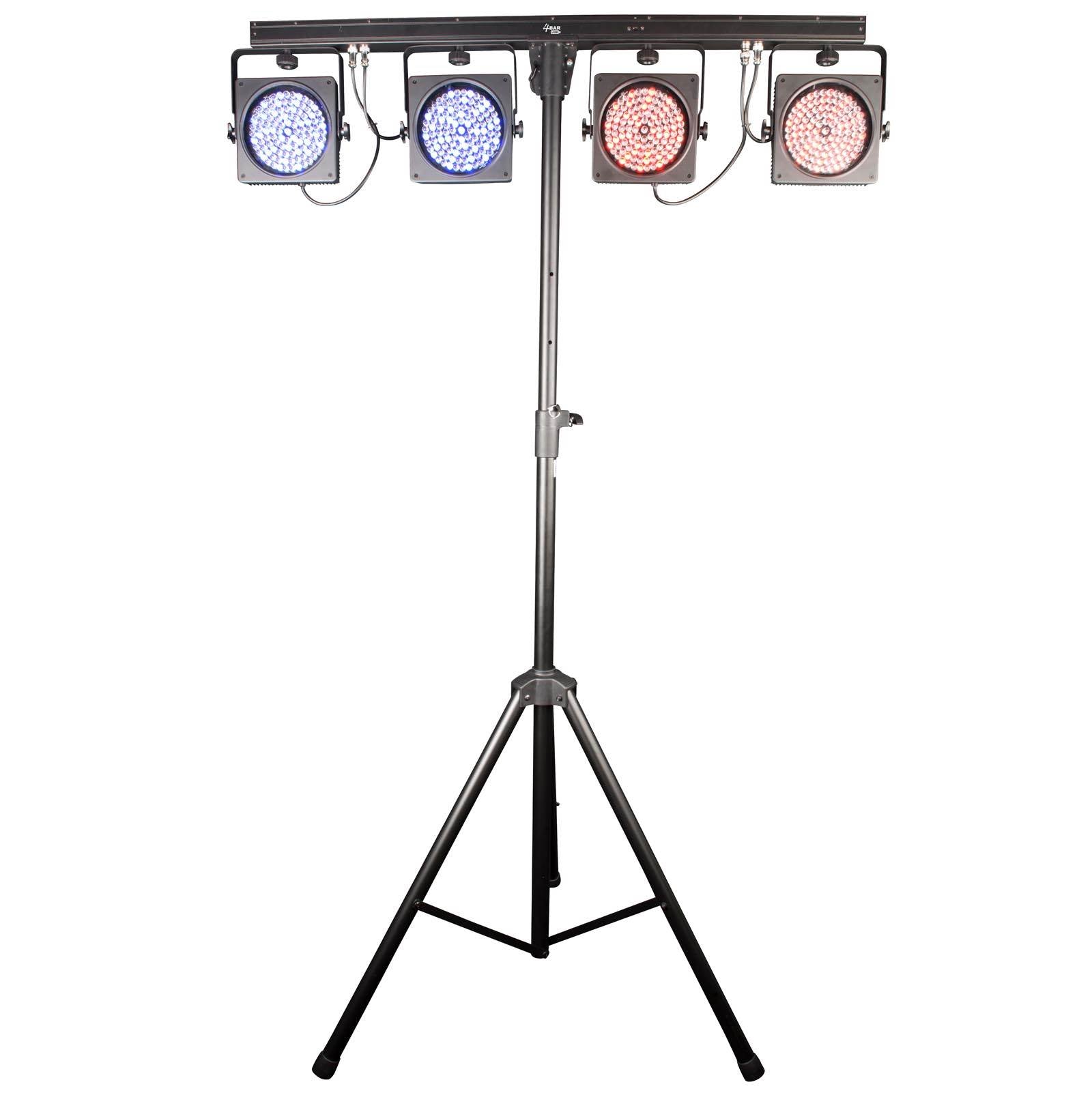

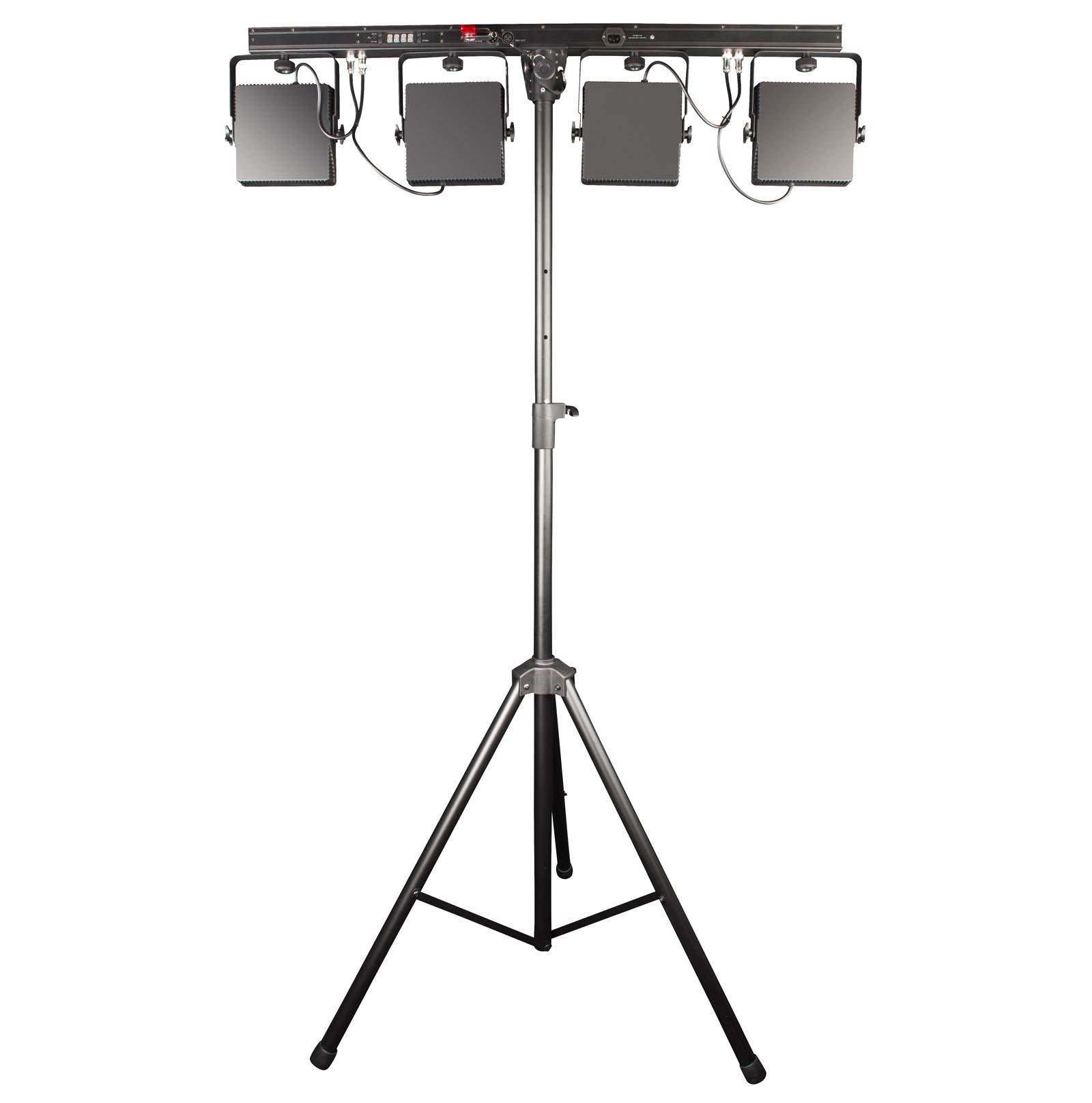

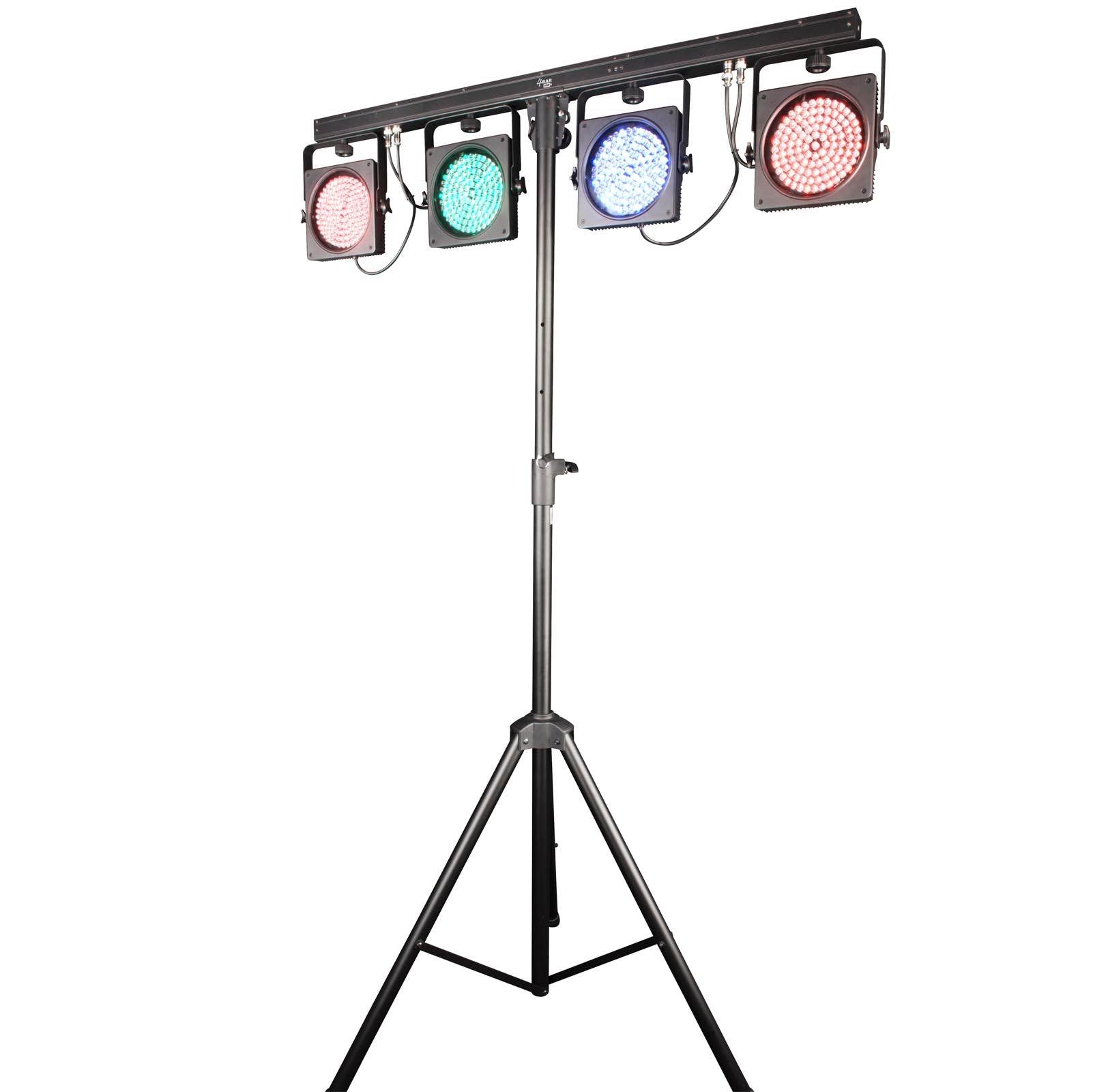

The Chauvet 4BAR USB is a complete washlighting solution for mobile entertainers. D Fi USB compatible for wireless master/slave or DMX control, it also includes a wireless footswitch that can control multiple units.Create synchronized light shows using built in automated programs with the optional IRC 6 remote. It can fill a room with the 4 fully adjustable lights.The Chauvet 4BAR USB includes a tripod and two travel bags, which makes it great for mobile DJs to take this light system from show to show.

Features

• Complete wash lighting solution designed for mobile entertainers
• Out of the box wireless control with included footswitch that controls multiple units

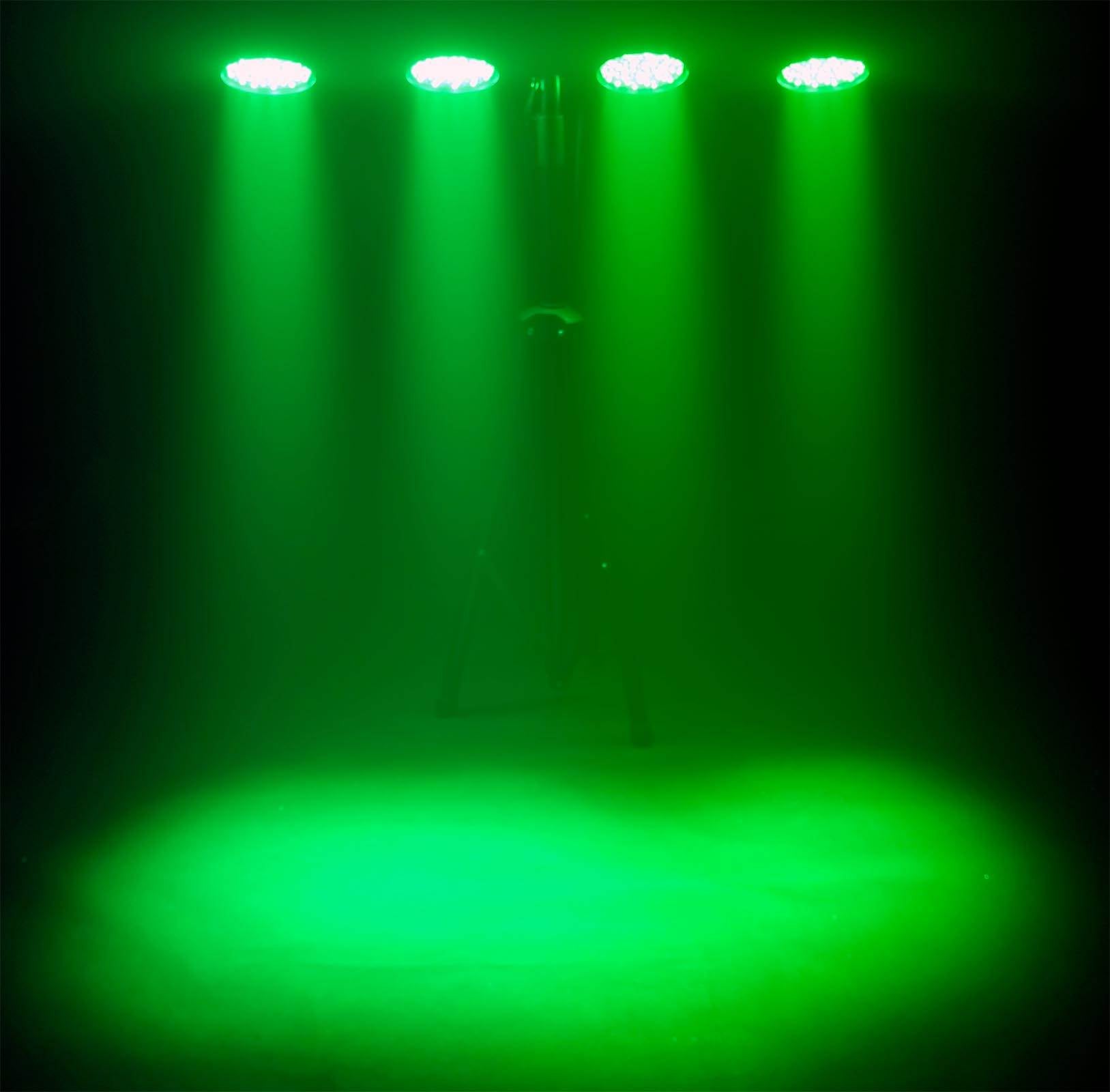

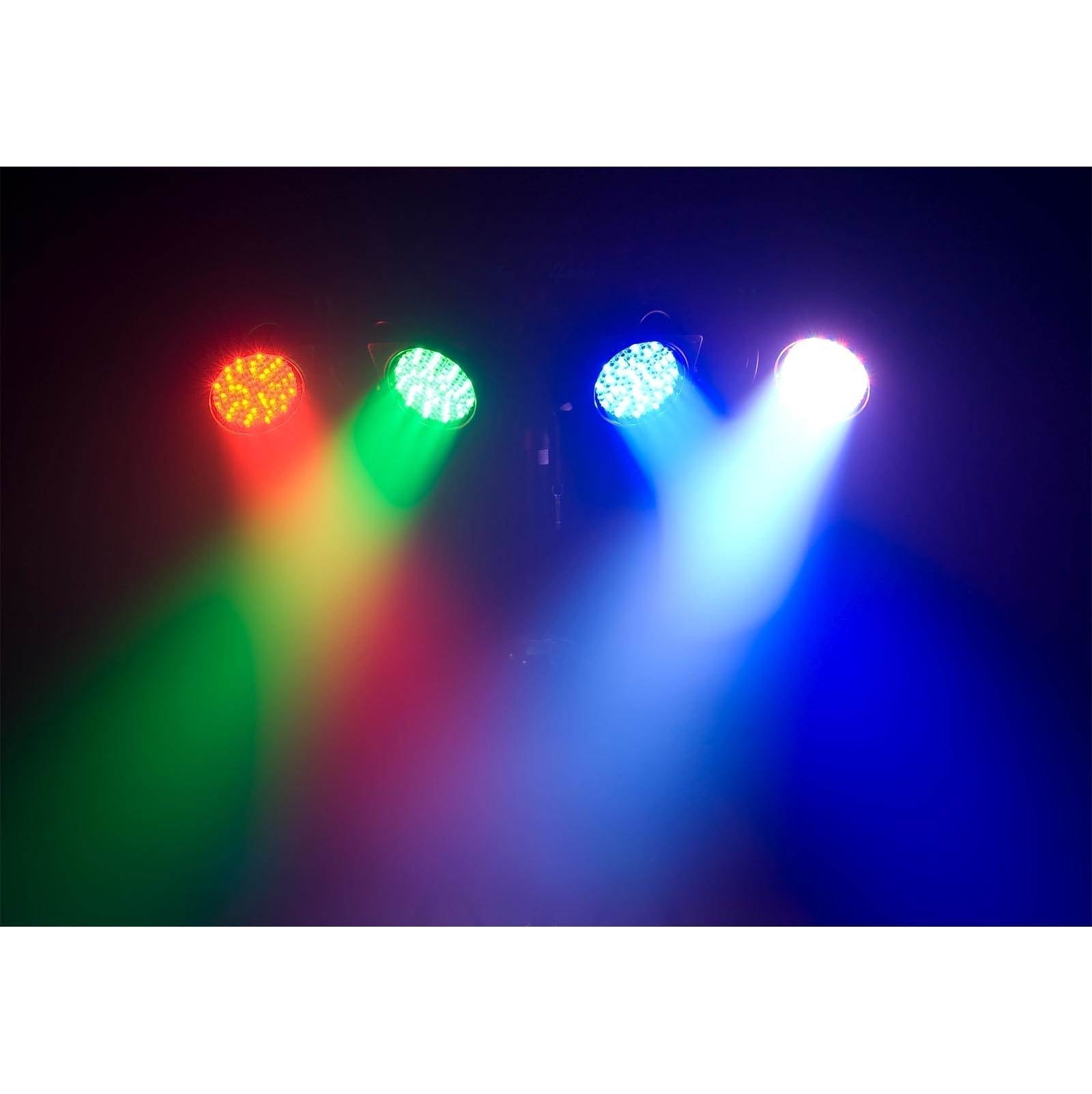

• Achieve total room or stage coverage with 4 individually adjustable heads
• D Fi USB compatibility for wireless master/slave or DMX control
• Easily set up and tear down in minutes using the included tripod, wireless footswitch and carry bags
• Increase mounting options by safely mounting to truss using the built in bolts
• Create large, coordinated light shows with other 4BAR fixtures in master/slave mode
• Sound activated programs dance to the beat of the music
• Easily control static colors and automated programs with the optional IRC 6 remote
• Generate a synchronized show in master/slave mode with easy to access, built in automated programs
• Specifications:
• DMX Channels: 3 or 15
• DMX Connectors: 3 pin XLR
• Light Source: 432 LEDs (144 red, 144 green, 144 blue) 0.25 W, (20 mA), 100,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• PWM Frequency: 1.2 kHz
• Beam Angle: 21°
• Field Angle: 33°
• Illuminance: 725 lux @ 2 m (per pod)
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto ranging)
• Power and Current: 36 W, 0.6 A @ 120 V, 60 Hz
• 36 W, 0.3 A @ 230 V, 50 Hz
• Weight: 10.8 lb (4.9 kg)
• (Controller): 0.8 lb (1.8 kg)
• Size: 47.4 x 2 x 11 in (1,205 x 50 x 285 mm)
• (Controller): 12.4 x 5.2 x 1.5 in (315 x 132 x 38 mm)
• Stand Height: 7 ft 4 in (2.2 m)
• Approvals: CE
• Optional Controllers: IRC 6, D Fi USB

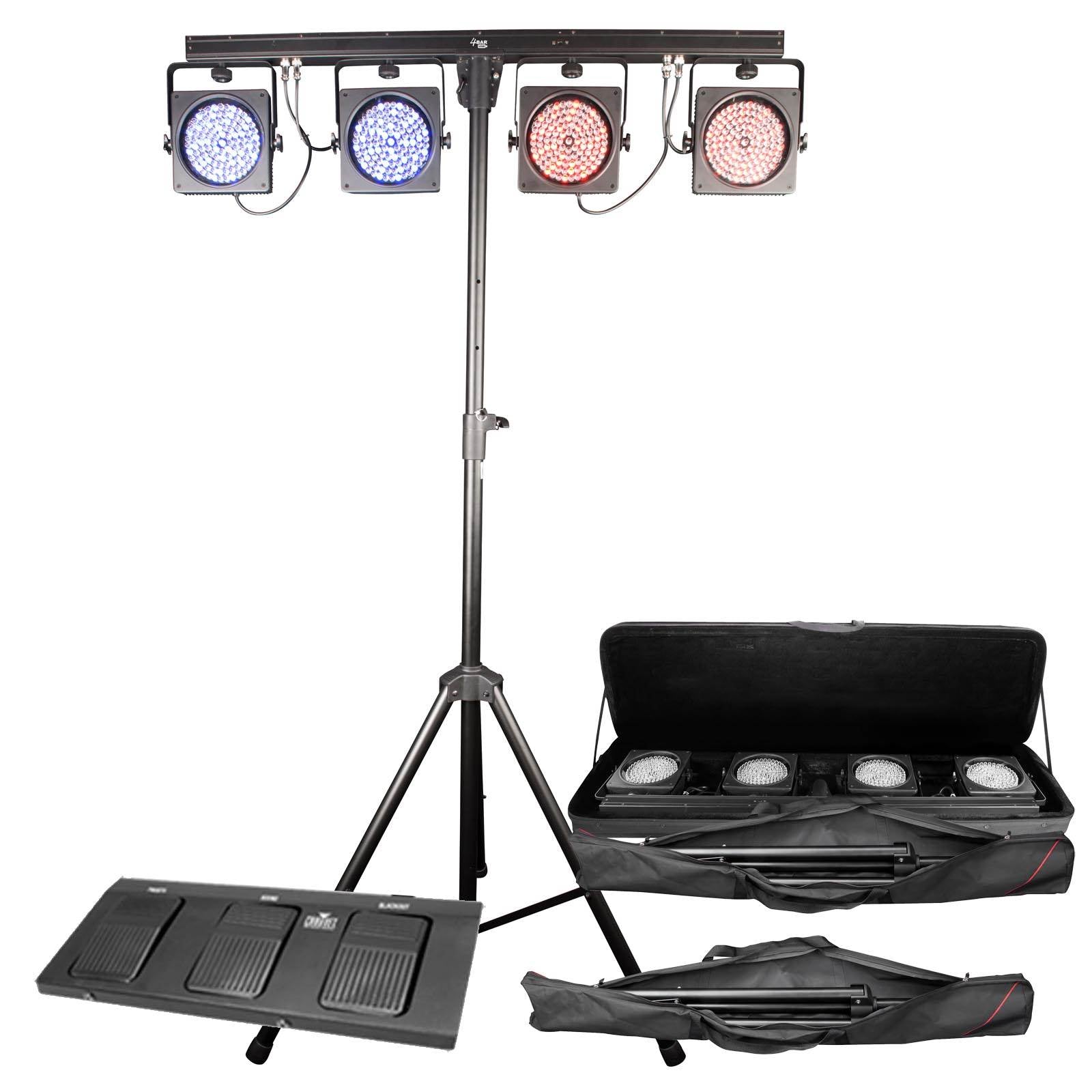

• Included:
• 4BAR USB
• Power cord

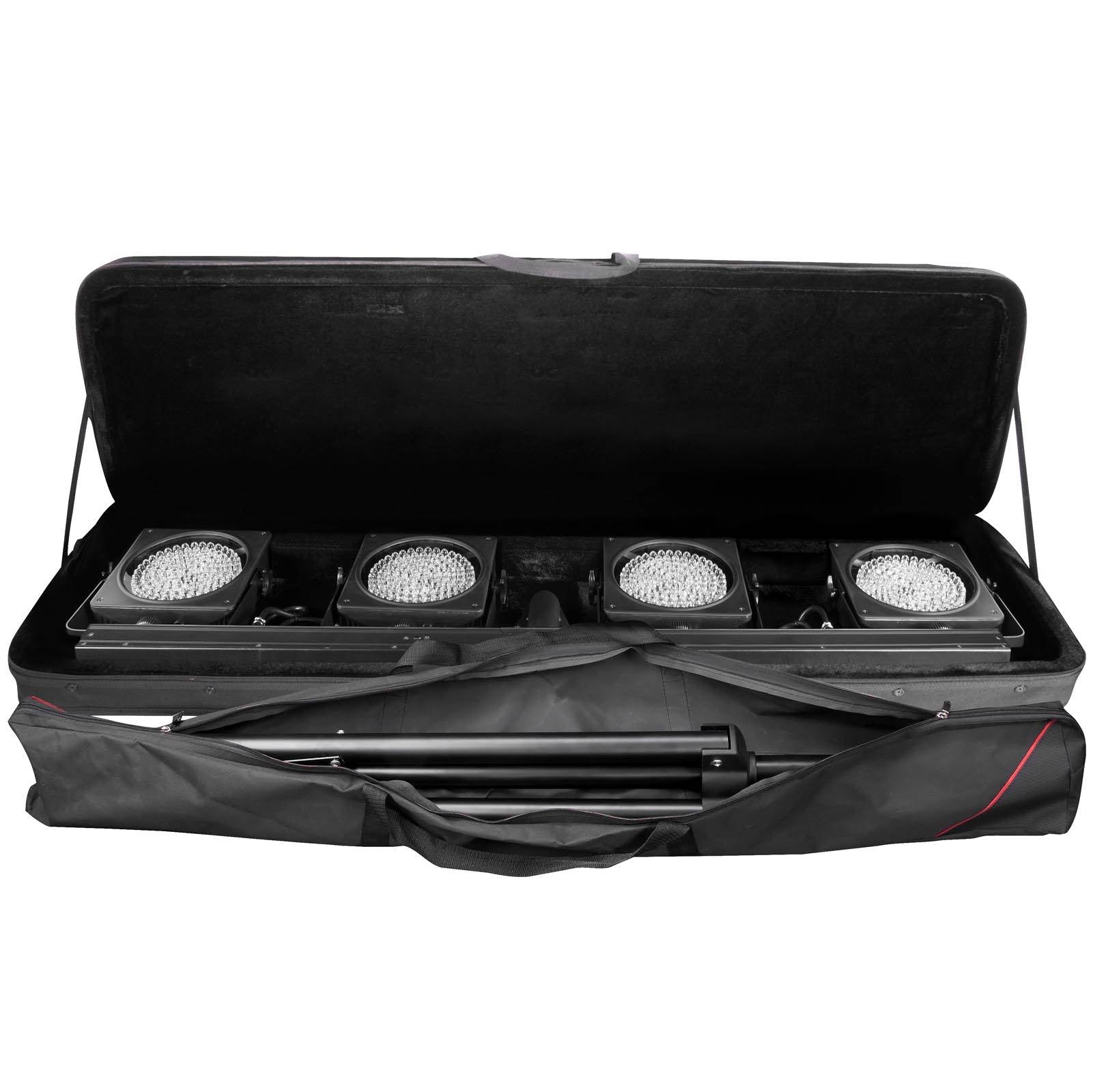

• 4BAR carry bag

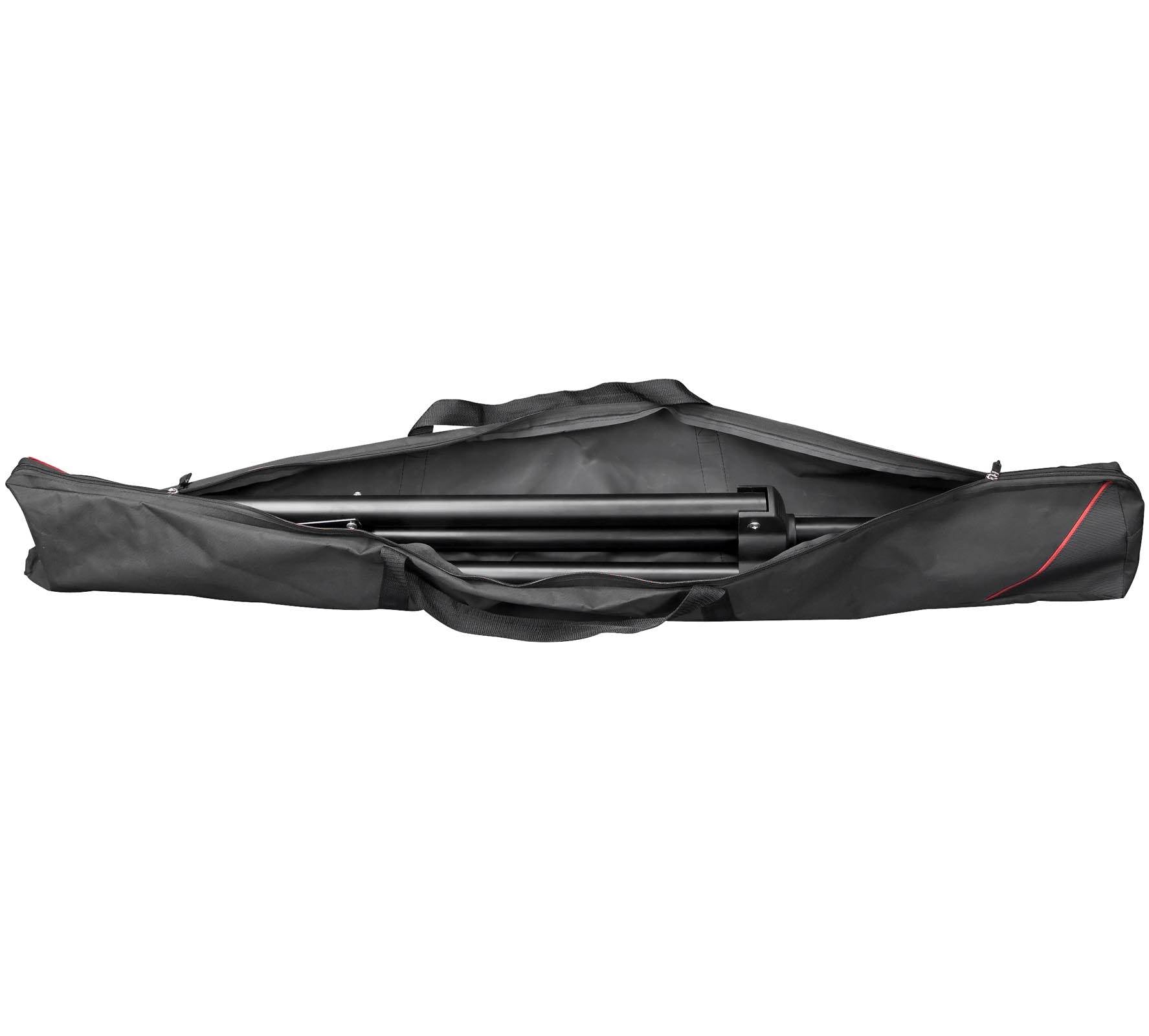

• Stand carry bag
• Tripod
• Wireless Footswitch
• Quick Reference Guide / Warranty card
• Condition: New
• Part number: 4BAR USB


What Our Experts Think

• Complete Lighting Kit – Includes 4 LED wash lights, tripod stand, travel bags, and footswitch for easy setup and transport.
• USB DMX Control – Features USB DMX control, making it easy to integrate with other lighting systems and devices.
• Bright & Even Illumination – High-output LEDs deliver vibrant, wide coverage for stages, DJ setups, and events.
• Flexible Control Options – Operates in DMX, sound-activated, and automatic modes for versatile lighting effects.
• Portable & Durable – Comes with travel bags for easy transport and a robust construction for reliability on the road.

Q&A

Q: What is included in the package?
A: The 4BAR USB system includes four LED wash lights, a tripod stand, a footswitch for control, travel bags for easy transport, and necessary cables.

Q: How can this system be controlled?
A: It features DMX control for advanced programming, and includes a footswitch for hands-free operation and USB connectivity for updates.

Q: Is it easy to set up?
A: Yes, it has a plug-and-play setup, with built-in auto and sound-activated programs for quick deployment.

Q: What lighting effects does it provide?
A: The system offers bright, vibrant washes that can cover large areas, with sound-activation and auto-program modes for dynamic lighting.

Q: Is this system portable?
A: Yes, the compact design and included travel bags make it easy to transport and set up at events.

Q: What are the key benefits?
A: High-quality LED washes, simple setup, advanced DMX control, portability, and footswitch operation for ease of use.

Maintenance Tips

• Clean LEDs & Lenses – Regularly wipe with a microfiber cloth to maintain brightness and avoid dust buildup.
• Inspect Cables & Connections – Check DMX, power, and USB cables for damage and ensure all connections are secure.
• Stabilize Tripod & Mounts – Tighten all screws and joints to ensure stability during operation.
• Avoid Overheating – Use in a well-ventilated area and keep vents clear of dust to prevent overheating.
• Store in Travel Bags – Protect the unit from dust and impact by storing it in the provided travel bags when not in use.
• Test Footswitch & Controls – Ensure all footswitch functions and remote controls are working properly.
