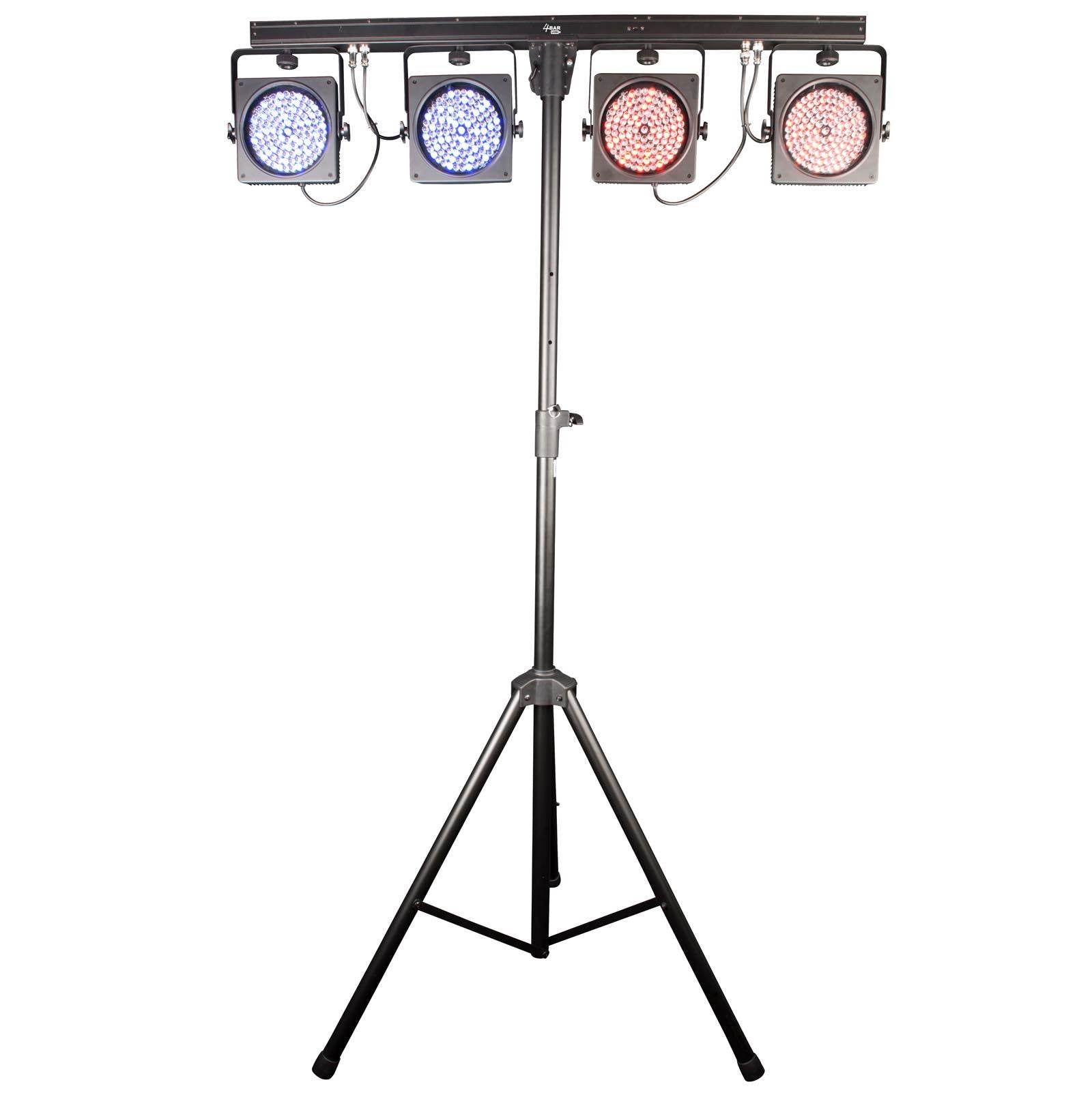

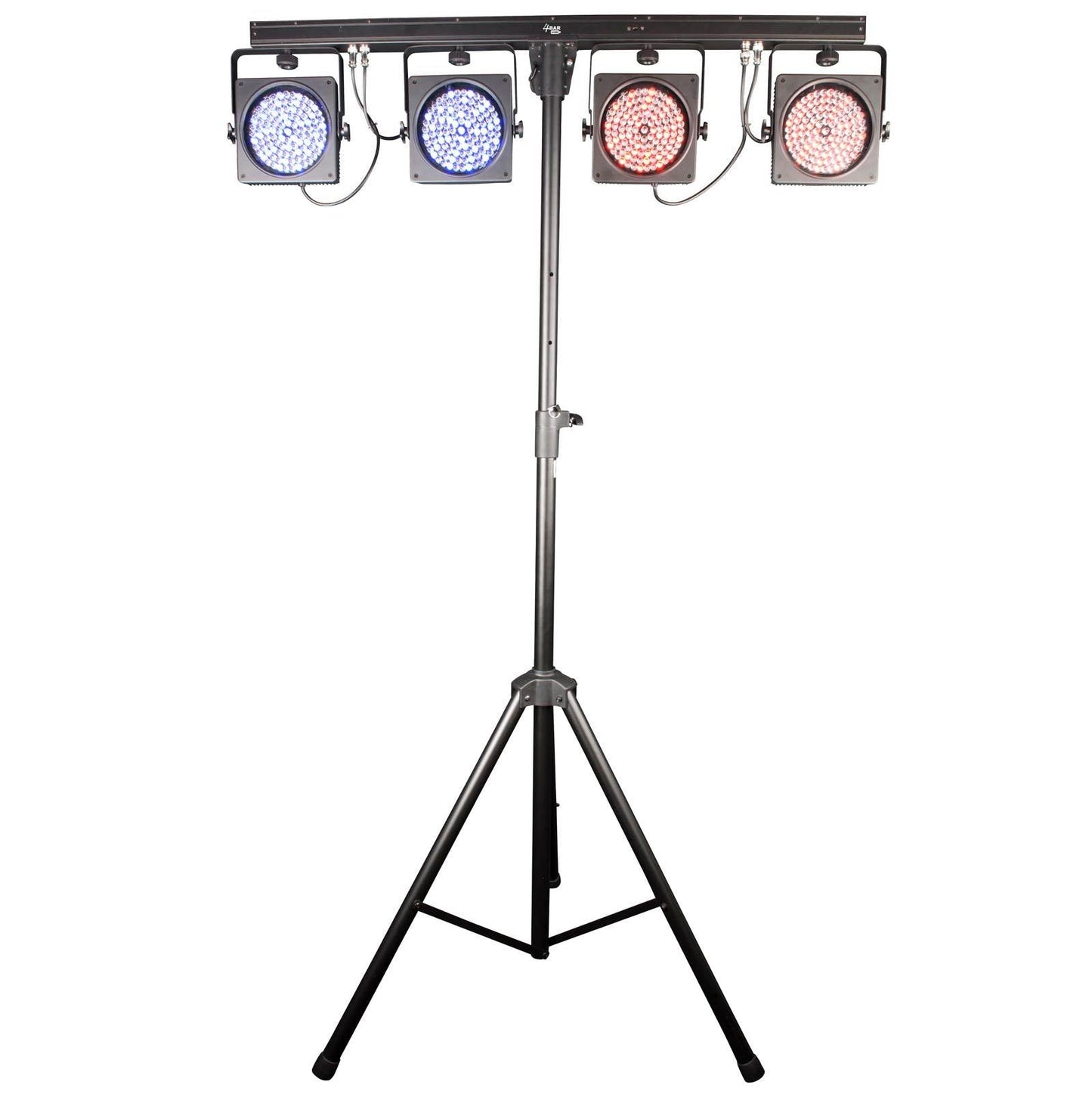

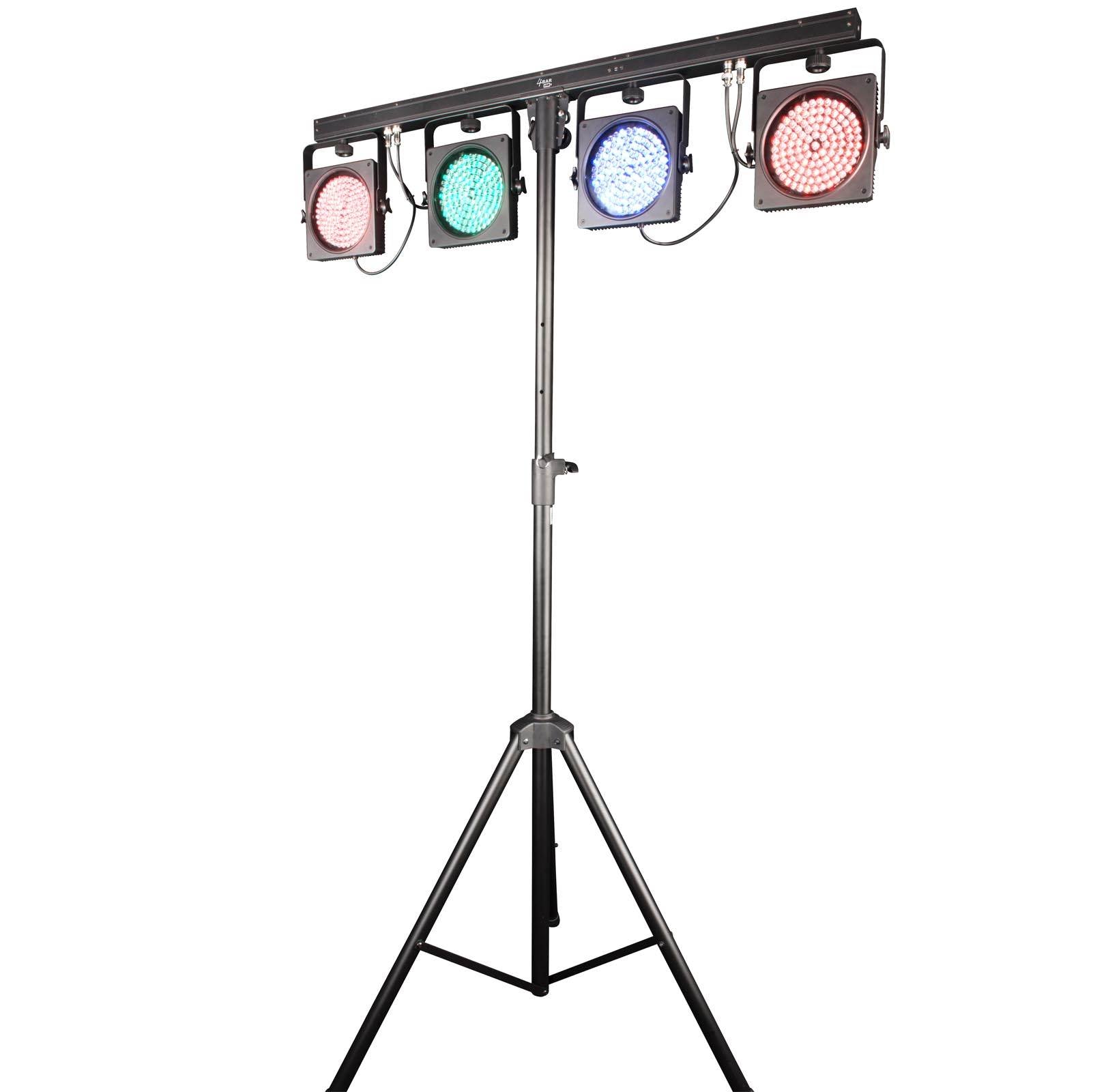

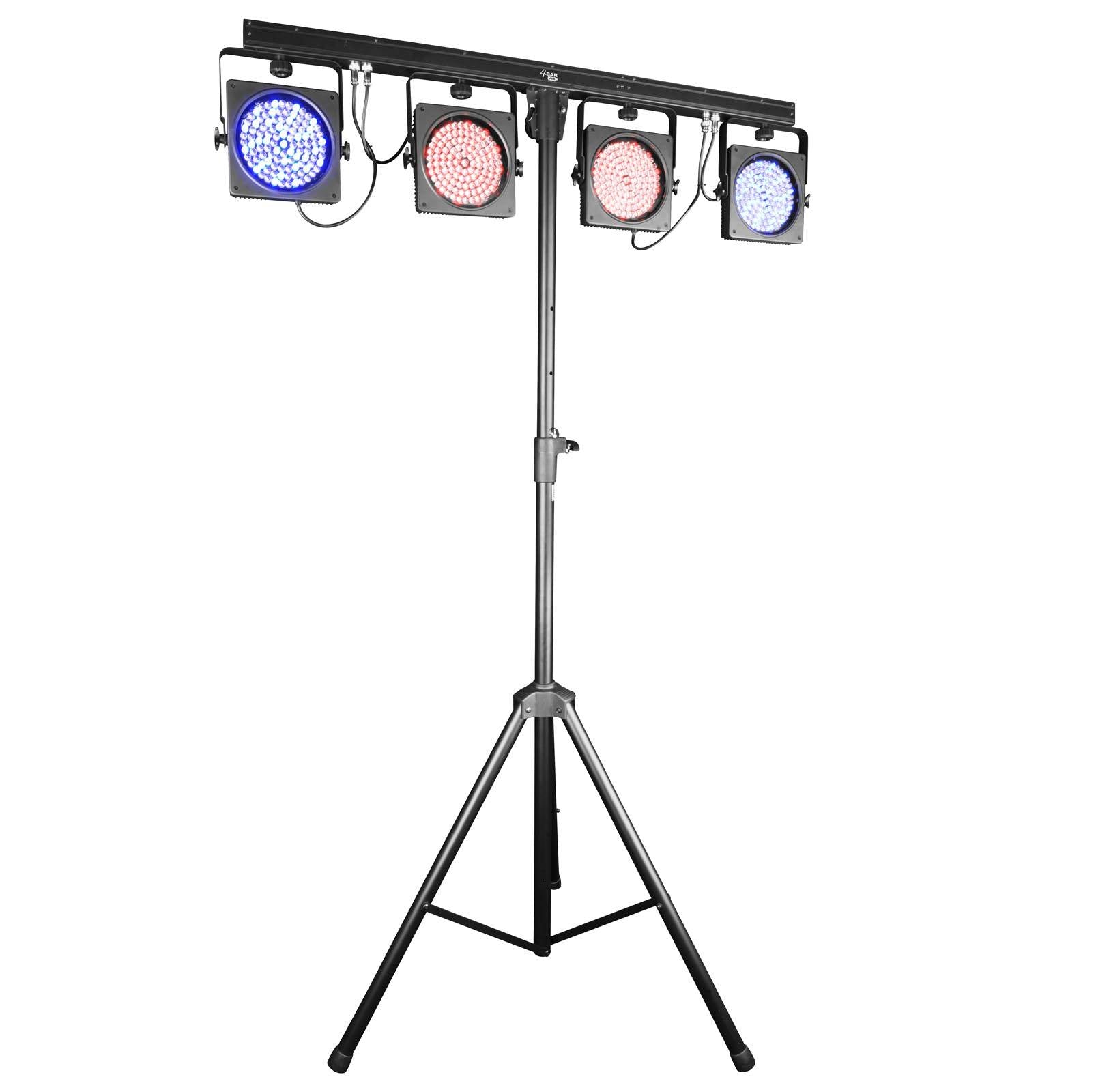

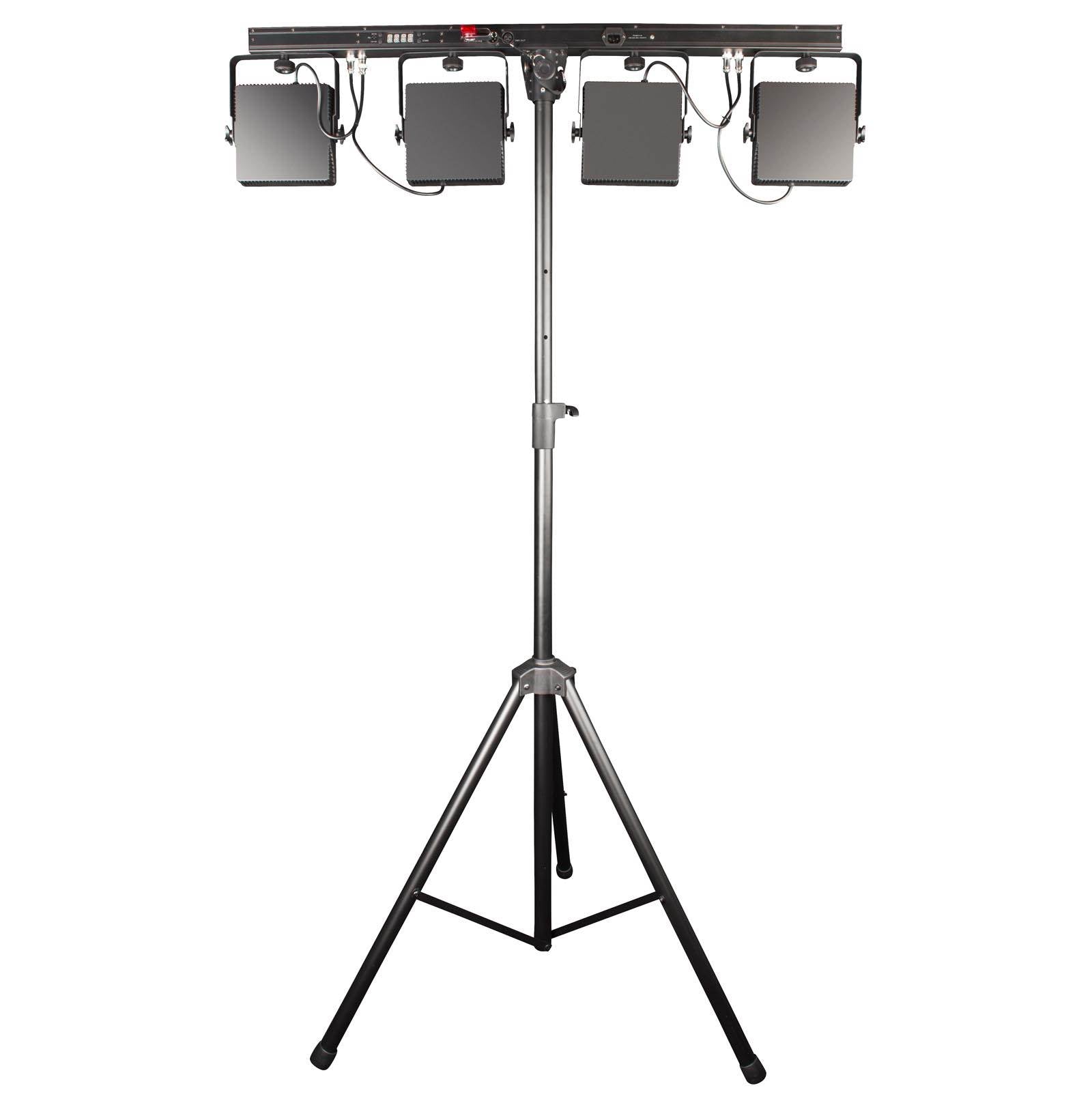

CHAUVET DJ 4BAR USB DMX LED Wash Light System w/Tripod, Travel Bags & Footswitch - 66598
The Chauvet 4BAR USB is a complete washlighting solution for mobile entertainers. D Fi USB compatible for wireless master/slave or DMX control, it also includes a wireless footswitch that can control multiple units.Create synchronized light shows using built in automated programs with the optional IRC 6 remote. It can fill a room with the 4 fully adjustable lights.The Chauvet 4BAR USB includes a tripod and two travel bags, which makes it great for mobile DJs to take this light system from show to show.
Features
- Complete wash lighting solution designed for mobile entertainers
- Out of the box wireless control with included footswitch that controls multiple units
- Achieve total room or stage coverage with 4 individually adjustable heads
- D Fi USB compatibility for wireless master/slave or DMX control
- Easily set up and tear down in minutes using the included tripod, wireless footswitch and carry bags
- Increase mounting options by safely mounting to truss using the built in bolts
- Create large, coordinated light shows with other 4BAR fixtures in master/slave mode
- Sound activated programs dance to the beat of the music
- Easily control static colors and automated programs with the optional IRC 6 remote
- Generate a synchronized show in master/slave mode with easy to access, built in automated programs
- Specifications:
- DMX Channels: 3 or 15
- DMX Connectors: 3 pin XLR
- Light Source: 432 LEDs (144 red, 144 green, 144 blue) 0.25 W, (20 mA), 100,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- PWM Frequency: 1.2 kHz
- Beam Angle: 21°
- Field Angle: 33°
- Illuminance: 725 lux 2 m (per pod)
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto ranging)
- Power and Current: 36 W, 0.6 A 120 V, 60 Hz
- 36 W, 0.3 A 230 V, 50 Hz
- Weight: 10.8 lb (4.9 kg)
- (Controller): 0.8 lb (1.8 kg)
- Size: 47.4 x 2 x 11 in (1,205 x 50 x 285 mm)
- (Controller): 12.4 x 5.2 x 1.5 in (315 x 132 x 38 mm)
- Stand Height: 7 ft 4 in (2.2 m)
- Approvals: CE
- Optional Controllers: IRC 6, D Fi USB

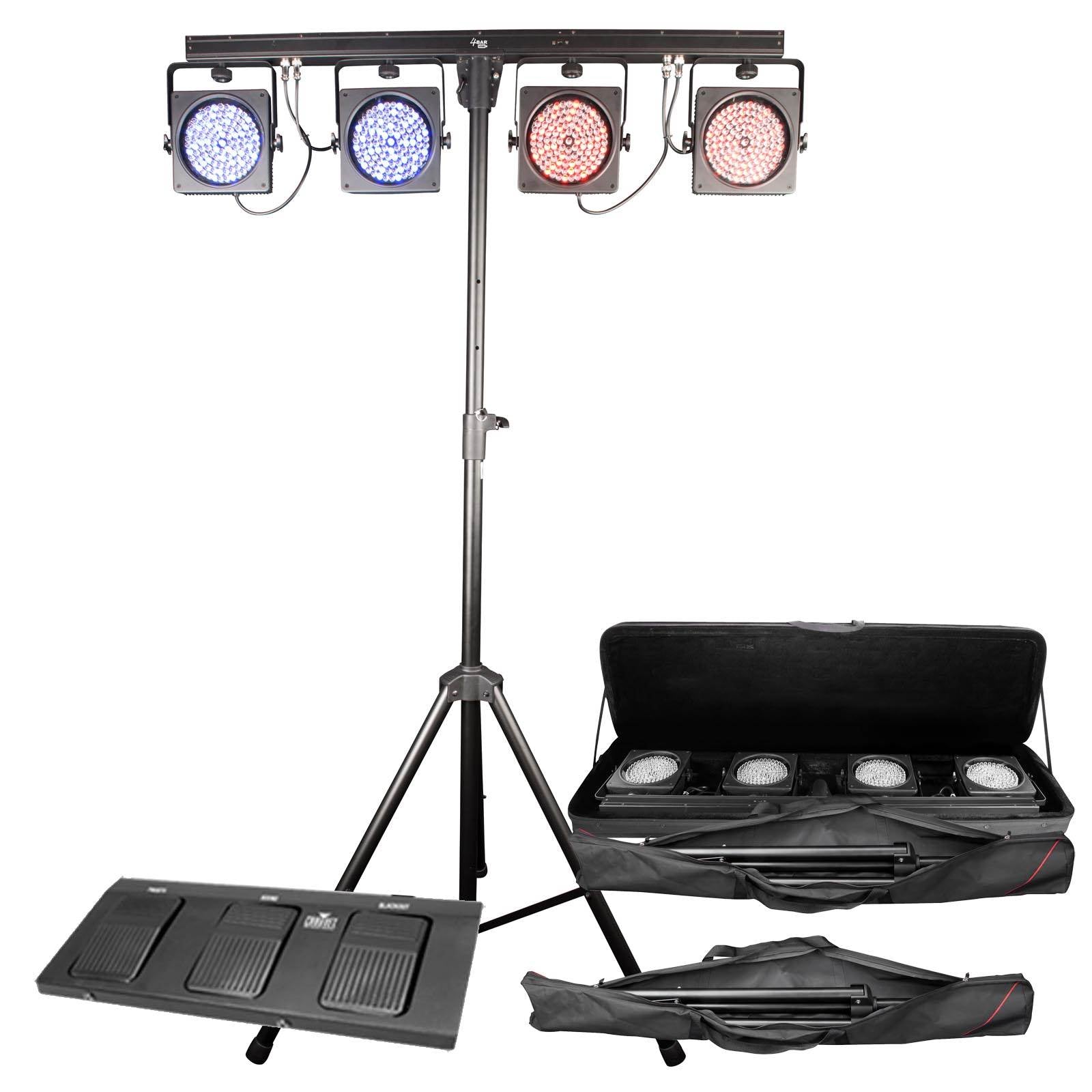

- Included:
- 4BAR USB
- Power cord

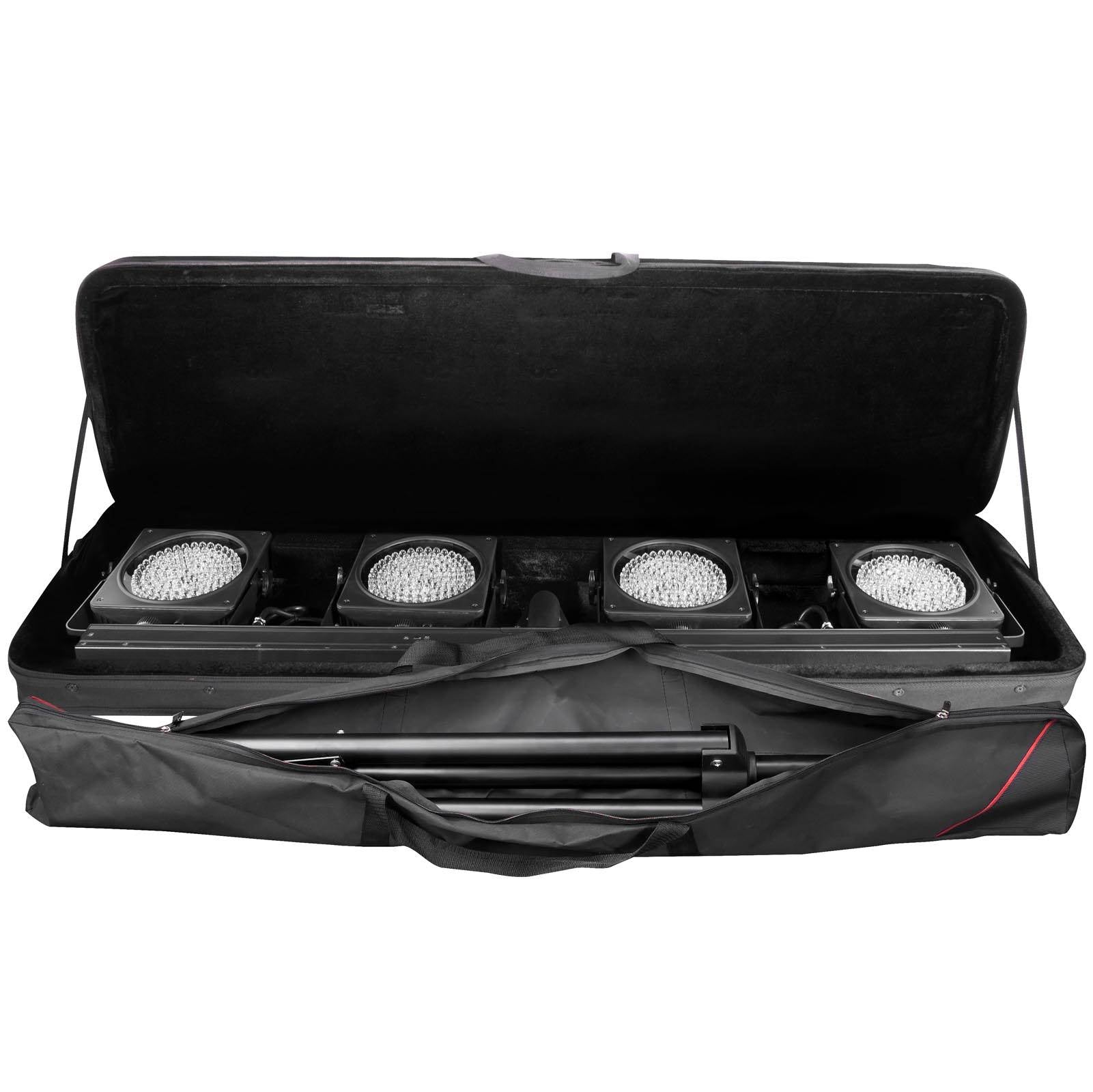

- 4BAR carry bag

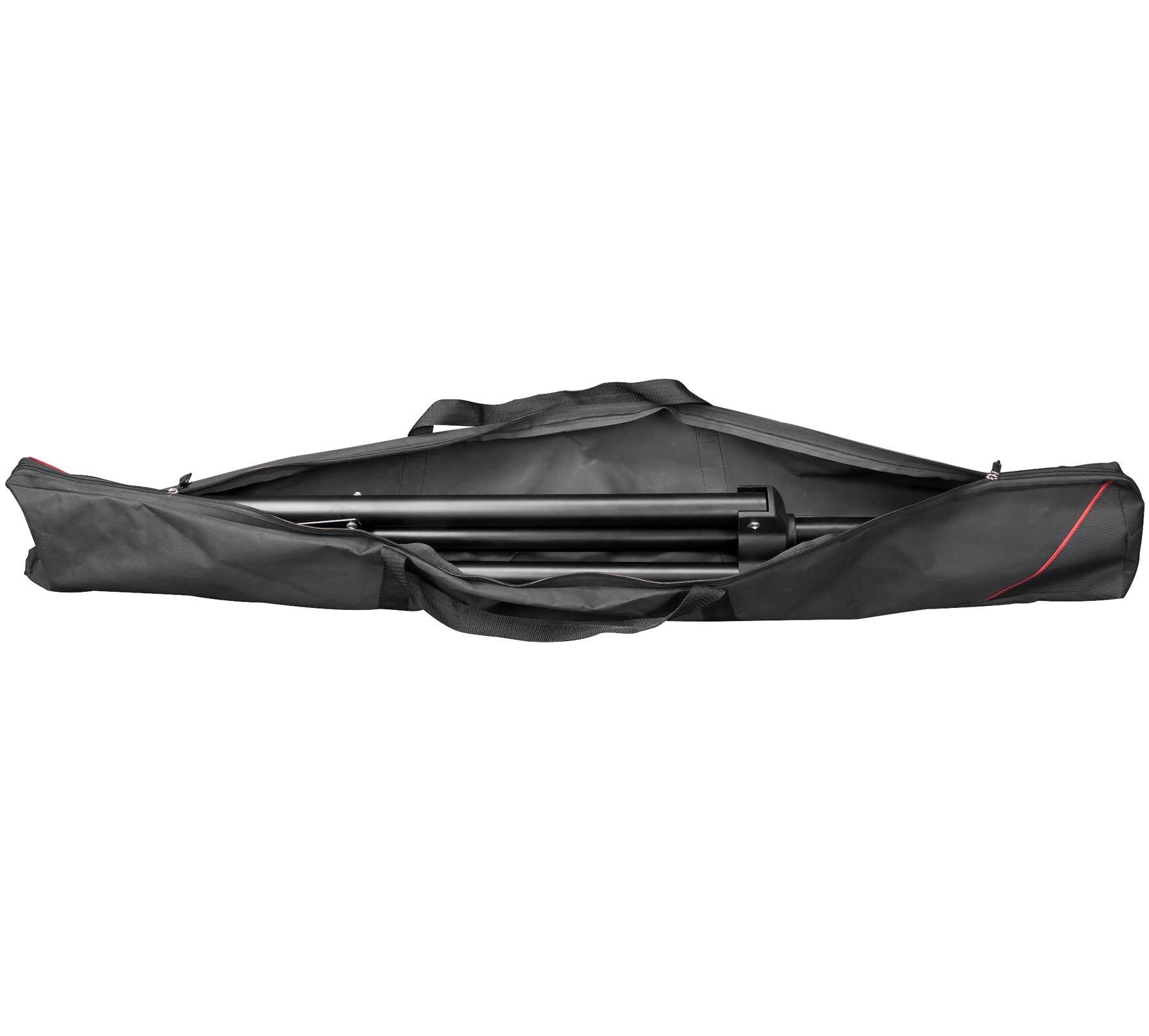

- Stand carry bag
- Tripod
- Wireless Footswitch
- Quick Reference Guide / Warranty card
- Condition: New
- Part number: 4BAR USB
What our Expect Think
-

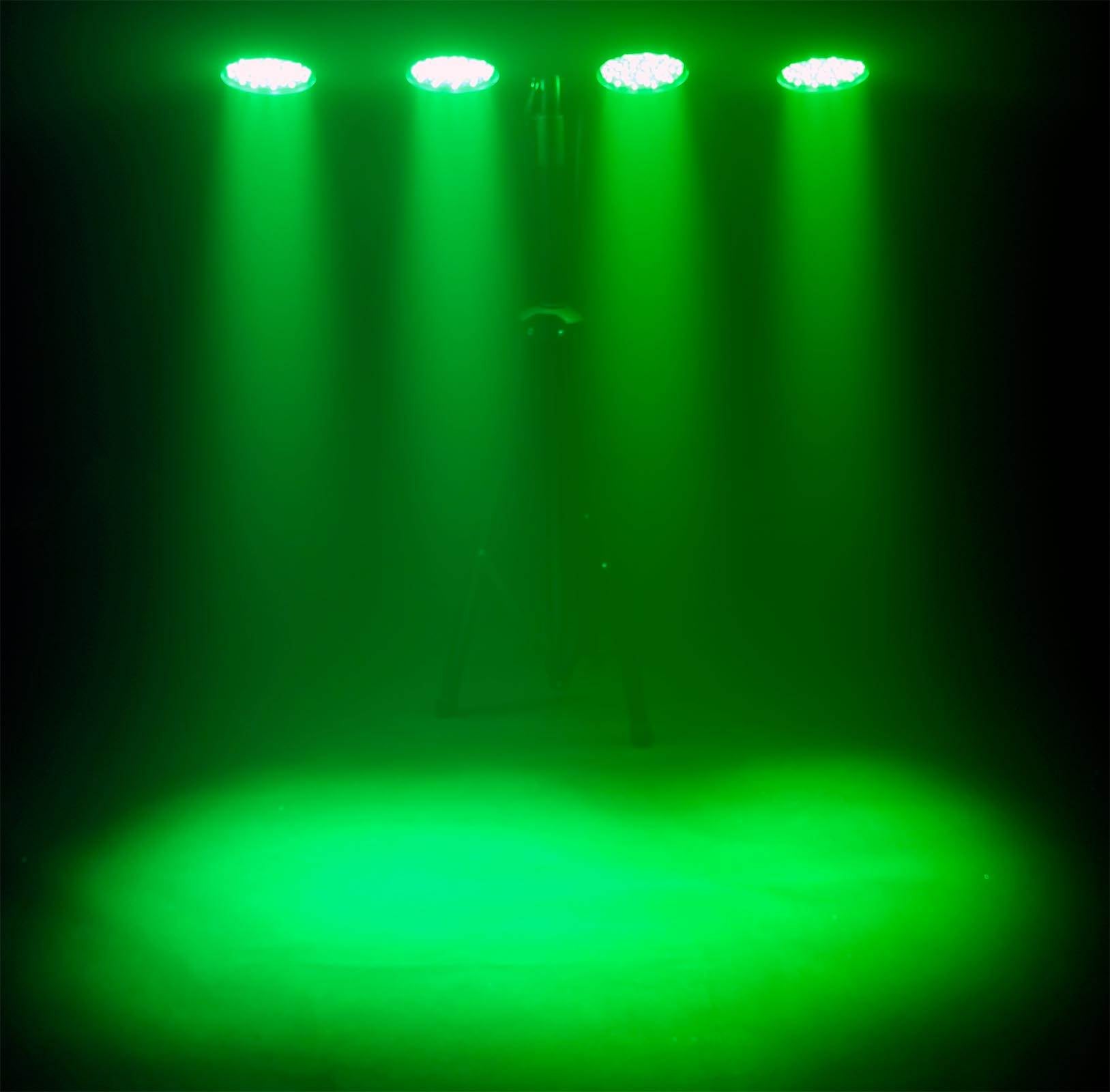

4-Head LED Wash System – Produces vivid, color-rich washes for stage and event lighting.
-
Multiple Control Options – Operates via DMX, footswitch, IR remote, or sound activation.
-
USB Compatibility – Works with Chauvet D-Fi USB for wireless DMX control.
-
Fast & Easy Setup – Includes a tripod stand, travel bags, and mounting brackets for quick deployment.
-
Energy-Efficient LEDs – Low power consumption with high-output performance.
Q&A
Q: What is included with the CHAUVET DJ 4BAR USB?
A: The system comes with four LED wash lights pre-mounted on a bar, a tripod stand, a footswitch, a travel bag, and USB compatibility for wireless DMX control.
Q: How can the lights be controlled?
A: It supports DMX, wireless USB D-Fi compatibility, footswitch, sound-activated, and auto modes, offering flexible control options.
Q: Is it easy to set up and transport?
A: Yes, it's a plug-and-play system with quick setup and breakdown, and includes a travel bag for easy transport.
Q: What type of events is this lighting system best for?
A: Ideal for DJs, bands, weddings, stage performances, and mobile entertainers needing a professional and compact lighting solution.
Maintenance Tips
-
Clean LED Lenses – Use a microfiber cloth to remove dust for maximum brightness.
-
Inspect Cables & Connections – Check for wear or loose fittings to prevent power issues.
-
Test Footswitch & DMX Controls – Ensure all functions respond properly before use.
-
Secure Tripod & Mounts – Tighten screws and confirm stability to prevent accidents.
-
Store in Travel Bags – Use the included bags to protect components during transport.
