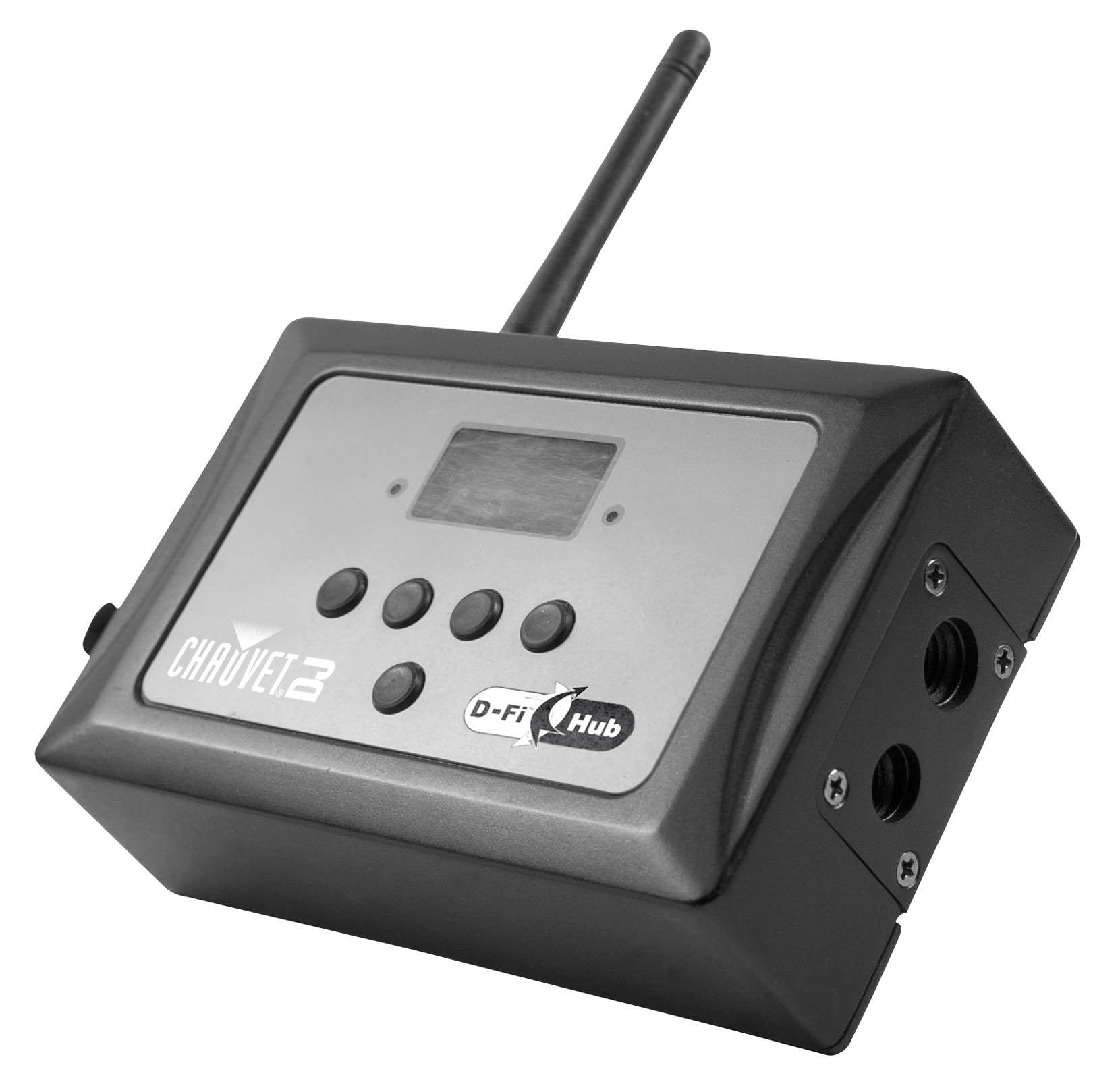

Chauvet DJ D-FI Hub Compact Wireless 2.4 GHz DMX Transmitter Receiver (2 Pack) - 113116
The Chauvet D Fi Hub is a compact, easy to use DMX unit that functions as either a transmitter or receiver. For more stable communication between units, it operates on a 2.4 GHz frequency range and includes an “auto” function which automatically finds the best frequency and syncs the units effortlessly.With the Chauvet D Fi Hub you can wirelessly synchronize an unlimited number of D Fi™ ready fixtures simultaneously, and operate them using the simple navigation on the OLED digital display.
Features
- Compact, easy to use wireless D Fi™ transmitter and receiver in a single unit
- Wirelessly synchronize an unlimited number of D Fi™ ready fixtures and receivers simultaneously
- Built in options include manual or automatic channel selection

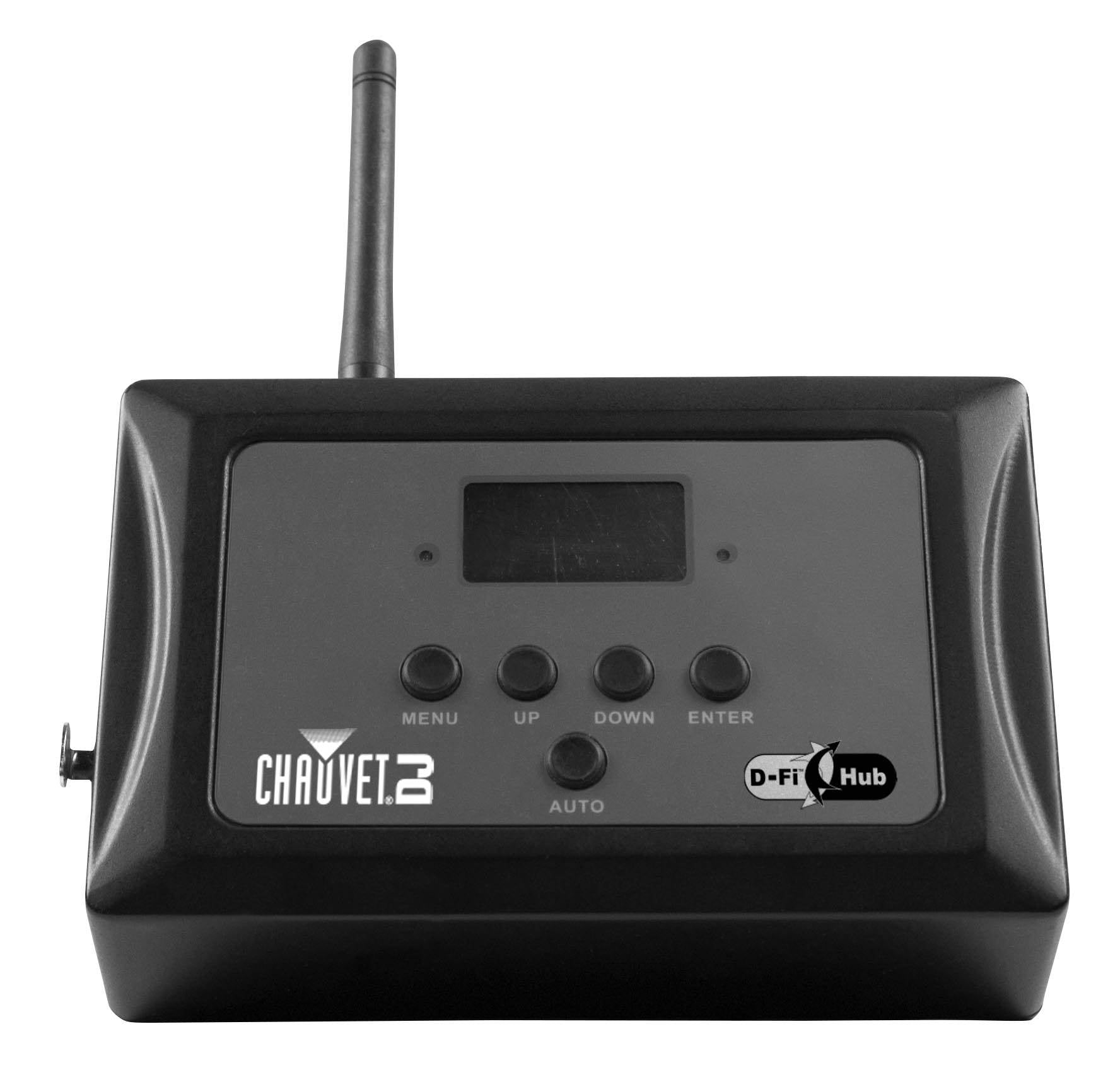

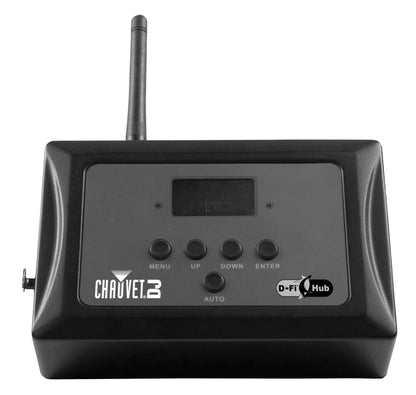

- Simple navigation and text readout using the OLED digital display

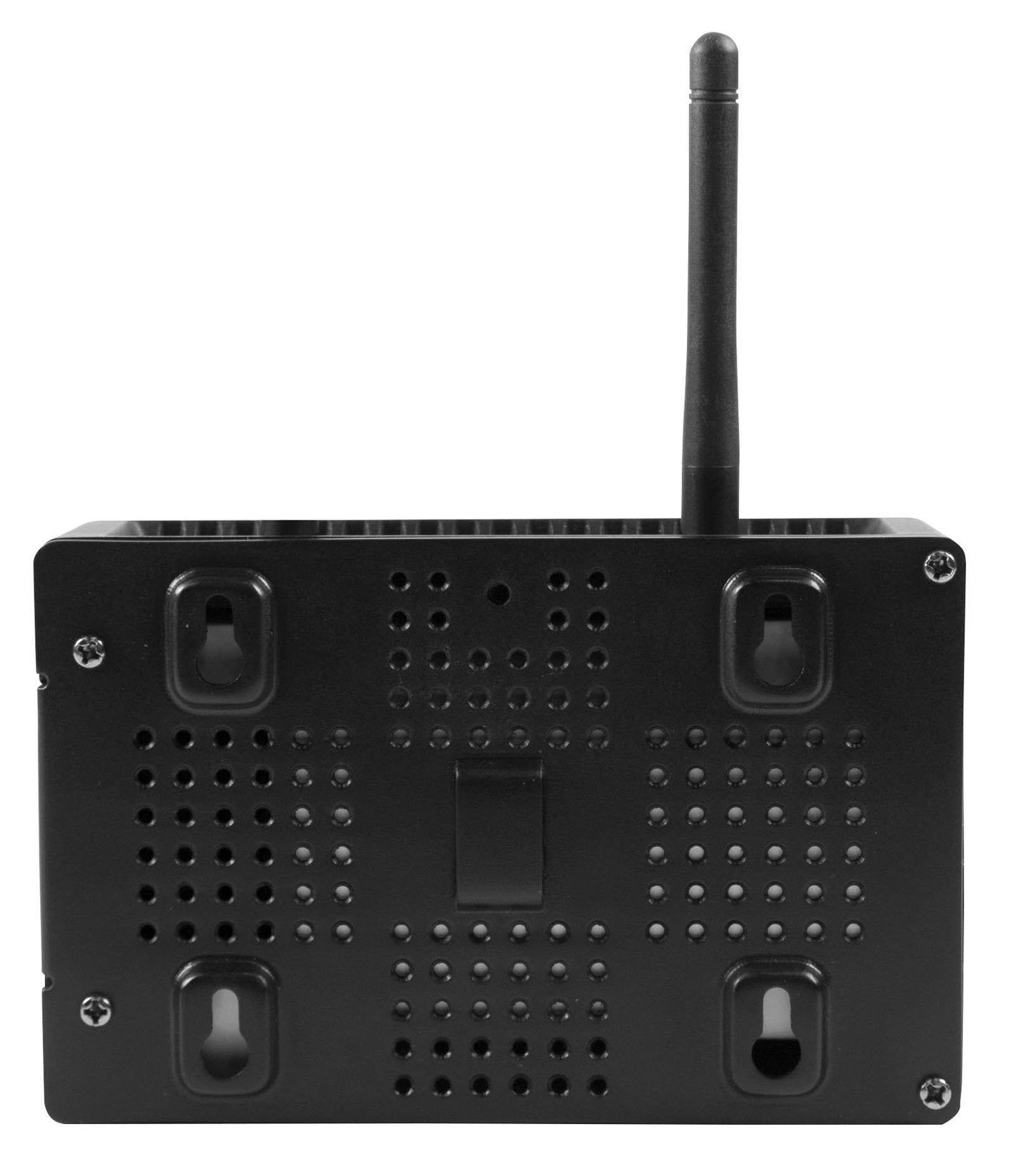

- Mounting options include built-in hook and loop fastener strap, keyhole mounting holes, M10 and M12 threaded holes for direct mounting to truss
- Fully FCC/RTTE compliant
- Specifications:

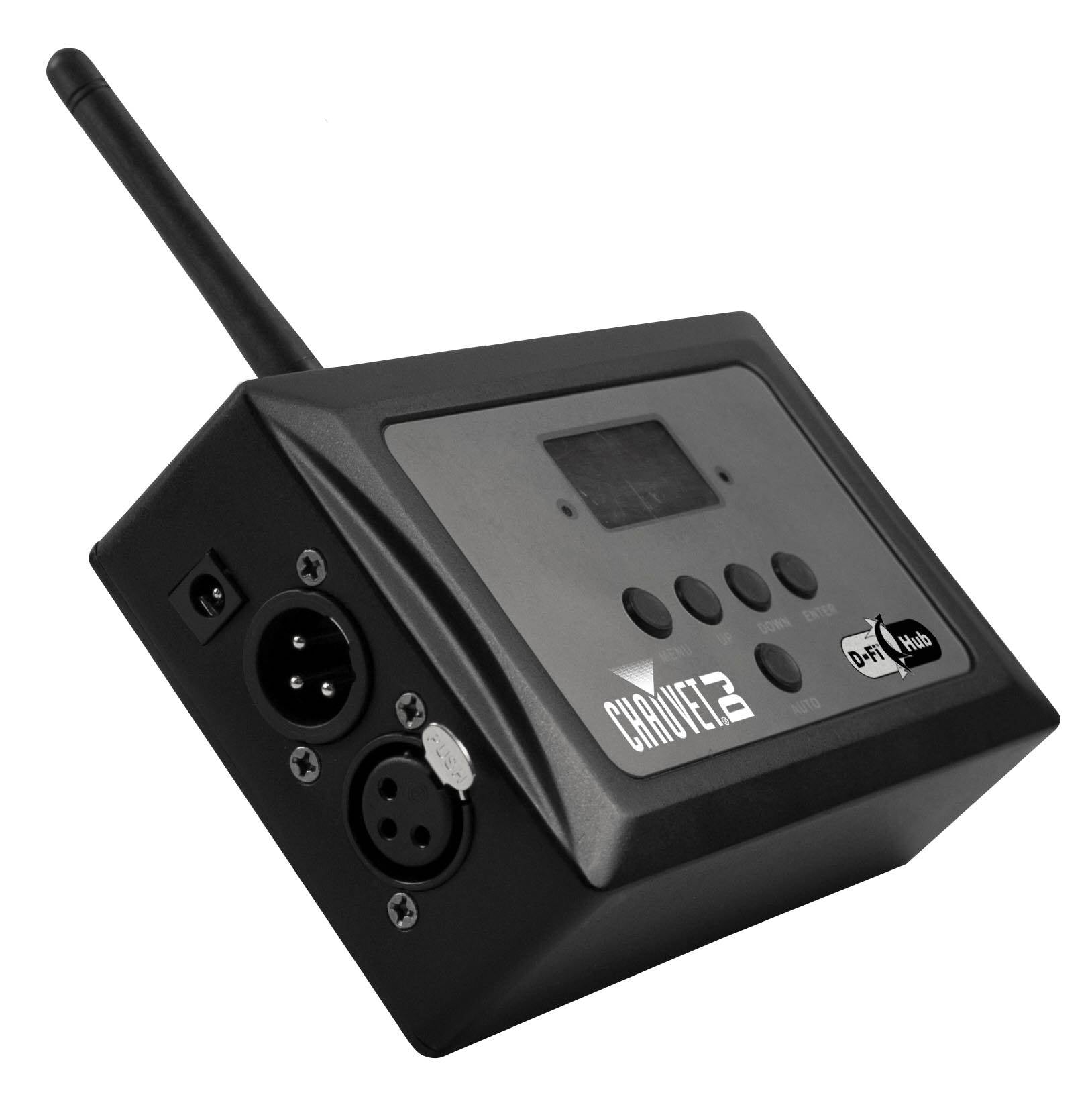

- DMX Connectors: 3 pin XLR
- Operating Frequency: 2.412 to 2.484 GHz
- Antenna connection: RP SMA
- Max Unobstructed Distance: 656 feet
- Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
- Power and Current: 4 W, 0.1 A @ 120 V, 60 Hz
- Power and Current: 4 W, 0.1 A @ 230 V, 50 Hz
- Approvals: CE, FCC
- Dimensions: 4 x 3.2 x 1.6 inches
- Weight: 1.2 pounds

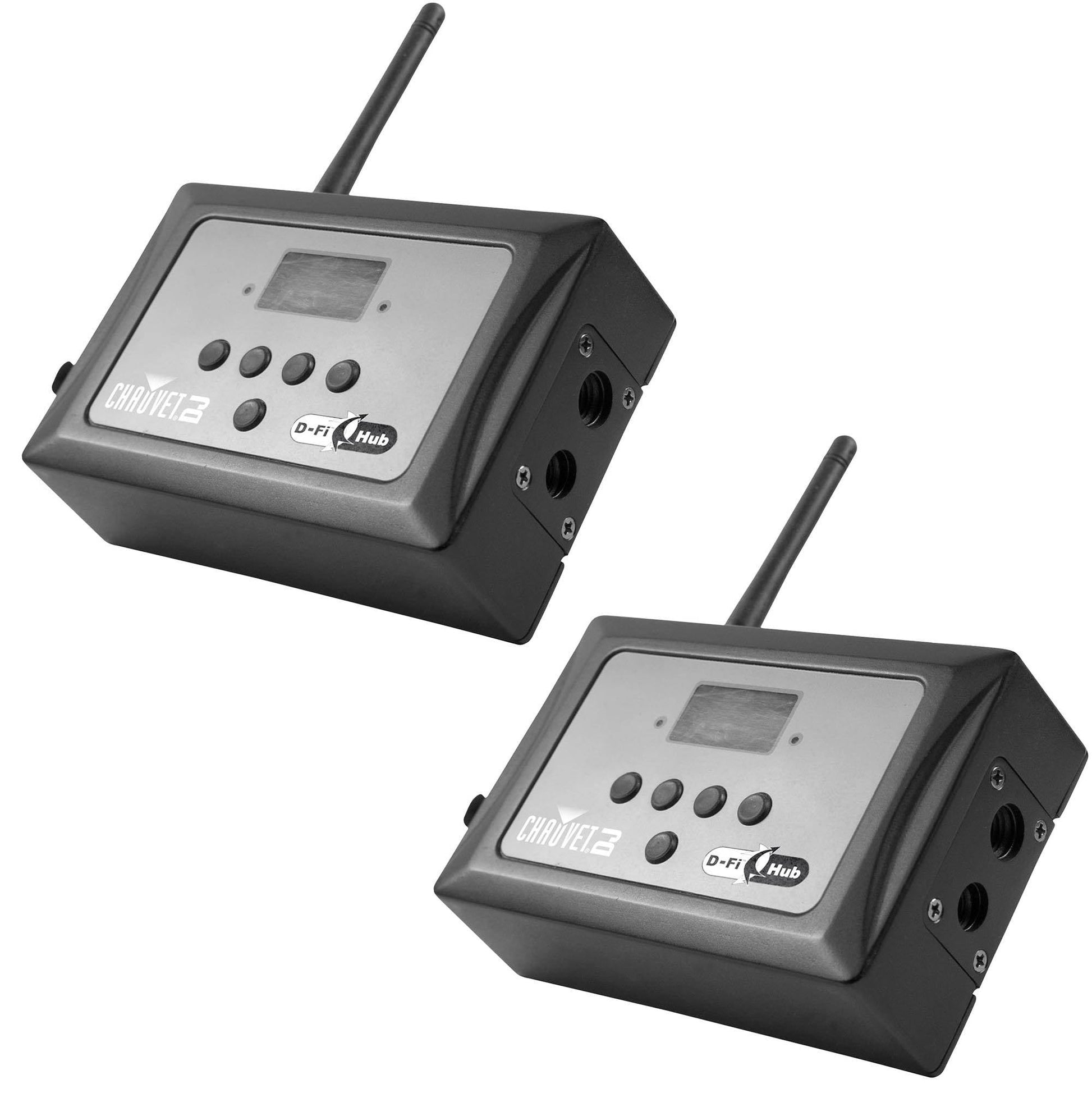

- Quantity: 2
What Our Experts Think
-
Wireless DMX Control – Enables cable-free DMX communication for seamless lighting control.
-
2.4 GHz Frequency – Ensures stable, interference-free performance across multiple fixtures.
-
Compact & Portable – Lightweight, easy to carry, and perfect for mobile DJs and stage setups.
-
Plug-and-Play Setup – Simple operation with auto-pairing for quick integration into any DMX system.
-
2-Pack for Extended Range – Expands signal coverage and allows greater flexibility for large event spaces.
Q&A
Q: What is the Chauvet DJ D-FI Hub?
A: The D-FI Hub is a compact, wireless DMX transmitter and receiver system that allows you to control lighting and effects wirelessly using 2.4 GHz technology. This pack includes two units for seamless operation.
Q: How does the D-FI Hub work?
A: It transmits DMX signals wirelessly, eliminating the need for traditional DMX cables, providing freedom of movement and easy setup for lighting rigs.
Q: Is it compatible with all Chauvet DJ products?
A: Yes, it works with most Chauvet DJ lighting and DMX-controlled devices for wireless control over lighting systems.
Q: What is the range of the wireless signal?
A: It offers a reliable 2.4 GHz wireless connection with a range of up to 300 meters in optimal conditions.
Q: Is the system easy to use?
A: Yes, it offers plug-and-play functionality, making it simple to set up and operate without complex configurations.
Q: What are the key benefits?
A: Wireless DMX control, simple setup, eliminates cables, reliable 2.4 GHz signal, and enhanced flexibility for live events.
Maintenance Tips
-
Keep Units Clean – Wipe with a microfiber cloth to prevent dust buildup and maintain signal clarity.
-
Ensure Strong Signal – Minimize interference by keeping a clear line-of-sight between transmitter and receiver.
-
Check DMX Connections – Inspect ports and cables for wear and ensure secure connections.
-
Avoid Overheating – Store in a cool, dry place and keep vents unobstructed.
-
Test Before Use – Regularly test functionality to confirm proper signal transmission.
-
Use Compatible Equipment – Ensure connected devices support 2.4 GHz wireless DMX for seamless performance.
