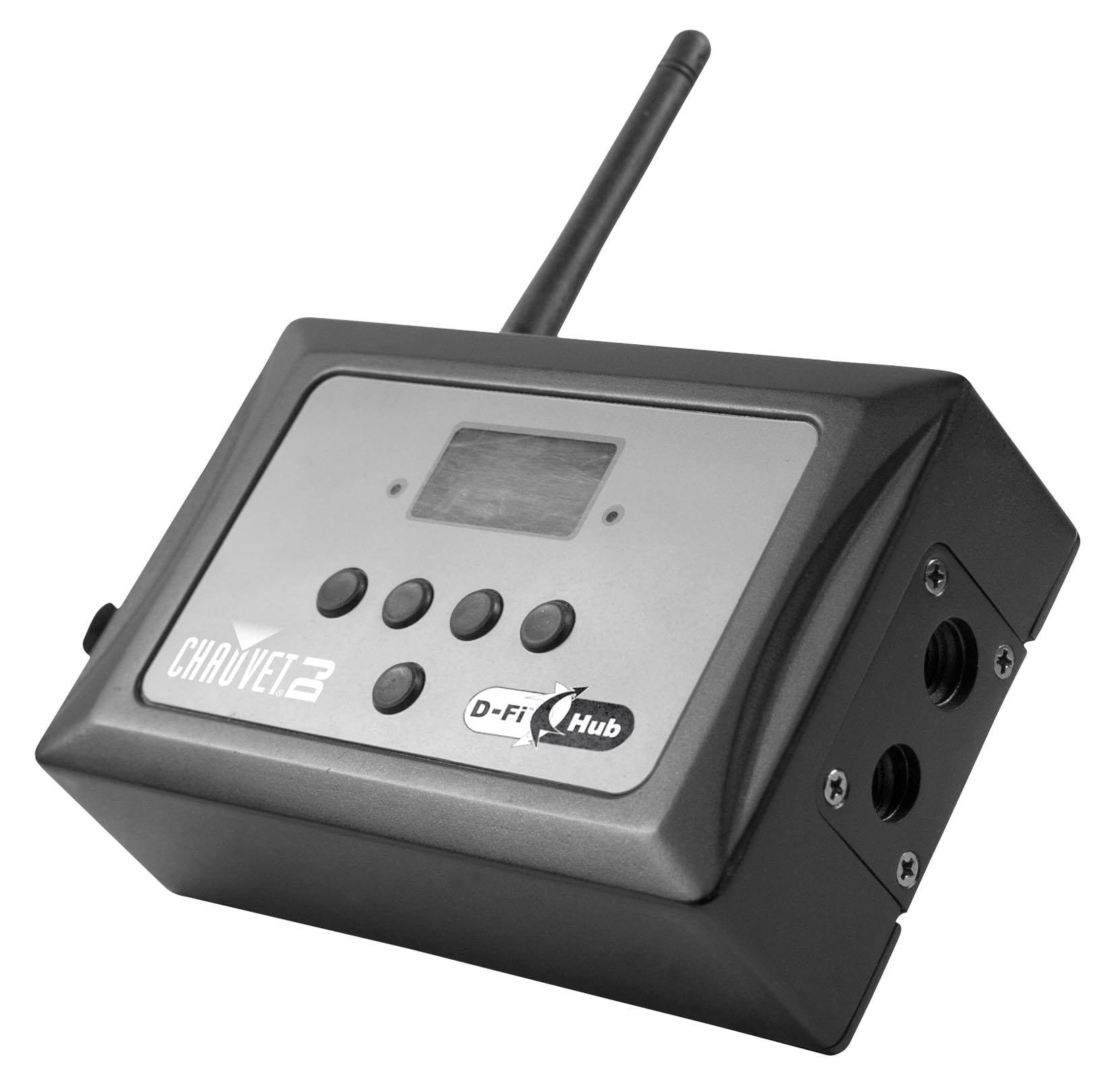

Chauvet DJ D-FI Hub Compact Wireless 2.4 GHz DMX Transmitter Receiver - 113116
The Chauvet D Fi Hub is a compact, easy to use DMX unit that functions as either a transmitter or receiver. For more stable communication between units, it operates on a 2.4 GHz frequency range and includes an “auto” function which automatically finds the best frequency and syncs the units effortlessly.With the Chauvet D Fi Hub you can wirelessly synchronize an unlimited number of D Fi™ ready fixtures simultaneously, and operate them using the simple navigation on the OLED digital display.
Features
- Compact, easy to use wireless D Fi™ transmitter and receiver in a single unit
- Wirelessly synchronize an unlimited number of D Fi™ ready fixtures and receivers simultaneously
- Built in options include manual or automatic channel selection

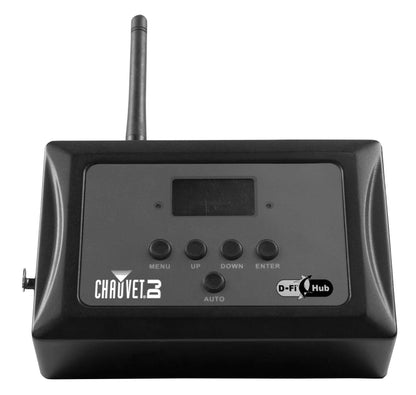

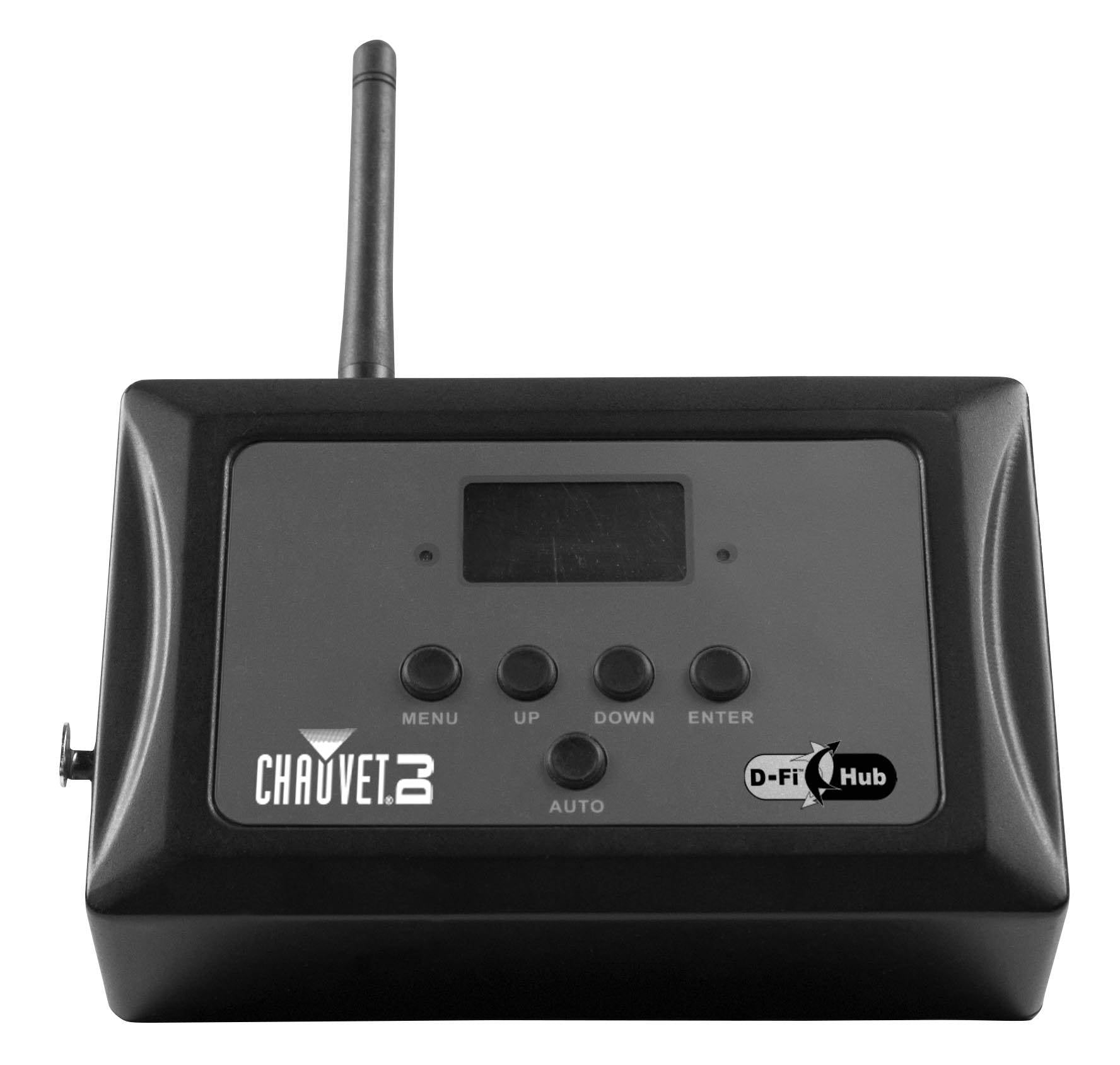

- Simple navigation and text readout using the OLED digital display

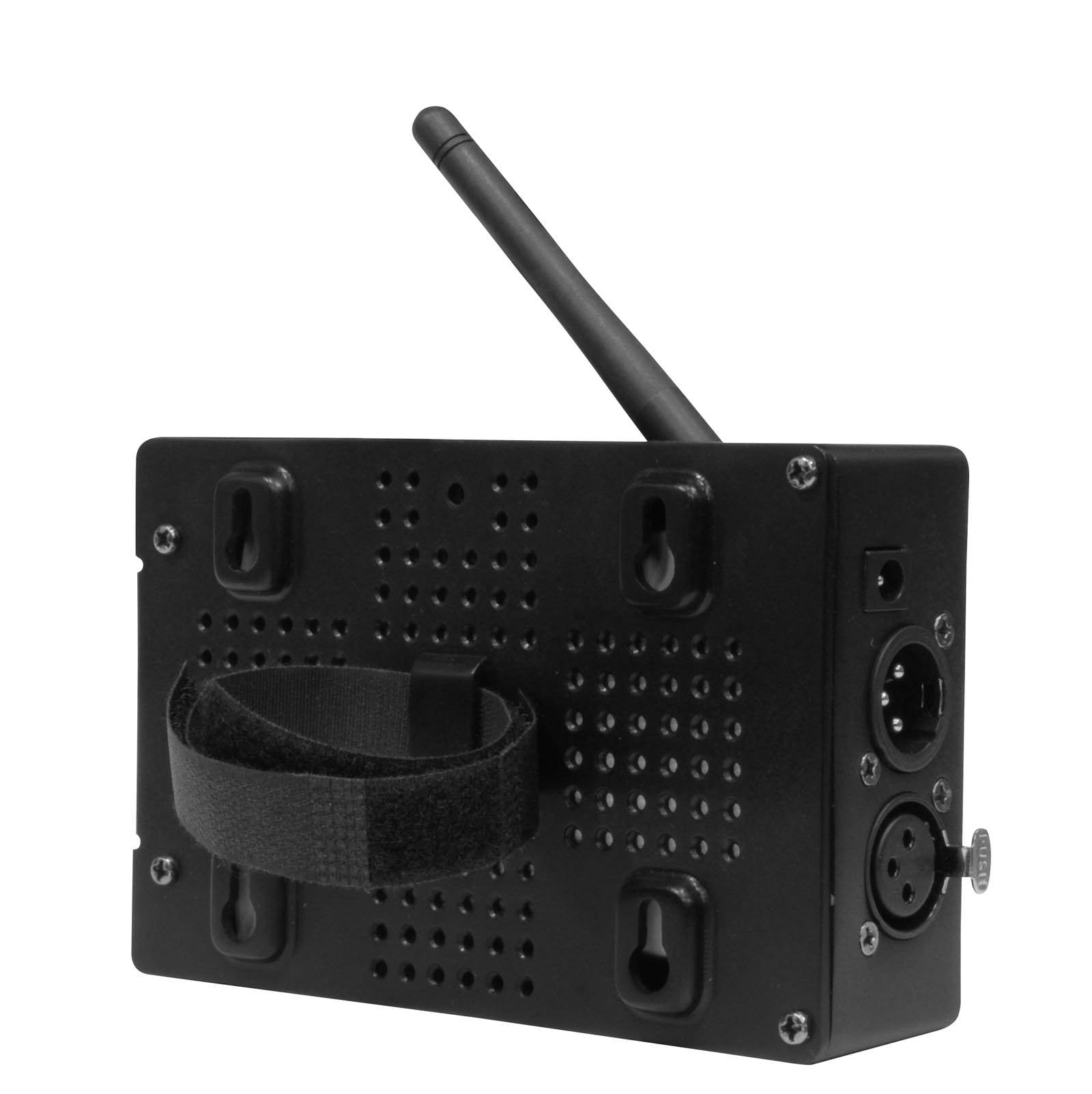

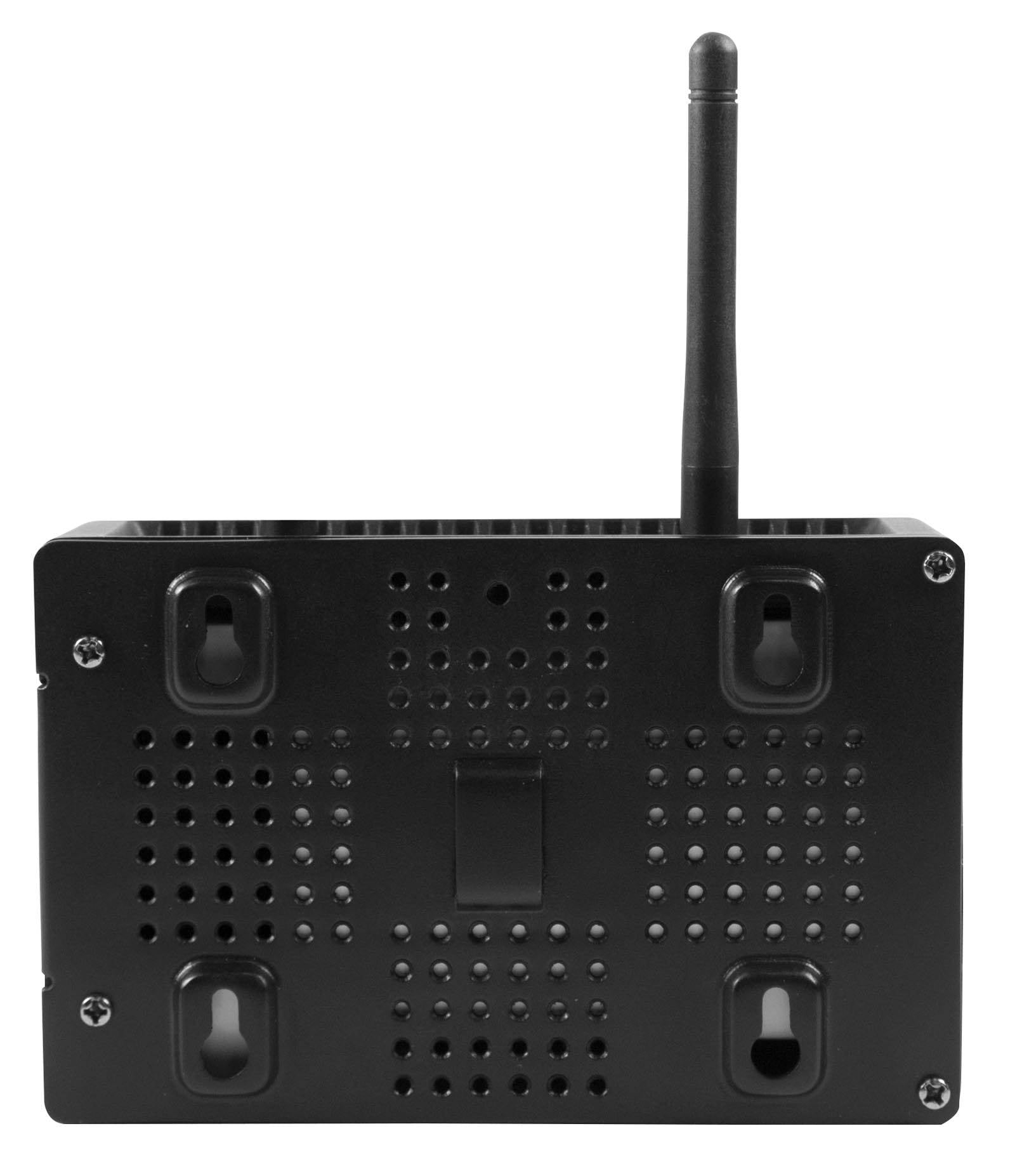

- Mounting options include built-in hook and loop fastener strap, keyhole mounting holes, M10 and M12 threaded holes for direct mounting to truss
- Fully FCC/RTTE compliant
- Specifications:

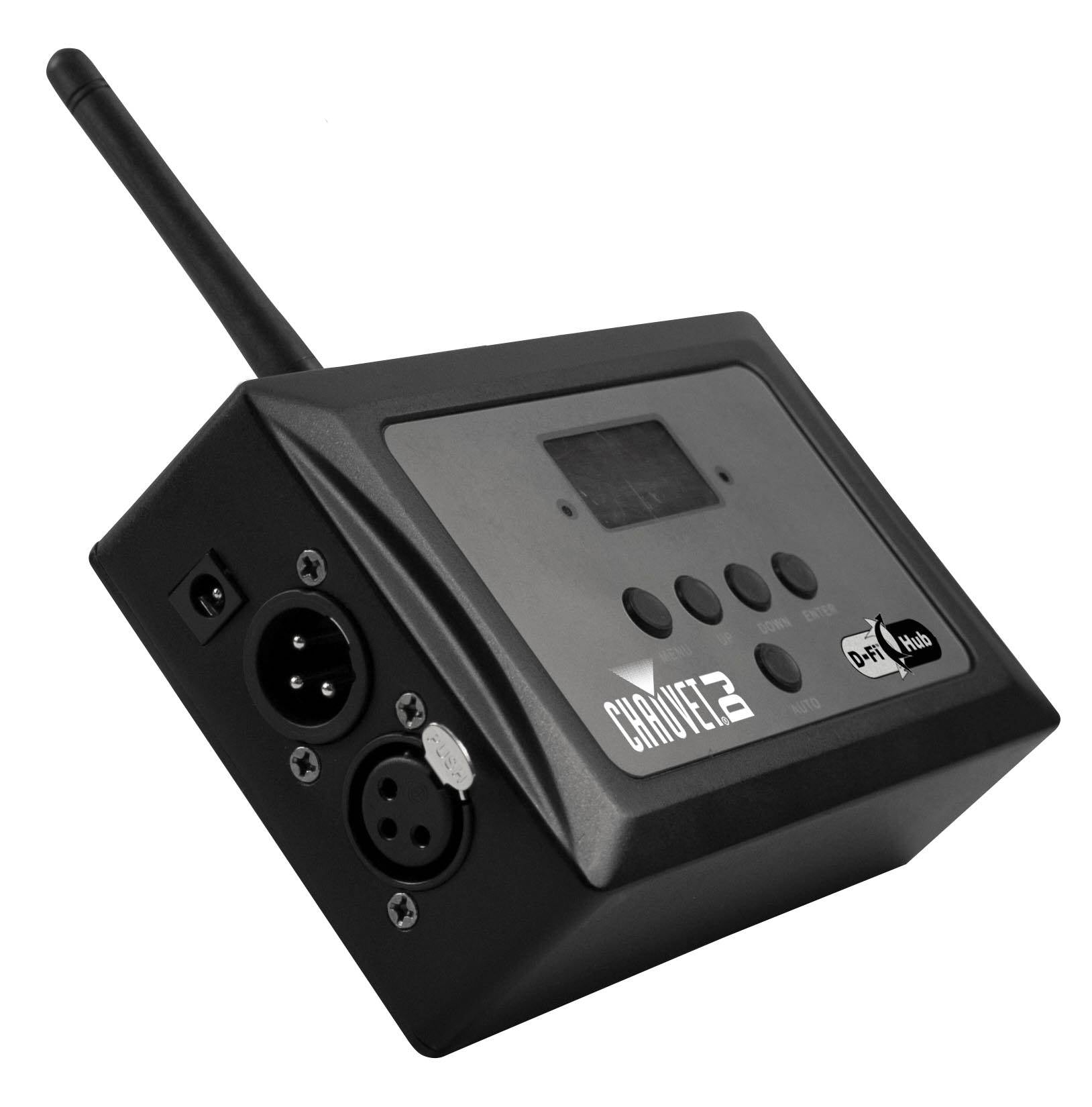

- DMX Connectors: 3 pin XLR
- Operating Frequency: 2.412 to 2.484 GHz
- Antenna connection: RP SMA
- Max Unobstructed Distance: 656 feet
- Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
- Power and Current: 4 W, 0.1 A 120 V, 60 Hz
- Power and Current: 4 W, 0.1 A 230 V, 50 Hz
- Approvals: CE, FCC
- Dimensions: 4 x 3.2 x 1.6 inches
- Weight: 1.2 pounds

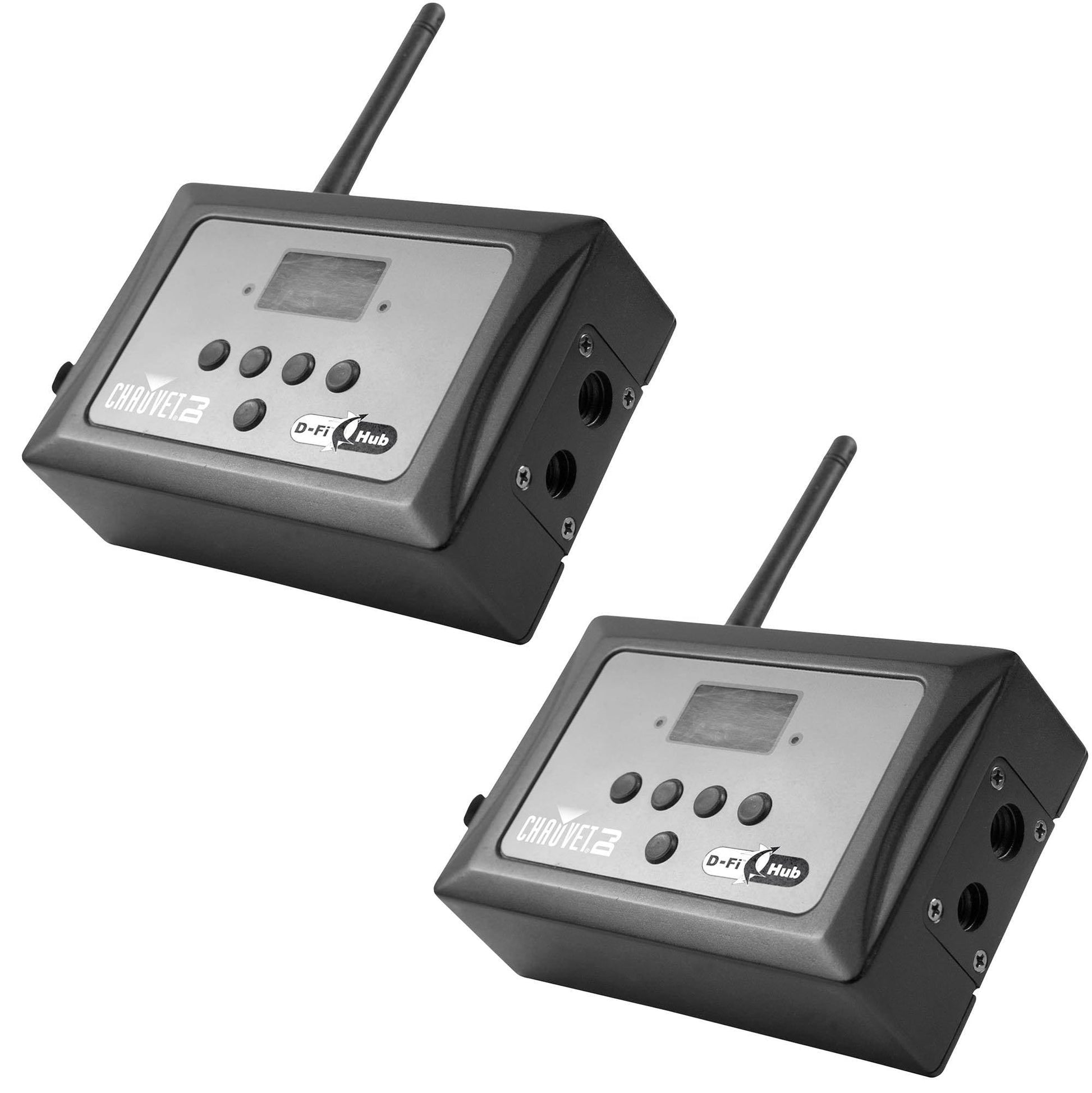

- Quantity: 2
What our Expect Think
-
Wireless DMX – Operates on a 2.4 GHz frequency, eliminating the need for physical DMX cables.
-
Compact & Portable – Small, lightweight design makes it easy to transport and set up for events.
-
Multiple DMX Channels – Supports up to 512 DMX channels for full control over your lighting systems.
-
Easy Pairing – Quick setup with automatic pairing between transmitter and receiver for smooth operation.
-
Reliable Performance – Provides a strong and stable signal for reliable wireless communication in crowded environments.
Q&A
Q: What is the CHAUVET DJ D-FI Hub?
A: The D-FI Hub is a compact wireless DMX transmitter and receiver that allows for wireless control of lighting fixtures over a 2.4 GHz wireless connection, eliminating the need for DMX cables.
Q: How does the D-FI Hub work?
A: It uses wireless DMX technology to transmit and receive control signals, enabling you to control your lights remotely, without the hassle of wires.
Q: What type of lighting equipment is compatible with the D-FI Hub?
A: The D-FI Hub is compatible with any DMX-controlled lighting fixture, including LEDs, moving heads, and effects lights.
Q: Is it easy to set up?
A: Yes, the D-FI Hub is plug-and-play, making setup simple and fast, especially for mobile DJs and event planners.
Maintenance Tips
-
Check Battery Levels – Ensure batteries are fully charged or fresh to maintain strong wireless connection.
-
Inspect Connections – Verify that all DMX cables are properly connected and secure.
-
Keep Antennas Clear – Avoid blocking antennas to ensure optimal signal transmission.
-
Store in a Dry Place – Keep the device in a cool, dry location to prevent damage from moisture.
-
Regularly Update Firmware – Ensure the device is running the latest firmware for enhanced performance.
