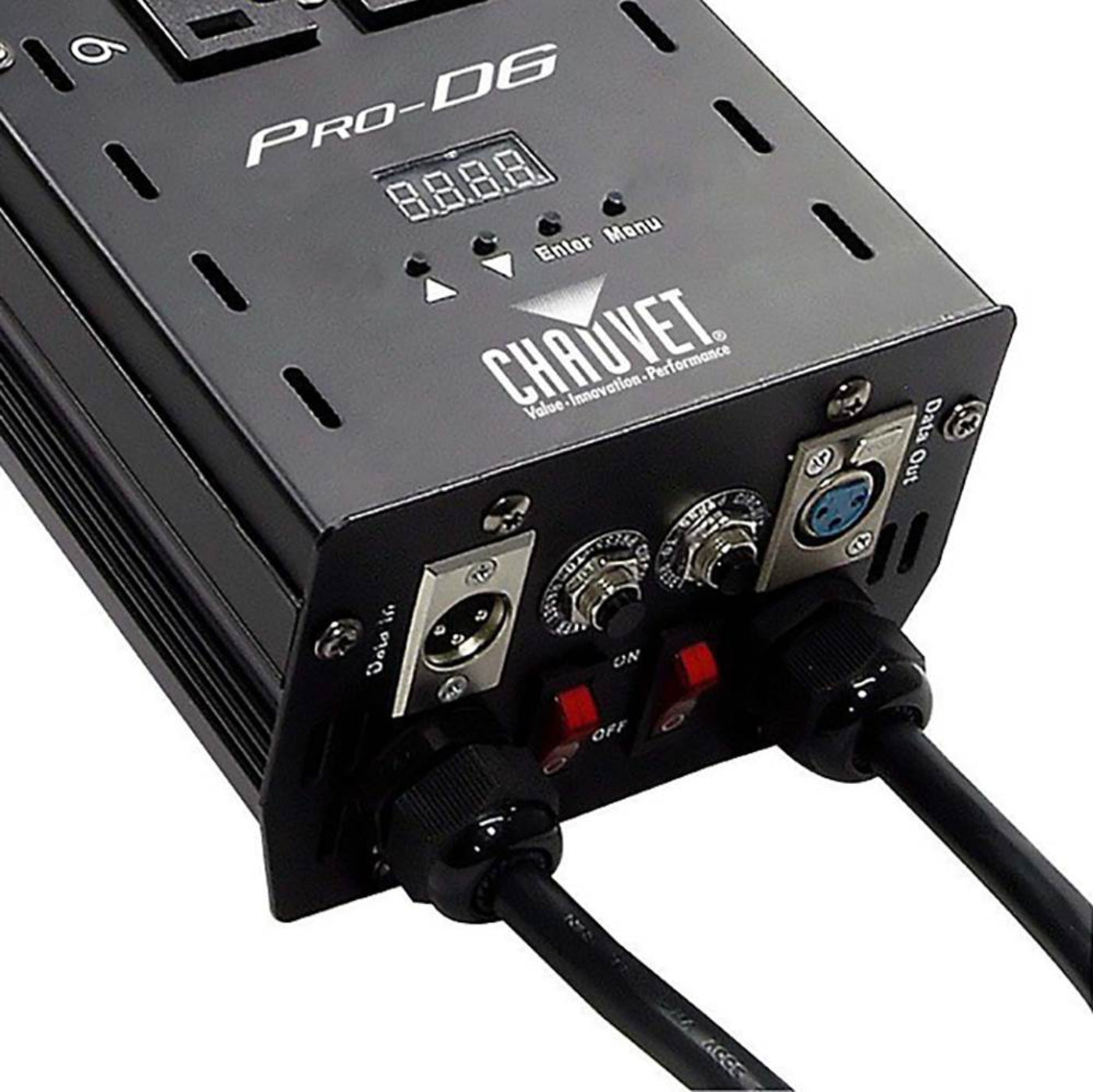

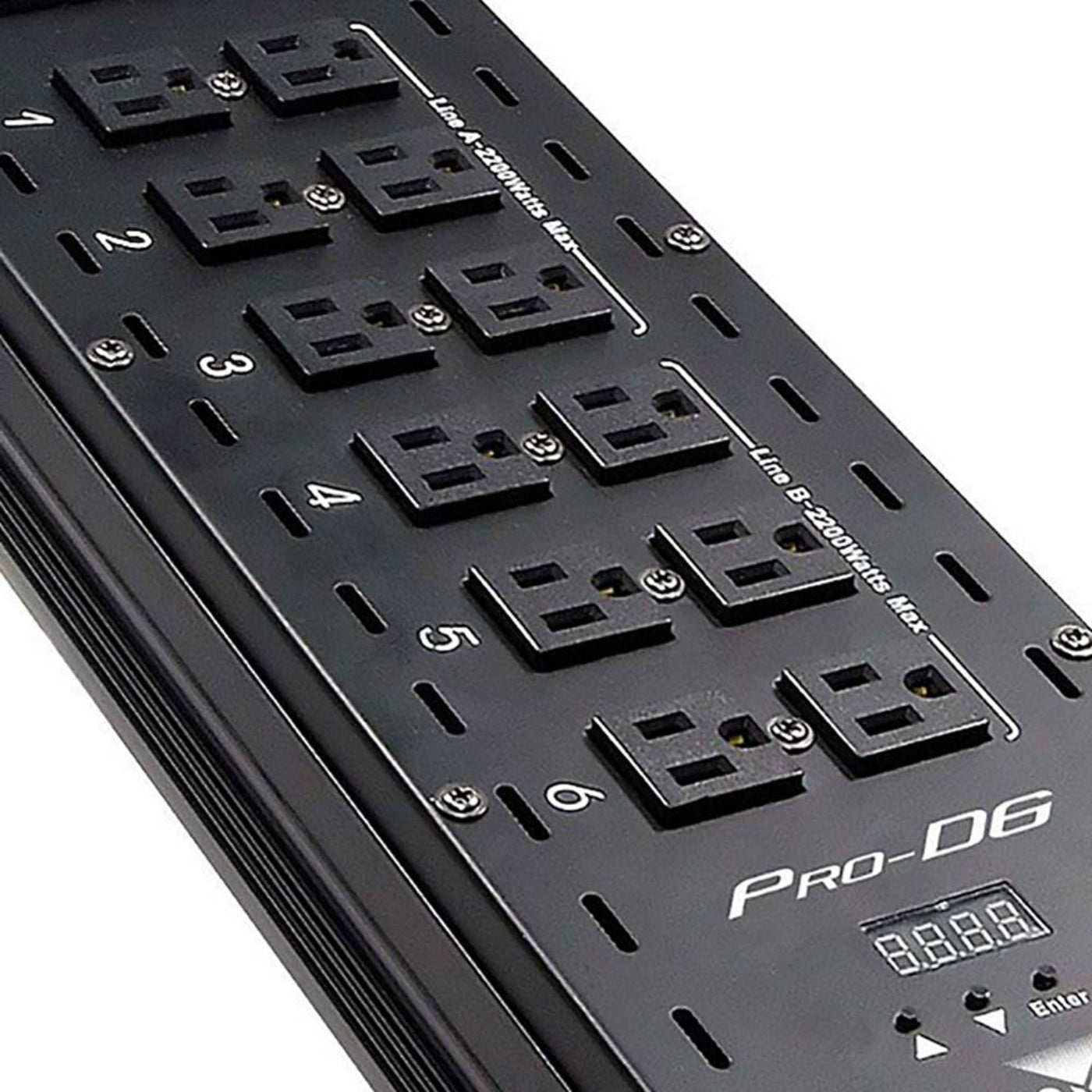

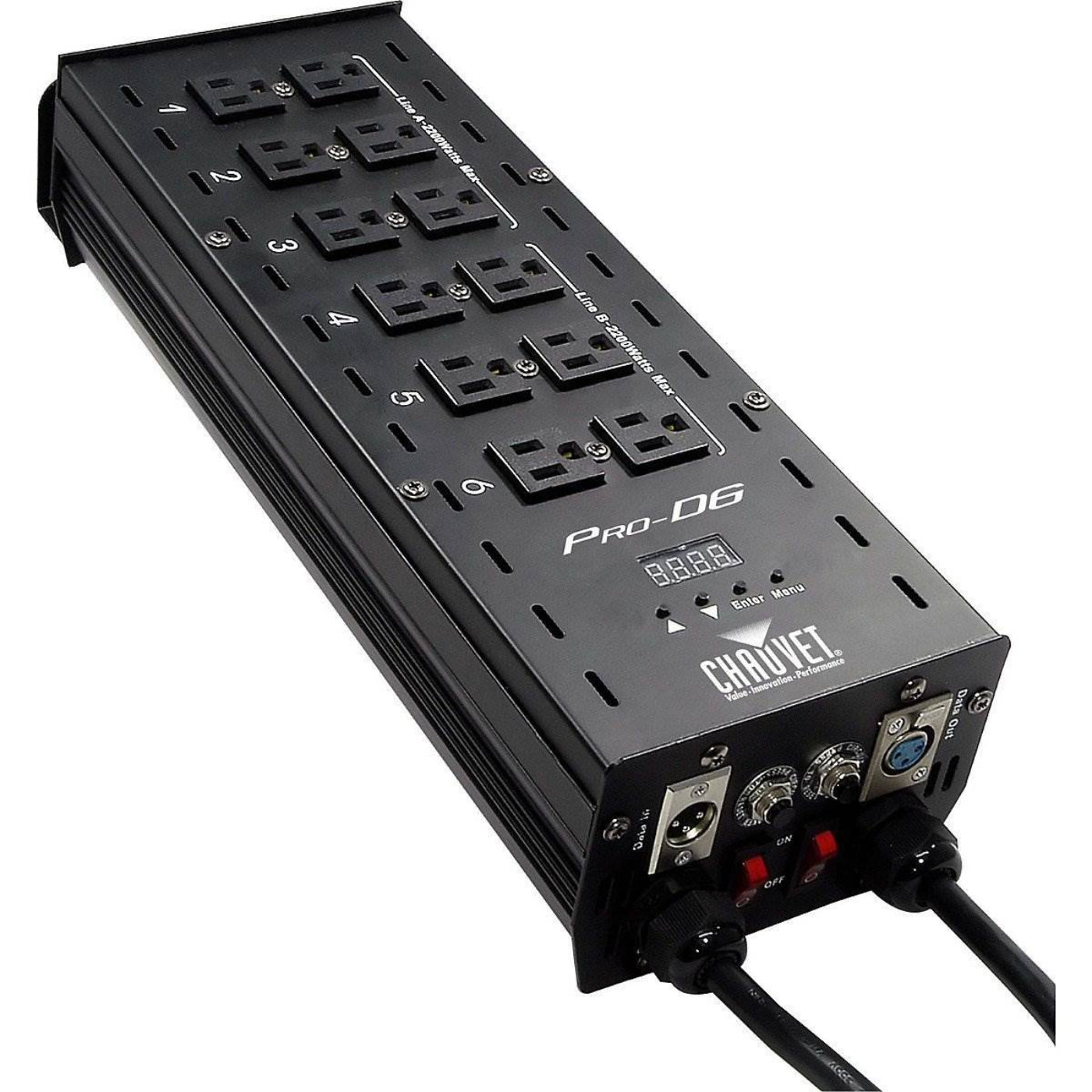

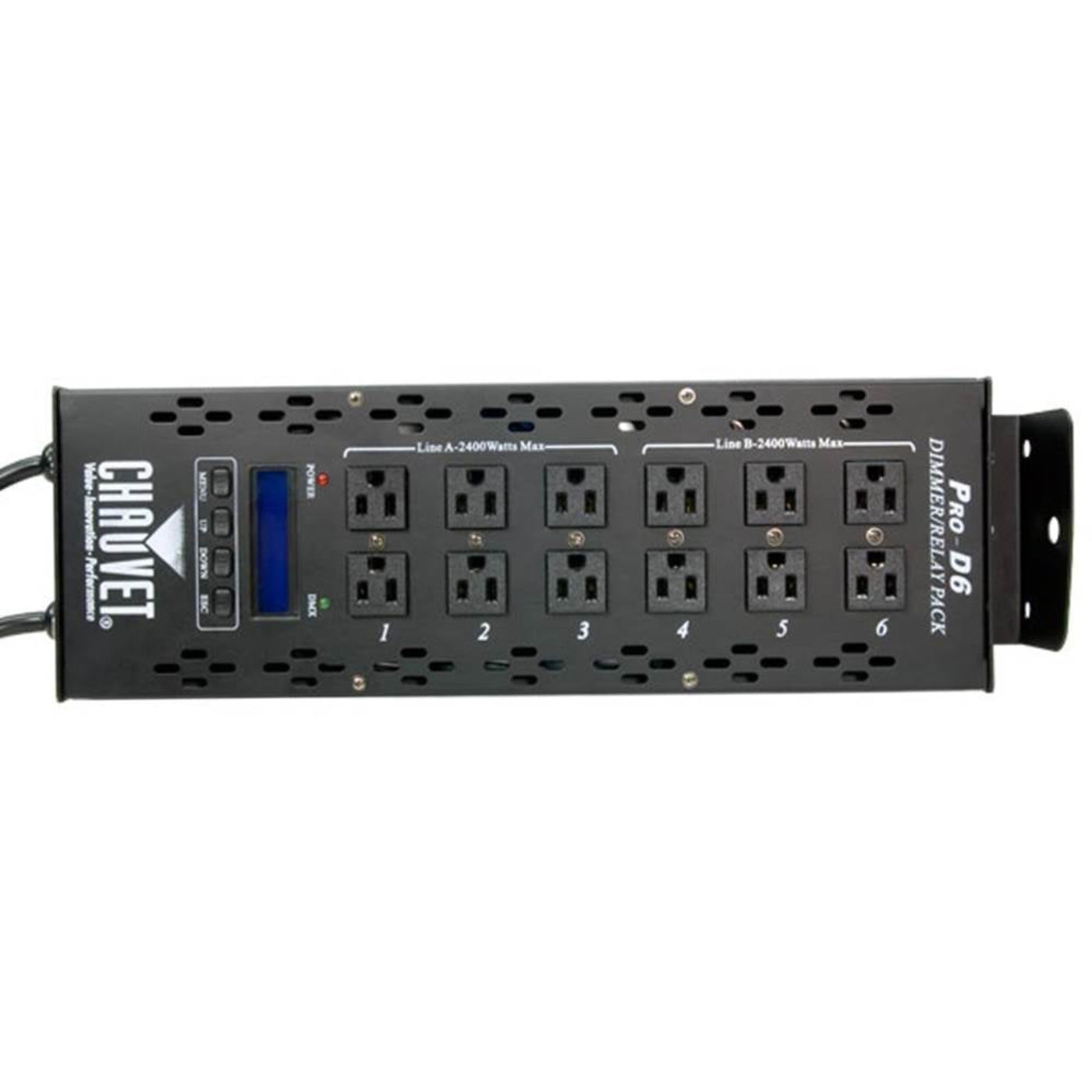

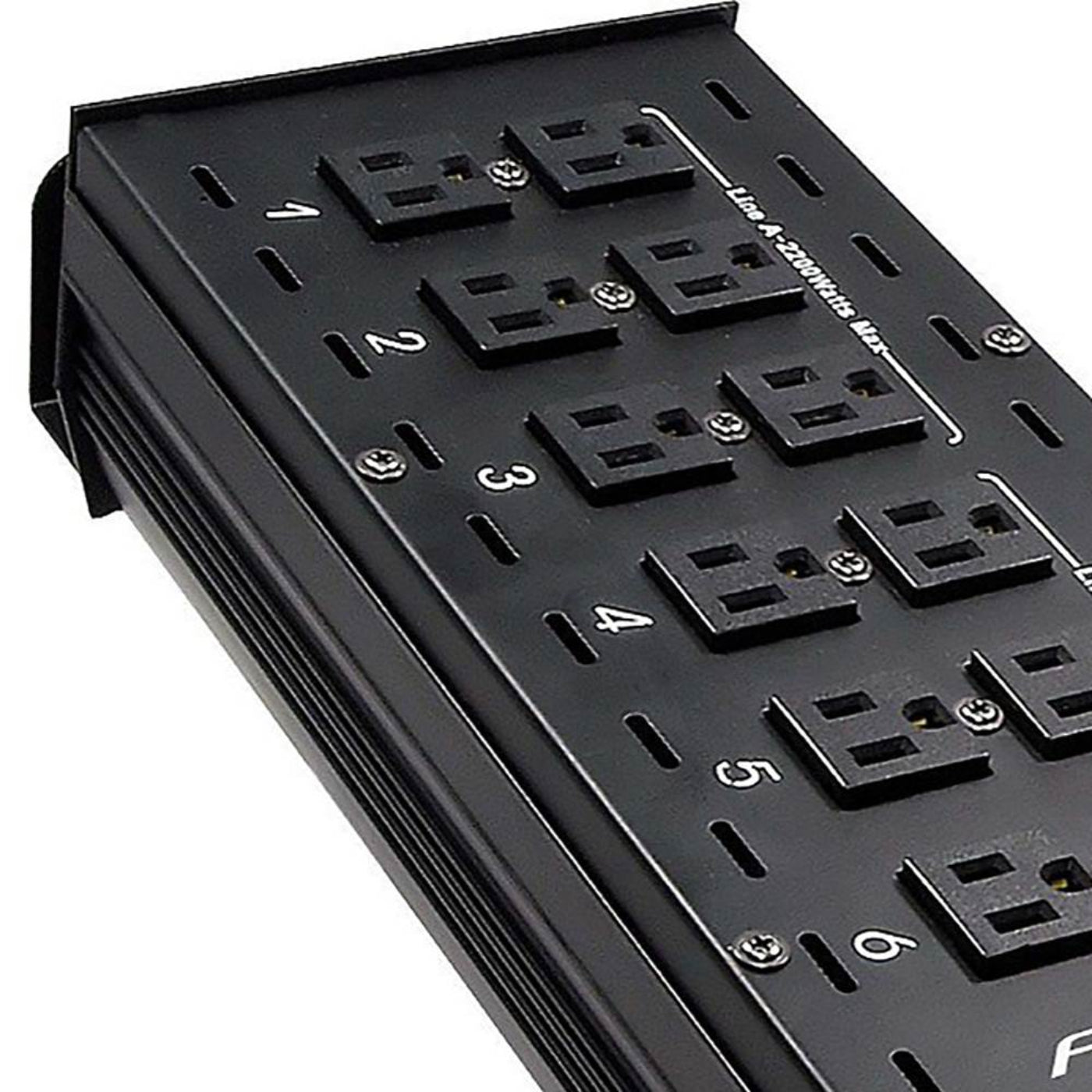

CHAUVET DJ Pro D6 6-Channel DMX-512 Dual 20A Power Dimmer Switch Relay Pack - 24497
The most versatile dimmer out there, this 2 Chauvet DJ Pro D6 6 Channel DMX Dual Dimmer Relay Pack is what you're missing from your setup.It works on multiple voltages simultaneously and comes fitted with a 20 amp connector. It's a 6 channel dimmer and can be set as either dimmer or relay. The pack features a variable electronic dimmer from 0 to 100 percent, optional square, switch, or linear dimming curves for each channel, a dual 20 A power lines, and it includes 2 Edison plugs per channel.The Chauvet DJ Pro D6 6 Channel DMX Dual Dimmer Relay Pack is compact, lightweight, and adds major functionality to your gigs.
Features
- 6 channel DMX dimmer/relay pack
- Increase control by setting each channel to any DMX address
- Increase flexibility by setting each channel as either a dimmer or relay
- Features a variable electronic dimmer (0 to 100 percent)
- Optional square, switch or linear dimming curves for each channel
- Dual 20 A power lines (requires 2 separate circuits on the same phase)
- Increase options with an individual switch, circuit breaker and plug per line
- Accommodates different input voltages simultaneously
- Includes 2 Edison plugs per channel
Specifications
| DMX channels: |
6 |
| DMX connectors: |
3 pin |
| Input voltage: |
100 to 240 VAC, 50/60 Hz (auto ranging) |
| Approvals: |
CE |
| Output: |
10 A (per channel), 20 A (per power line), 40 A (max) |
| Break size: |
20A 250V |
Dimensions
- 18 x 5.8 x 3.8 inches
- Weight: 9.3 pounds
What Our Experts Think
-
Versatile 6-Channel DMX-512 Control – Ideal for precise dimming and power switching for stage and DJ lighting setups.
-
Dual 20A Power Handling – Provides reliable power distribution for multiple fixtures with high efficiency.
-
Switchable Dimmer & Relay Modes – Offers flexibility to control standard and intelligent lighting with ease.
-
DMX-512 Compatibility – Seamlessly integrates with DMX-controlled lighting rigs for synchronized effects.
-
Compact & Rack-Mountable – Space-saving design for easy installation in standard racks.
Q&A
Q: What is the CHAUVET DJ Pro D6?
A: It’s a 6-channel DMX-512 dimmer/switch pack designed for controlling stage lighting and effects with precision.
Q: What type of lights can it control?
A: It works with incandescent, LED, and stage lighting, allowing for dimming or relay switching based on your needs.
Q: What is the power capacity?
A: It features dual 20A power capacity, making it suitable for high-powered lighting setups.
Q: Can it be controlled via DMX?
A: Yes, it’s DMX-512 compatible, providing smooth, responsive lighting control for professional productions.
Q: Is it rack-mountable?
A: Yes, it’s a compact, rack-mountable unit for easy installation and portability.
Maintenance Tips
-
Keep Ventilation Clear – Prevent overheating by ensuring airflow around the unit.
-
Inspect Cables & Connections – Check for loose or frayed wires to avoid power issues.
-
Avoid Overloading – Do not exceed the rated 20A per channel to prevent damage.
-
Regular Firmware Updates – Ensure compatibility with DMX controllers.
-
Store in a Dry, Cool Area – Protects internal components from moisture and dust.
-
Test Before Events – Verify all channels and dimming functions work properly.
-
Secure Mounting – Prevent vibration and movement during use for longevity.
