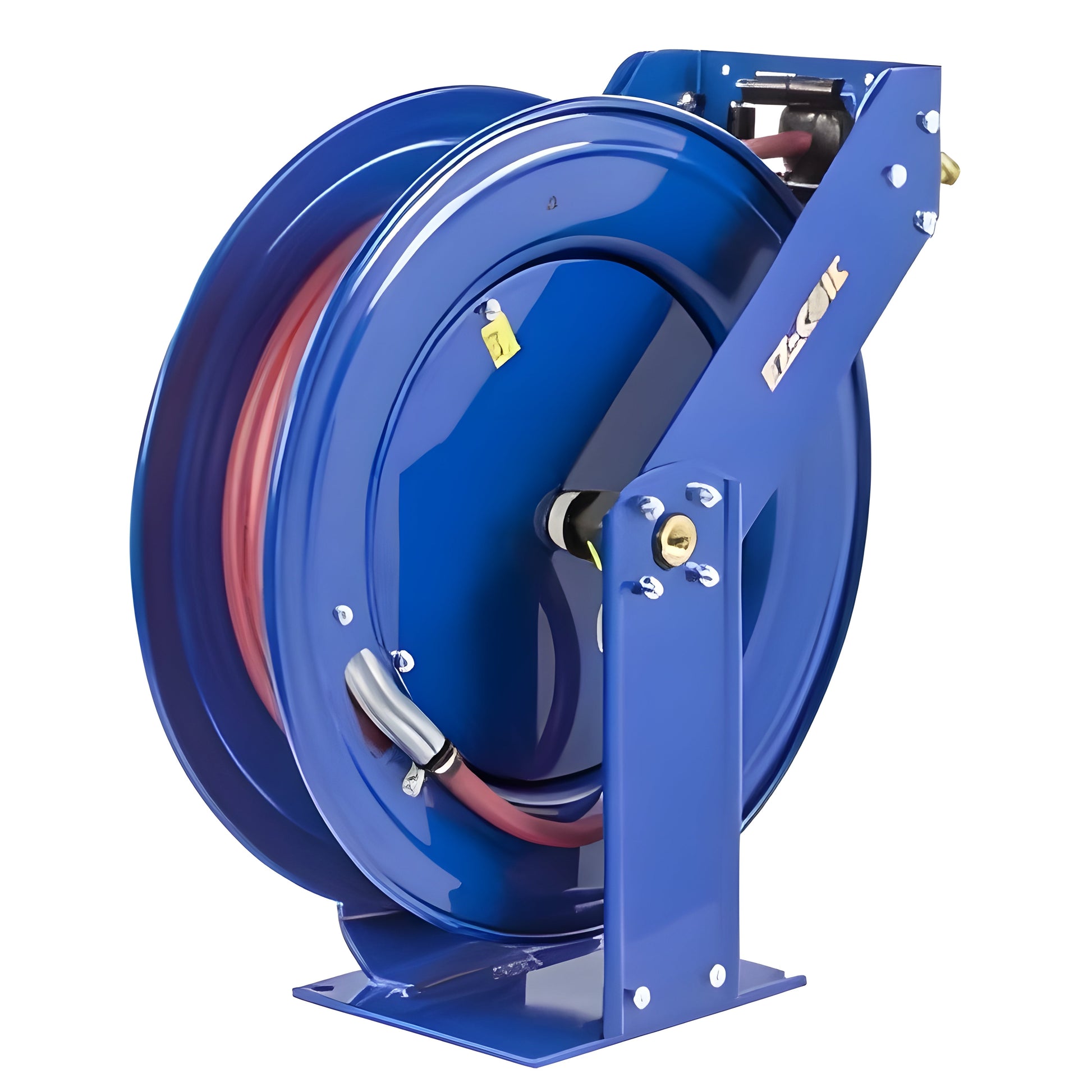

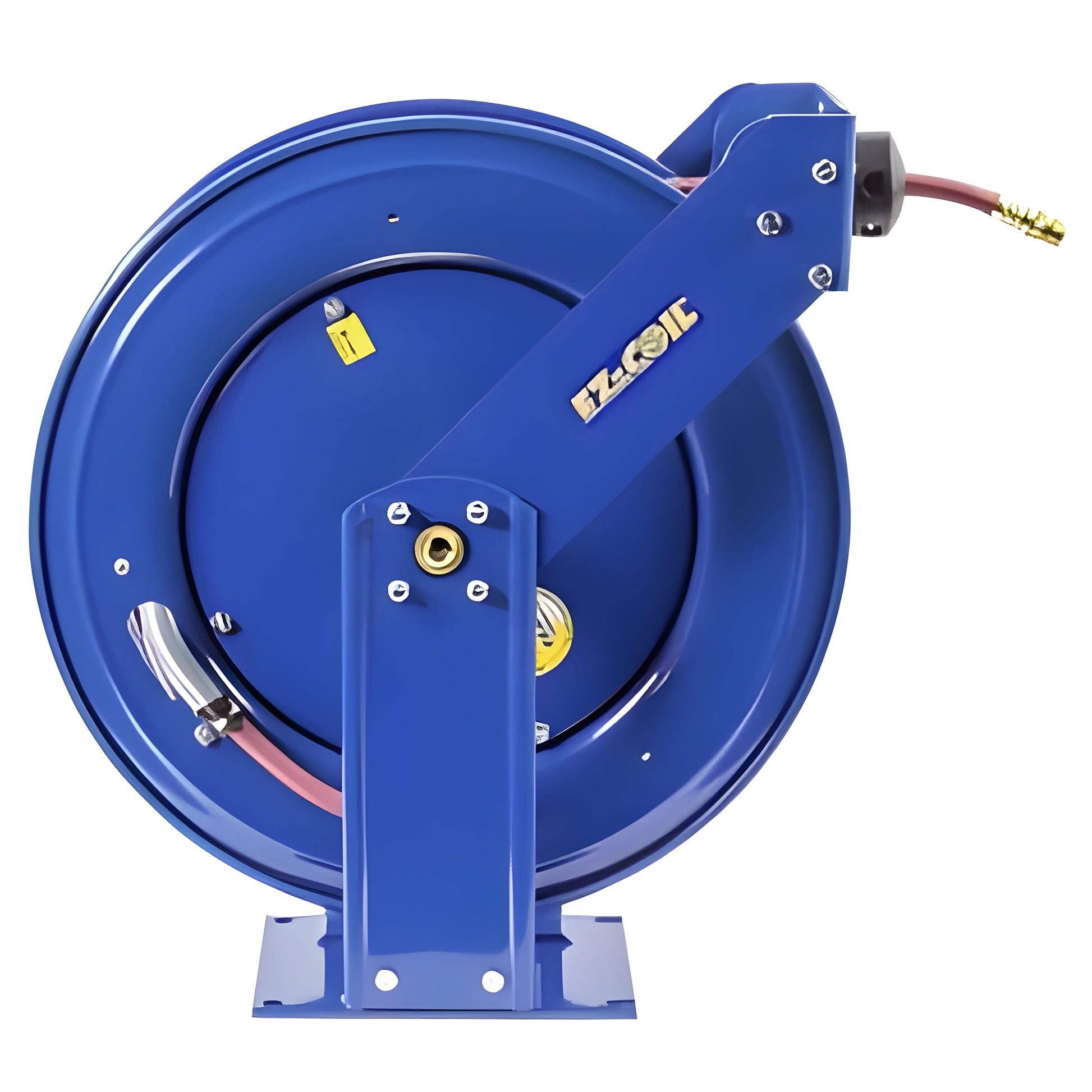

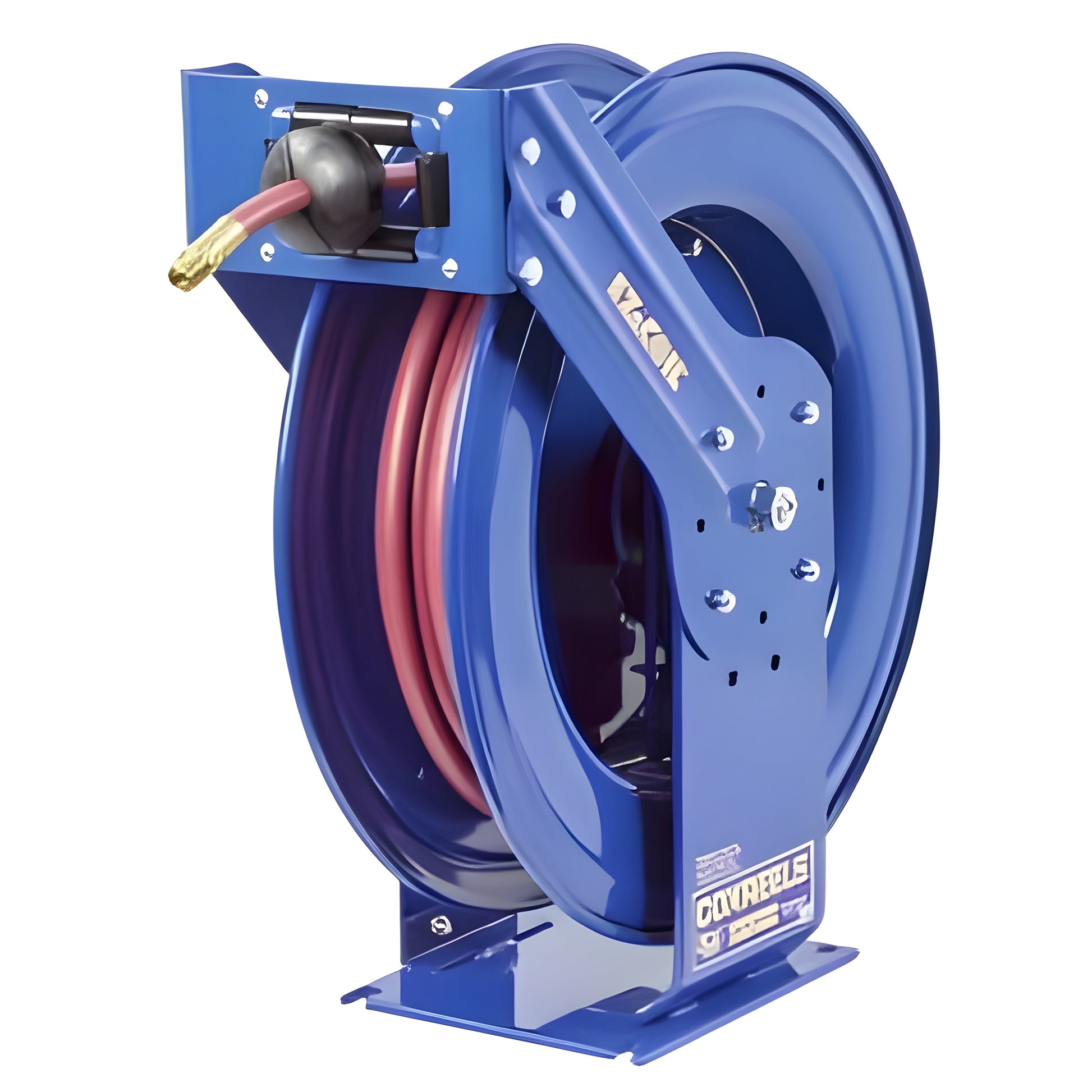

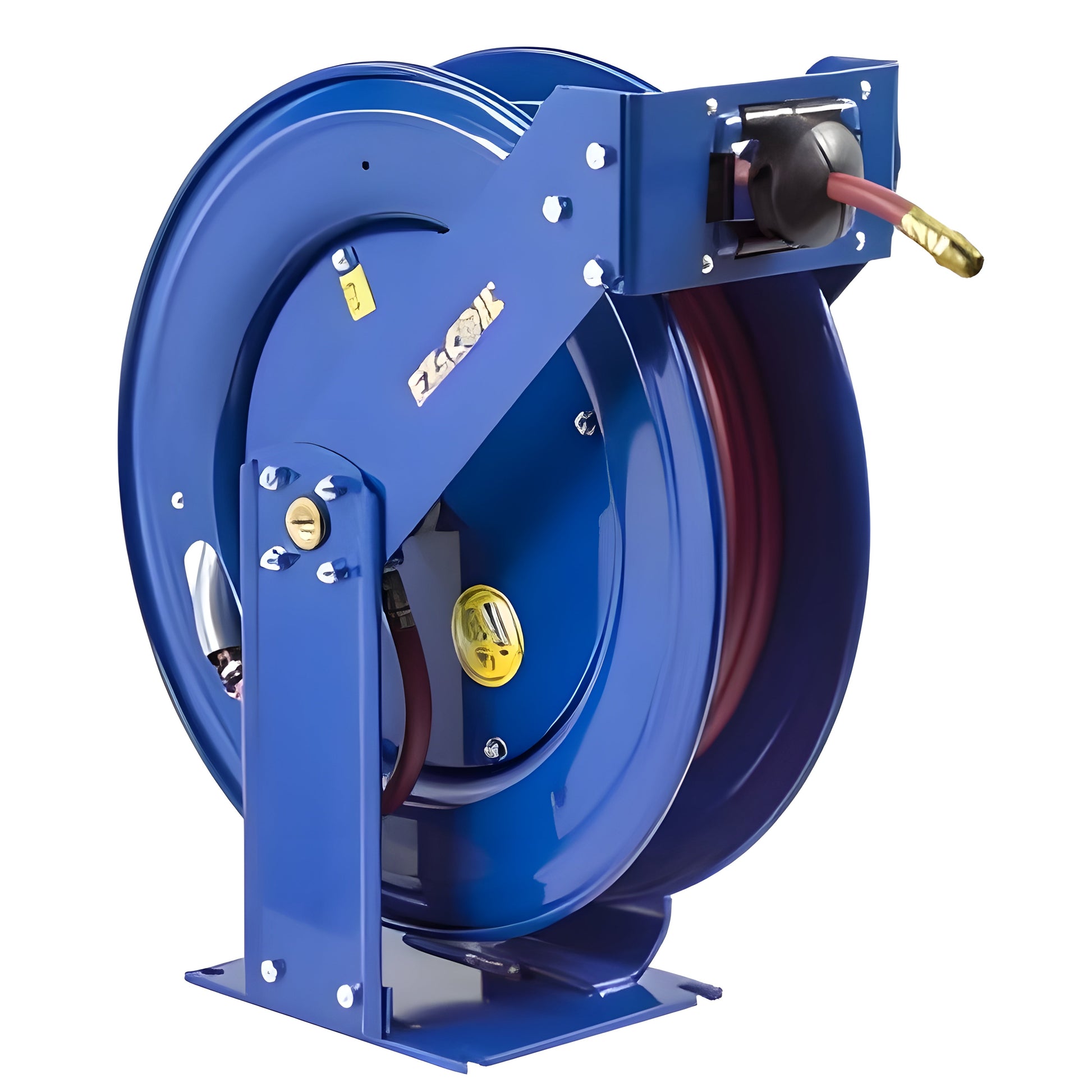

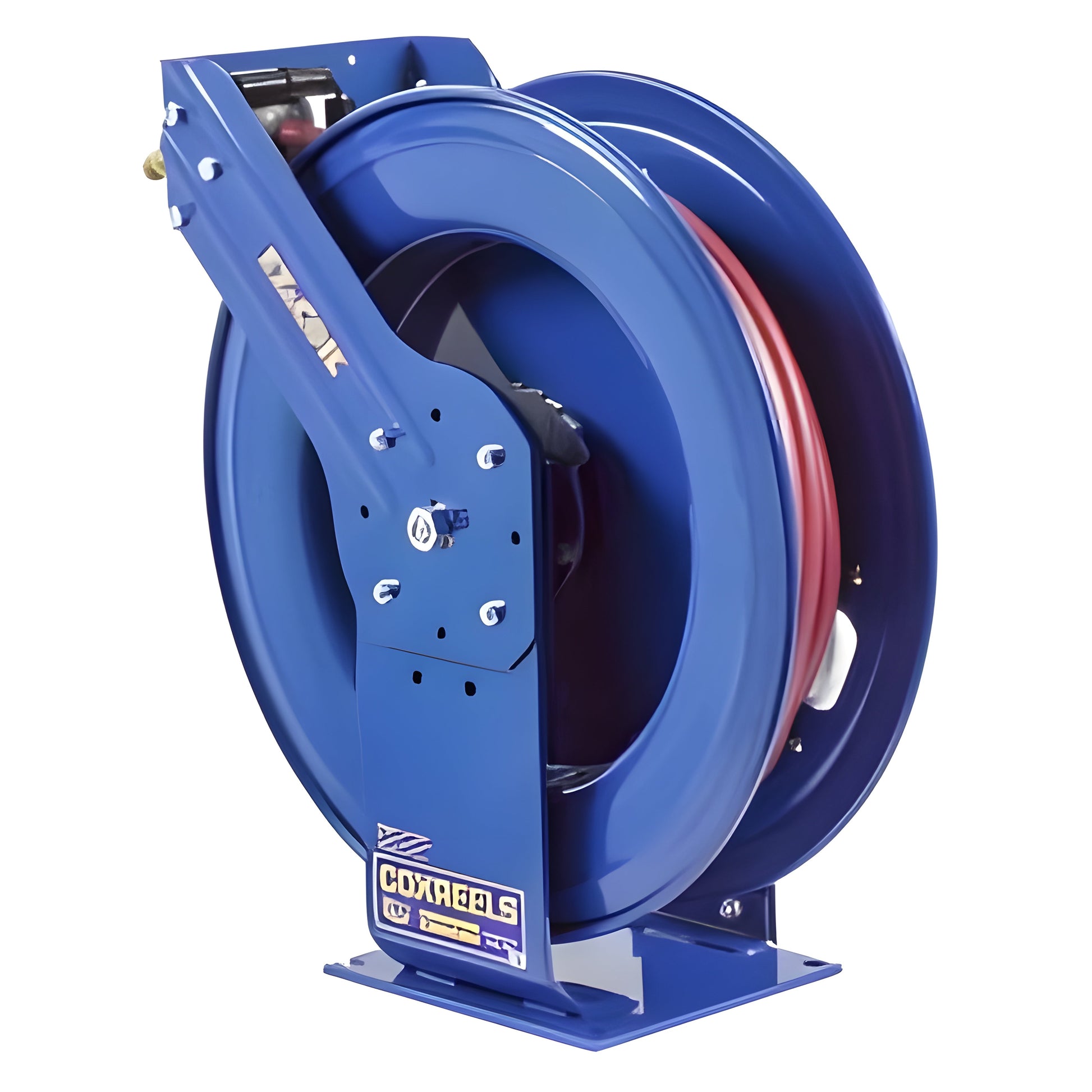

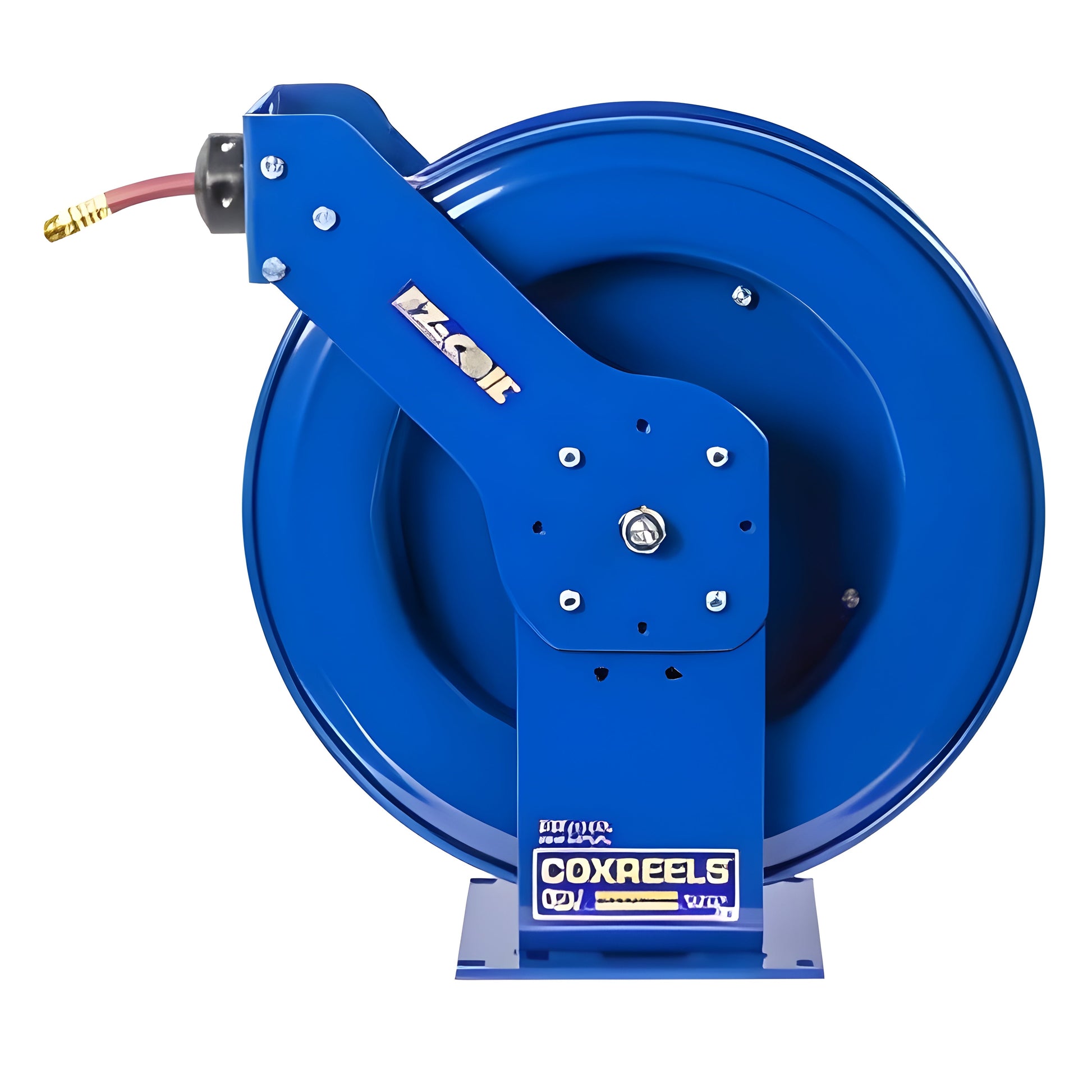

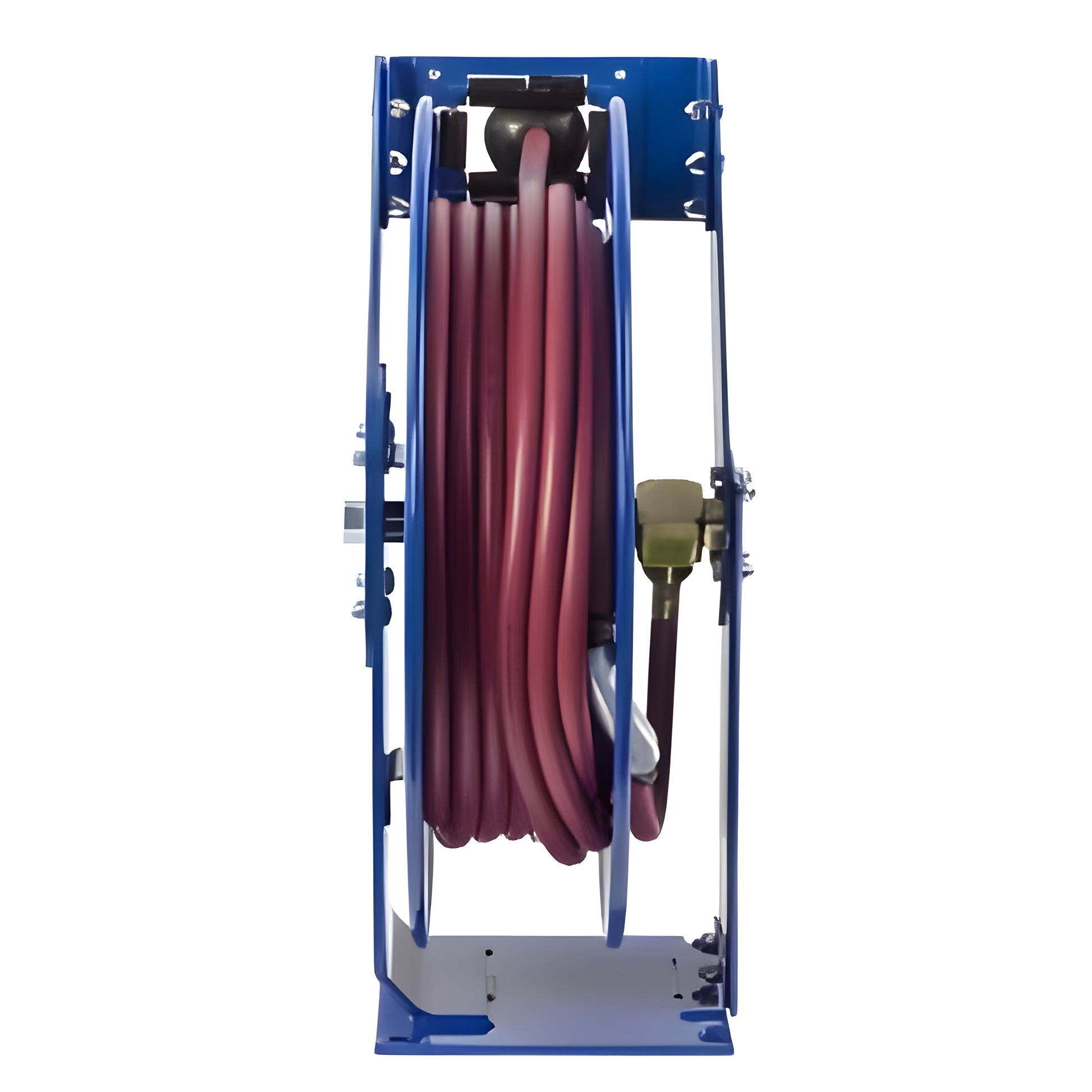

Coxreels EZ-T Series "Truck Mount" HIgh Pressure Spring Driven Hose Reels - EZ-THP-1100
EZ-T Series "Truck Mount" High Pressure Spring Driven Hose Reels
COXREELS EZ-T Series "Truck Mount" spring driven hose reels are the toughest hose reels in the spring driven line. The extra large chassis with dual pedestal-style arms and Coxreels Super Hub™ provides triple axle support while reducing vibration and strengthening the structural integrity of the reel. Making it perfect for off-road applications that demand reliability in the most abusive and demanding environments.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
-
SWIVELÂ - Machined from solid brass 90Âş full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
-
EZ-COIL® EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
-
CNC SPUN DISCSÂ - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
-
1/4" STEEL BASE - Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ triple axle support
-
MULTI-POSITION GUIDE ARMÂ - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
-
OTHER FEATURES INCLUDEÂ - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specifications
MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
EZ-THP-1100 |
1/4" |
9/16" |
100' |
Yes |
5000 |
104 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
EZ-THP-150 |
1/4" |
9/16" |
50' |
Yes |
5000 |
74 |
9.38"(W) 21.25"(H) 19.5"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
EZ-THP-175 |
1/4" |
9/16" |
75' |
Yes |
5000 |
88 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
EZ-THP-350 |
3/8" |
11/16" |
50' |
Yes |
4000 |
78 |
9.38"(W) 21.25"(H) 19.5"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
EZ-THP-375 |
3/8" |
11/16" |
75' |
Yes |
4000 |
98 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
EZ-THPL-1100 |
1/4" |
9/16" |
100' |
No |
5000 |
82 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
EZ-THPL-150 |
1/4" |
9/16" |
50' |
No |
5000 |
62 |
9.38"(W) 21.25"(H) 19.5"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
EZ-THPL-175 |
1/4" |
9/16" |
75' |
No |
5000 |
71 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
EZ-THPL-350 |
3/8" |
11/16" |
50' |
No |
4000 |
66 |
9.38"(W) 25.25"(H) 19.5"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
EZ-THPL-375 |
3/8" |
11/16" |
75' |
No |
4000 |
80 |
9.38"(W) 25.5"(H) 24"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
What Our Experts Think
-
Truck Mount Design: Perfect for mounting on service trucks and utility vehicles, providing mobile hose management for high-pressure applications.
-
High-Pressure Capability: Handles pressures up to 1,100 PSI, ideal for demanding fluid transfer needs like water, air, and light hydraulic applications.
-
Spring-Driven Retraction: Effortless hose retraction for quick and smooth storage, reducing downtime and improving overall productivity.
-
Heavy-Duty Construction: Built with industrial-grade materials for maximum durability in tough work environments.
-
Corrosion-Resistant Finish: Coated to resist rust and wear, ensuring reliable operation in outdoor and mobile settings.
-
Space-Saving Design: Keeps hoses organized and easily accessible, optimizing truck space for efficiency and safety.
Q&A
Q: What is the Coxreels EZ-T Series "Truck Mount" High Pressure Spring Driven Hose Reel - EZ-THP-1100?
A: The EZ-THP-1100 is a high-pressure, spring-driven hose reel designed for truck mounting. It features automatic hose retraction, making it ideal for heavy-duty applications in mobile settings.
Q: What is the hose capacity of this reel?
A: It can hold up to 1,100 feet of high-pressure hose, providing ample storage for demanding tasks.
Q: How does the spring-driven mechanism work?
A: The reel uses a spring-driven rewind system, ensuring smooth and efficient hose retraction, which minimizes downtime and saves space.
Q: Is the reel built to withstand tough environments?
A: Yes, the reel is constructed with durable, corrosion-resistant materials, making it suitable for outdoor and rugged environments.
Q: How is the reel mounted?
A: This reel is designed for truck mounting, allowing for easy installation on service vehicles, trailers, or mobile platforms.
Q: What are typical applications for this reel?
A: Ideal for high-pressure fluid transfer, such as in industrial, agricultural, or mobile maintenance operations where reliable hose management is crucial.
Maintenance Tips
-
Model: EZ-THP-1100
-
Hose Capacity: Holds up to 100 feet of 3/8” or 1/2” high-pressure hose
-
Pressure Rating: Rated for high-pressure applications up to 5000 PSI
-
Construction: Heavy-duty steel frame with corrosion-resistant powder-coated finish for superior durability and long-lasting use
-
Drive Mechanism: Spring-driven automatic rewind ensures smooth and easy hose retraction, reducing downtime and maintenance
-
Swivel Inlet: Full-flow brass swivel for unrestricted fluid transfer with minimal wear
-
Roller Design: Multi-position guide arm with reinforced rollers for smooth and consistent hose payout and retraction
-
Mounting Type: Truck mount design, specifically made for service vehicles, trailers, and mobile applications
-
Applications: Ideal for high-pressure fluid or air transfer in industrial, construction, and service truck environments
-
Temperature Range: Operates efficiently across a wide temperature range, suited for various field conditions
-
Weight: Varies based on hose selection and configuration
