Coxreels 1125 Series Medium Pressure Hand Crank Hose Reels - 1125-4-100
1125 Series Medium Pressure Hand Crank Hose Reels

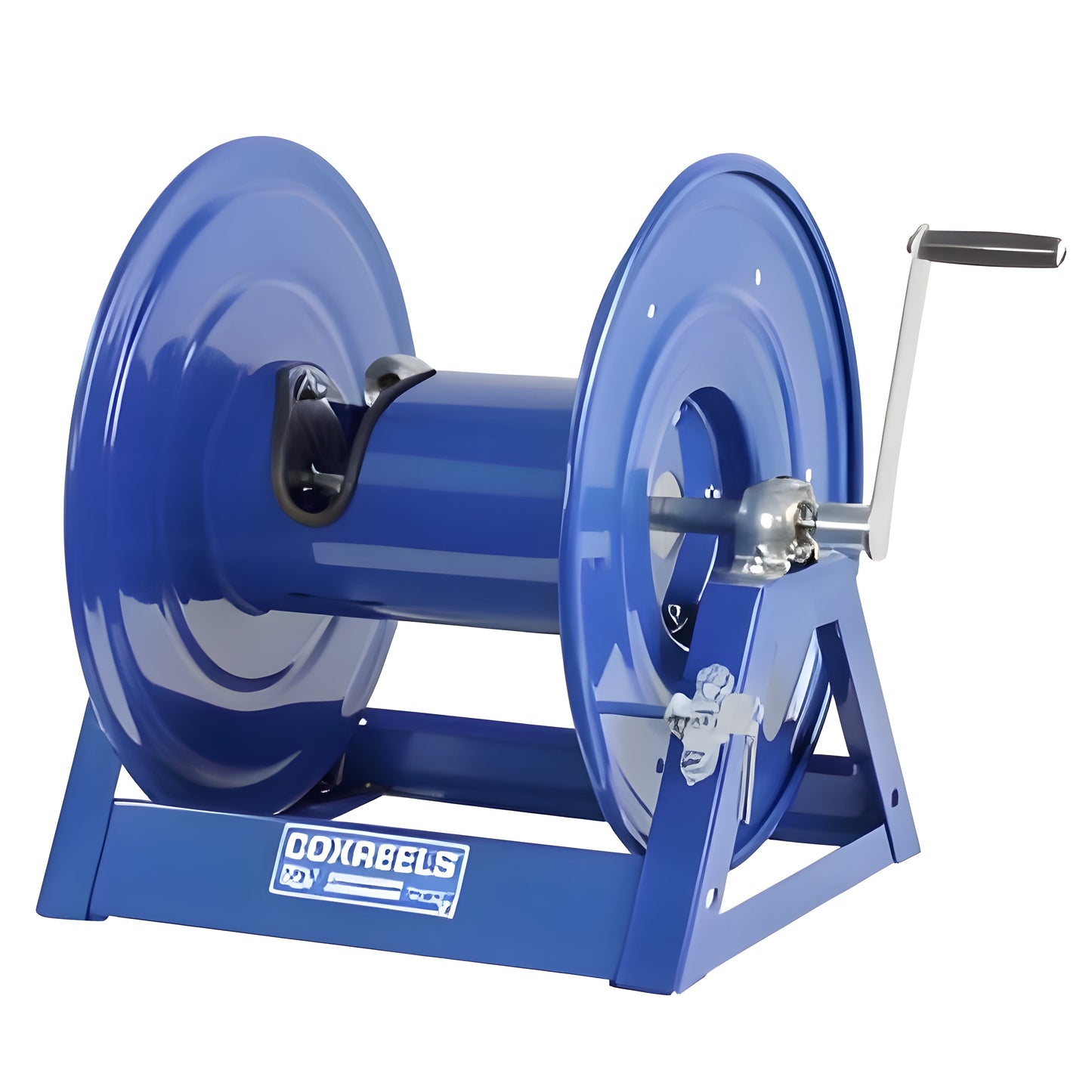

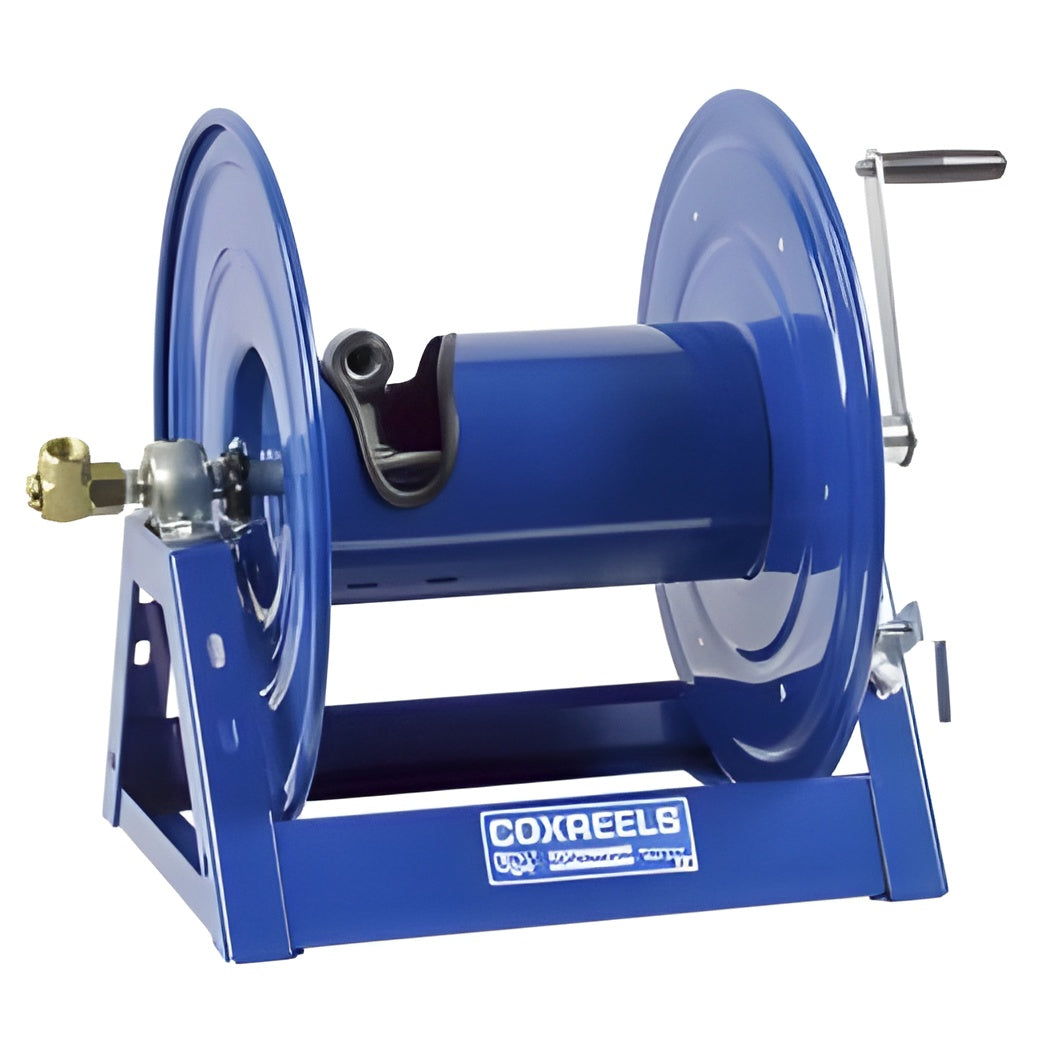

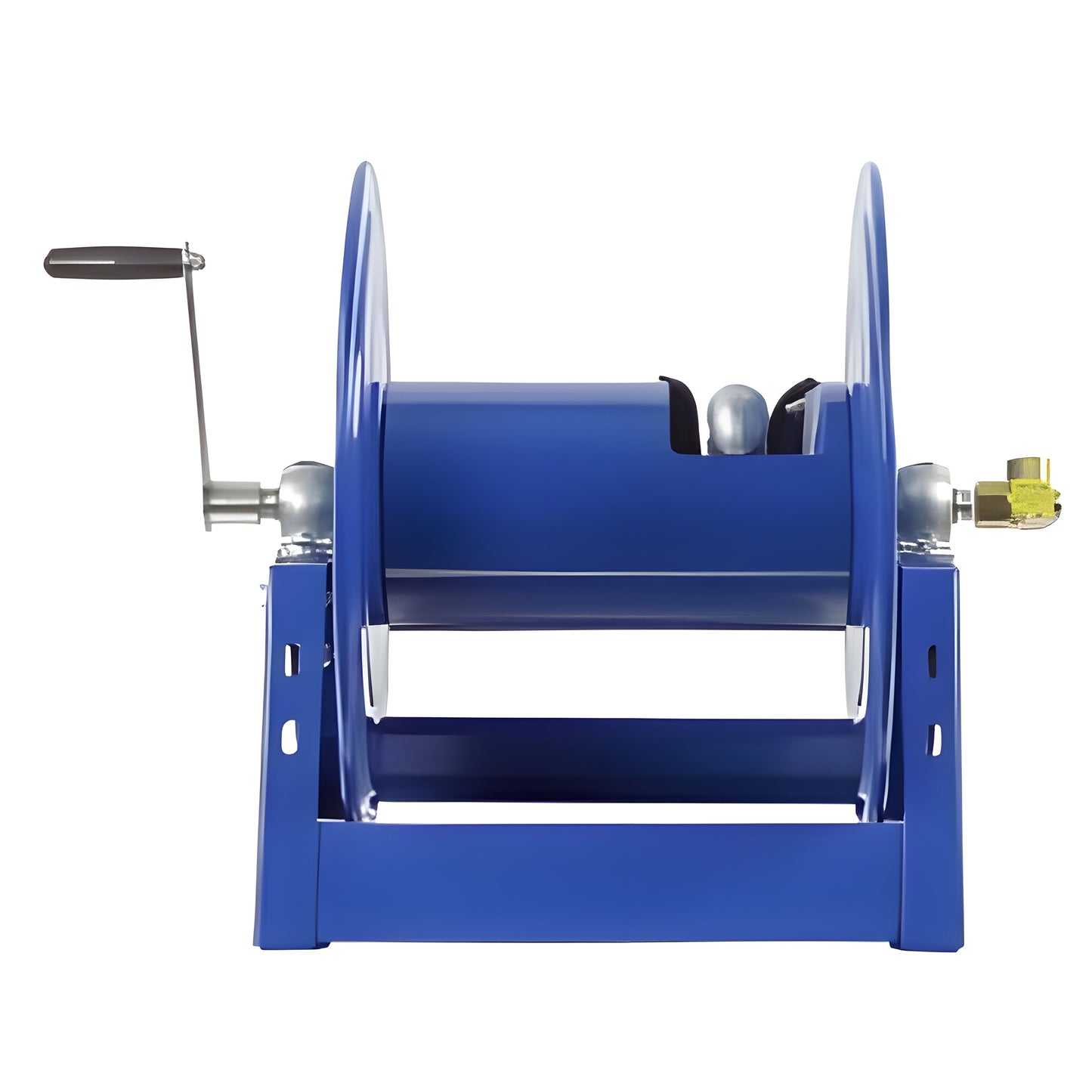

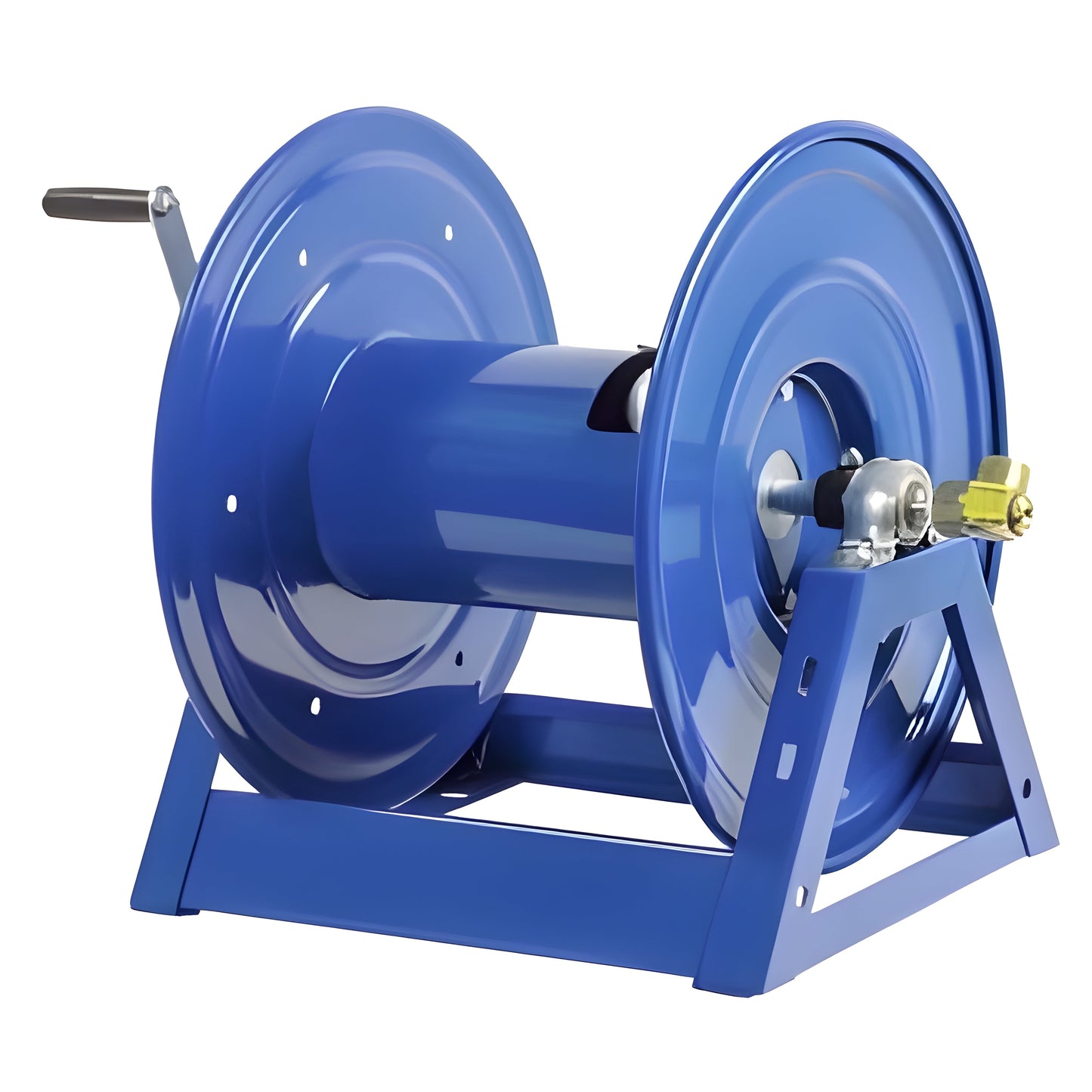

COXREELS 1125 Series hand crank hose reels have the features demanded by industry professionals. The industry preferred design features a sturdy one piece all welded "A" frame base, low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty.
-
Made in the U.S.A. - Sold & Supported Worldwide.
Features
-

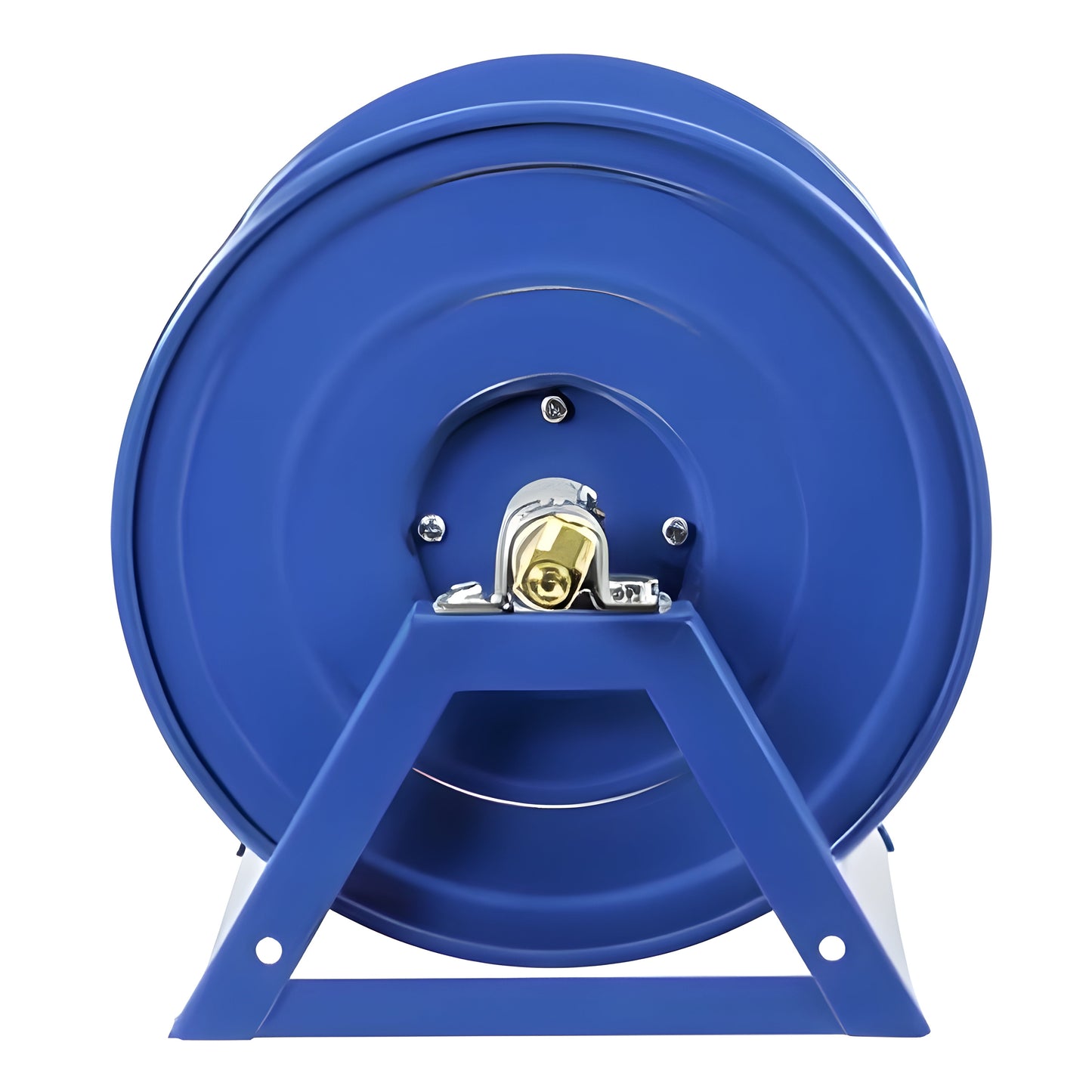

SWIVELÂ - Electroless nickel plated steel 90Âș full-flow NPT swivel inlet.
-
CNC SPUN DISCSÂ - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
-

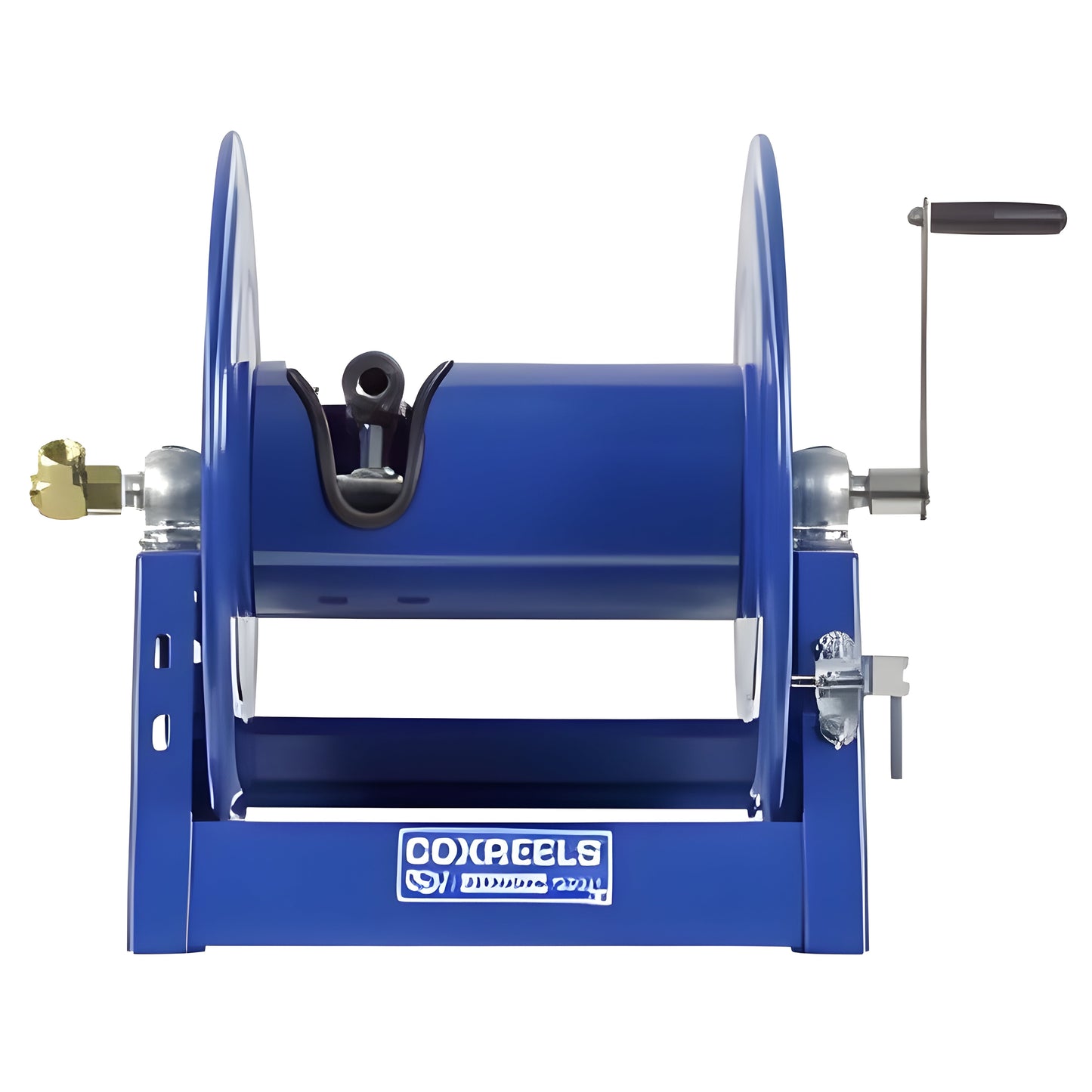

OUTLET RISERÂ - Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
-

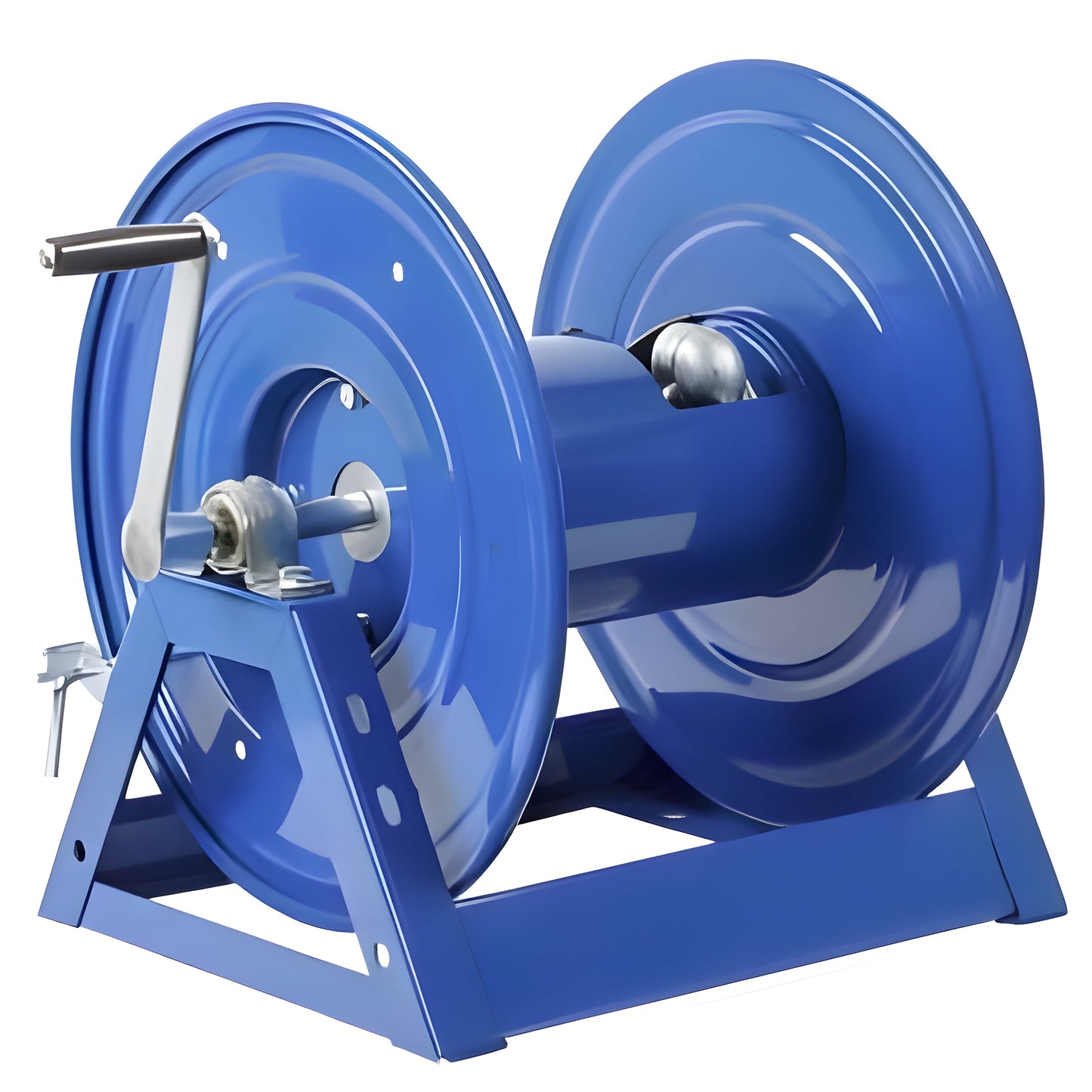

"A" FRAMEÂ - Sturdy one piece, all CNC robotically welded 12 gauge steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
-
PERMANENTLY LUBRICATED BEARINGSÂ - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
-

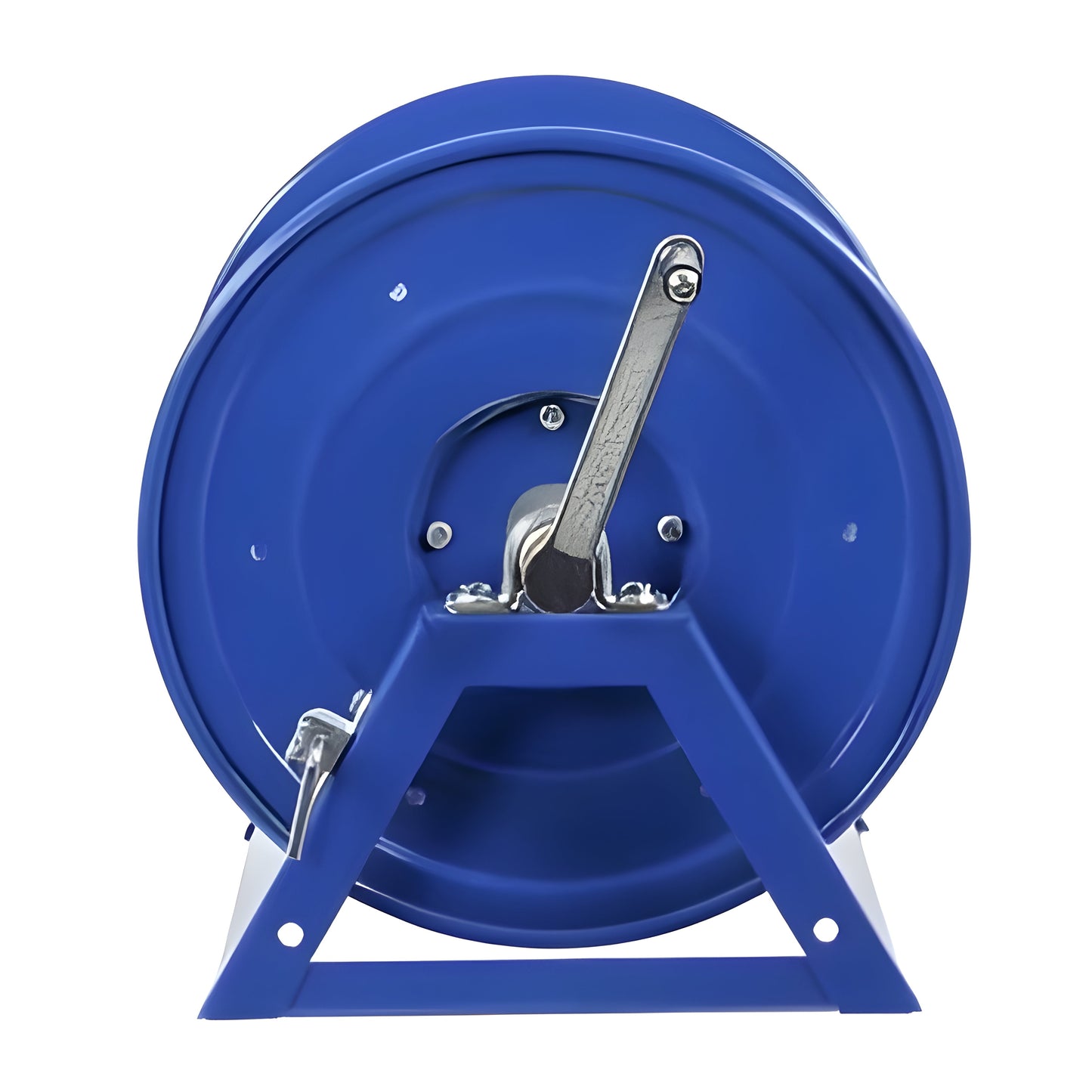

OTHER FEATURES INCLUDEÂ - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and front bevel geared crank for easy mechanical retraction.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
DRUM WIDTH |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| 1125-4-100 |
1/2" |
7/8" |
100' |
No |
3000 |
36 |
6 |
19.5"(W) 18.75"(H) 17.63"(L) |
9.44"(M) 10"(N) |
11.38"(X) 15.38"(Y) |
| 1125-4-100-C |
1/2" |
7/8" |
100' |
No |
3000 |
36 |
6 |
19.5"(W) 18.75"(H) 17.63"(L) |
9.44"(M) 10"(N) |
11.38"(X) 15.38"(Y) |
| 1125-4-200 |
1/2" |
7/8" |
200' |
No |
3,000 |
39 |
12 |
25.5"(W) 18.75"(H) 17.63"(L) |
15.44"(M) 10"(N) |
17.38"(X) 15.38"(Y) |
| 1125-4-200-C |
1/2" |
7/8" |
200' |
No |
3,000 |
39 |
12 |
25.5"(W) 18.75"(H) 17.63"(L) |
15.44"(M) 10"(N) |
17.38"(X) 15.38"(Y) |
| 1125-4-325 |
1/2" |
7/8" |
325' |
No |
3000 |
48 |
18 |
31.5"(W) 18.75"(H) 17.63"(L) |
21.44"(M) 10"(N) |
23.38"(X) 15.38"(Y) |
| 1125-4-325-C |
1/2" |
7/8" |
325' |
No |
3000 |
48 |
18 |
31.5"(W) 18.75"(H) 17.63"(L) |
21.44"(M) 10"(N) |
23.38"(X) 15.38"(Y) |
| 1125-4-450 |
1/2" |
7/8" |
450' |
No |
3000 |
52 |
24 |
37.5"(W) 18.75"(H) 17.63"(L) |
27.44"(M) 10"(N) |
29.38"(X) 15.38"(Y) |
| 1125-4-450-C |
1/2" |
7/8" |
450' |
No |
3000 |
52 |
24 |
37.5"(W) 18.75"(H) 17.63"(L) |
27.44"(M) 10"(N) |
29.38"(X) 15.38"(Y) |
| 1125-4-500 |
1/2" |
7/8" |
500' |
No |
3000 |
58 |
28 |
41.5"(W) 18.75"(H) 17.63"(L) |
31.44"(M) 10"(N) |
33.38"(X) 15.38"(Y) |
| 1125-4-500-C |
1/2" |
7/8" |
500' |
No |
3000 |
58 |
28 |
41.5"(W) 18.75"(H) 17.63"(L) |
31.44"(M) 10"(N) |
33.38"(X) 15.38"(Y) |
| 1125-5-100 |
3/4" |
1 1/4" |
100' |
No |
3000 |
42 |
12 |
26.75"(W) 18.75"(H) 17.63"(L) |
15.44"(M) 10"(N) |
17.38"(X) 15.38"(Y) |
| 1125-5-100-C |
3/4" |
1 1/4" |
100' |
No |
3000 |
42 |
12 |
26.75"(W) 18.75"(H) 17.63"(L) |
15.44"(M) 10"(N) |
17.38"(X) 15.38"(Y) |
| 1125-5-175 |
3/4" |
1 1/4" |
175' |
No |
3000 |
50 |
18 |
32.38"(W) 18.75"(H) 17.63"(L) |
21.44"(M) 10"(N) |
23.38"(X) 15.38"(Y) |
| 1125-5-175-C |
3/4" |
1 1/4" |
175' |
No |
3000 |
50 |
18 |
32.38"(W) 18.75"(H) 17.63"(L) |
21.44"(M) 10"(N) |
23.38"(X) 15.38"(Y) |
| 1125-5-200 |
3/4" |
1 1/4" |
200' |
No |
3000 |
55 |
24 |
39.25"(W) 18.13"(H) 17.63"(L) |
27.44"(M) 10"(N) |
29.38"(X) 15.38"(Y) |
| 1125-5-200-C |
3/4" |
1 1/4" |
200' |
No |
3000 |
55 |
24 |
39.25"(W) 18.13"(H) 17.63"(L) |
27.44"(M) 10"(N) |
29.38"(X) 15.38"(Y) |
| 1125-5-250 |
3/4" |
1 1/4" |
250' |
No |
3000 |
59 |
28 |
42.25"(W) 18.75"(H) 17.63"(L) |
31.44"(M) 10"(N) |
33.38"(X) 15.38"(Y) |
| 1125-5-250-C |
3/4" |
1 1/4" |
250' |
No |
3000 |
59 |
28 |
42.25"(W) 18.75"(H) 17.63"(L) |
31.44"(M) 10"(N) |
33.38"(X) 15.38"(Y) |
| 1125-5-50 |
3/4" |
1 1/4" |
50' |
No |
3000 |
38 |
6 |
20.75"(W) 18.75"(H) 17.63"(L) |
9.44"(M) 10"(N) |
11.38"(X) 15.38"(Y) |
| 1125-5-50-C |
3/4" |
1 1/4" |
50' |
No |
3000 |
38 |
6 |
20.75"(W) 18.75"(H) 17.63"(L) |
9.44"(M) 10"(N) |
11.38"(X) 15.38"(Y) |
| 1125-6-100 |
1" |
1 7/16" |
100' |
No |
3000 |
69 |
28 |
44.5"(W) 18.5"(H) 17.63"(L) |
31.44"(M) 10"(N) |
33.38"(X) 15.38"(Y) |
| 1125-6-100-C |
1" |
1 7/16" |
100' |
No |
3000 |
69 |
28 |
44.5"(W) 18.5"(H) 17.63"(L) |
31.44"(M) 10"(N) |
33.38"(X) 15.38"(Y) |
| 1125-6-35 |
1" |
1 7/16" |
35' |
No |
3000 |
50 |
9.5 |
26"(W) 18.5"(H) 17.63"(L) |
14.94"(M) 10"(N) |
14.88"(X) 15.38"(Y) |
| 1125-6-35-C |
1" |
1 7/16" |
35' |
No |
3000 |
50 |
9.5 |
26"(W) 18.5"(H) 17.63"(L) |
14.94"(M) 10"(N) |
14.88"(X) 15.38"(Y) |
| 1125-6-50 |
1" |
1 7/16" |
50' |
No |
3000 |
55 |
15.5 |
32"(W) 18.5"(H) 17.63"(L) |
25.94"(M) 10"(N) |
20.38"(X) 15.38"(Y) |
| 1125-6-50-C |
1" |
1 7/16" |
50' |
No |
3000 |
55 |
15.5 |
32"(W) 18.5"(H) 17.63"(L) |
25.94"(M) 10"(N) |
20.38"(X) 15.38"(Y) |
| 1125-6-75 |
1" |
1 7/16" |
75' |
No |
3000 |
62 |
22 |
38.5"(W) 18.5"(H) 17.63"(L) |
27.38"(M) 10"(N) |
27.38"(X) 15.38"(Y) |
| 1125-6-75-C |
1" |
1 7/16" |
75' |
No |
3000 |
62 |
22 |
38.5"(W) 18.5"(H) 17.63"(L) |
27.38"(M) 10"(N) |
27.38"(X) 15.38"(Y) |
What Our Experts Think
-
Medium Pressure Capability: Handles pressures up to 1,000 PSI, making it ideal for a wide range of fluid transfer applications, including air, water, and light-duty hydraulic use.
-
Hand Crank Operation: Provides precise control over hose retraction, ensuring smooth and reliable operation with minimal effort.
-
Heavy-Duty Construction: Built with durable materials to withstand tough industrial environments, offering long-lasting performance.
-
Corrosion-Resistant Finish: Coated to resist rust and wear, making it suitable for both indoor and outdoor use.
-
Compact & Efficient Design: Space-saving reel that keeps hoses neatly stored, improving workspace organization and safety.
-
Versatile Applications: Perfect for industries such as automotive, manufacturing, and maintenance that require reliable medium-pressure hose management.
-
Easy Maintenance: Simple design for easy upkeep, ensuring consistent performance over time with minimal downtime.
Q&A
Q: What is the Coxreels 1125 Series Medium Pressure Hand Crank Hose Reel - 1125-4-100?
A: The Coxreels 1125-4-100 is a medium-pressure hand crank hose reel designed for efficient hose management. It is built for medium-duty applications, providing smooth and reliable hose retraction and storage.
Q: What is the hose capacity of this reel?
A: The 1125-4-100 can hold up to 100 feet of medium-pressure hose, making it suitable for a wide range of industrial and commercial uses.
Q: How does the hand crank mechanism work?
A: The reel features a hand crank for manual operation, allowing users to easily retract the hose after use, providing controlled storage in tight spaces.
Q: Is the reel durable?
A: Yes, the 1125 Series is made with heavy-duty steel and features a corrosion-resistant finish, ensuring long-lasting durability even in harsh environments.
Q: Is this reel easy to install?
A: Yes, the 1125-4-100 offers flexible mounting options, including wall, floor, or ceiling installation, to accommodate various workspace setups.
Q: What are typical applications for this reel?
A: This reel is ideal for medium-pressure hose management in environments like workshops, manufacturing, automotive, and agricultural applications.
Maintenance Tips
-
Model: 1125-4-100
-
Hose Capacity: 100 feet of 1/4â or 3/8â medium-pressure hose
-
Pressure Rating: Rated for medium-pressure applications up to 3000 PSI
-
Construction: Heavy-duty steel frame with powder-coated finish for enhanced durability and corrosion resistance in industrial environments
-
Drive Mechanism: Hand crank operation for easy and manual hose retraction
-
Swivel Inlet: Full-flow swivel for smooth fluid delivery and reduced hose wear
-
Roller Design: Multi-position guide arm with reinforced rollers to ensure consistent, smooth hose operation
-
Mounting Type: Wall, floor, or ceiling mounting options for flexible installation
-
Applications: Perfect for air, water, oil, or fluid transfer in industrial, automotive, or commercial settings
-
Temperature Range: Designed to operate effectively in extreme temperature environments commonly found in industrial applications
-
Weight: Approx. varies based on reel configuration and hose length
