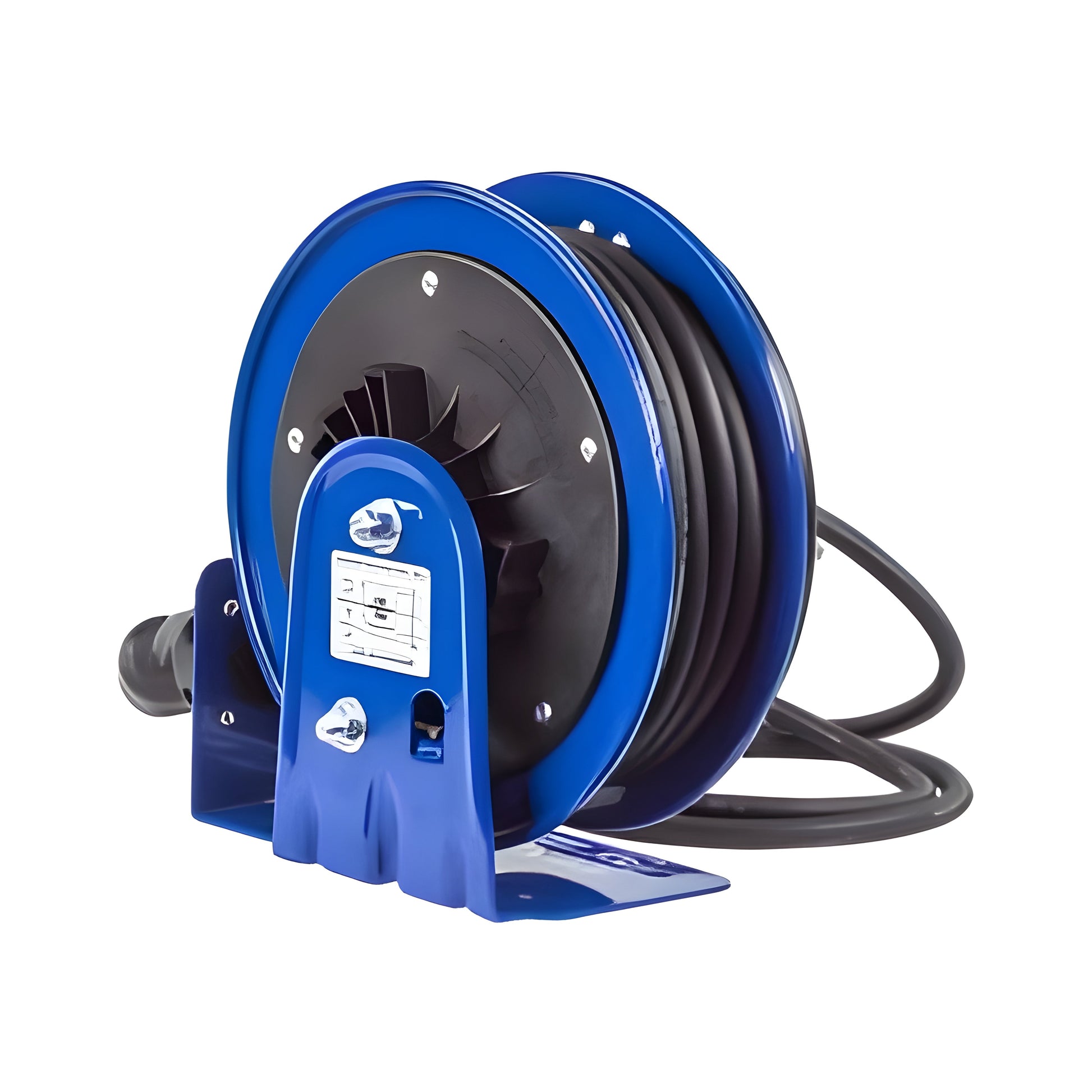

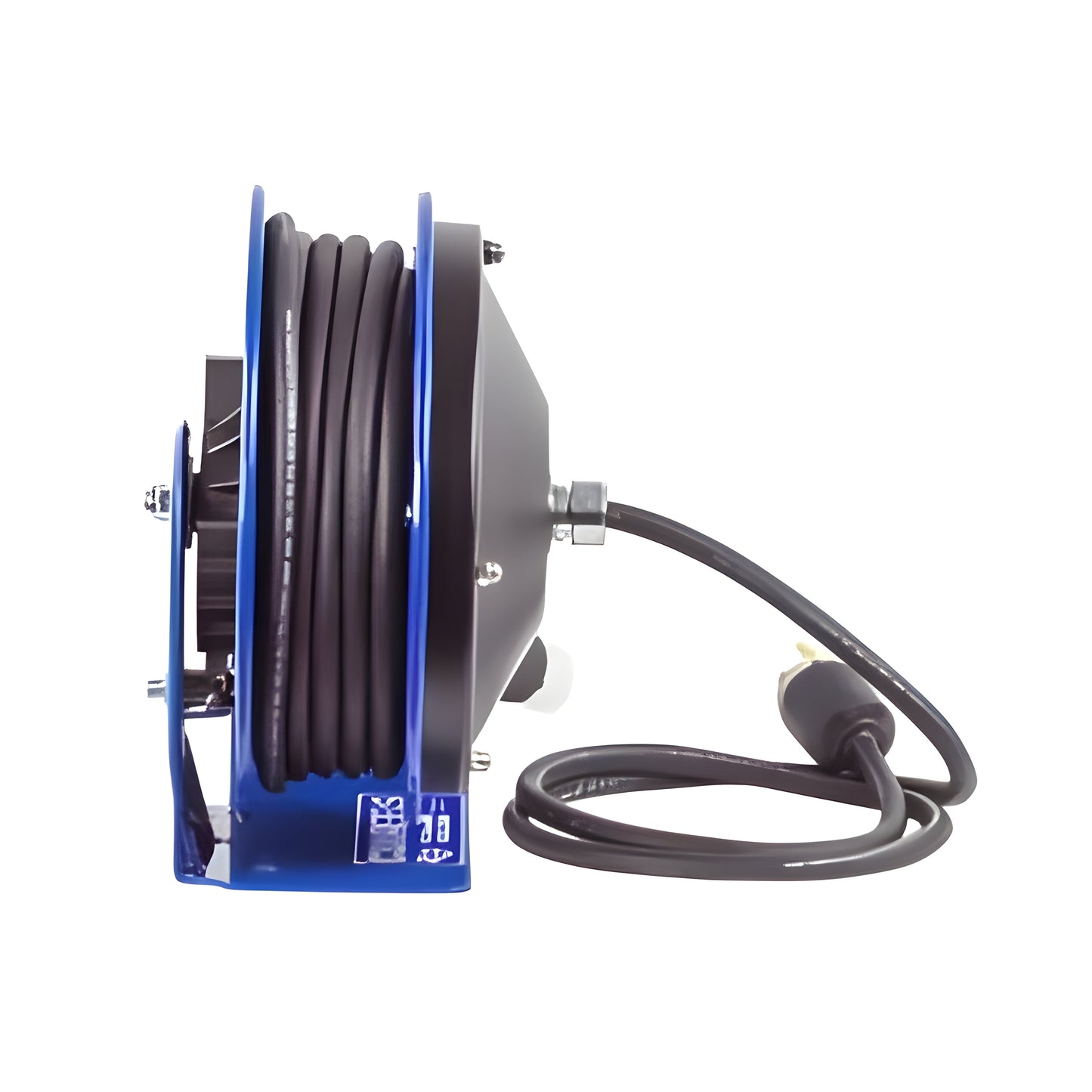

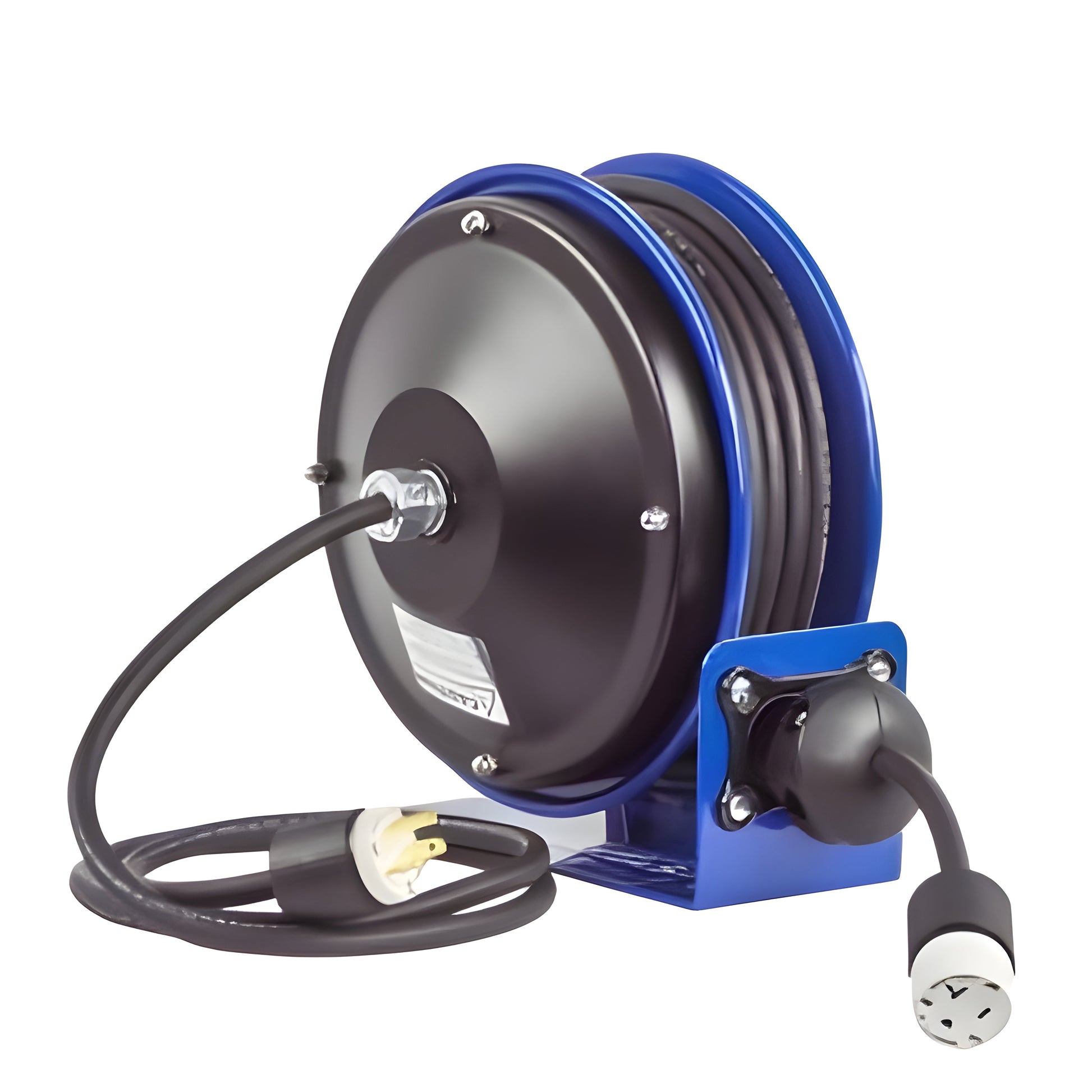

Coxreels PC10 Series Power-Cord - PC10-3012-A
PC10 Series Power-Cord Series
COXREELS PC10 Series Power-Cord Series is a unique compact addition to our original line of power cord and light reels. This ground-breaking design sets a new bar as the ideal cord management solution capable of fulfilling any commercial or industrial application where space is limited. Modelled after the LG "Little Giant" Series, this Series is equipped with a continuous radius grommet style power cord guide and a unique C-PEP™ Composite hub featuring excellent chemical resistance and additional strength at cold temperatures.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
-
COMPONENT COVER - External, easily accessible, heavy gauge CPC™ powder coated steel components cover for fast and simple slip ring routine maintenance. No need to remove the reel from its mount.
-
RATCHET HUB - Non-corrosive, high strength CoxComposite™ ratchet hub with self lubricating bronze bearings secures hose at desired length.
-
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
-
12GA STEEL BASE - Solid one piece, 12GA steel base and support post for maximum stability. Compact & lightweight spring driven hose reel.
-
GROMMET - CoxComposite™ grommet with continuous radius design that does not pinch or catch the hose during operation.
-
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber cord stop, 5' lead cable and grounding plug, sturdy permanently lubricated precision bearings, and accessory of your choice.
Specifications
| MODEL |
LENGTH |
HOSE |
SHIP WEIGHT (LBS) |
AMPS |
VOLTS |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| PC10-3012-A |
30' |
Yes |
17 |
20 |
115 |
7.38"(W) 10.63"(H) 10.5"(L) |
2.5"(M) 6"(N) |
4.63"(X) 8.38"(Y) |
| PC10-3012-B |
30' |
Yes |
18 |
20 |
115 |
7.38"(W) 10.63"(H) 10.5"(L) |
2.5"(M) 6"(N) |
4.63"(X) 8.38"(Y) |
| PC10-3012-F |
30' |
Yes |
19 |
20 |
115 |
7.38"(W) 10.63"(H) 10.5"(L) |
2.5"(M) 6"(N) |
4.63"(X) 8.38"(Y) |
| PC10-3012-X |
30' |
Yes |
18 |
20 |
115 |
7.38"(W) 10.63"(H) 10.5"(L) |
2.5"(M) 6"(N) |
4.63"(X) 8.38"(Y) |
| PC10-3016-A |
30' |
Yes |
14 |
13 |
115 |
7.38"(W) 10.63"(H) 10.5"(L) |
2.5"(M) 6"(N) |
4.63"(X) 8.38"(Y) |
| PC10-3016-C |
30' |
Yes |
15 |
0.3 |
115 |
7.38"(W) 10.63"(H) 10.5"(L) |
2.5"(M) 6"(N) |
4.63"(X) 8.38"(Y) |
| PC10-3016-D |
30' |
Yes |
15 |
13 |
115 |
7.38"(W) 10.63"(H) 10.5"(L) |
2.5"(M) 6"(N) |
4.63"(X) 8.38"(Y) |
| PC10-3016-E |
30' |
Yes |
14 |
13 |
115 |
7.38"(W) 10.63"(H) 10.5"(L) |
2.5"(M) 6"(N) |
4.63"(X) 8.38"(Y) |
| PC10-3016-F |
30' |
Yes |
16 |
13 |
115 |
7.38"(W) 10.63"(H) 10.5"(L) |
2.5"(M) 6"(N) |
4.63"(X) 8.38"(Y) |
| PC10-3016-X |
30' |
Yes |
14 |
13 |
115 |
7.38"(W) 10.63"(H) 10.5"(L) |
2.5"(M) 6"(N) |
4.63"(X) 8.38"(Y) |
| PC10L-3012 |
30' |
No |
11 |
20 |
115 |
7.38"(W) 10.63"(H) 10.5"(L) |
2.5"(M) 6"(N) |
4.63"(X) 8.38"(Y) |
| PC10L-3016 |
30' |
No |
11 |
13 |
115 |
7.38"(W) 10.63"(H) 10.5"(L) |
2.5"(M) 6"(N) |
4.63"(X) 8.38"(Y) |
What Our Experts Think
-
Heavy-Duty Construction: Built with rugged materials to handle industrial environments and frequent use, ensuring long-lasting performance.
-
Efficient Cord Management: Keeps power cords neatly organized and easily accessible, reducing tangles and minimizing downtime.
-
Versatile Design: Ideal for managing power cords in workshops, construction sites, and factories, making it highly adaptable to various needs.
-
Smooth Operation: Features a spring-loaded reel for smooth and quick retraction of power cords, enhancing workflow efficiency.
-
Space-Saving: Compact design helps save space while keeping the workspace organized and clutter-free.
Q&A
Q: What is it?
A: A power cord designed for use with Coxreels' motorized reels, providing reliable and safe electrical connections for various applications.
Q: Who is it for?
A: Ideal for industrial, commercial, and automotive users who need a dependable power source for their motorized reels.
Q: Why choose this power cord?
A: Provides consistent, high-quality electrical transfer for Coxreels motorize equipment, ensuring efficient operation and safety.
Maintenance Tip
-
Inspect Regularly: Check for frayed wires, loose connections, or damage.
-
Keep Clean: Wipe down the cord and reel to prevent dust buildup.
-
Avoid Overloading: Ensure electrical loads do not exceed the rated capacity.
-
Proper Retraction: Allow smooth retraction to prevent kinks or internal reel damage.
-
Store Safely: Keep in a dry, cool area away from excessive heat or moisture.
