Coxreels S Series " Side Mount" Large-Pressure Spring Driven Hose Left Mount Reels - SL17-H125

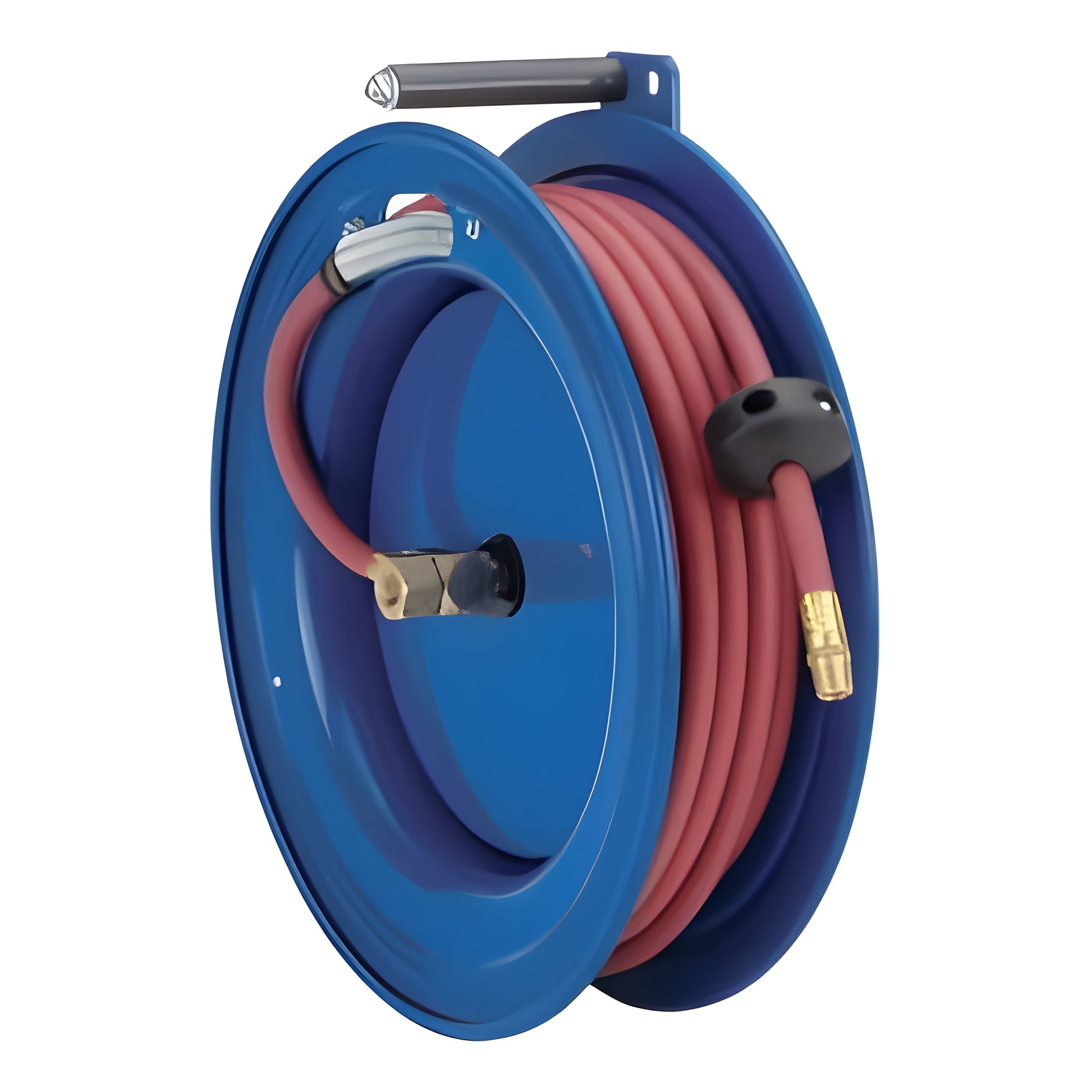

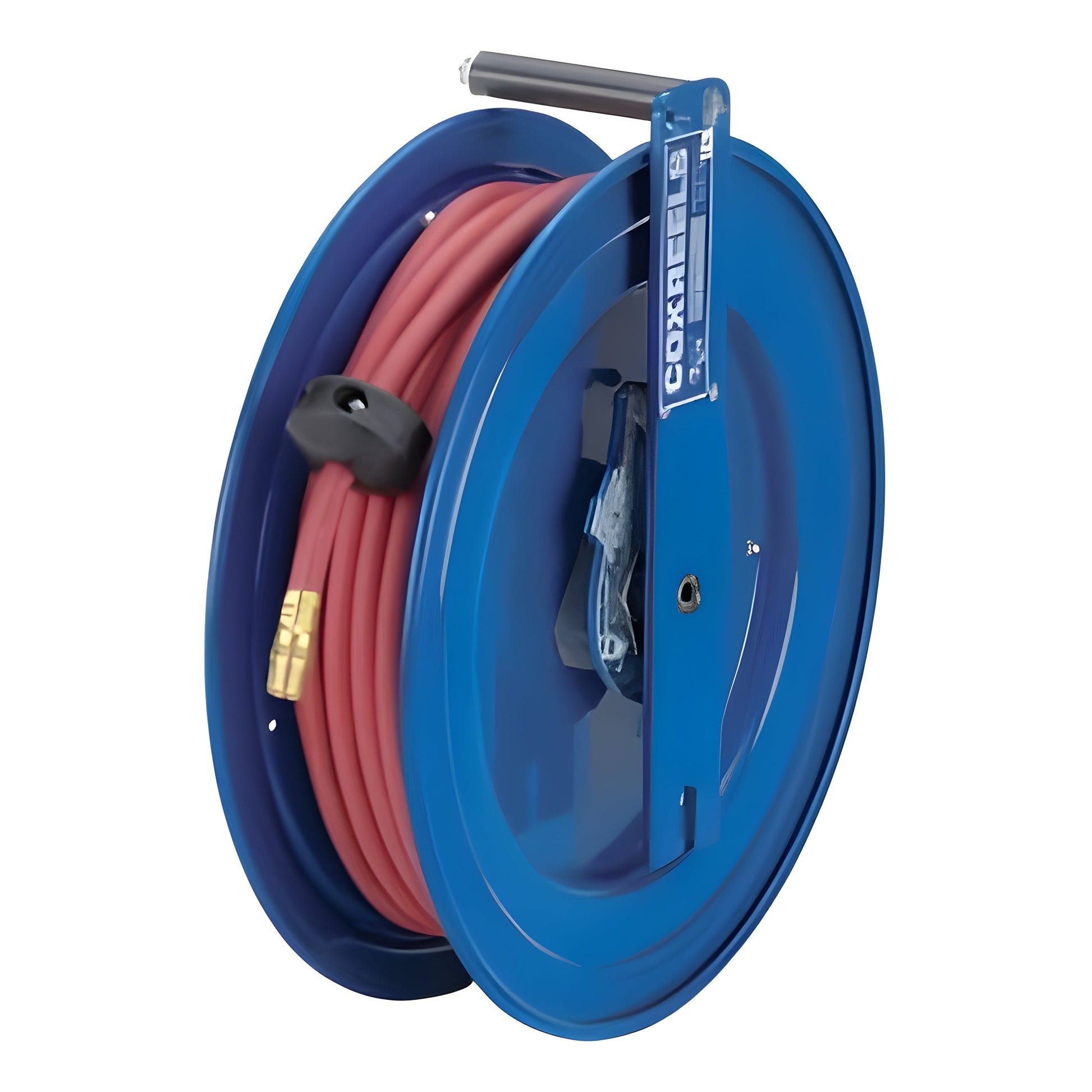

S Series " Side Mount" Large-Pressure Spring Driven Hose Left Mount Reels
COXREELS® S Series " Side Mount" spring driven hose reels for cabinet mount are compact, versatile and unique in the way they mount and operate. They feature a simple two-bolt mounting pattern for easy installation and detachment for multiple workstation applications. S Series is available for air/water, oil, grease, oxy-acetylene and T Grade gas welding hose. The 360° hose direction allows the user to operate the reel in any direction the job demands. Common applications include service units, tool benches, tool boxes, vertical walls and beams, vehicle lift systems, machine tools, service vehicles or any flat vertical surface.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
- SWIVEL - Machined from solid brass 90º full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- SIDE MOUNT DESIGN - Mount right for vertical flat surface, cabinet or enclosed space mounts. 2-bolt mounting pattern easily mounts and detaches for temporary or permanent installation.
- CONTROL BAR - Hose control bar prevents hose from slipping off the disc.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specifications
MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
SL17-H125 |
1/4" |
1/2" |
25' |
Yes |
5000 |
37 |
6.63"(W) 18.25"(H) 17"(L) |
18"(M) 2.5"(N) |
SL17-H325 |
3/8" |
5/8" |
25' |
Yes |
4000 |
38 |
6.63"(W) 18.25"(H) 17"(L) |
18"(M) 2.5"(N) |
SL17L-H125 |
1/4" |
1/2" |
25' |
No |
5000 |
31 |
6.63"(W) 18.25"(H) 17"(L) |
18"(M) 2.5"(N) |
SL17L-H325 |
3/8" |
5/8" |
25' |
No |
4000 |
31 |
6.63"(W) 18.25"(H) 17"(L) |
18"(M) 2.5"(N) |
SL19-H150 |
1/4" |
1/2" |
50' |
Yes |
5000 |
47 |
8"(W) 20.75"(H) 19.5"(L) |
20.5"(M) 2.88"(N) |
SL19-H350 |
3/8" |
5/8" |
50' |
Yes |
4000 |
48 |
8.5"(W) 20.75"(H) 19.5"(L) |
20.5"(M) 2.88"(N) |
SL19L-H150 |
1/4" |
1/2" |
50' |
No |
5000 |
36 |
8"(W) 20.75"(H) 19.5"(L) |
20.5"(M) 2.88"(N) |
SL19L-H350 |
3/8" |
5/8" |
50' |
No |
4000 |
36 |
8.5"(W) 20.75"(H) 19.5"(L) |
20.5"(M) 2.88"(N) |
What Our Experts Think
-
Side Mount Design: Ideal for mounting in tight spaces, maximizing installation flexibility and workspace efficiency.
-
Large-Pressure Capability: Handles high-pressure applications (up to 5,000 PSI), perfect for industries like pressure washing, fluid transfer, and more.
-
Spring-Driven Retraction: Automatic hose rewind for quick and effortless storage, reducing manual effort and increasing efficiency.
-
Heavy-Duty Construction: Built for durability with materials designed to withstand tough, high-pressure environments.
-
Corrosion-Resistant Coating: Protects the reel from rust and wear, making it suitable for outdoor and industrial applications.
-
Efficient Hose Management: Keeps hoses neatly stored and easily accessible, reducing clutter and enhancing workspace safety.
Q&A
Q: What is the Coxreels S Series "Side Mount" Large-Pressure Spring Driven Hose Reel - SL17-H125?
A: A high-pressure, spring-driven hose reel designed for left-side mounting, offering efficient hose management for large-pressure applications.
Q: What is the hose capacity?
A: This reel holds up to 125 feet of high-pressure hose, perfect for handling demanding industrial applications.
Q: How does the spring-driven mechanism work?
A: The reel utilizes a spring-driven rewind system, enabling smooth and automatic hose retraction with minimal effort, improving overall efficiency.
Q: Why is this reel suitable for left-side mounting?
A: Its design allows for easy installation on the left side of walls, vehicles, or equipment, optimizing space and providing better accessibility.
Q: What materials is the reel made from?
A: Constructed with durable, corrosion-resistant materials, this reel ensures long-lasting performance in tough environments.
Q: Where is this reel typically used?
A: Ideal for high-pressure applications in industries like construction, automotive, and manufacturing where efficient hose management is crucial.
Maintenance Tips
-
Model: SL17-H125
-
Hose Capacity: Holds up to 125 feet of 1/2” large-pressure hose
-
Pressure Rating: Designed for high-pressure applications up to 5000 PSI
-
Construction: Heavy-duty steel frame with corrosion-resistant powder-coated finish for enhanced durability
-
Drive Mechanism: Spring-driven automatic rewind for smooth, efficient hose retraction
-
Swivel Inlet: Full-flow brass swivel ensures smooth, uninterrupted fluid transfer
-
Roller Design: Multi-position guide arm with reinforced rollers for consistent hose payout and retraction
-
Mounting Type: Side mount (left side) for space-saving installation in tight environments
-
Applications: Ideal for high-pressure fluid transfer in industrial, construction, and maintenance applications
-
Temperature Range: Performs reliably across a wide temperature range
-
Weight: Varies based on hose configuration
