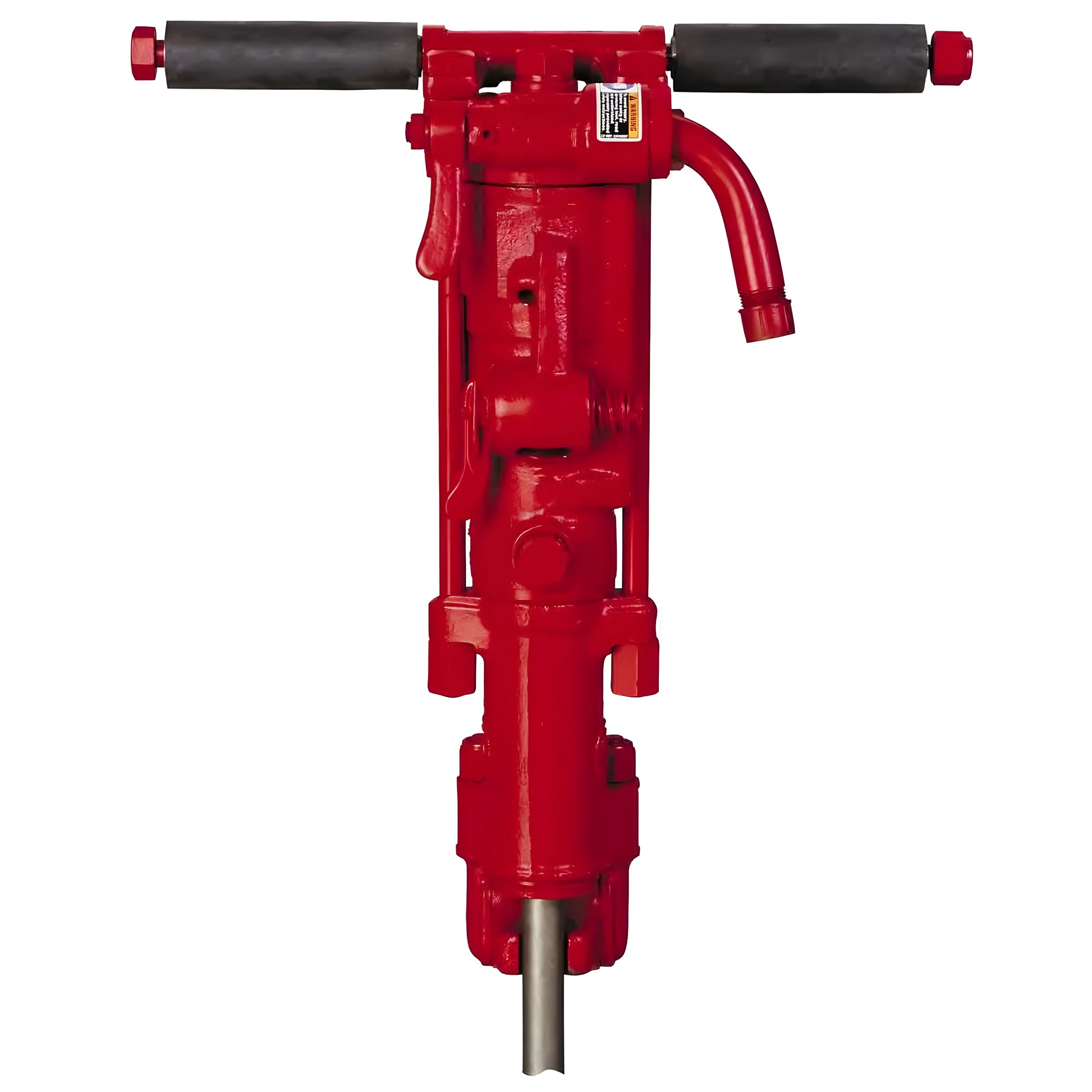

Chicago Pneumatic 7/8" x 4-1/4" Sinker Drill - CP0032A
Chicago Pneumatic CP0032A 7/8" x 4-1/4" Sinker Drill
Rock drills are ideal tools for all “hand-held” drilling operations. Their streamlined design incorporates smooth contours, a side exhaust, and a “flat-back” that makes them easy to handle in quarry, mine, drilling, and dowering work. The design also includes a higher-quality valve and cylinder-porting concept that helps maintain constant drilling speed throughout a long service life. Working parts are constantly protected with an effective lubrication system. The tool’s durable “beavertail” retainer helps deliver increased contract and reduces collar speed.
Features
- 45-50 Pound Class
- Forged steel housings withstand rugged use
- A rigid latch retainer provides extra support to the collar and reduces wear
- Multi-position throttle for easy starting of holes
- The cushioned piston reduces shock
- Blower lever for deep hole cleaning
- Integral oiler provides continuous and efficient lubrication
- 3/4” NPT Air inlet swivel improves maneuverability
- Graduated ratchet throttle control ensures accuracy in collaring holes
- High-speed drilling
- Low maintenance
- Double-grip handles
- Left-hand rotation
Specifications
| Model |
CP 0032A |
Overall Length
w/ Retainer (in.) |
19-7/8 |
Impact Rate
(bpm) |
2,220 |
Drilling Rates
@ 90 PSI
(in./min.) |
9.0 |
| Hole Diameter (in.) |
1-3/4 |
Max Drill Diameter
(in.) |
2 |
Max Drill Depth
(in.) |
118 |
Standard Hex
Chuck Size
(in.) |
7/8 x 4-1/4 |
| Weight (lbs.) |
56 |
What Our Experts Think
-
Powerful Performance – Delivers high-impact energy, making it ideal for rock drilling and construction sites.
-
Durable & Reliable – Built with rugged materials to withstand harsh job site conditions.
-
Ergonomic Design – Designed for operator comfort with optimized balance and reduced vibration.
-
Versatile Application – Suitable for mining, quarrying, and general industrial drilling.
-
Chicago Pneumatic Quality – A trusted brand known for long-lasting tools that get the job done.
Q&A
Q: What is the Chicago Pneumatic 7/8" x 4-1/4" Sinker Drill - CP0032A?
A: The CP0032A is a heavy-duty pneumatic sinker drill designed for drilling through tough materials like rock and concrete in construction and mining applications.
Q: What makes this drill stand out?
A: Built for durability and high performance, this drill delivers powerful impact energy, efficient air consumption, and reliable operation in demanding environments.
Q: What type of jobs is this drill best suited for?
A: It's ideal for quarry drilling, foundation work, and heavy-duty construction projects where deep, precise drilling is required.
Q: Is it easy to operate?
A: Yes! The CP0032A features an ergonomic design for better handling and reduced operator fatigue.
Maintenance Tipe
-
Lubricate Regularly – Use rock drill oil before and after each use for smooth operation.
-
Inspect Air Supply – Ensure clean, dry air at the correct pressure to prevent internal damage.
-
Check Drill Steel & Chuck – Ensure a secure fit and replace worn-out bits as needed.
-
Monitor Exhaust & Valves – Keep ports clean to maintain airflow and efficiency.
-
Examine Hoses & Fittings – Check for leaks or cracks and tighten all connections.
-
Clean After Use – Remove dust and debris to prevent clogging.
-
Store Properly – Keep in a dry, clean environment when not in use.
