FISHER & PAYKEL RS2474F3LJ1 Integrated Triple Zone Freezer, 24", Ice - RS2474F3LJ1-KT
Pair with the Integrated Triple Zone Refrigerator for the ultimate kitchen solution - this model features three independent food zones taking cooling flexibility to a new level.(BR)Finish Panel Ready Hinge Left hinge
Features
- Three independent food zones, each with adjustable temperature to store different foods

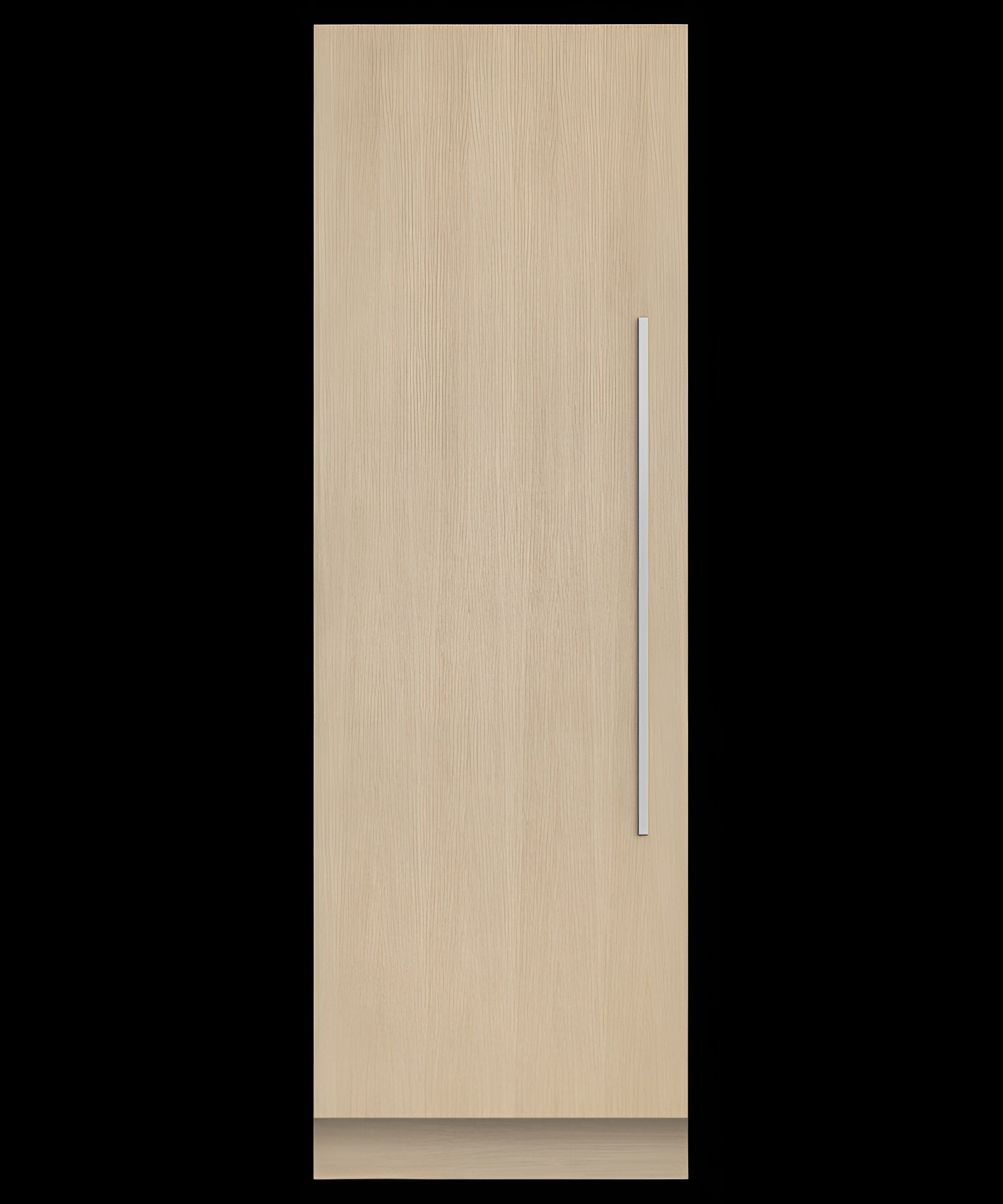

- Panel ready, flush fit design with 3/16" gaps and custom height installation
- Internal ice maker with boost for busy times
- Easy-to-use touch-control panel and Wi-Fi capability
Specifications
| Accessories |
| Accessories (sold separately) |

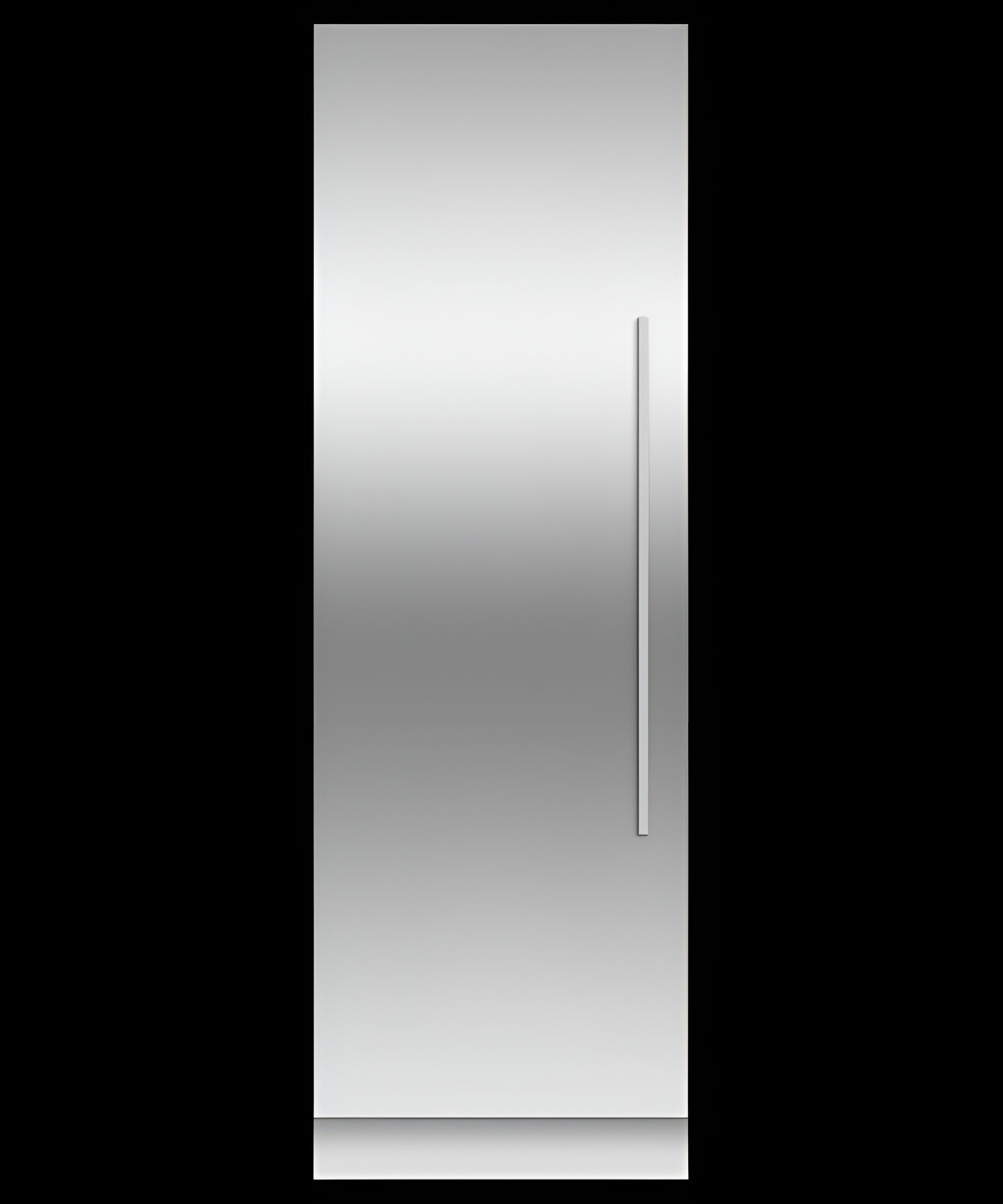

| Door panel stainless steel |
RD2474 (right & left hinge) |
| Handle kit Contemporary square fine, aluminium |
AHD5RDSF |
| Handle kit Contemporary square fine, black |
AHD5RDSFB |
| Handle kit Professional round flush |
25921 |
| Joiner kit |
AJRS74LR |
| Toe kick stainless steel 23" |
AKRS2304 |
| Toe kick stainless steel 47" |
AKRS4704 |
| Toe kick stainless steel 71" |
AKRS7104 |
| Water filter replacement |
847200 |
| Capacity |
| Total gross capacity |
10.7cu ft |
| Volume freezer |
10.7cu ft |
| Consumption |
| Energy usage |
379kWh/year |
| Features |
| Adjustable door shelves |
2 |
| Freezer Features |
| Freezer bins |
4 |
| Ice making rate per day |
2.2lbs |
| Installation Dimensions |
| Minimum inside width of cabinetry frame |
23 5 / 8 " |
| Minimum internal depth of cabinetry |
24 " |
| Minimum internal height of cabinetry |
74 " |
| Performance |
| Variable food modes |
Chill |
| Variable temperature zones |
3 |
| Power requirements |
| Rated current |
10A |
| Supply frequency |
60Hz |
| Supply voltage |
115V |
| Product dimensions |
| Depth |
22 11 / 16 " |
| Height |
73 5 / 8 " |
| Width |
23 5 / 16 " |
Manual
What our Expect Think
-
Triple-Zone Freezing – Customizable temperature zones for optimal food preservation.
-
Integrated Design – Seamlessly blends into cabinetry for a sleek, modern look.
-
24” Compact Yet Spacious – Thoughtfully designed storage with deep drawers and adjustable shelving.
-
Automatic Ice Maker – Ensures a constant supply of fresh ice for daily use and entertaining.
-
ActiveSmart™ Technology – Adjusts temperature and airflow to maintain food quality.
-
Soft-Close Drawers – High-quality construction for smooth, quiet operation.
-
Energy-Efficient Performance – Designed to reduce energy consumption while delivering powerful cooling.
Q&A
Q: What are the dimensions of the FISHER & PAYKEL RS2474F3LJ1 Triple Zone Freezer?
A: It is 24 inches wide, designed for seamless built-in integration.
Q: What does "Triple Zone" mean?
A: The freezer has three independent temperature zones for optimized food storage.
Q: Does this model include an ice maker?
A: Yes, it features an automatic ice maker for added convenience.
Q: Is this freezer panel-ready?
A: Yes, it is designed for custom panel integration to match your kitchen cabinetry.
Q: What type of cooling technology does it use?
A: It features ActiveSmart™ technology to maintain optimal temperature and energy efficiency.
Q: Does it have adjustable storage options?
A: Yes, it includes spacious drawers and customizable storage configurations.
Q: Is this model energy-efficient?
A: Yes, it is designed for energy efficiency while delivering consistent cooling performance.
Maintenance Tips
-
Clean Interior Regularly: Wipe shelves and drawers with a soft cloth and mild detergent to prevent buildup.
-
Replace Water Filter: If equipped with an ice maker, change the filter every 6 months for fresh ice.
-
Check Door Seals: Clean and inspect gaskets to ensure a tight seal and energy efficiency.
-
Vacuum Condenser Coils: Clean every 6-12 months to maintain cooling performance.
-
Monitor Temperature Settings: Keep each zone at recommended settings for optimal food preservation.
-
Avoid Overloading: Ensure proper airflow by organizing food efficiently and not blocking vents.
