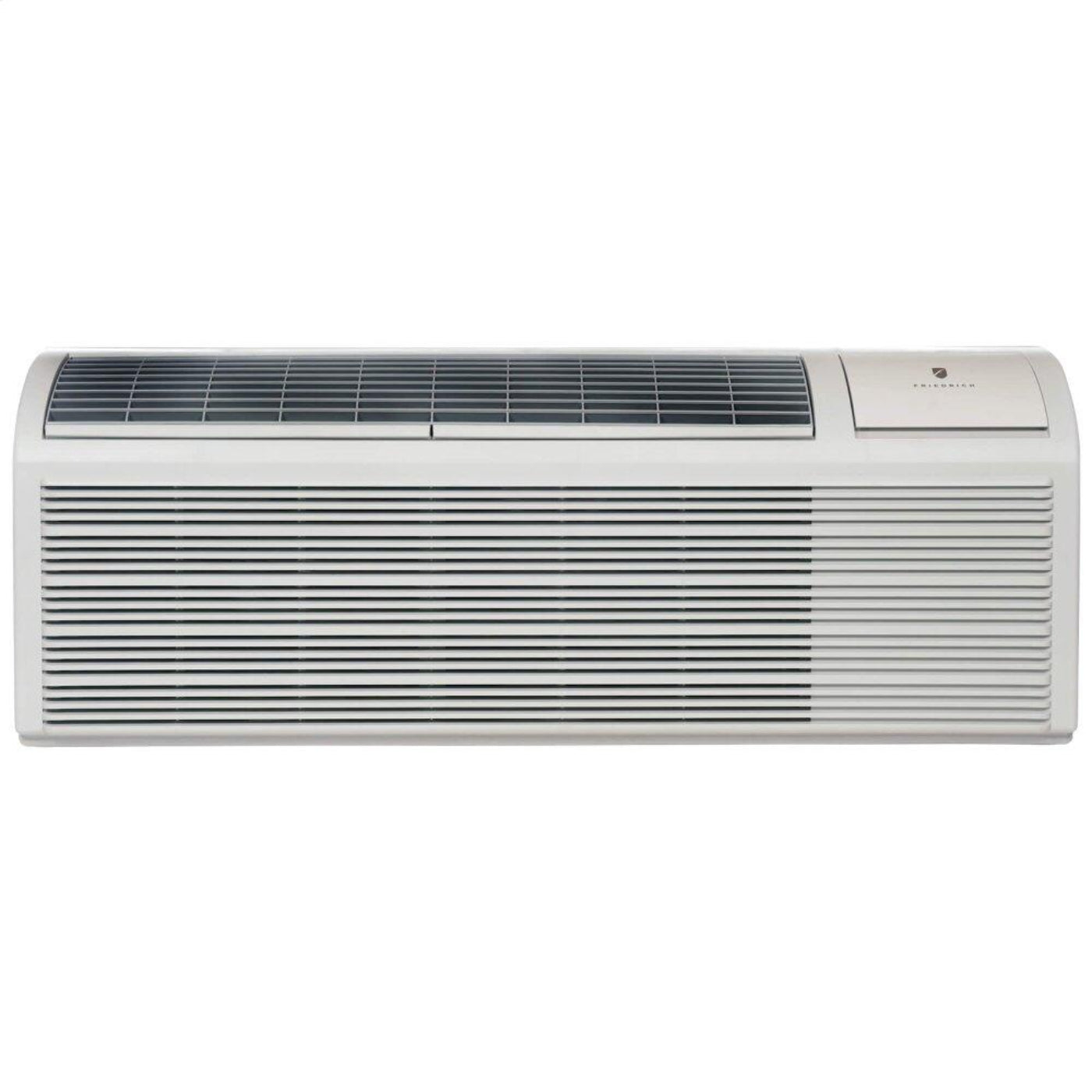

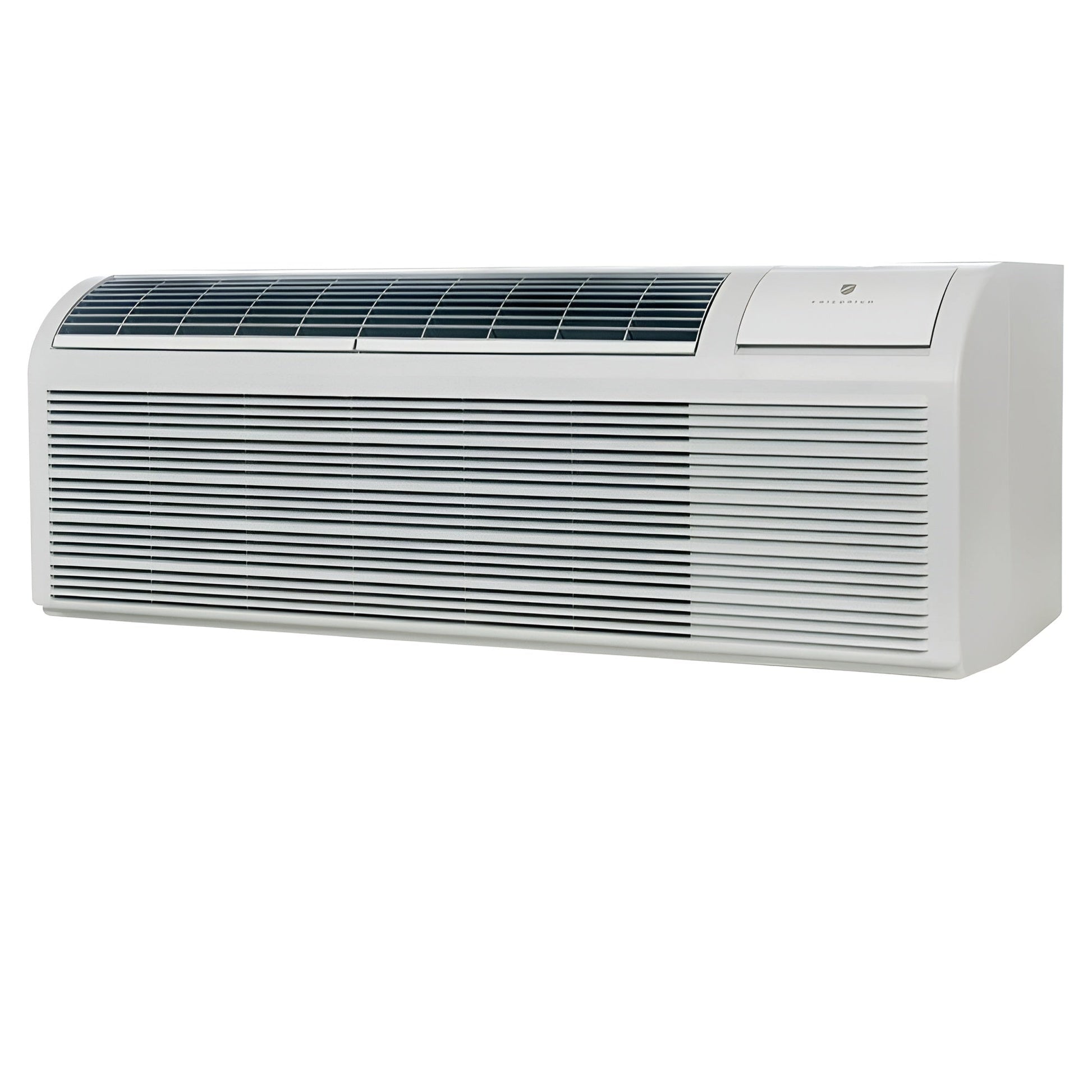

FRIEDRICH ZoneAire Premier - PDH12R3SG-KT
Our most efficient standard PTAC with exceptional performance and leading warranty for the lowest cost of operation. ZoneAire Premier PTAC is available in electric heat and heat pump options, ranging from 7,000 to 15,000 Btu.
Durable Construction
Superior materials and design reduce sound levels and improve overall guest satisfaction. Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish and are oven-cured at high temperature for exceptional durability. Stainless Steel endplates reduce corrosion of the outdoor coil.
Energy Efficiency
Friedrich PTACs feature a super-efficient refrigeration design with EERs up to 13.0 and COP up to 3.6. Energy efficient heat pump models are also available in our complete line.
Comfort & Convenience

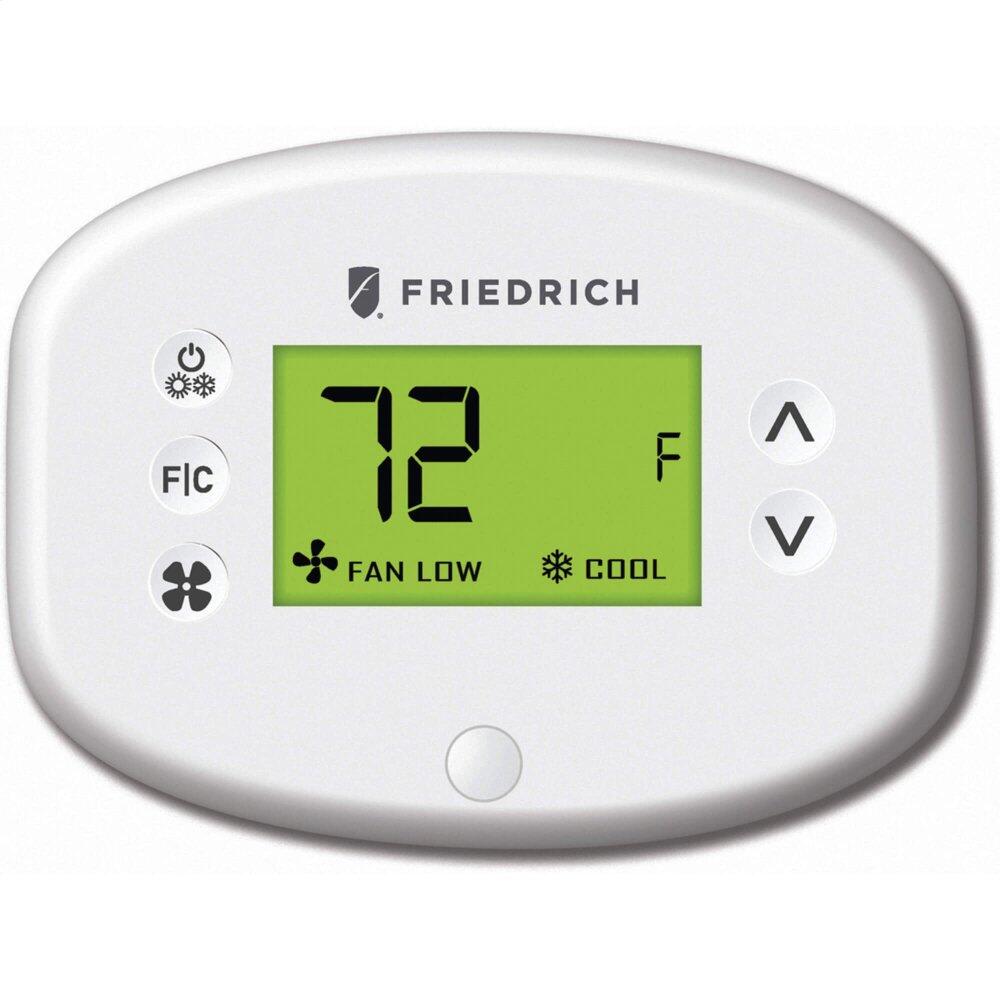

Intuitive unit controls are user friendly with easy-to-read LED display that can show either set point or actual room temperature as selected by owner. Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.
Sound Reduction Technology
Friedrich PTACs come standard with two permanently lubricated fan motors for added durability and reduced sound levels indoors. Units also have a quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly and quietly. High-density insulation and steel inner wall block outdoor noise.
Support
Friedrich's industry leading warranty features 2-year full warranty on parts and labor and 5-year limited warranty. Our nationwide service network and U.S.-based Friedrich expert technical team ensures you get fast, knowledgeable service.
Maintenance and Installation
Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters. Surehold Front Cover System securely attaches the front each time. Unit may be installed low to the floor.
Specifications
| Model |
PDH12R3SG |
| Operation |
Cool/Heat Pump |
| Cooling BTU |
11,800 |
| Reverse Heating BTU |
10,600 |
| Voltage |
265V |
| EER (Energy Efficiency Ratio) |
11.6 |
| COP @ 47°F |
3.4 |
| Cooling Area (Sq Ft.) |
450-550 |
What our Expect Think
-
Cooling Capacity: 12,000 BTUs, effectively cooling areas up to 550 sq. ft., ideal for medium to large-sized rooms.
-
Heating Function: Heat pump operation provides 10,600 BTUs of heating, ensuring year-round comfort.
-
Energy Efficiency: Features an Energy Efficiency Ratio (EER) of up to 11.6 and a Coefficient of Performance (COP) of up to 3.4, promoting cost-effective operation.
-
Durable Construction: Constructed with galvanized zinc-coated steel wall sleeves and base pans, powder-coated for exceptional durability. Stainless steel endplates help reduce corrosion of the outdoor coil.
-
Quiet Operation: Designed with sound-reducing features, including two permanently lubricated fan motors and a quiet, efficient rotary compressor mounted with vibration isolators, ensuring smooth and quiet operation. High-density insulation and steel inner wall block outdoor noise.
-
User-Friendly Controls: Equipped with intuitive controls and an easy-to-read LED display that can show either set point or actual room temperature, as selected by the user.
Q&A
Q: What is the cooling capacity of the FRIEDRICH ZoneAire Premier PDH12R3SG?
A: The FRIEDRICH ZoneAire Premier PDH12R3SG delivers 12,000 BTUs of cooling, making it suitable for medium to large-sized spaces.
Q: Does the PDH12R3SG include heating functionality?
A: Yes, this model provides both cooling and heating capabilities, ensuring comfort in any season.
Q: Is the FRIEDRICH ZoneAire Premier PDH12R3SG portable?
A: Yes, it is designed to be portable, with built-in caster wheels for easy movement from room to room.
Q: Can I control the FRIEDRICH ZoneAire Premier PDH12R3SG remotely?
A: Yes, it comes with a remote control for convenient operation from anywhere within the room.
Q: Does the PDH12R3SG have a dehumidifier mode?
A: Yes, it features a dehumidifier function to help reduce humidity levels, improving air quality and comfort.
Q: Is the FRIEDRICH ZoneAire Premier PDH12R3SG energy-efficient?
A: Yes, the unit is designed with energy-saving features to minimize power consumption while maintaining optimal performance.
Maintenance Tips
-
Clean or Replace Filters – Clean or replace filters every 1-2 months to maintain proper airflow and cooling.
-
Clean the Coils – Inspect and clean the evaporator and condenser coils annually for optimal cooling performance.
-
Empty the Water Tank – Regularly empty the water tank to avoid overflow and mold buildup.
-
Inspect the Drain Line – Ensure the condensate drain line is clear to prevent blockages and water damage.
-
Check for Refrigerant Leaks – Inspect the unit for refrigerant leaks to keep cooling efficiency intact.
-
Professional Maintenance – Schedule a yearly service to ensure the unit operates at its best.
