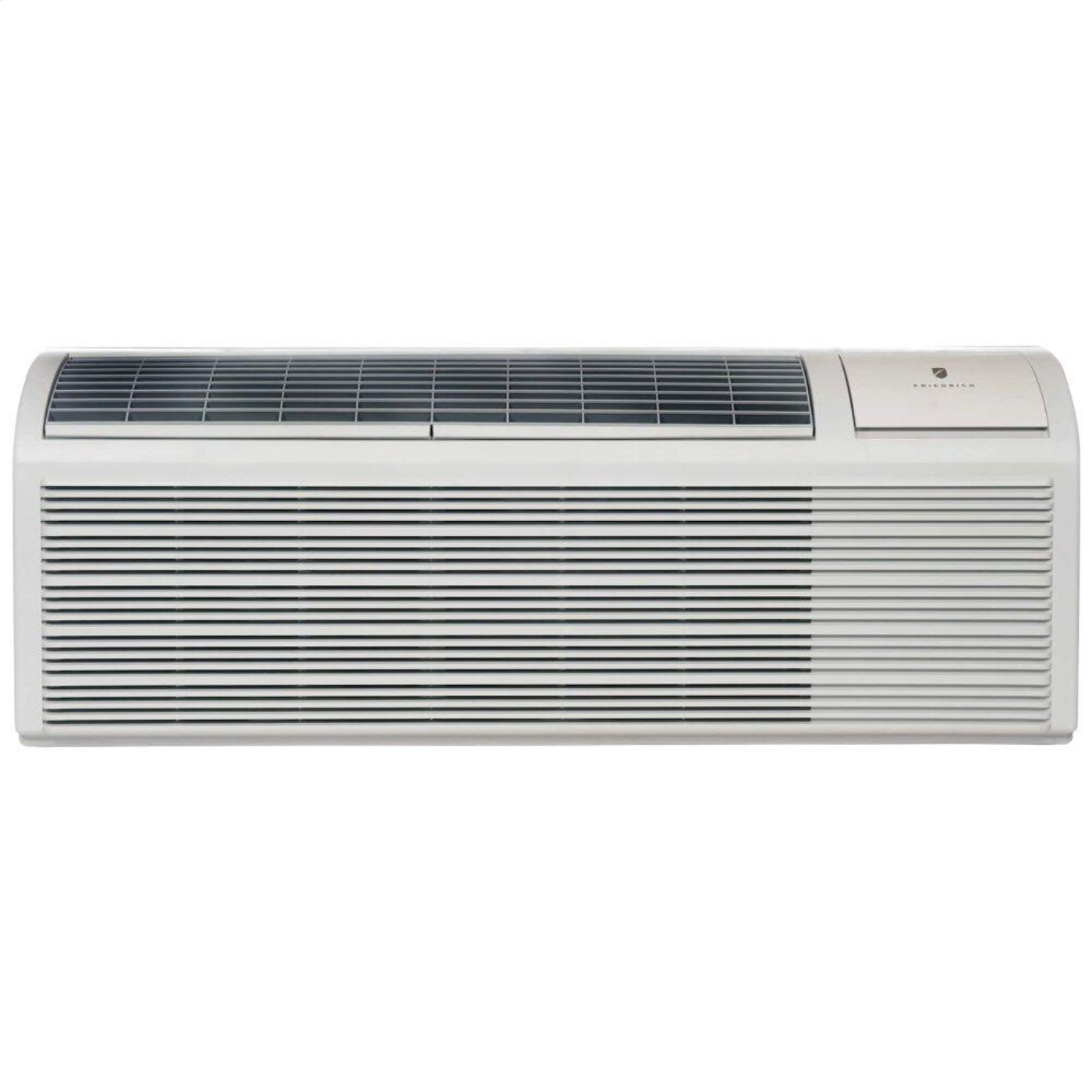

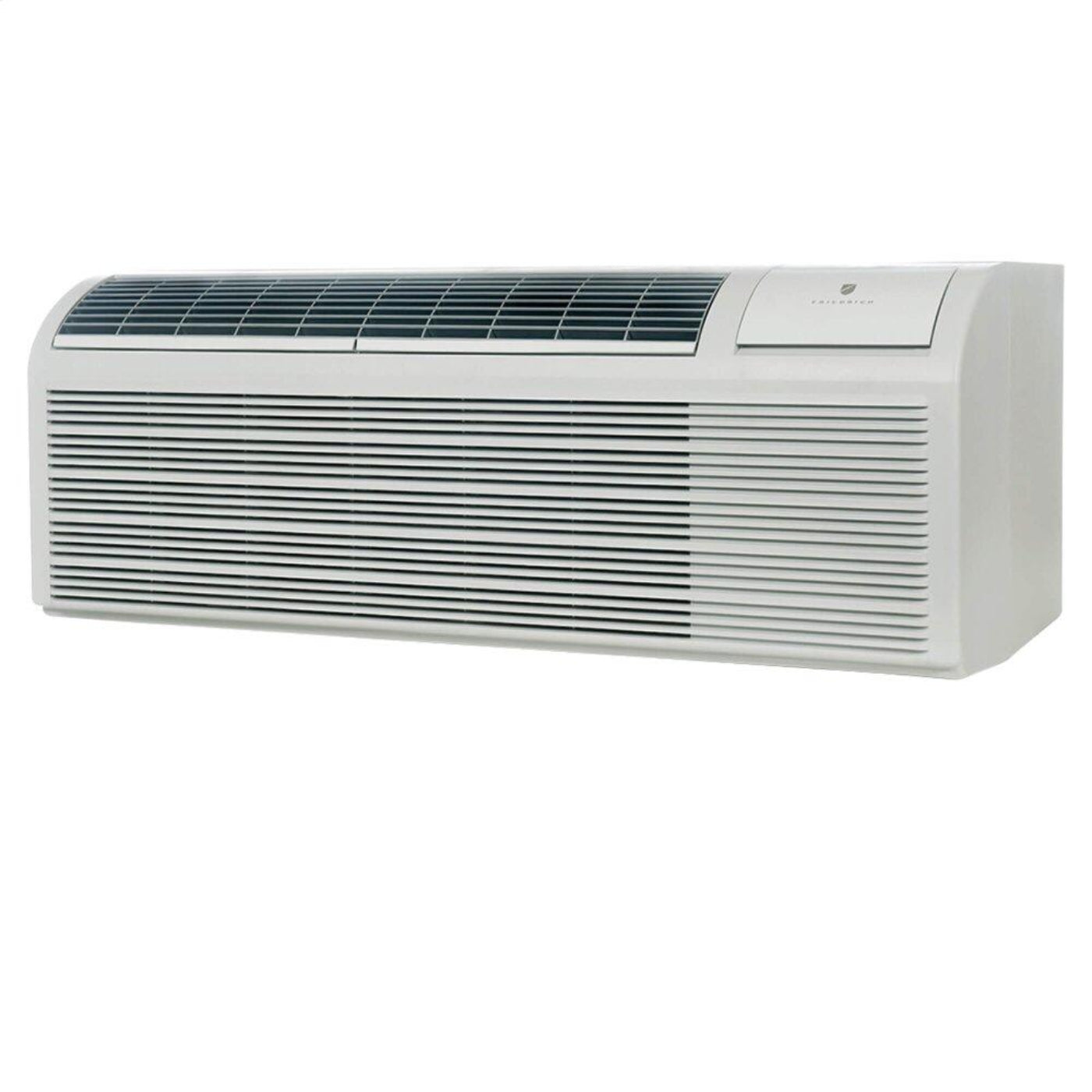

FRIEDRICH ZoneAire Premier - PDH15R5SG-KT
Our most efficient standard PTAC with exceptional performance and leading warranty for the lowest cost of operation. ZoneAire Premier PTAC is available in electric heat and heat pump options, ranging from 7,000 to 15,000 Btu.
Durable Construction
Superior materials and design reduce sound levels and improve overall guest satisfaction. Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish and are oven-cured at high temperature for exceptional durability. Stainless Steel endplates reduce corrosion of the outdoor coil.
Energy Efficiency
Friedrich PTACs feature a super-efficient refrigeration design with EERs up to 13.0 and COP up to 3.6. Energy efficient heat pump models are also available in our complete line.
Comfort & Convenience

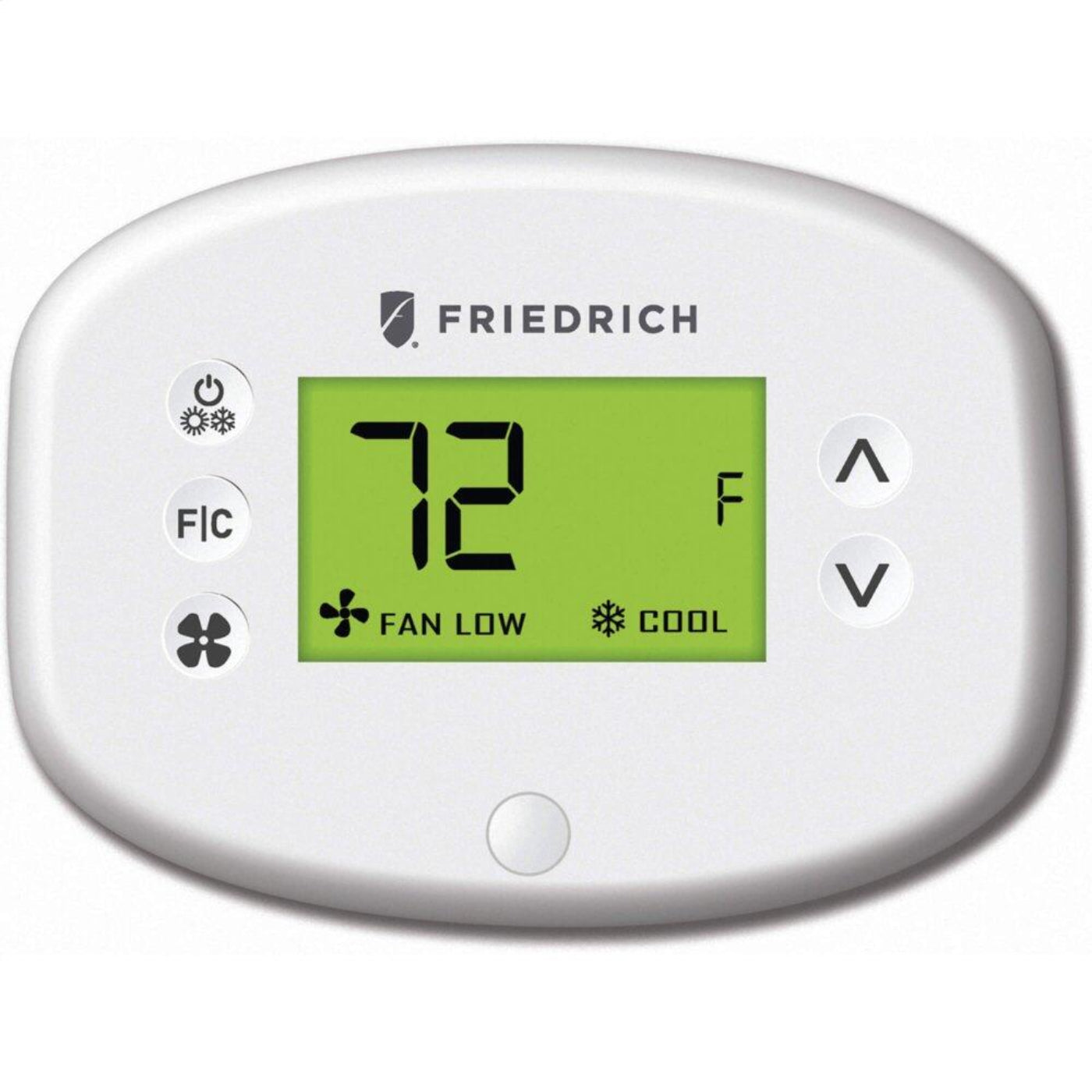

Intuitive unit controls are user friendly with easy-to-read LED display that can show either set point or actual room temperature as selected by owner. Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.
Sound Reduction Technology
Friedrich PTACs come standard with two permanently lubricated fan motors for added durability and reduced sound levels indoors. Units also have a quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly and quietly. High-density insulation and steel inner wall block outdoor noise.
 Support
Friedrich's industry leading warranty features 2-year full warranty on parts and labor and 5-year limited warranty. Our nationwide service network and U.S.-based Friedrich expert technical team ensures you get fast, knowledgeable service.
Maintenance and Installation
Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters. Surehold Front Cover System securely attaches the front each time. Unit may be installed low to the floor.
Specifications
| Model |
PDH15R5SG |
| Operation |
Cool/Heat Pump |
| Cooling BTU |
14,500 |
| Reverse Heating BTU |
13,300 |
| Voltage |
265V |
| EER (Energy Efficiency Ratio) |
10.4 |
| COP @ 47°F |
3.1 |
| Cooling Area (Sq Ft.) |
550-650 |
What our Expect Think
-
Cooling Capacity: 15,000 BTUs, effectively cooling areas up to 700 sq. ft., ideal for larger rooms or open spaces.
-
Heating Function: Heat pump operation provides 13,300 BTUs of heating, ensuring year-round comfort.
-
Energy Efficiency: Features an Energy Efficiency Ratio (EER) of 10.4 and a Coefficient of Performance (COP) of 3.1 at 47°F, promoting cost-effective operation.
-
Durable Construction: Constructed with galvanized zinc-coated steel wall sleeves and base pans, powder-coated for exceptional durability. Stainless steel endplates help reduce corrosion of the outdoor coil.
-
Quiet Operation: Designed with sound-reducing features to enhance guest satisfaction by minimizing noise levels.
-
User-Friendly Controls: Equipped with intuitive controls and an easy-to-read LED display that can show either set point or actual room temperature, as selected by the user.
Q&A
Q: What is the cooling capacity of the FRIEDRICH ZoneAire Premier PDH15R5SG?
A: The FRIEDRICH ZoneAire Premier PDH15R5SG provides 14,000 BTU of cooling, ideal for larger rooms and spaces.
Q: Does the FRIEDRICH ZoneAire Premier PDH15R5SG offer heating capabilities?
A: Yes, this unit is equipped with both cooling and heating functions, making it perfect for year-round comfort.
Q: Is the FRIEDRICH ZoneAire Premier PDH15R5SG portable?
A: Yes, it is a portable air conditioner, equipped with wheels for easy movement between rooms.
Q: What additional features does the FRIEDRICH ZoneAire Premier PDH15R5SG offer?
A: This unit includes a dehumidification function and a self-evaporating system for convenience. It also has a 24-hour timer and a remote control for added control and comfort.
Q: Is the FRIEDRICH ZoneAire Premier PDH15R5SG energy-efficient?
A: Yes, it is designed to be energy-efficient, helping to lower operating costs without compromising on performance.
Q: Does this unit have an easy installation process?
A: Yes, it is a plug-and-play unit, meaning it requires minimal setup, and you can start enjoying comfort quickly.
Maintenance Tips
-
Clean or Replace Filters – Clean or replace filters every 1-2 months to ensure efficient airflow and cooling.
-
Clean the Coils – Inspect and clean the evaporator and condenser coils annually to maintain cooling performance.
-
Empty the Water Tank – Regularly empty the water tank to prevent overflow and reduce the risk of mold buildup.
-
Inspect Drain Hose – Ensure the drain hose is clear to avoid clogs and water damage.
-
Check for Leaks – Inspect the unit for any refrigerant leaks to maintain cooling efficiency.
-
Annual Professional Maintenance – Schedule a professional inspection to ensure the unit is in optimal working condition.
