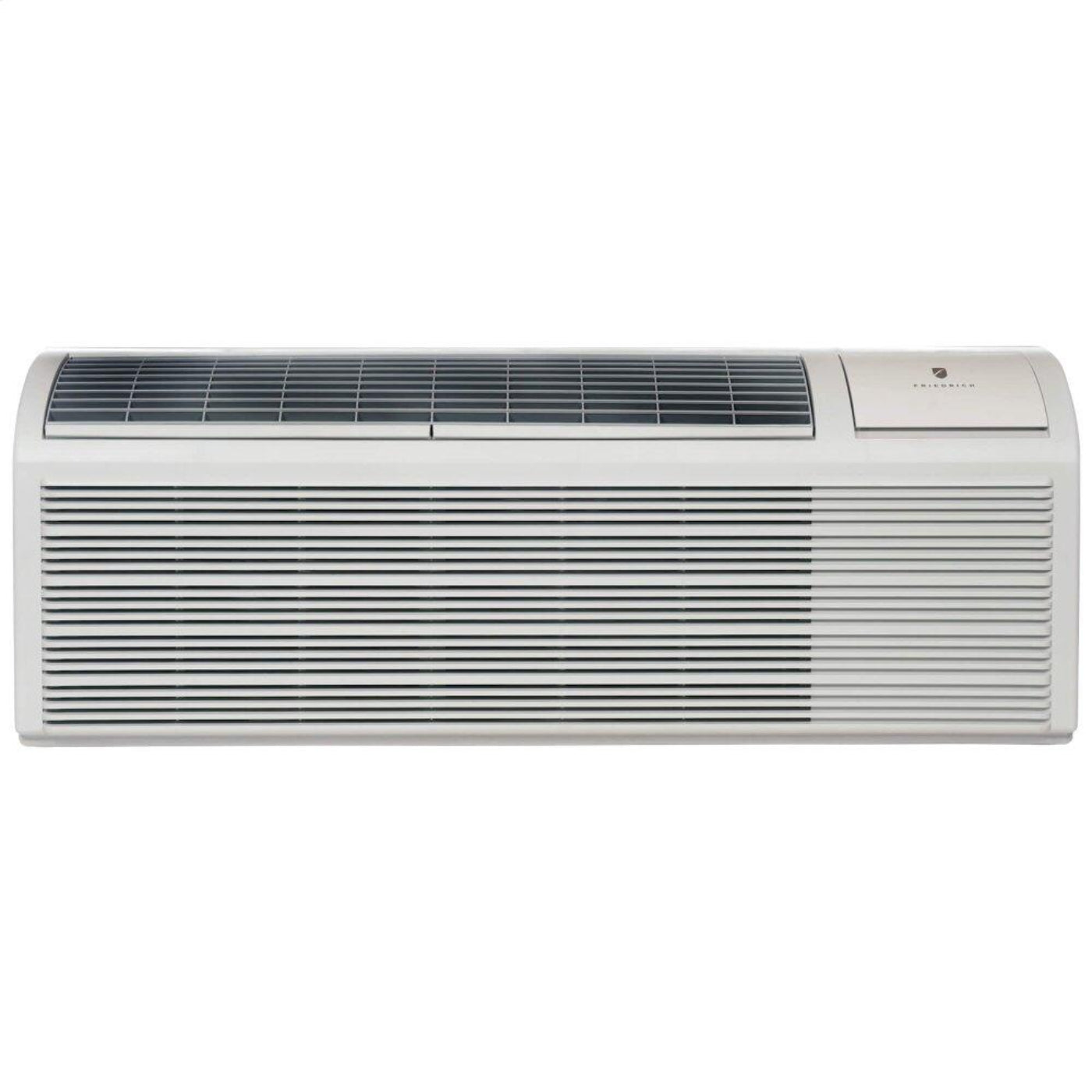

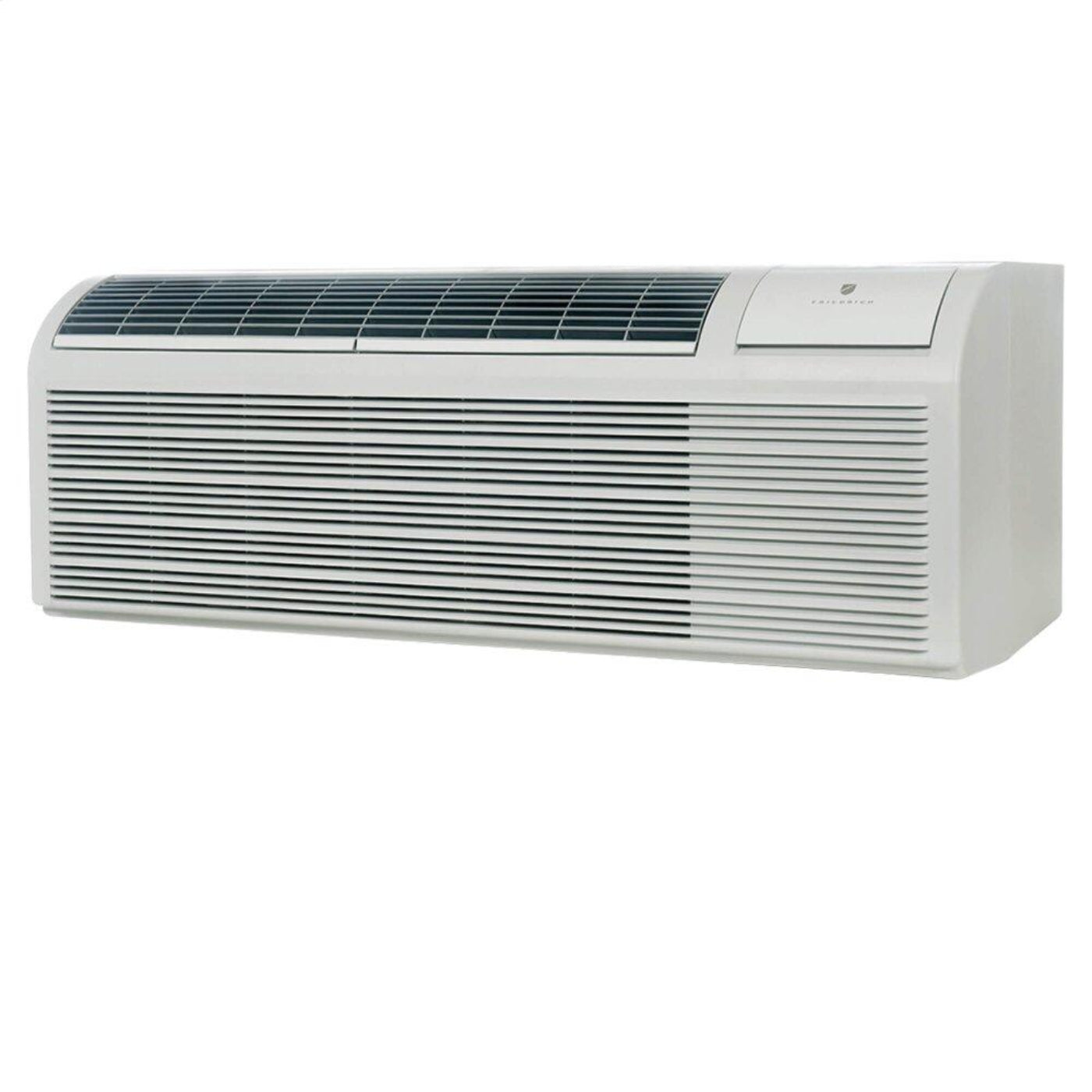

FRIEDRICH ZoneAire Select - PZH12K3SB-KT
Excellent energy efficiency, low sound levels and reliable performance, all backed by an outstanding warranty. ZoneAire Select PTAC is available in electric heat and heat pump options, ranging from 7,000 to 15,000 Btu.
Durable Construction
Superior materials and design reduce sound levels and improve overall guest satisfaction. Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish, and are oven-cured at high temperature for exceptional durability. Aluminum endplates reduce corrosion of the outdoor coil.
Energy Efficiency
Friedrich PTACs feature a super-efficient refrigeration design with EERs up to 12.0 and COP up to 3.55. Energy efficient heat pump models are also available in our complete line.
Comfort & Convenience

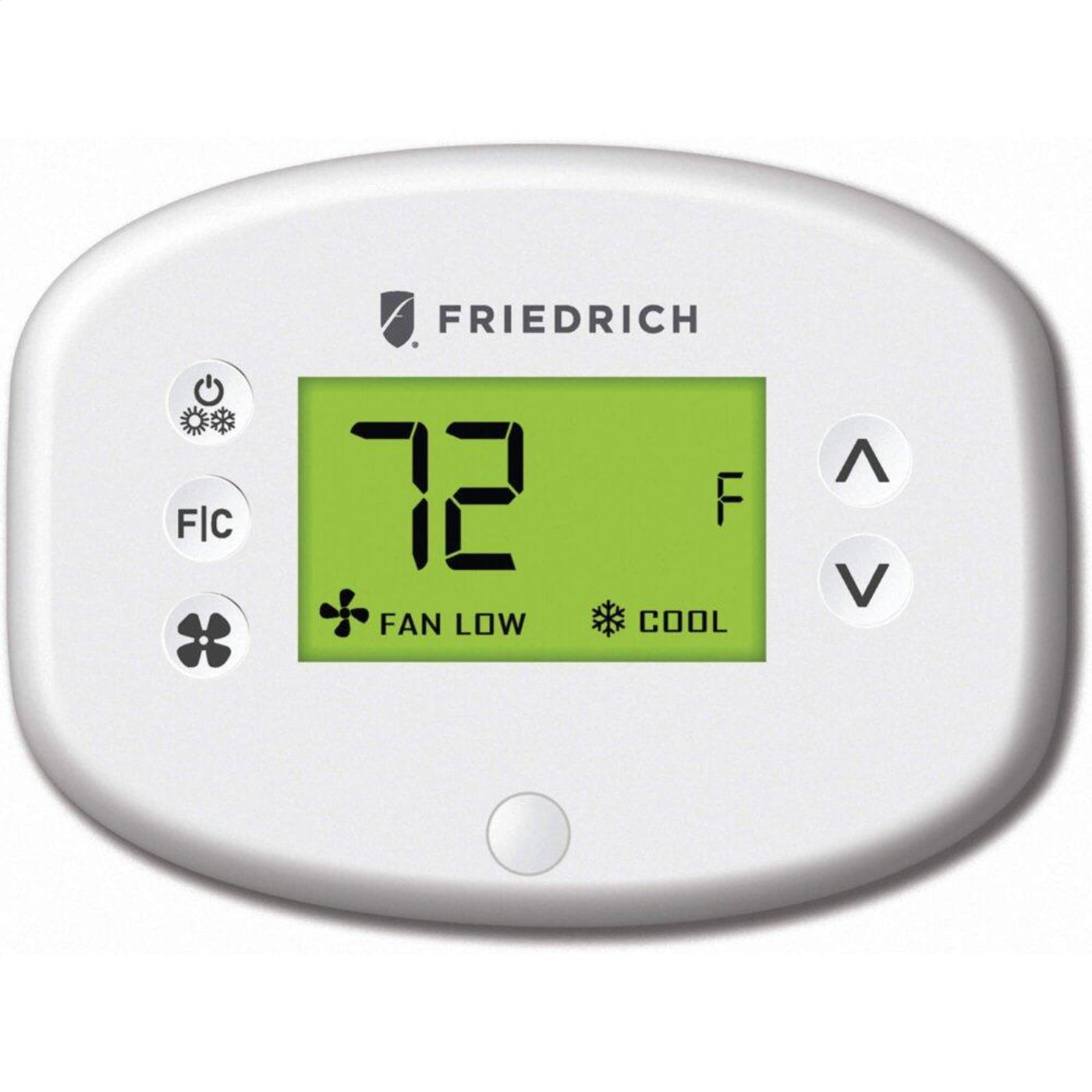

Intuitive unit controls are user friendly with easy-to-read LED display that can show either set point or actual room temperature as selected by owner. Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.
Sound Reduction Technology
Friedrich PTACs come standard with two permanently lubricated fan motors for added durability and reduced sound levels indoors. Units also have a quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly and quietly. High-density insulation and steel inner wall block outdoor noise.
 Support
Friedrich's industry leading warranty features 2-year full warranty on parts and labor and 5-year limited warranty. Our nationwide service network and U.S.-based Friedrich expert technical team ensures you get fast, knowledgeable service.
Maintenance and Installation
Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters. Surehold Front Cover System securely attaches the front each time. Unit may be installed low to the floor.
Specifications
| Model |
PZH12K3SB |
| Operation |
Cool/Heat Pump |
| Cooling BTU |
12,000/11,800 |
| Reverse Heating BTU |
11,000/10,800 |
| Voltage |
230/208V |
| EER (Energy Efficiency Ratio) |
11.4/11.4 |
| COP @ 47°F |
3.47/3.44 |
| Cooling Area (Sq Ft.) |
450-550 |
What our Expect Think
-
Cooling Capacity: 12,000 BTUs, effectively cooling areas up to 550 sq. ft., ideal for larger rooms or open spaces.
-
Heating Function: Heat pump operation provides 3.5 kW of heating, ensuring year-round comfort.
-
Energy Efficiency: Features an Energy Efficiency Ratio (EER) of 11.4, promoting cost-effective operation.
-
Durable Construction: Constructed with galvanized zinc-coated steel wall sleeves and base pans, powder-coated for exceptional durability. Aluminum endplates help reduce corrosion of the outdoor coil.
-
Quiet Operation: Designed with sound-reducing features to enhance guest satisfaction by minimizing noise levels.
-
User-Friendly Controls: Equipped with intuitive controls and an easy-to-read LED display that can show either set point or actual room temperature, as selected by the user.
Q&A
Q: What is the cooling capacity of the FRIEDRICH ZoneAire Select PZH12K3SB?
A: The FRIEDRICH ZoneAire Select PZH12K3SB provides 12,000 BTU of cooling, making it ideal for medium-sized rooms.
Q: Does the FRIEDRICH ZoneAire Select PZH12K3SB offer both cooling and heating?
A: Yes, this unit offers both cooling and heating functions, allowing year-round use for your comfort.
Q: Is the FRIEDRICH ZoneAire Select PZH12K3SB portable?
A: Yes, this unit is portable, designed with wheels for easy relocation between rooms or spaces.
Q: How energy-efficient is the FRIEDRICH ZoneAire Select PZH12K3SB?
A: The unit is designed for energy efficiency, helping to minimize power consumption while providing effective cooling and heating.
Q: Is installation easy for the FRIEDRICH ZoneAire Select PZH12K3SB?
A: Yes, the unit is easy to install and requires minimal setup, making it user-friendly and quick to use.
Maintenance Tips
-
Clean or Replace Filters – Clean or replace filters every 1-2 months to ensure efficient airflow and cooling.
-
Clean the Coils – Inspect and clean the evaporator and condenser coils annually for optimal cooling performance.
-
Empty the Water Tank – Regularly empty the water tank to prevent overflow and reduce mold or mildew growth.
-
Clear the Drain Line – Ensure the drain line is free of obstructions to avoid water leakage.
-
Check for Leaks – Inspect for any refrigerant leaks to maintain the unit's cooling efficiency.
-
Professional Maintenance – Schedule an annual professional service to keep the unit running at its best.
