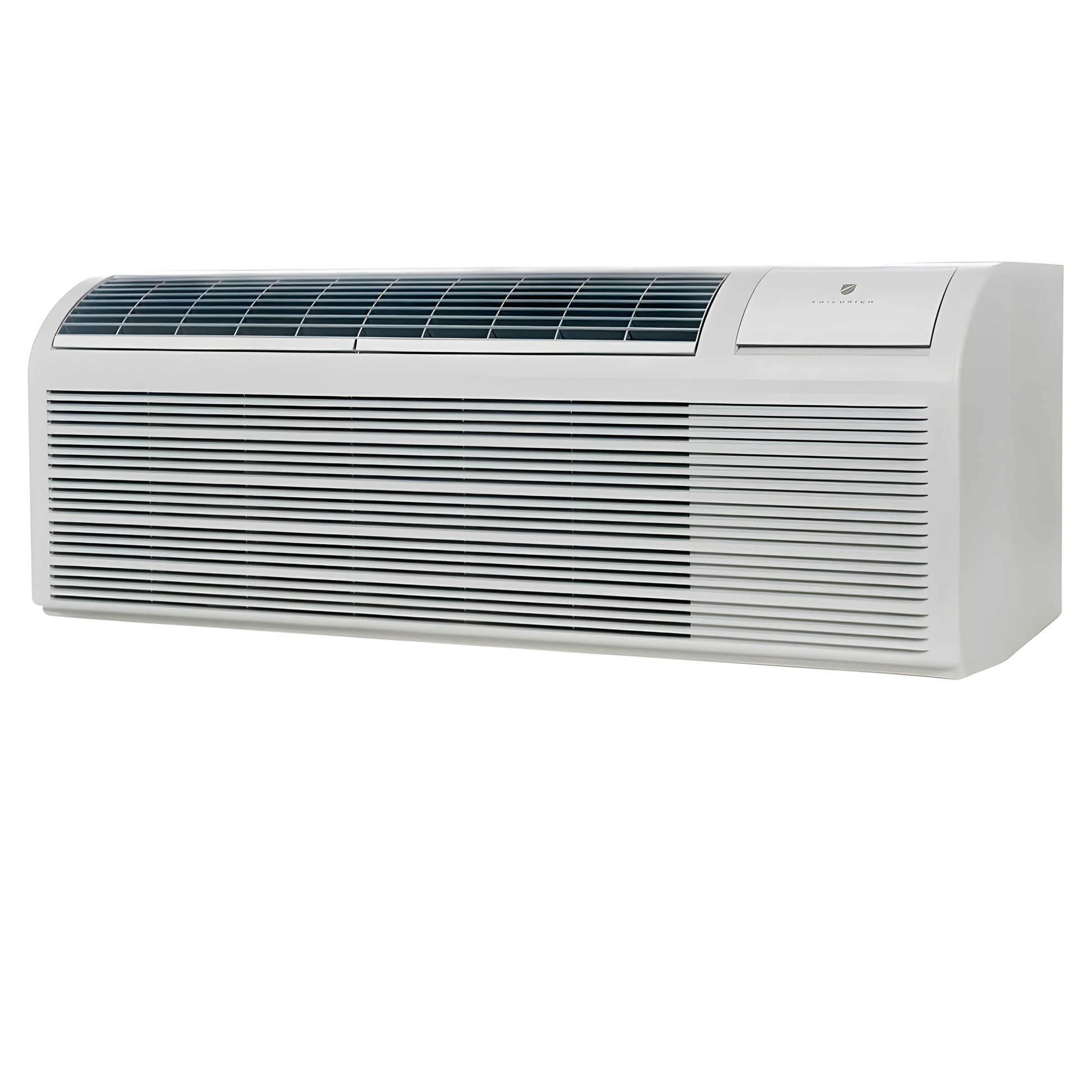

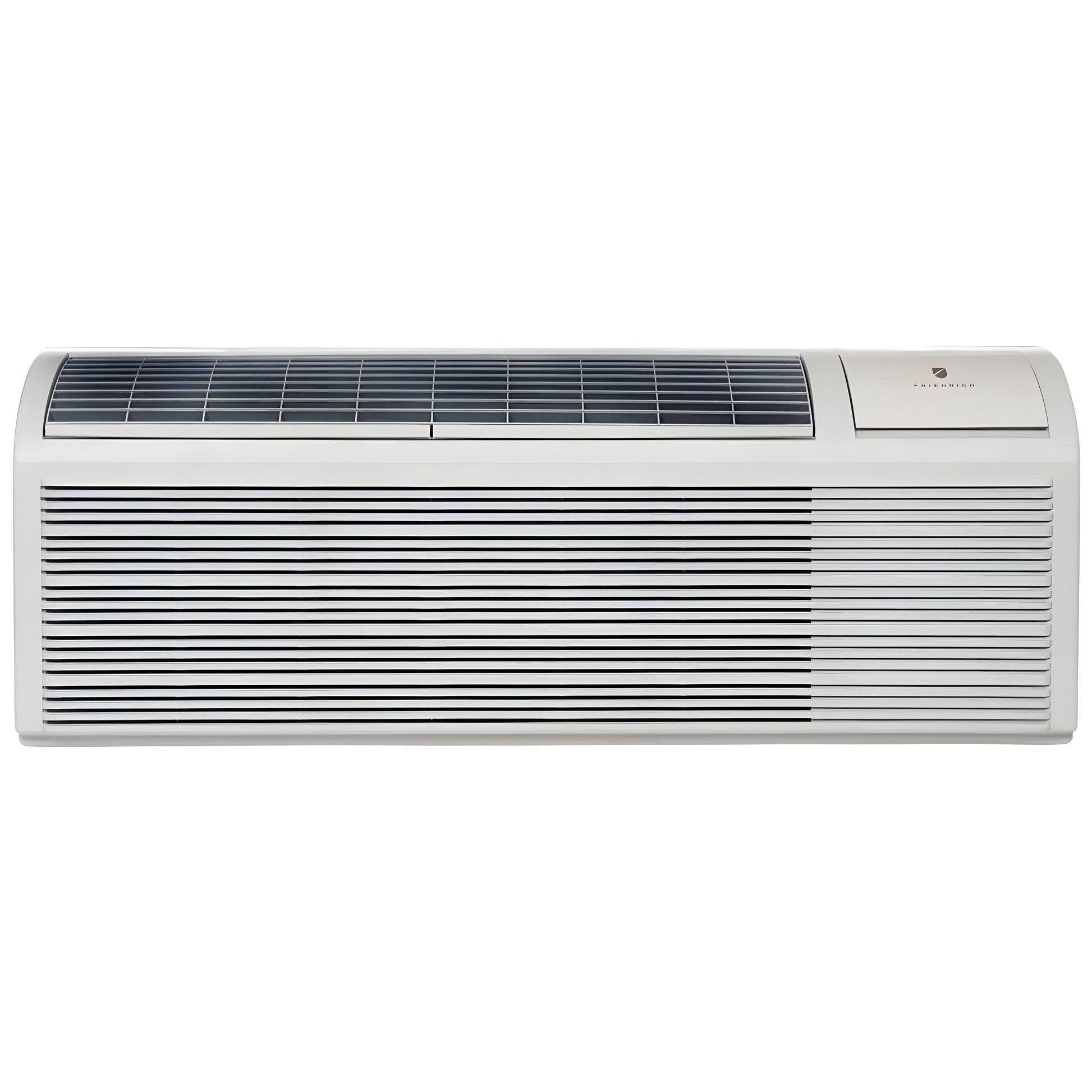

FRIEDRICH ZoneAire Select - PZH15K5SB-KT
Exceptional value. Outstanding energy efficiency, reliable performance, and quiet sound, it begins with durable materials and the highest quality components. Available in electric heat and heat pumps in capacities ranging from 7,000 to 15,000 BTU. Breathe easy with the all-new line-up of FreshAire IAQ accessories to deliver healthy indoor air.
Durable Construction
Superior materials and design reduce sound levels and improve overall guest satisfaction. Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish, and are oven-cured at high temperature for exceptional durability. Aluminum endplates reduce corrosion of the outdoor coil.
Energy Efficiency
Friedrich PTACs feature a super-efficient refrigeration design with EERs up to 12.0 and COP up to 3.55. Energy efficient heat pump models are also available in our complete line.
Comfort & Convenience
Intuitive unit controls are user friendly with easy-to-read LED display that can show either set point or actual room temperature as selected by owner. Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.
FreshAire (TM) IAQ Ready
FreshAire IAQ is a suite of indoor air quality (IAQ) accessories for use with Friedrich Air Conditioners, all with one dedicated purpose - healthy indoor air. This product is compatible with FreshAire UV, and FreshAire Purifier by iWave. Click here for more information on our FreshAire solutions.
Sound Reduction Technology
Friedrich PTACs come standard with two permanently lubricated fan motors for added durability and reduced sound levels indoors. Units also have a quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly and quietly. High-density insulation and steel inner wall block outdoor noise.
Support
Friedrich's industry leading warranty features 2-year full warranty on parts and labor and 5-year limited warranty. Our nationwide service network and U.S.-based Friedrich expert technical team ensures you get fast, knowledgeable service.
Maintenance and Installation
Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters. Surehold Front Cover System securely attaches the front each time. Unit may be installed low to the floor.
Specifications
| Model |
PZH15K5SB |
| Operation |
Cool/Heat Pump |
| Cooling BTU |
14,500/14,300 |
| Reverse Heating BTU |
13,600/13,200 |
| Voltage |
230/208V |
| EER (Energy Efficiency Ratio) |
10.2/10.2 |
| COP @ 47°F |
3.38/3.36 |
| Cooling Area (Sq Ft.) |
550-650 |
What our Expect Think
-
Cooling Capacity: 15,000 BTUs, effectively cooling areas up to 700 sq. ft., ideal for larger rooms or open spaces.
-
Heating Function: Heat pump operation provides 5,000 BTUs of heating, ensuring year-round comfort.
-
Energy Efficiency: Features an Energy Efficiency Ratio (EER) of up to 12.0 and a Coefficient of Performance (COP) of up to 3.55, promoting cost-effective operation.
-
Durable Construction: Constructed with galvanized zinc-coated steel wall sleeves and base pans, powder-coated for exceptional durability. Aluminum endplates help reduce corrosion of the outdoor coil.
-
Quiet Operation: Designed with sound-reducing features, including two permanently lubricated fan motors and a quiet, efficient rotary compressor mounted with vibration isolators, ensuring smooth and quiet operation. High-density insulation and steel inner wall block outdoor noise.
-
User-Friendly Controls: Equipped with intuitive controls and an easy-to-read LED display that can show either set point or actual room temperature, as selected by the user.
Q&A
Q: What is the cooling capacity of the FRIEDRICH ZoneAire Select PZH15K5SB?
A: The FRIEDRICH ZoneAire Select PZH15K5SB provides 15,000 BTUs of cooling, making it suitable for medium to large-sized rooms.
Q: Can the FRIEDRICH ZoneAire Select PZH15K5SB heat as well as cool?
A: Yes, this model offers both cooling and heating functions, ensuring year-round comfort in any season.
Q: Is the FRIEDRICH ZoneAire Select PZH15K5SB portable?
A: Yes, the unit is portable and features wheels for easy movement between rooms or spaces.
Q: Does the FRIEDRICH ZoneAire Select PZH15K5SB have a remote control?
A: Yes, it comes with a remote control for easy operation from a distance.
Q: Does the FRIEDRICH ZoneAire Select PZH15K5SB have a dehumidifier function?
A: Yes, it also functions as a dehumidifier to help reduce excess moisture in the air, keeping your room comfortable.
Q: Is the FRIEDRICH ZoneAire Select PZH15K5SB energy-efficient?
A: Yes, the unit is designed with energy efficiency in mind, providing effective cooling and heating while helping to manage electricity consumption.
Maintenance Tips
-
Clean or Replace Filters – Clean or replace filters every 1-2 months to ensure proper airflow and cooling efficiency.
-
Clean the Coils – Inspect and clean the evaporator and condenser coils annually for optimal performance.
-
Empty the Water Tank – Regularly empty the water tank to prevent overflow and avoid mold growth.
-
Inspect the Drain Line – Ensure the condensate drain line is clear to prevent clogs and water damage.
-
Check for Refrigerant Leaks – Inspect for leaks to maintain the unit’s cooling efficiency.
-
Annual Professional Service – Schedule a yearly checkup by a professional technician to keep the unit in top condition.
