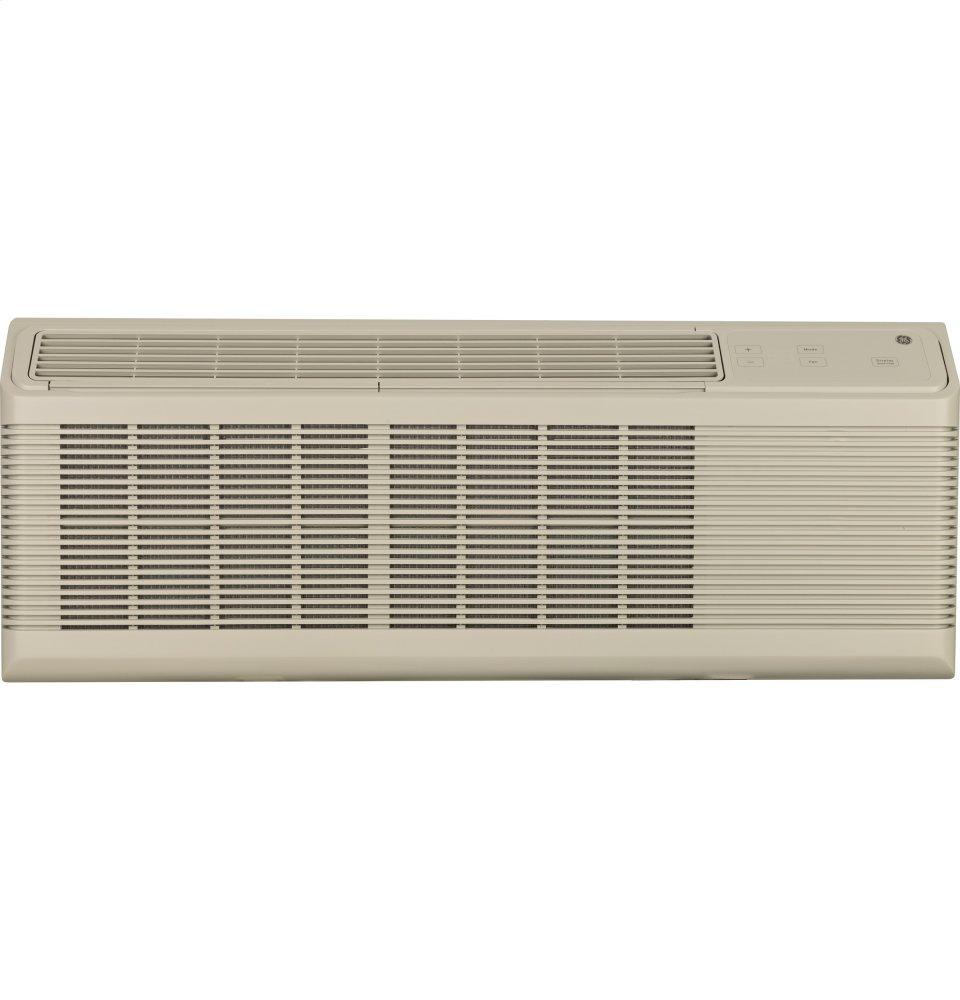

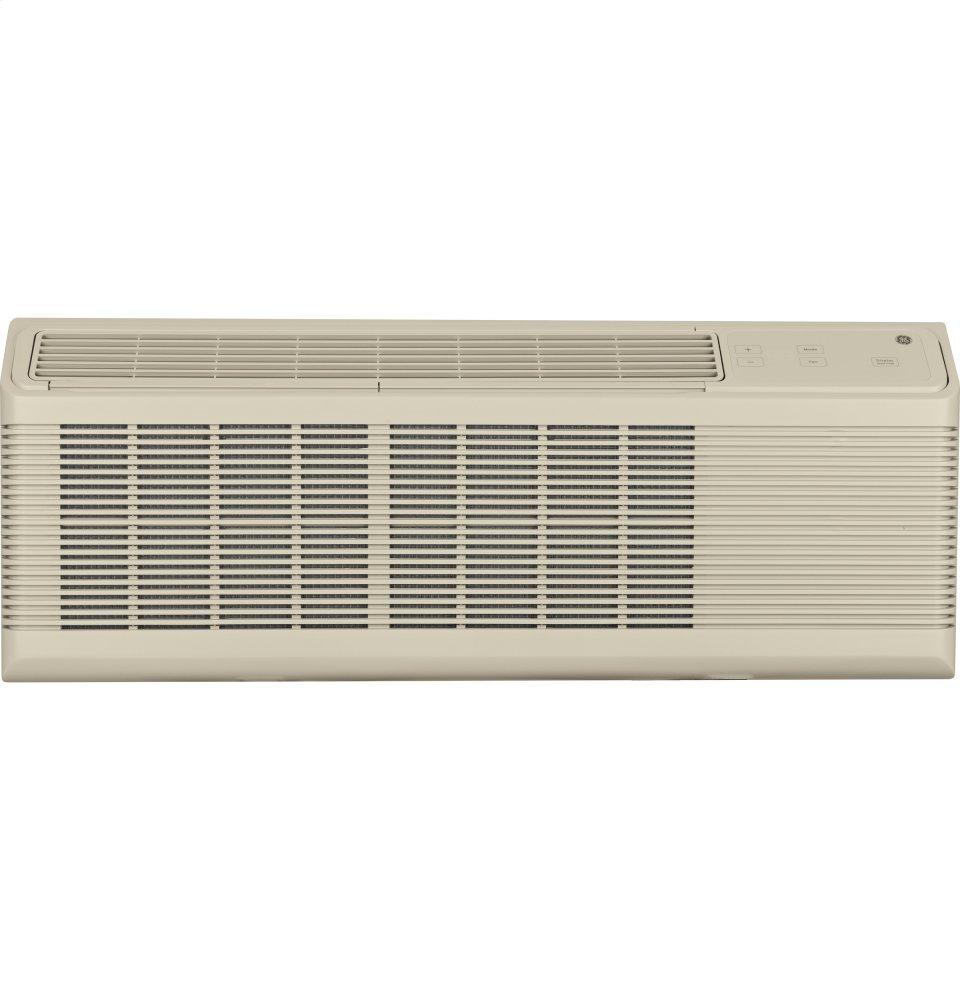

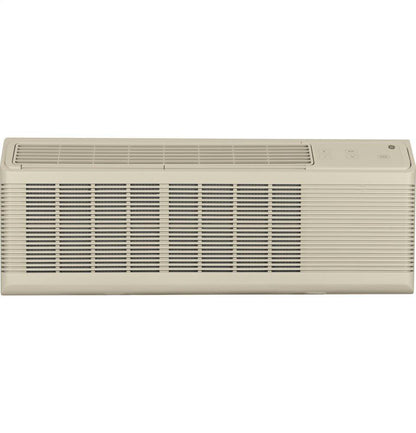

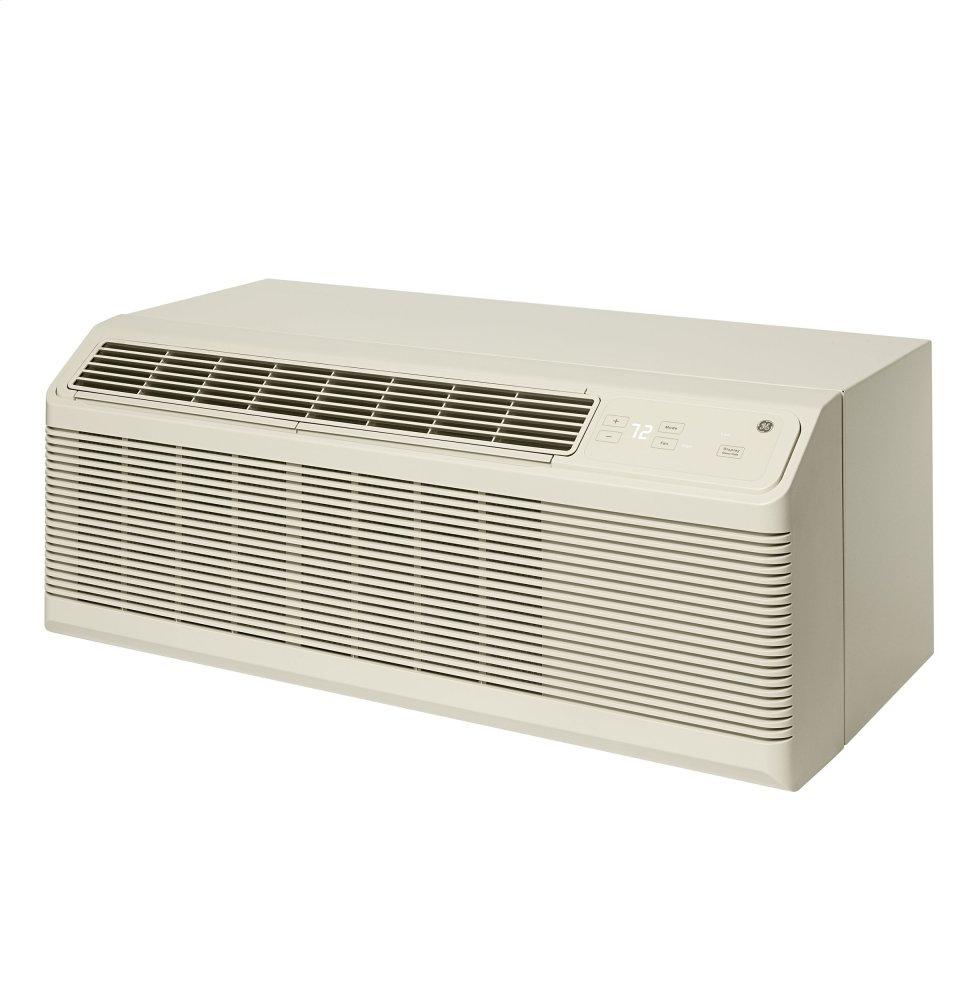

GE APPLIANCES AZ65H07EAC GE Zoneline(R) Heat Pump Unit with Corrosion Protection, 265 Volt - AZ65H07EAC-KT
Electronic temperature limiting
Prevents expensive over-cooling or over-heating of the room

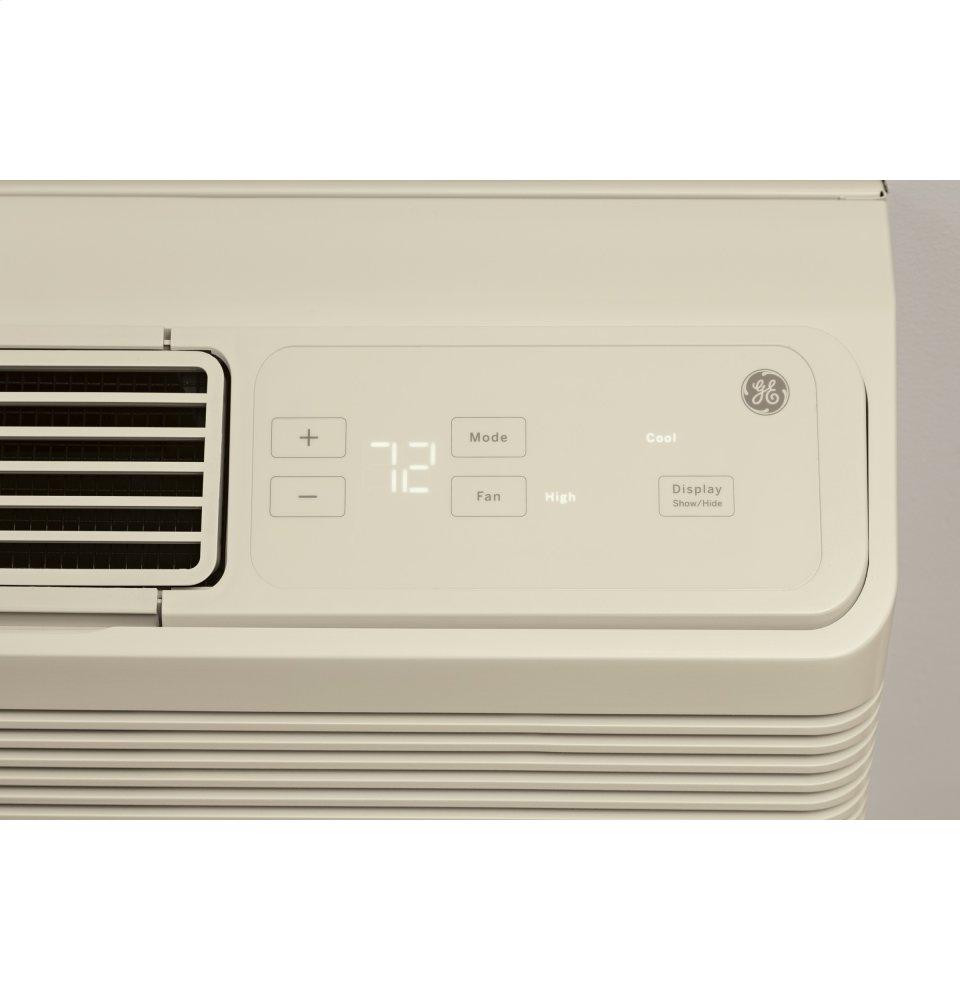

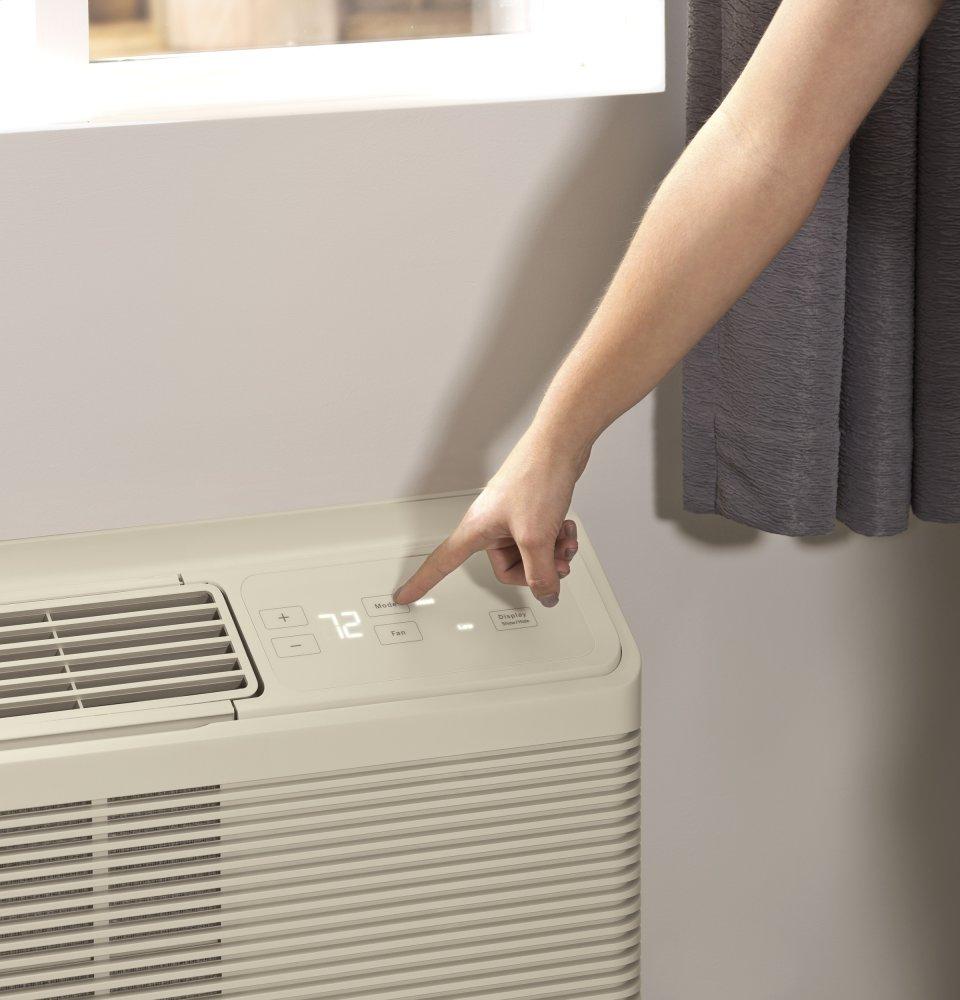

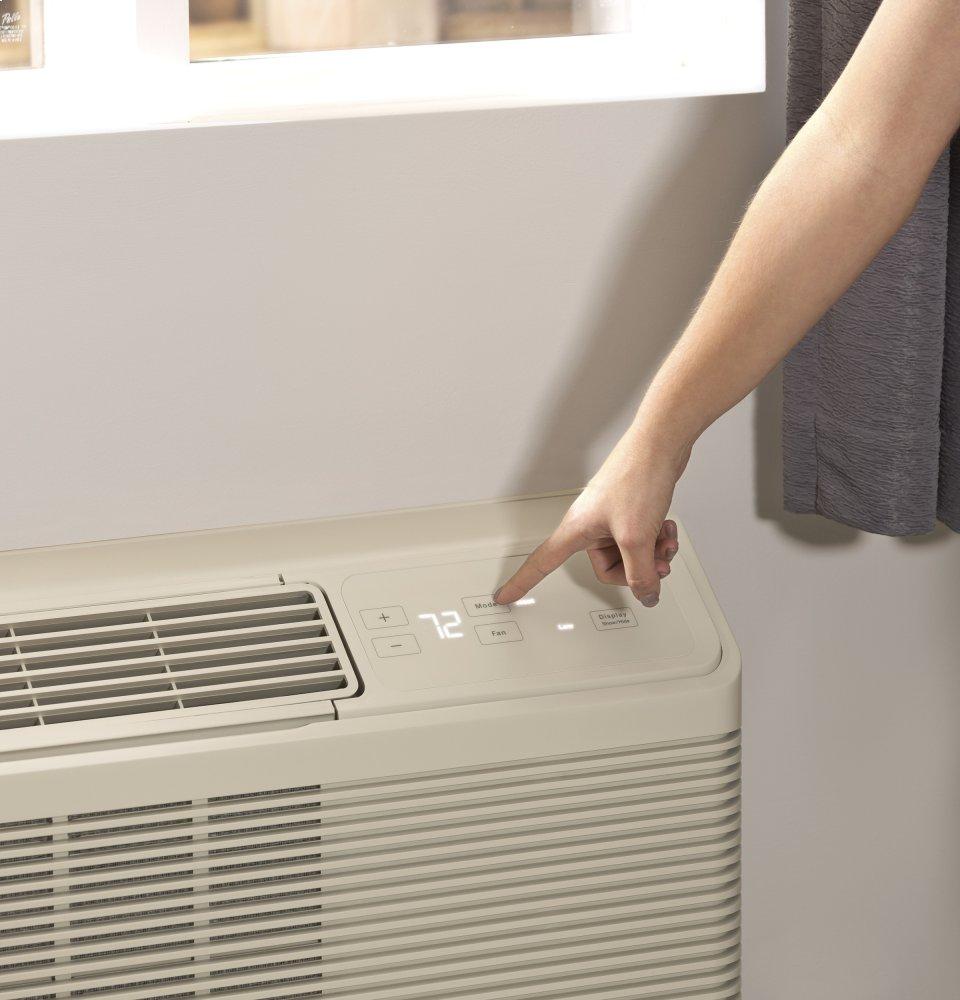

Electronic touch controls with LED display
R-410A refrigerant
SMC base pan

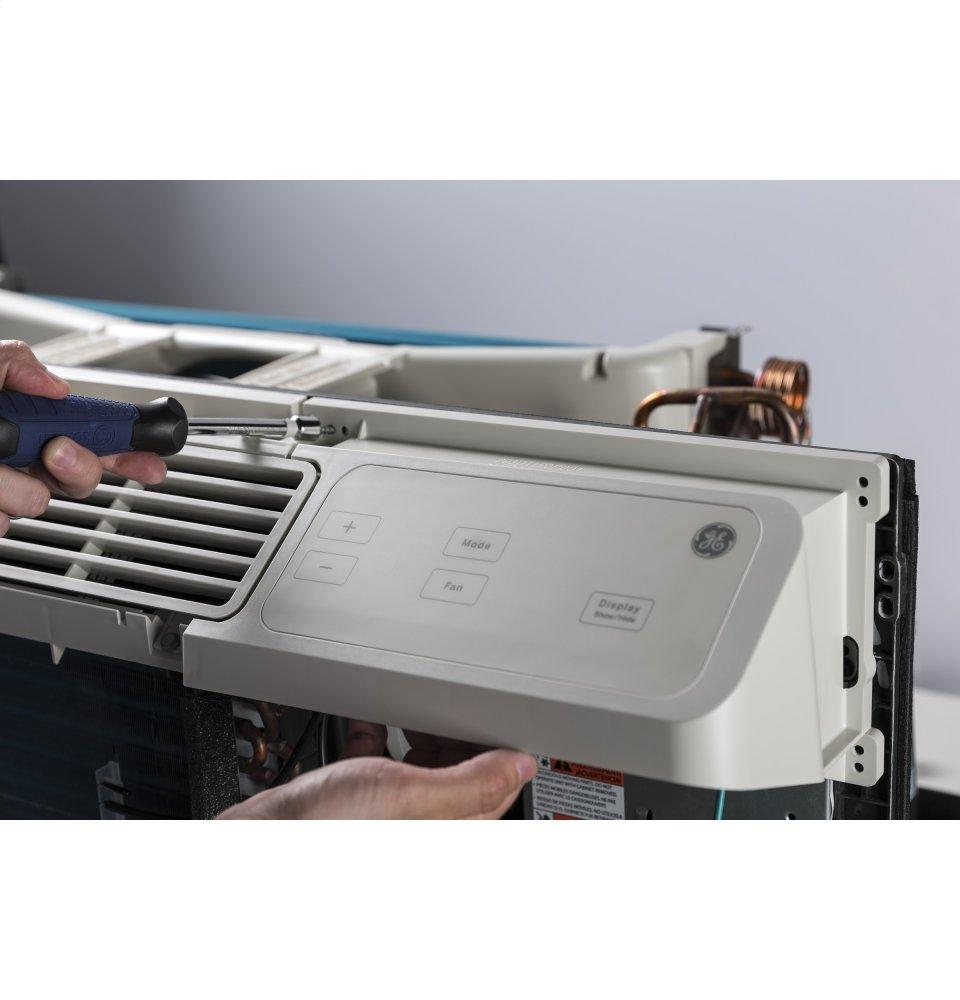

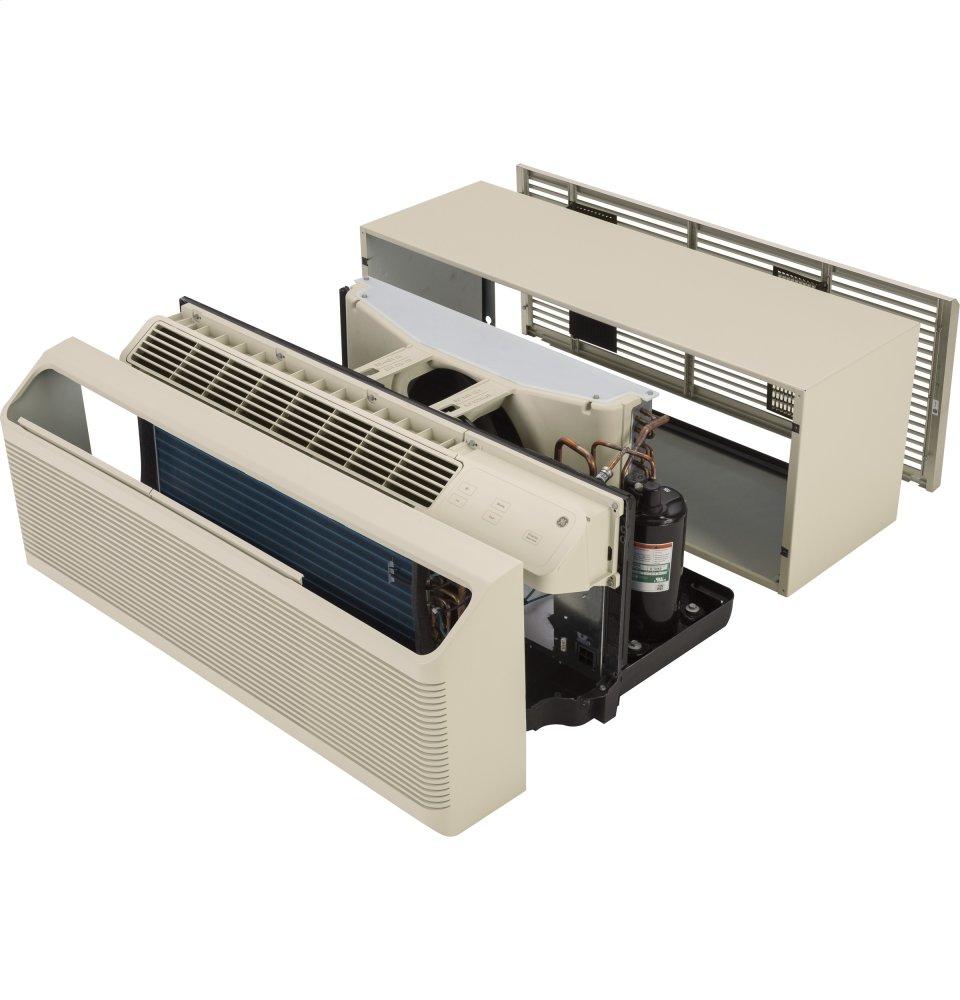

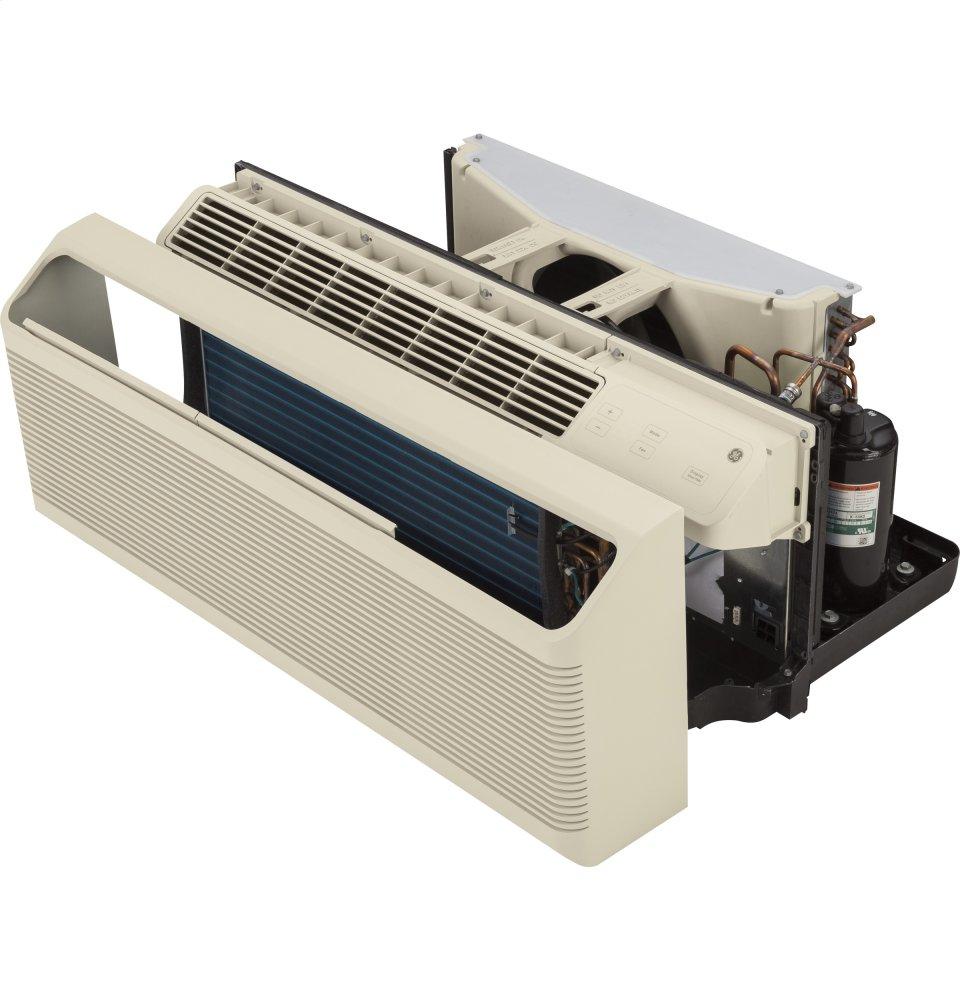

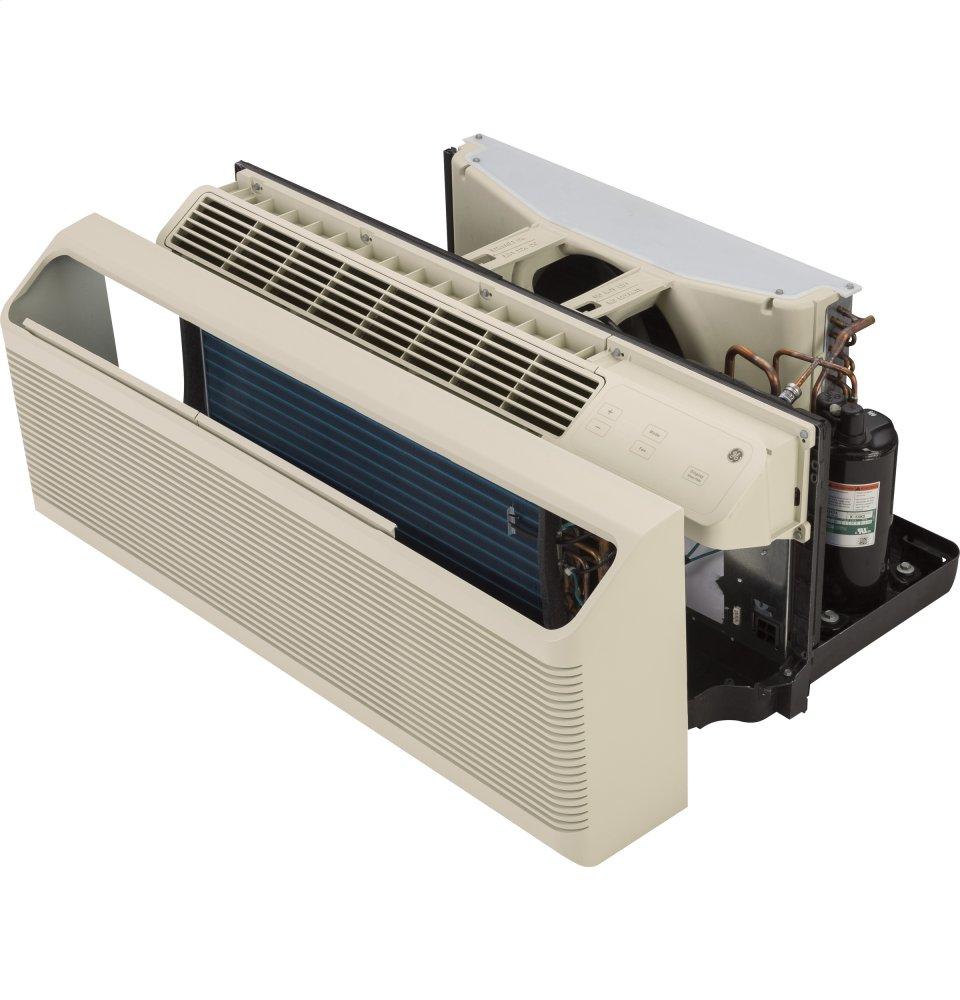

Simplified structure
Easy to maintain and service
Cooling capacity
7,000 BTU
Energy efficiency
12.8 EER
Dehumidification
1.5 pints/hour
Reverse heat cycle
6,200 BTU
Heat pump efficiency
3.9 COP
Indoor fan CFM (high/low)
409/250
Fresh air vent CFM (fully open high fan)
38
Quiet operation

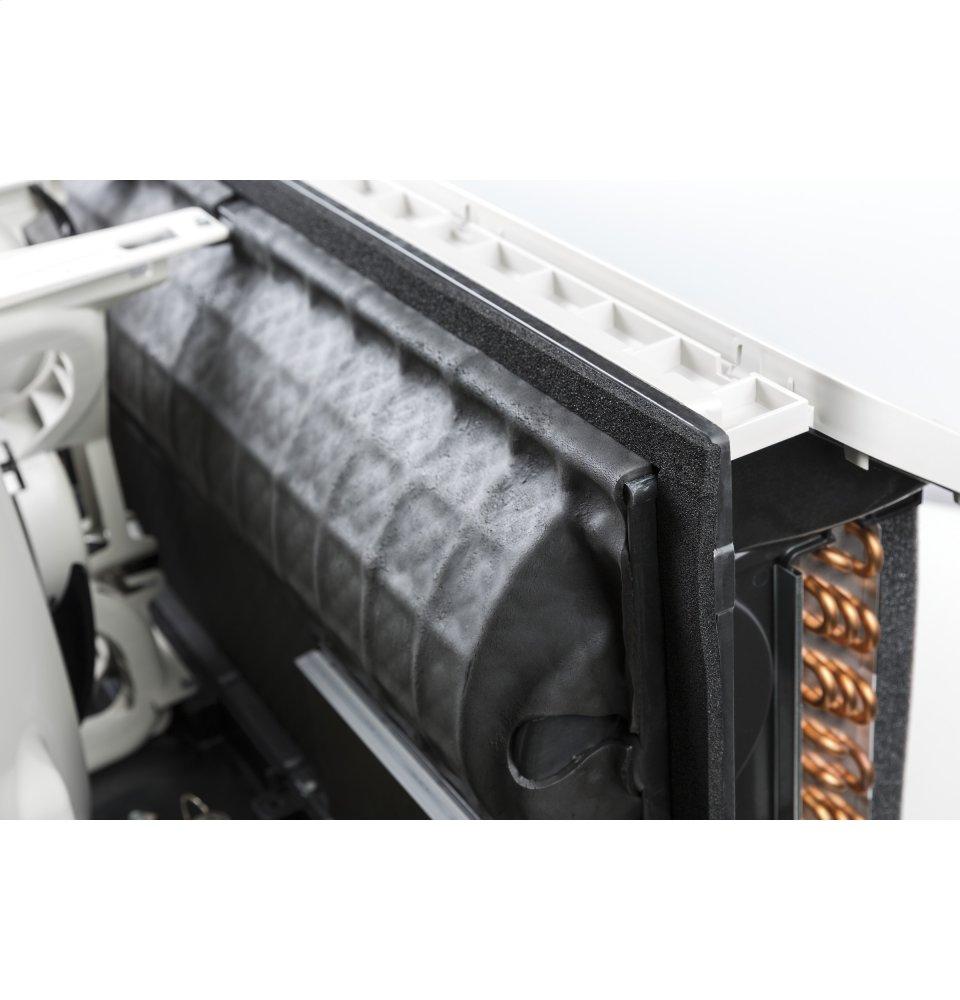

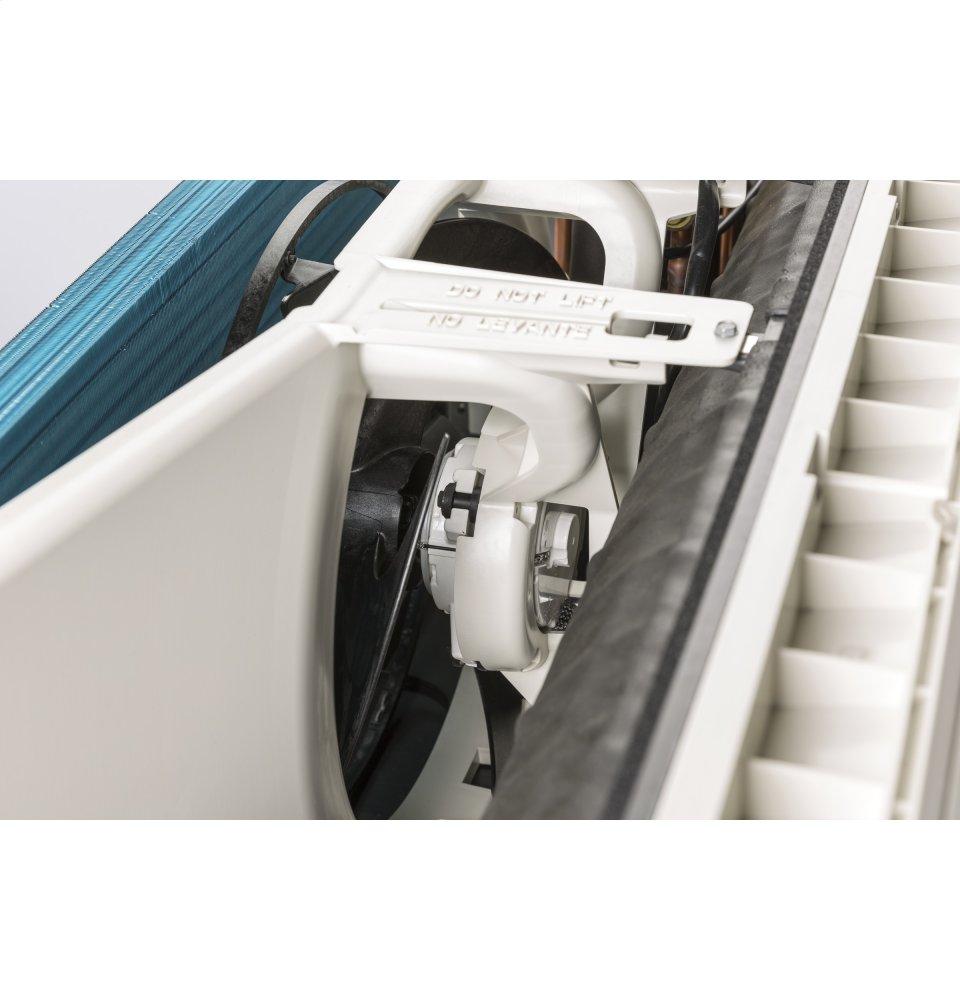

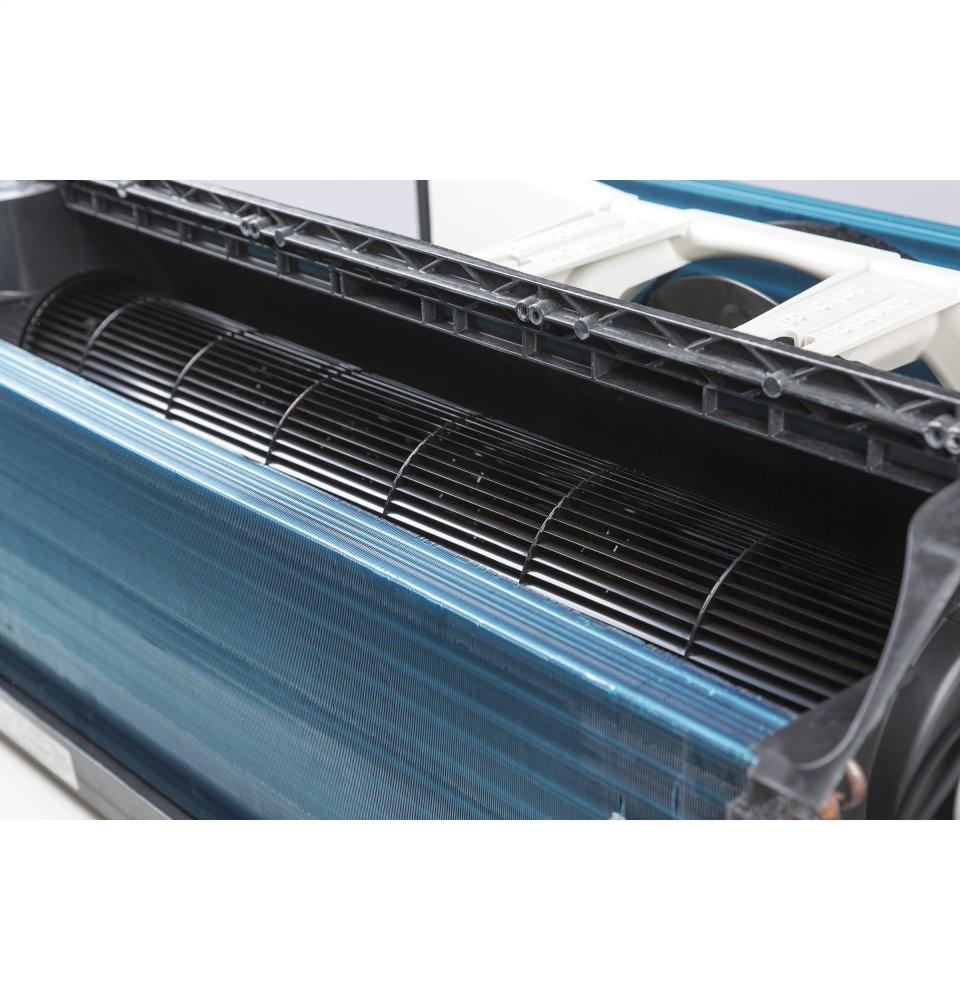

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
Corrosion resistant
Extends life of the unit in sea coast areas/corrosive environments
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
Boost heat option
Provides supplemental resistance heat in heat pump mode
Features
- Electronic temperature limiting
- Heat pump efficiency
- Electronic touch controls with LED display
- R-410A refrigerant
- SMC base pan
- Simplified structure
- Cooling capacity
- Energy efficiency
- Dehumidification
- Reverse heat cycle
Specifications
| Cooling Capacity |
7000.0 BTUH (MIN) |
| Cooling Efficiency |
12.8 EER (BTUH/Watt) |
| Indoor Fan CFM (High/Low) |
360 / 250 |
| Dehumidification |
1.5 pts./hr. |
| Heating - Reverse Cycle |
6200 BTUH |
| Vent CFM (High Fan at Zero ESP) |
38 |
| FEATURES |
|
| Control Type |
Standard Microcomputer |
| Tactile Touch Pad with LED Display |
|
| Corrosion Treated |
Yes |
| Discharge Grille |
2-position |
| Electronic Microcomputer Control |
Yes |
| Fan Cycle Switch |
Yes |
| Fan Motor |
2 |
| Fan Speed Control |
Yes |
| Fan Speed Selections |
Hi/Low Cooling, Hi/Low Fan Only, Hi/Low Heating |
| Filter Type |
Rigid Frame, Slide-Out |
| Heat - Cool |
Yes |
| Louver Style |
Reversible |
| Manual Vent Control |
Hidden |
| Rotary Compressor |
Yes |
| Temperature Limiting |
Electronic 7-Step |
| Vent Control |
3-position |
| Venting Features |
Concealed Manual Vent Control, Outdoor Vent Control - 3 Positions, Vent Air Filter |
| Zoneline Features |
Heat Sentinel, Power Cord (LDCI) Included, Proportional - Integral ID Airflow, Quick Heat Recovery, Random Twist/Length Segment Tangential Blower, Remote Thermostat Compatibility, Reverse Cycle Defrost, Universal Heaters, Weather Protected Electrical Components, 3-Stage Heating Design, Auto Power Recovery, Automatic Emergency Heat, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel, Heat Pump with Resistance Heat Backup, Heat Pump with Supplemental Resistance Heat |
| Heating System |
Heat Pump |
| Product Type |
Packaged Terminal Air Conditioners (PTAC) |
| Temperature Range |
60 - 85°F |
| Sensible Heat Ratio |
77% |
| Chassis Type |
Slide-In |
| POWER / RATINGS |
|
| Cooling - Amperes (F.L.) |
2.2 |
| Cooling - Amperes (L.R.) |
11.7 |
| Cooling - Watts |
545 |
| Heating - Reverse Cycle - Amps |
1.9 |
| Heating - Reverse Cycle - COP |
3.9 |
| Heating - Reverse Cycle - Watts |
460 |
| Power Factor |
95 |
| Voltage (MAX) |
265.0 V |
| WARRANTY |
|
| Parts Warranty |
Limited 1-year entire appliance, Limited 5-year sealed refrigerating system |
| Labor Warranty |
Limited 1-year entire appliance, Limited 5-year sealed refrigerating system |
| Warranty Notes |
See written warranty for full details |
| WEIGHTS & DIMENSIONS |
|
| Net Weight |
110.0 lb |
| Overall Depth |
20.8125 in |
| Overall Height |
16.0 in |
| Overall Width |
42.0 in |
Manuals
What Our Experts Think
-
Efficient Heating & Cooling – Heat pump technology delivers reliable year-round comfort with energy savings.
-
Corrosion Protection – Built to withstand humid and coastal environments, ensuring long-lasting durability.
-
Whisper-Quiet Operation – Designed for minimal noise, perfect for hotels, apartments, and multi-room spaces.
-
Smart Fan & Dehumidification – Enhances comfort by maintaining consistent temperatures and reducing excess moisture.
-
Easy Installation & Maintenance – Simple setup with user-friendly controls and accessible filter replacement.
Q&A
Q: What are the key features of the GE AZ65H07EAC Zoneline® Heat Pump Unit?
A: This 265-volt heat pump unit features corrosion protection, efficient heating and cooling, and a quiet operation, making it ideal for hotels, apartments, and commercial spaces.
Q: How does the corrosion protection benefit the unit?
A: The corrosion-resistant design extends the lifespan of the unit, especially in coastal or high-humidity environments.
Q: Is this unit energy efficient?
A: Yes! It uses advanced heat pump technology to provide energy-efficient heating and cooling, helping reduce energy costs.
Q: How quiet is this unit?
A: The Zoneline series is designed for ultra-quiet operation, ensuring minimal noise disruption for a comfortable environment.
Q: Is installation flexible?
A: Yes, it features universal installation options, making it easy to replace existing units in various commercial settings.
Q: Does it offer precise climate control?
A: Absolutely! The unit provides consistent temperature regulation for year-round comfort.
Maintenance Tips
-

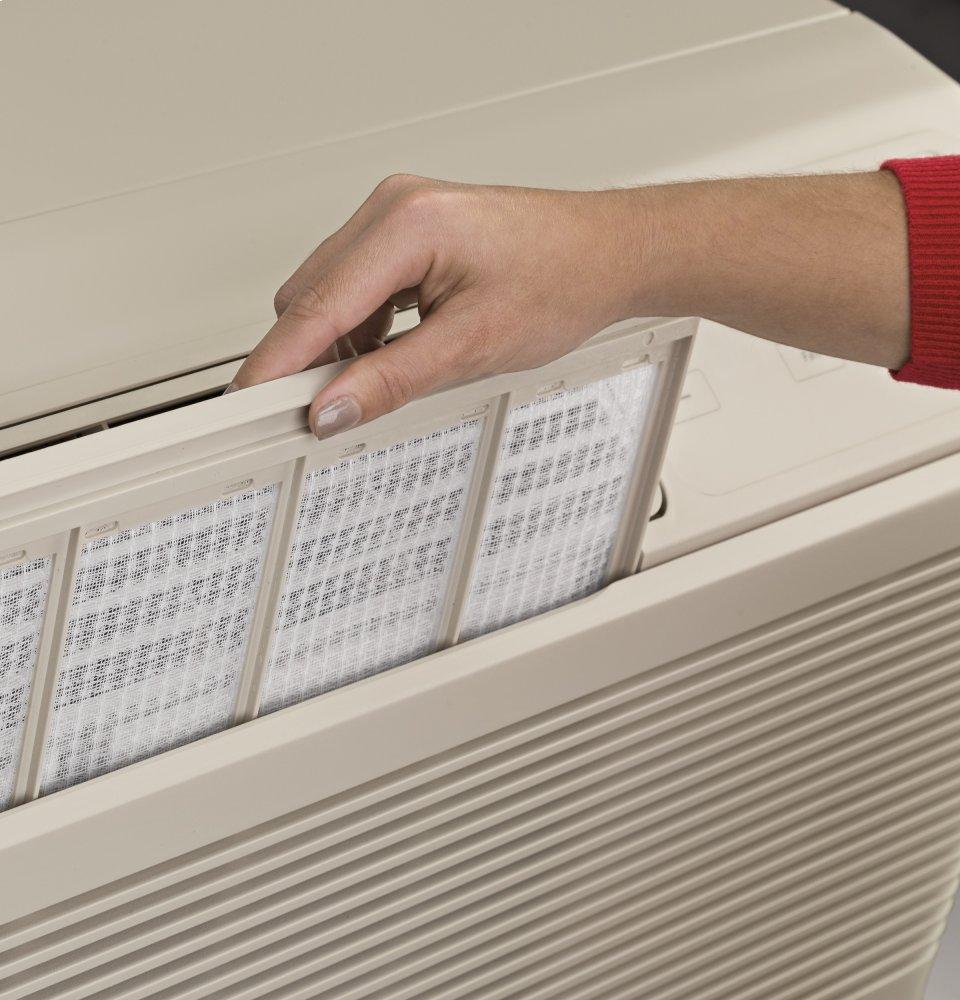

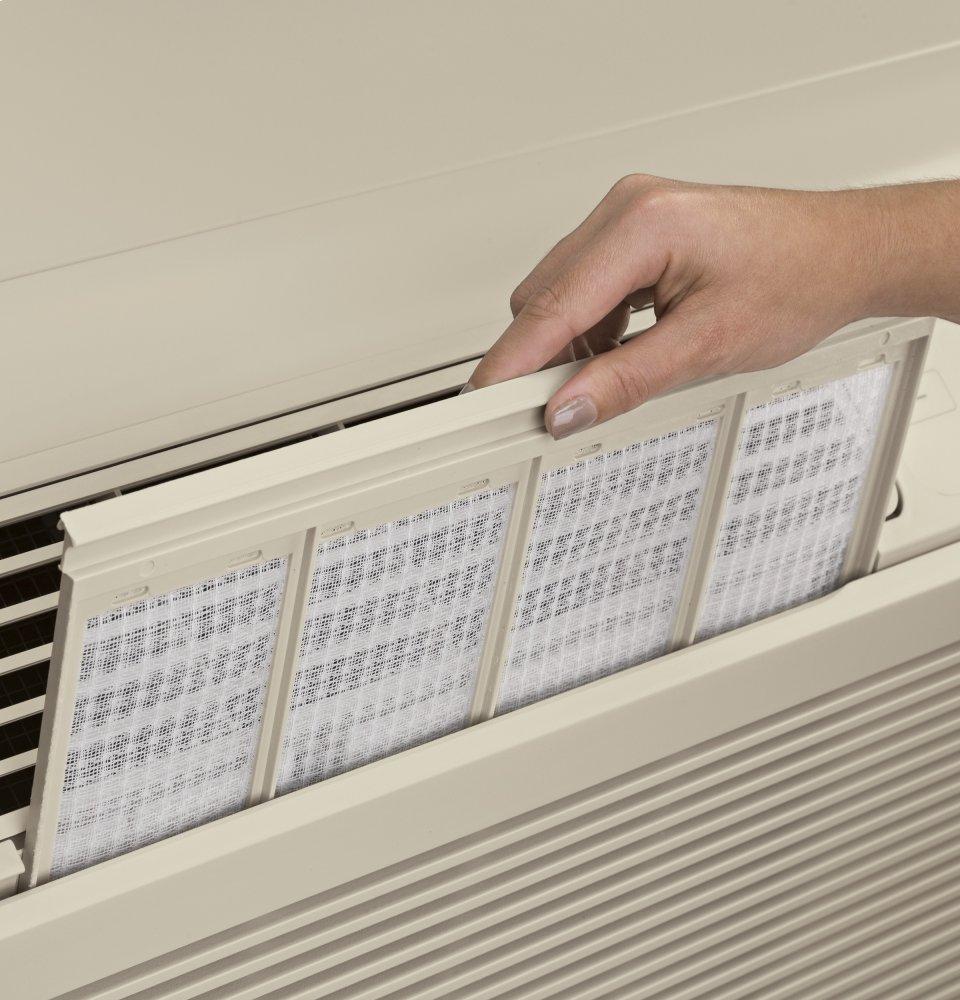

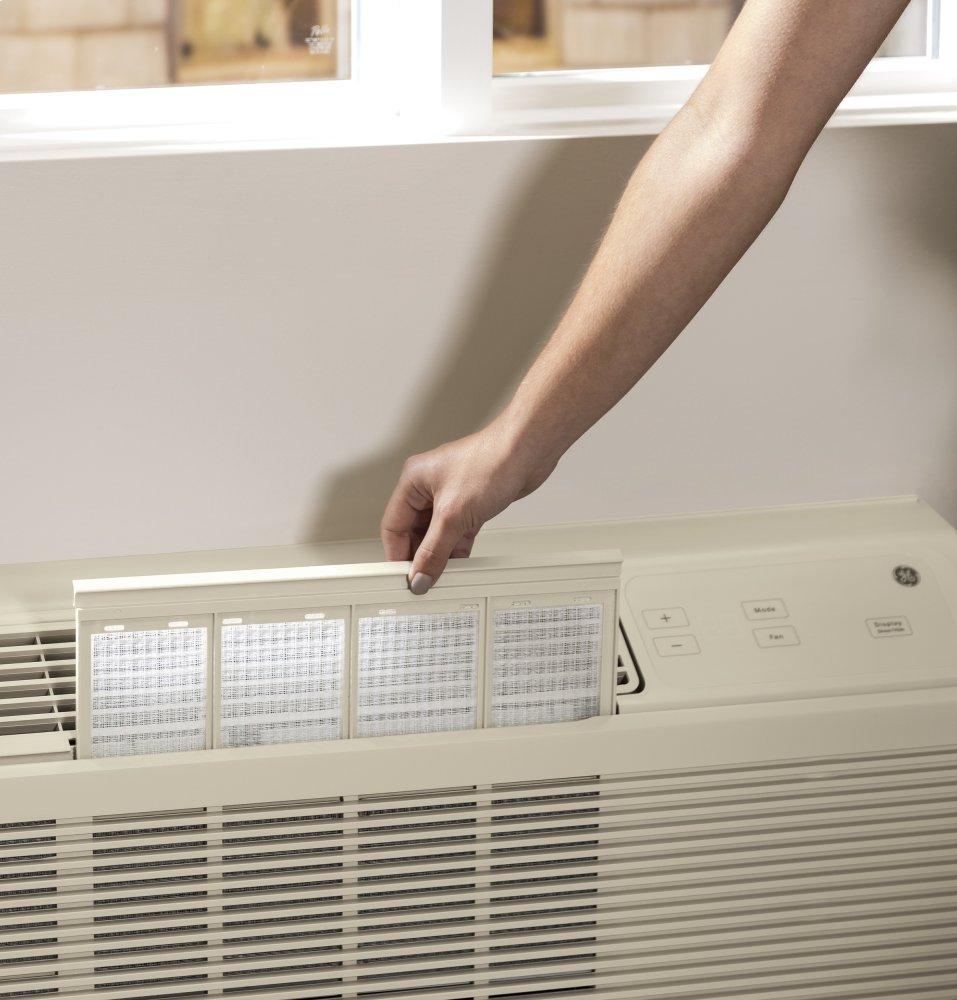

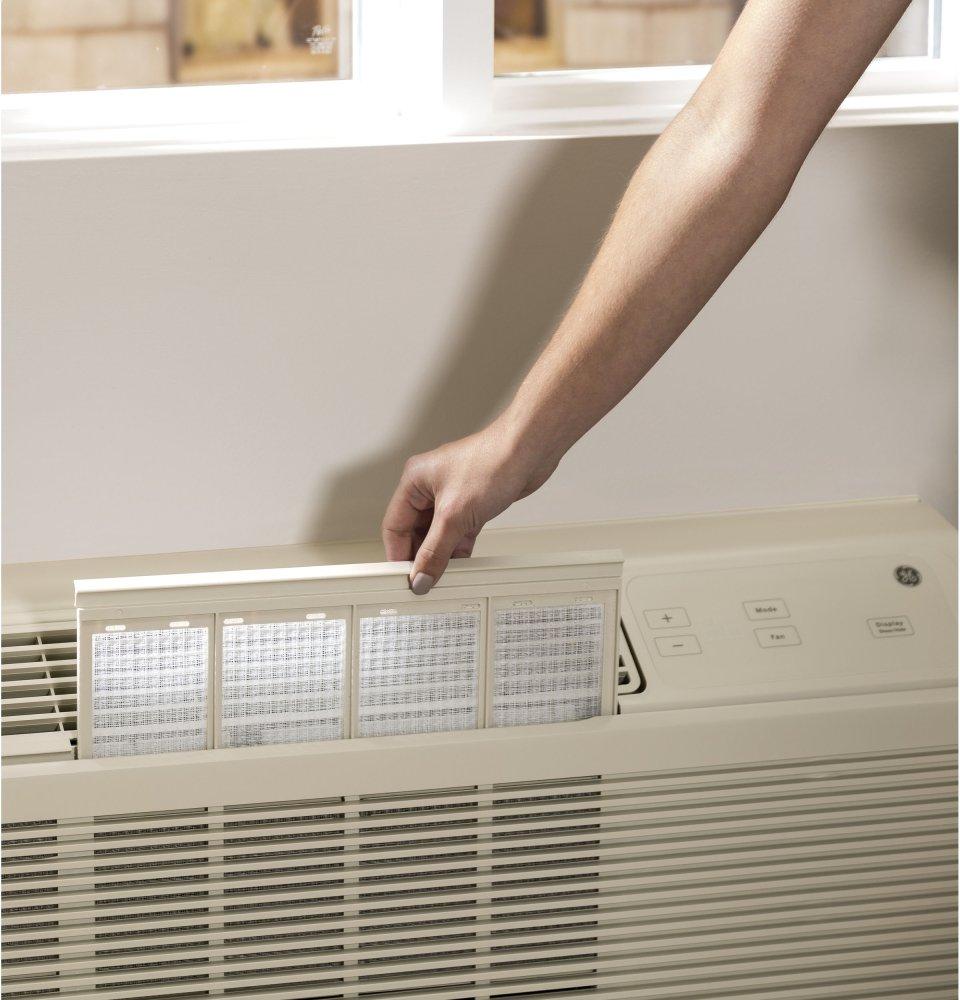

Clean or Replace Air Filters Monthly – Improve airflow and efficiency by washing reusable filters or replacing disposable ones.
-

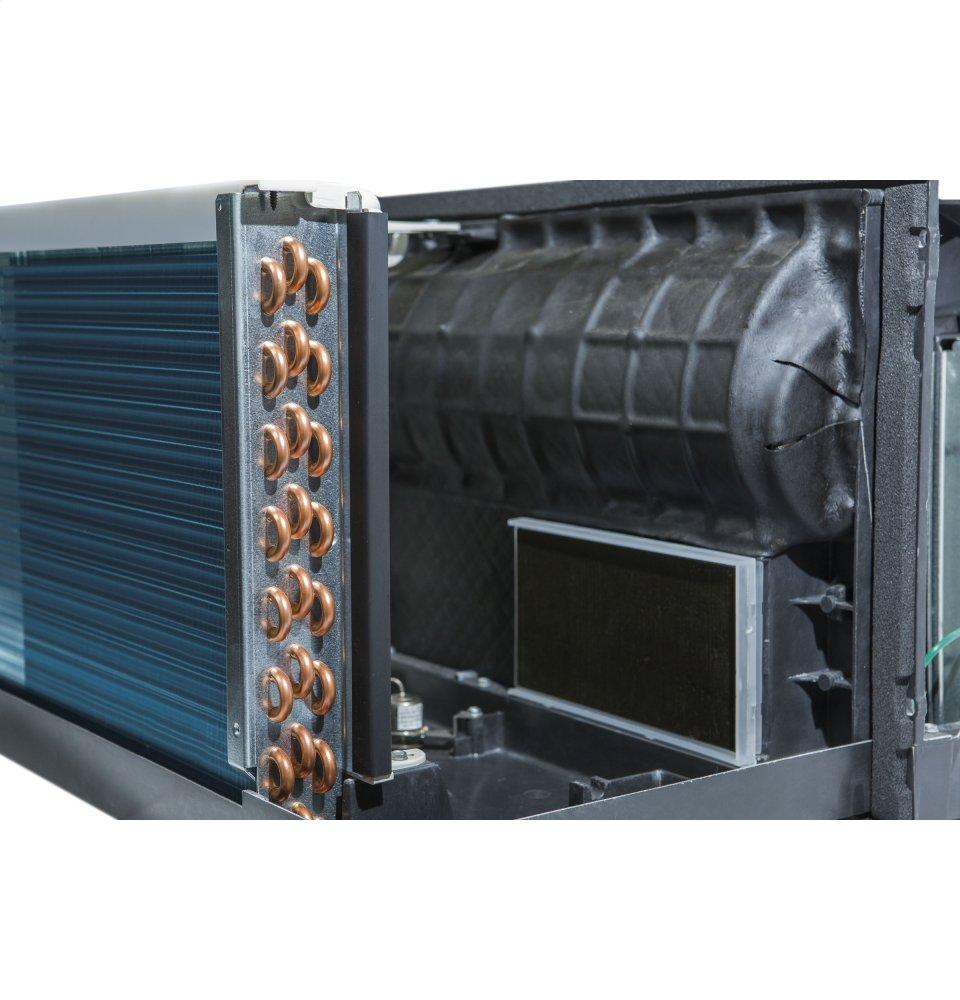

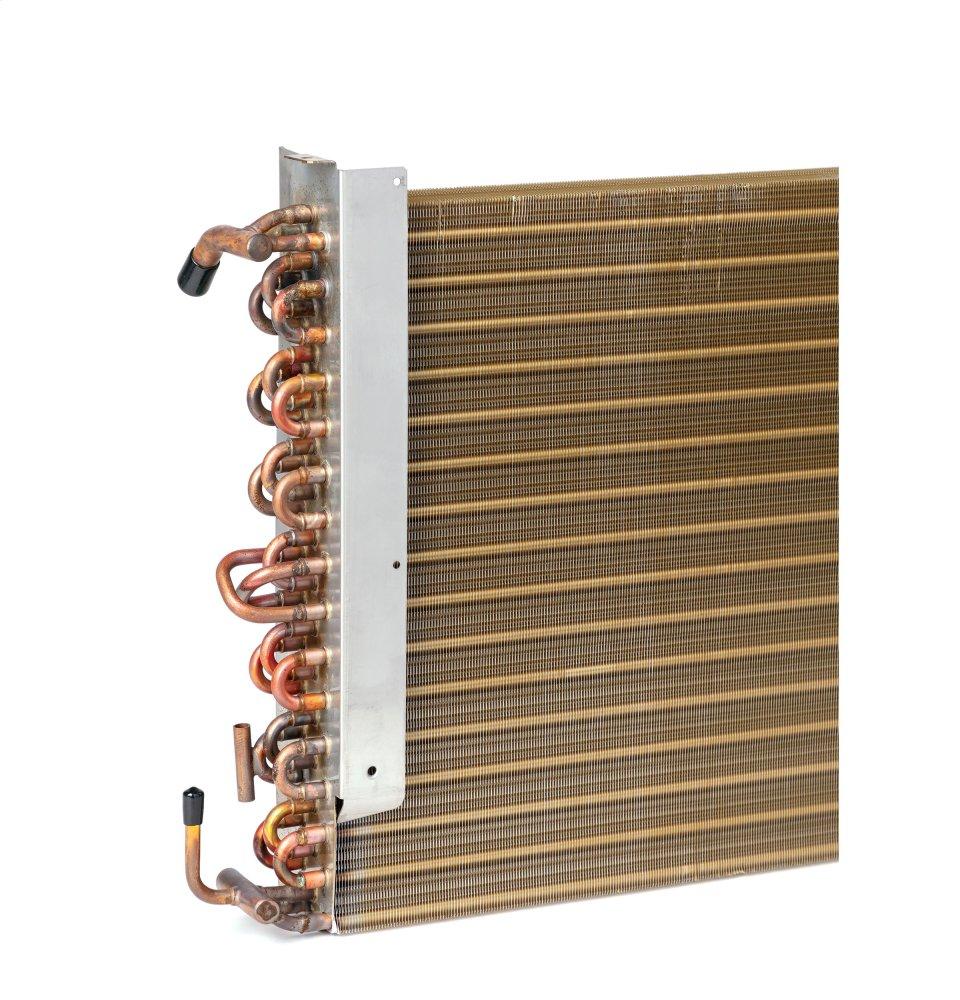

Inspect & Clean the Coils Every 6 Months – Vacuum or wipe down the evaporator and condenser coils to prevent dust and debris buildup.
-
Check for Proper Drainage – Ensure the condensate drain is clear to prevent water buildup and leaks.
-
Test Heating & Cooling Functions Seasonally – Run both modes to verify proper operation before peak seasons.
-
Keep the Exterior Vents Clear – Remove debris from outdoor vents for optimal airflow and performance.
-
Check Electrical Connections Annually – Inspect wiring and power connections for signs of wear or damage.
-
Use Corrosion Protection Features – If in a coastal area, clean the unit regularly to prevent salt buildup on components.
