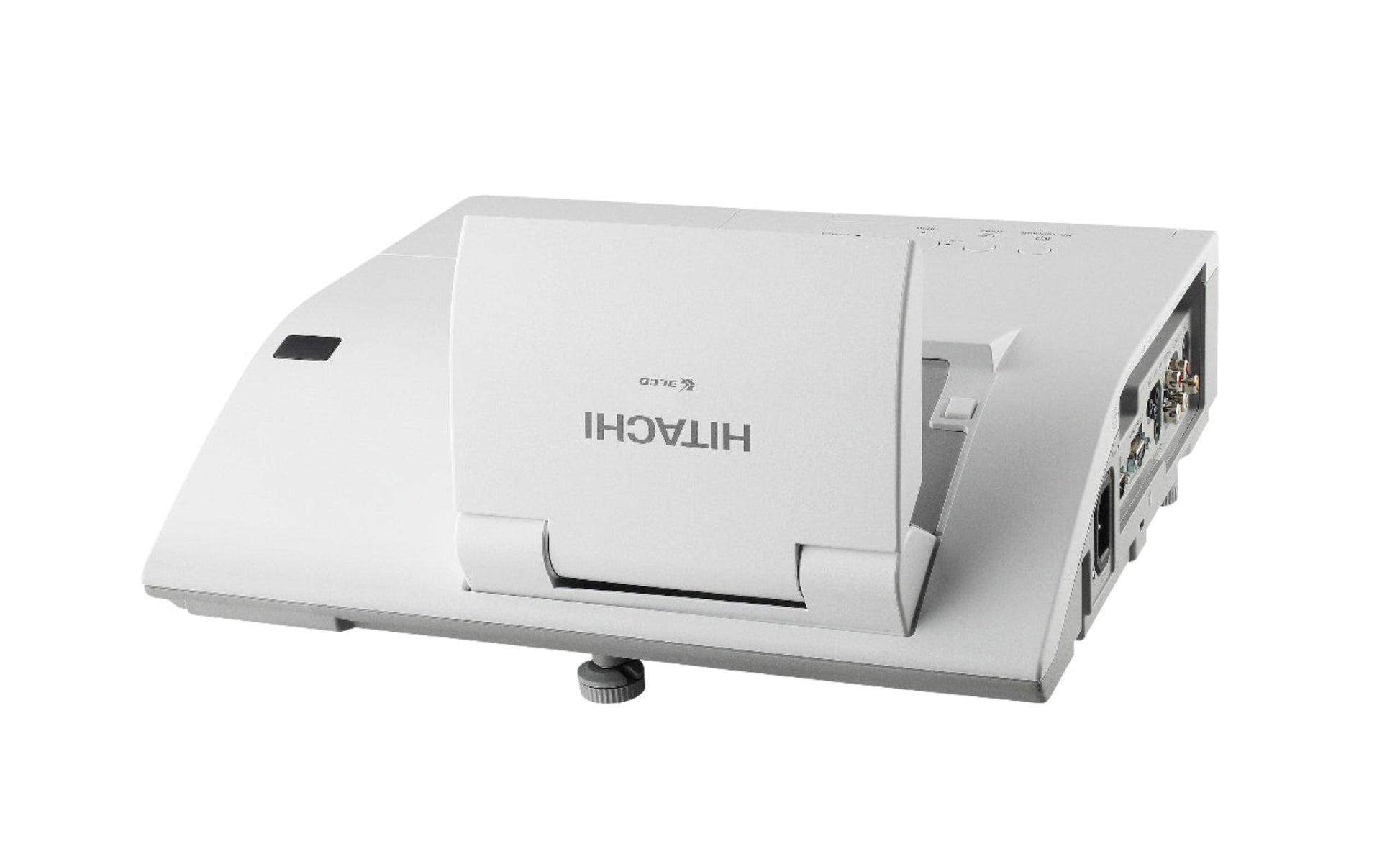

Hitachi CP-A221N 3LCD Projector - CPA221N
The Hitachi CP-A221N Ultra Short Throw Projector offers a brightness of 2200 lumens and can display an 80" (2 m) diagonal image from a throw distance of 20" (0.5 m). Not only does this prevent image obstruction, but it also means that there are no shadows interfering with the image and the absence of light in the presenter's face.
The unit includes all the functionality and then some of all you would need in a projector. It features Perfect Fit 2, an update to Hitachi's proprietary Perfect Fit function, which enables quick adjustment of the projected image by moving its four corners and four sides one at a time. It offers a template function making it easier to write on a whiteboards or blackboards. Users can choose between four types of different lines depending on the color of the background.
Features
- 2200 ANSI LUMENS
- XGA 1024 X 768
- SHORT THROW
Specifications
| Custom Aspect Ratio |
4:3 (XGA) |
| Native Resolution |
1024 x 768 |
| Contrast Ratio |
2000:1 |
| Throw Distance |
1.3 - 2.2 ft |
| Inputs |
1 x S-Video, 1 x Composite, 2 x RGB/Component D-Sub 15pin, 1 x HDMI, 1 x USB Type A, 1 x Microphone Jack |
| Outputs |
2 x RCA Audio, 1 x RGB D-Sub 15pin |
| Display Technology |
LCD |
| Speakers |
10.0 W Mono |
| Economode |
5000 hours |
| Audible Noise |
35.0 dB |
| Lamp Life |
3000 hours |
| Short Throw |
Yes |
| Aspect Ratio |
4:3 (XGA) |
| Image Size Diagonal |
60.0 - 100.0 in. |
| Lens Shift |
No |
| Data / Video Signals |
NTSC, NTSC 4.43, PAL, SECAM, PAL-M, PAL-N, PAL 60, HDTV (480i, 480p, 576i, 720p, 1080i, 1080p) |
| Digital Keystone |
Horizontal & Vertical |
| Unit Weight |
8.5 lbs (3.86 kg) |
| Projector Methods |
Front, Rear, Ceiling |
| Dimensions (WxDxH) |
13.6in. x 11.9in. x 3.3in. |
| Power Consumption |
310W |
What Our Experts Think
-
Short Throw Projection: Ideal for small rooms, this projector can display large images from a short distance.
-
XGA Resolution (1024 x 768): Provides clear, sharp images for classroom or business presentations.
-
3LCD Technology: Delivers bright, accurate colors and excellent image quality for various media.
-
Versatile Connectivity: Offers HDMI, VGA, and other options for easy device integration.
-
Long Lamp Life: Designed to reduce the frequency of lamp replacements, saving on maintenance costs.
-
Energy Efficient: Efficient power usage while maintaining high-quality projection.
-
Compact & Portable: Small and lightweight, perfect for easy setup in diverse environments.
-
User-Friendly Features: Simple installation and operation make it a great choice for classrooms and small offices.
Q&A
Q: What type of projector is the Hitachi CP-A221N?
A: The CP-A221N is an ultra-short throw 3LCD projector, designed for close-range projections in classrooms, meeting rooms, and interactive spaces.
Q: What is the brightness level of the CP-A221N?
A: It offers 2,500 ANSI lumens, providing clear and bright images even in rooms with ambient light.
Q: What is the native resolution?
A: The CP-A221N features XGA (1024x768) resolution for sharp and clear image quality.
Q: What connectivity options does the CP-A221N offer?
A: The projector includes HDMI, VGA, composite video, and audio inputs, allowing for flexible and easy connectivity with various devices.
Q: What is the lamp life of this projector?
A: The lamp lasts up to 3,000 hours in standard mode and up to 5,000 hours in eco mode.
Q: What makes the CP-A221N ideal for interactive use?
A: Its ultra-short throw capability allows for large, clear images from a short distance, making it perfect for interactive whiteboards and close-projection environments.
Maintenance Tips
-
Clean Air Filters Regularly – Check and clean the air filters every 1-2 months to prevent dust build-up and maintain proper airflow for cooling.
-
Wipe the Lens – Use a microfiber cloth to gently clean the lens. Avoid harsh materials to prevent scratches or damage to the lens.
-
Ensure Proper Ventilation – Keep the projector's ventilation areas clear to avoid overheating and to ensure efficient cooling during operation.
-
Use Genuine Replacement Lamps – Always replace the lamp with a genuine Hitachi lamp to maintain optimal brightness and performance.
-
Power Down Correctly – Turn off the projector using the power button and allow it to cool down before unplugging to protect the internal components.
