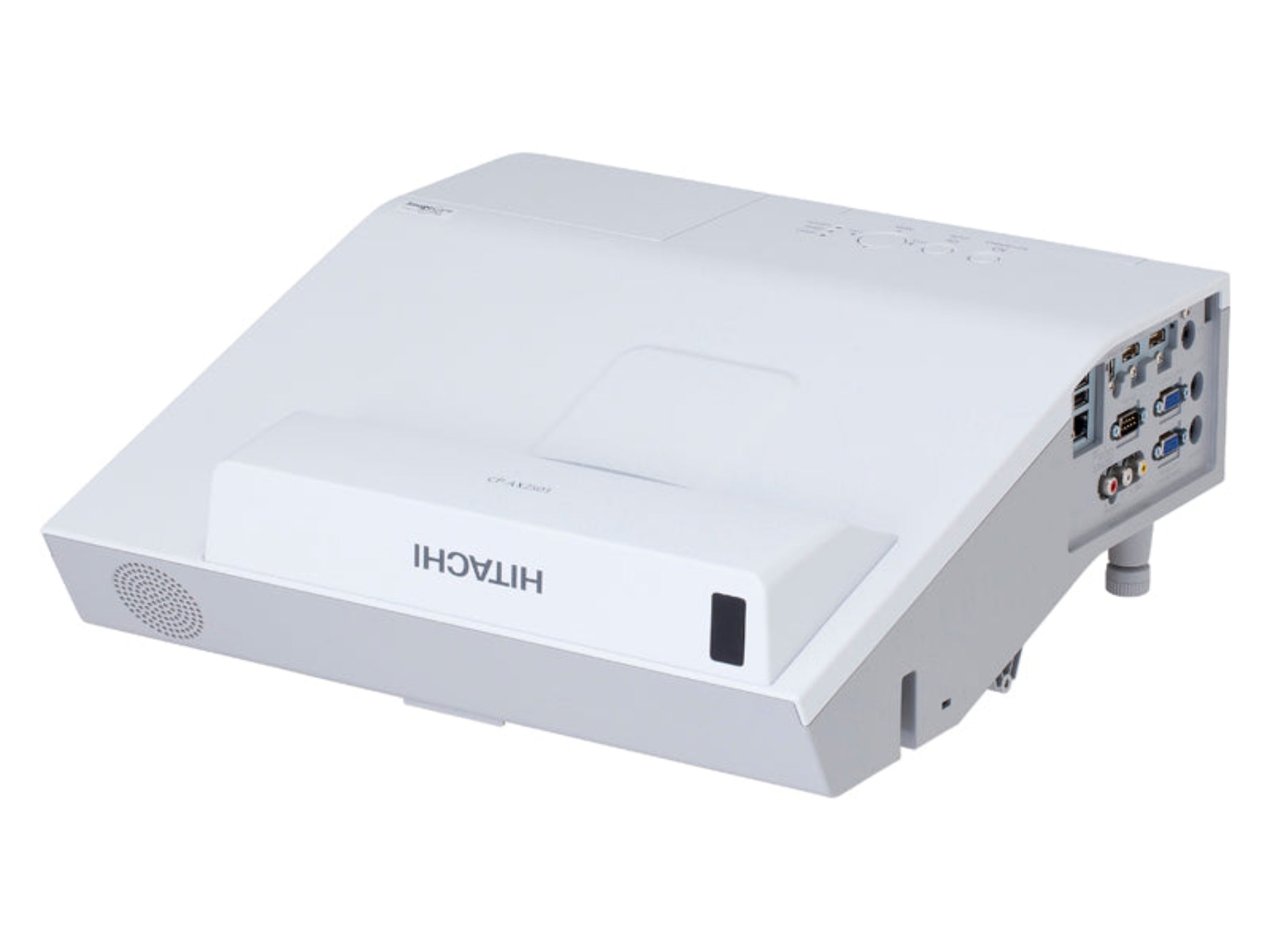

Hitachi CP-AW2503 Ultra Short-Throw 3LCD Projector - CPAW2503
Hitachi CP-AW2503 Short Throw Projector
- 2700 LUMENS
- WXGA RESOLUTION
- ULTRA SHORT-THROW TECHNOLOGY
Specifications
| Aspect Ratio |
16:10 (WXGA) |
| Native Resolution |
1280 x 800 |
| Contrast Ratio |
5000:1 |
| Throw Distance |
1.2 - 2.2 ft. |
| Display Technology |
LCD |
| Wireless Networking |
Yes (with optional accessory) |
| Speakers |
16W Mono |
| Economode |
4000 Hours |
| Audible Noise |
36 dB |
| Lamp Life |
2500 Hours |
| Short Throw |
Yes |
| Image Size (Diagonal) |
56.6 - 103.8 in. |
| Lens Shift |
No |
| Data / Video Signals |
NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, HDTV (480i, 480p, 525i, 525p, 576i, 625i, 750p, 720p, 1125i, 1080i, 1125p) |
| Digital Keystone |
Horizontal & Vertical |
| Unit Weight |
9.5 lbs. |
| Projector Methods |
Front, Rear, Ceiling |
| Power Consumption |
350W |
| Dimensions (WxDxH) |
14.8 x 14.2 x 5.4 in. |

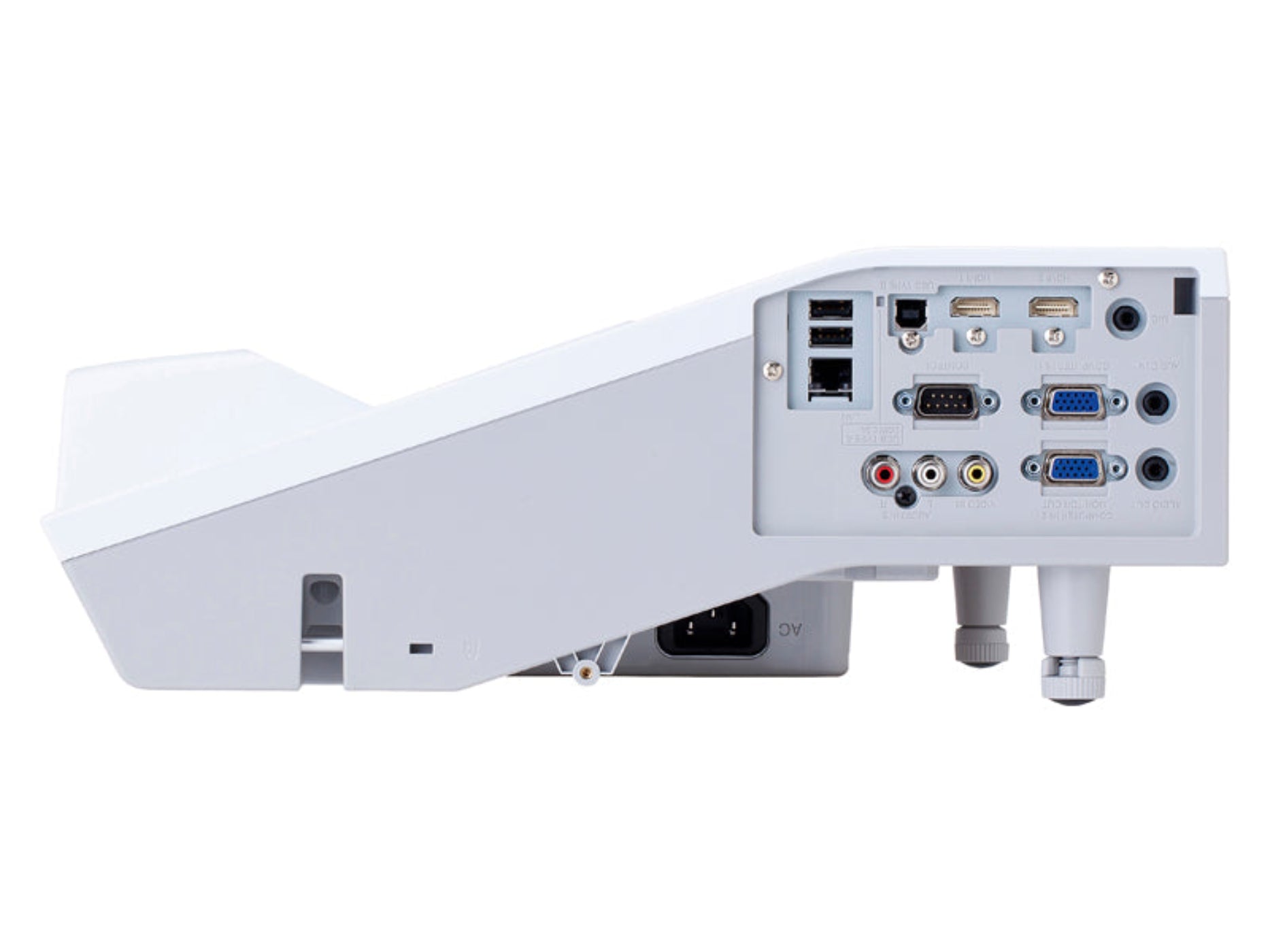

| Inputs |
2 x HDMI, 2 x 15-pin Mini D-sub, 1 x RCA composite, 1 x stereo mini jack, 1 x pair RCA (L/R), 1 x microphone, 2 x USB Type A, 1 x USB Type B, 1 x 9-pin D-sub (RS232C) |
| Outputs |
1 x RGB D-Sub 15-pin, 1 x RCA Audio |
What Our Experts Think
-
Ultra Short-Throw Design – Projects a 100-inch image from just inches away, reducing shadows and glare.
-
Bright & Clear Projection – 2,700 lumens and WXGA resolution (1280x800) ensure sharp, vibrant visuals.
-
3LCD Technology – Provides accurate color reproduction and smooth image quality.
-
Interactive Capabilities – Supports finger-touch and stylus interaction, perfect for classrooms and meetings.
-
Versatile Connectivity – Equipped with HDMI, VGA, USB, and LAN ports for seamless device integration.
-
Eco-Friendly & Low Maintenance – Long lamp life and energy-efficient operation help reduce costs.
Q&A
Q: What is the Hitachi CP-AW2503 Ultra Short-Throw 3LCD Projector?
A: The Hitachi CP-AW2503 is an ultra short-throw 3LCD projector designed for classrooms, conference rooms, and interactive presentations. It features WXGA (1280x800) resolution, 2,700 lumens brightness, and interactive pen support for enhanced collaboration.
Q: What are the benefits of an ultra short-throw projector?
A: It projects large images from a very short distance, minimizing shadows and glare, making it ideal for small spaces and interactive environments.
Q: Is this projector interactive?
A: Yes, it supports interactive pen-based functionality, allowing users to write and draw directly on the projected image.
Q: Does it support wireless connectivity?
A: Yes, with an optional wireless adapter, it allows wireless presentations for seamless collaboration.
Q: How long does the lamp last?
A: The lamp lasts up to 5,000 hours in normal mode and 10,000 hours in eco mode, reducing maintenance costs.
Maintenance Tips
-
Clean the Lens Regularly: Use a microfiber cloth to remove dust and smudges. Avoid harsh chemicals or rough materials.
-
Ensure Proper Ventilation: Keep air vents clear and clean filters periodically to prevent overheating.
-
Update Firmware: Check for and install firmware updates to optimize performance and compatibility.
-
Use a Surge Protector: Protect the projector from power surges by connecting it to a stable power source.
-
Store in a Cool, Dry Place: Avoid exposure to extreme temperatures, humidity, and direct sunlight.
-
Handle with Care: Avoid sudden movements, impacts, or tilting while in use to prevent internal damage.
-
Power Down Properly: Always turn off the projector using the recommended shutdown procedure to extend lamp life.
