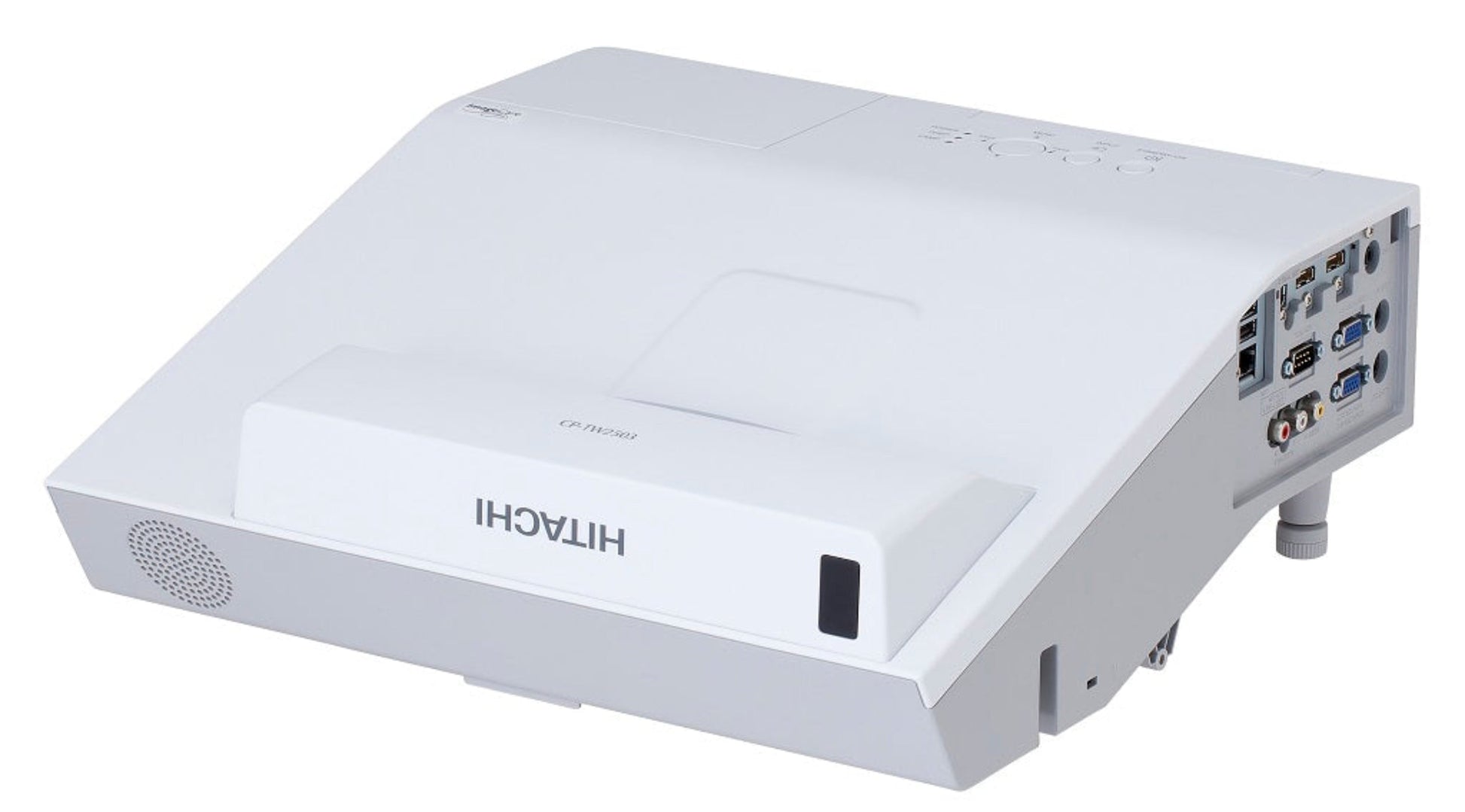

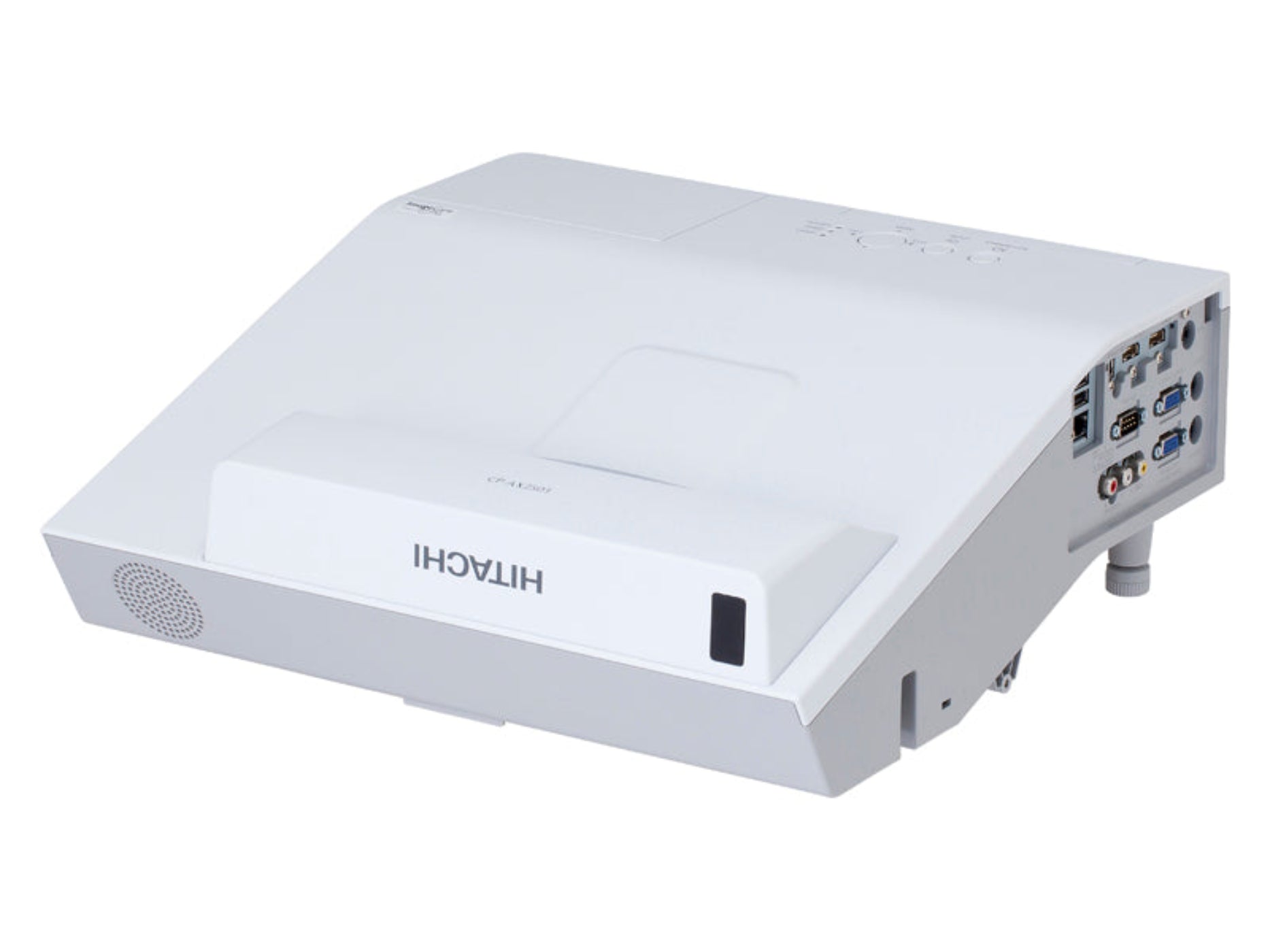

Hitachi CP-AW2505K Ultra Short-Throw 3LCD Projector - CPAW2505
The CP-AW2505 2700-Lumen WXGA Ultra-Short Throw 3LCD Projector from Hitachi has the ability to project large images in tight spaces. It produces a notable 2700-lumen color and white output, along with a 10,000:1 contrast ratio. This model also has a WXGA 1280 x 800 native resolution and supports video signals up to UXGA 1600 x 1200. This projector is powered by a 3-chip 3LCD system, and the lamp features a long life of up to 10,000 hours in Eco 2 mode and 5,000 hours in standard mode. Additionally, you can use this projector to project up to a 100" image, and it features a 0.2:1 ultra-short throw ratio from the edge of the projector to the screen, with a 0.3:1 ultra-short throw ratio from the mirror cover to the screen.

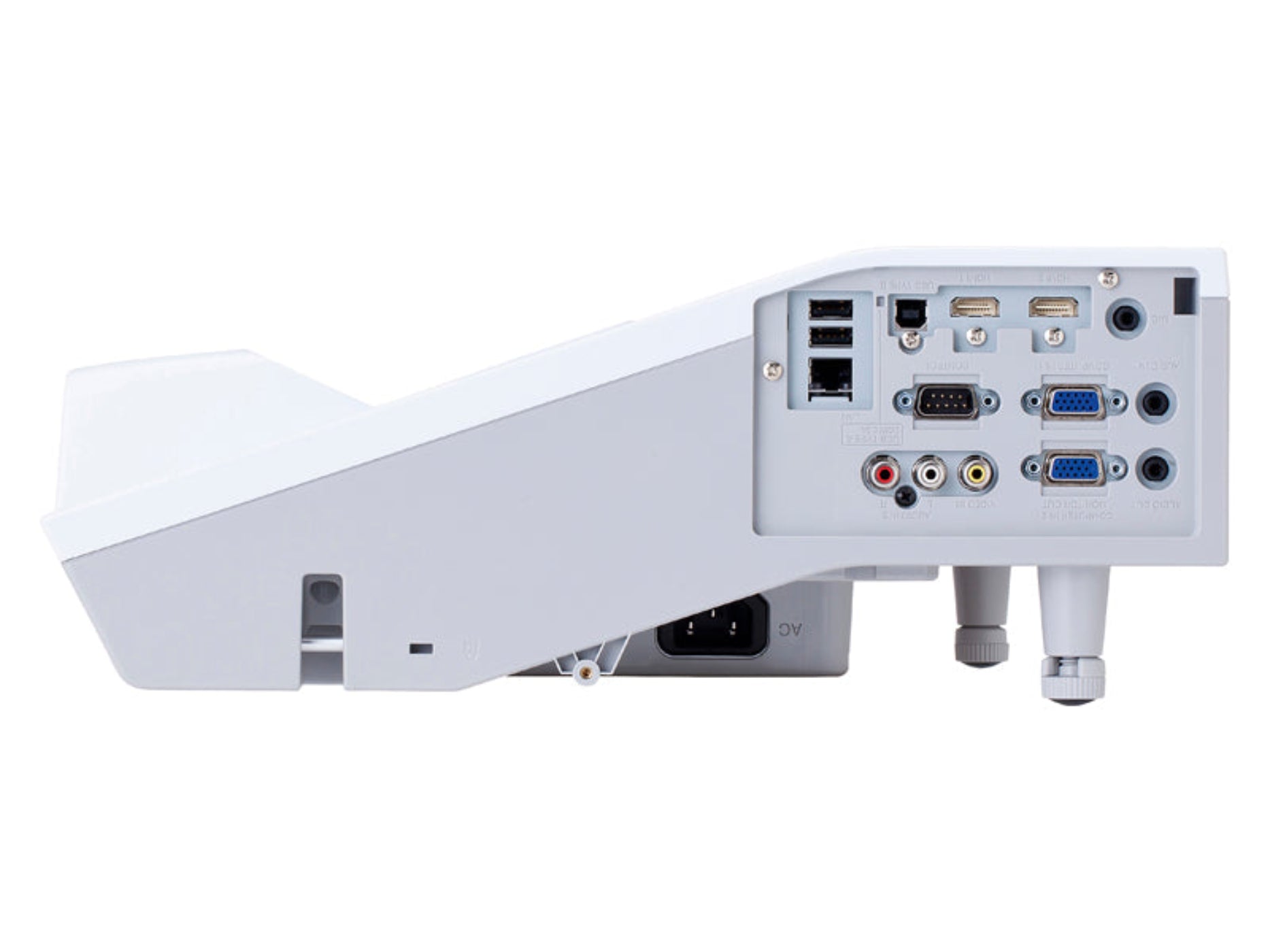

The Hitachi CP-AW2505 offers a variety of connectivity options including composite video, two VGA, two USB, and two HDMI inputs. This allows you to connect sources such as PCs, Blu-ray players, and streaming devices. One of the VGA inputs conveniently doubles as a VGA output. Its USB interface supports PC-less multimedia connections and slideshow support. RS-232C and Ethernet control interfaces are also on-board. Other features include a built-in 16W speaker for audio playback and a microphone input jack.
Accentualizer
This Hitachi technology enhances image sharpness, gloss, and shade to produce flat panel rivaling images. You can also adjust the effects by three levels according to your surroundings so that colors of projected images are the actual colors of the objects they represent.
HDCR (High Dynamic Contrast Range)
When typical projectors are used in bright rooms, the darker colors of an image can deteriorate and images can become unclear. Using this function, blurred images caused by room lighting or outside light sources are corrected, and an effect similar to increasing contrast occurs. The result is a clear image, even in bright rooms.
Cloning Function
Copy configuration settings from one projector to others of the same model via USB memory. Cloning can save almost all PJ settings, such as gamma and keystone, via USB memory.
ImageCare Technology
ImageCare is a lamp power control function that combines optimal picture performance with maximum energy savings by decreasing energy usage, improving contrast ratio, and lengthening lamp life.
Intelligent Eco and Saver Modes
Automatically changes the brightness of the lamp according to the brightness level of the screen. It also automatically changes the brightness of the lamp if there is no change in the screen image. Using ImageCare technology, these features give optimal picture performance with maximum energy savings.
Perfect Fit 2
Enables the user to adjust individual corners and sides independent of one another. Perfect Fit 2 provides vertical and horizontal digital correction of either barrel or pincushion distortions. This feature helps correct geometric and complicated distortions. Perfect Fit 2 allows the projected image to fit correctly to the screen quickly and easily.
Projector Quick Connection App For Mobile Devices
The app is available for iPad, iPhone, and Android devices and offers full projector control while providing the capability to display photos, document files, and website content. This functionality works over your LAN via your RJ-45 port or via an optional USBWL11N wireless adapter.
Tabletop Presentation
Make any tabletop a projection screen using the optional tabletop stand. This accessory is suitable for a small group environment or in a room with limited space.
Input Source Naming
Users can rename input sources in more descriptive terms instead of the factory default names.
- Ultra Short-Throw Technology
Specifications
| Aspect Ratio |
16:10 (WXGA) |
| Native Resolution |
1280 x 800 |
| Contrast Ratio |
5000:1 |
| Throw Distance |
1.2 - 2.2 ft. |
| Short Throw |
Yes |
| Display Technology |
LCD |
| Image Size (Diagonal) |
56.6 - 103.8 in. |
| Digital Keystone Correction |
Horizontal & Vertical |
| Lens Shift |
No |
| Economode Lamp Life |
4000 hours |
| Standard Lamp Life |
2500 hours |
| Audible Noise |
36 dB |
| Inputs |
2 x HDMI, 2 x 15-pin Mini D-sub (VGA), 1 x RCA Composite, 1 x Stereo Mini Jack, 1 x Pair RCA (L/R), 1 x Microphone, 2 x USB Type-A, 1 x USB Type-B, 1 x 9-pin D-sub for RS232C |
| Outputs |
1 x RGB D-Sub 15-pin, 1 x RCA Audio |
| Wireless Networking |
Yes (with optional accessory) |
| Projector Methods |
Front, Rear, Ceiling |
| Speakers |
16W Mono |
| Unit Weight |
9.5 lbs |
| Dimensions (WxDxH) |
14.8 x 14.2 x 5.4 in. |
| Power Consumption |
350W |
What Our Experts Think
-
Bright & Clear Projection – 2,700 lumens and WXGA resolution (1280x800) deliver sharp, vibrant images.
-
Ultra Short-Throw Design – Projects a 100-inch image from just inches away, eliminating shadows and glare.
-
3LCD Technology – Ensures accurate colors and smooth motion for professional presentations.
-
Interactive Capabilities – Compatible with interactive pens, making it ideal for collaborative environments.
-
Versatile Connectivity – Features HDMI, VGA, USB, and LAN ports for seamless device integration.
-
Energy-Efficient & Low Maintenance – Long lamp life and eco-friendly features reduce operating costs.
Q&A
Q: What is the Hitachi CP-AW2505K Ultra Short-Throw 3LCD Projector?
A: The Hitachi CP-AW2505K is an ultra short-throw 3LCD projector designed for classrooms and conference rooms, delivering WXGA resolution, 2,700 lumens brightness, and interactive capabilities for engaging presentations.
Q: What are the benefits of an ultra short-throw projector?
A: It allows large image projection from a very short distance, reducing shadows and glare, making it ideal for small spaces and interactive presentations.
Q: Is this projector interactive?
A: Yes, it supports interactive pen-based functionality, perfect for education and business collaboration.
Q: Does it support wireless connectivity?
A: Yes, with an optional wireless adapter, it enables cable-free presentations.
Q: How long does the lamp last?
A: The lamp lasts up to 5,000 hours in normal mode and 10,000 hours in eco mode, reducing maintenance costs.
Maintenance Tips
-
Keep the Lens Clean: Use a microfiber cloth to gently wipe the lens. Avoid abrasive materials or harsh chemicals.
-
Ensure Proper Ventilation: Keep air vents clear of dust and debris to prevent overheating. Clean filters regularly if applicable.
-
Update Firmware: Check for software updates periodically to maintain peak performance and compatibility.
-
Store in a Stable Environment: Avoid extreme temperatures, humidity, and direct sunlight to protect internal components.
-
Use a Surge Protector: Prevent power fluctuations from damaging the projector by connecting it to a surge-protected power source.
-
Handle with Care: Avoid shaking or tilting the projector while in use or transport to prevent internal misalignment.
-
Power Down Properly: Always turn off the projector using the recommended shutdown procedure to extend lamp life.
