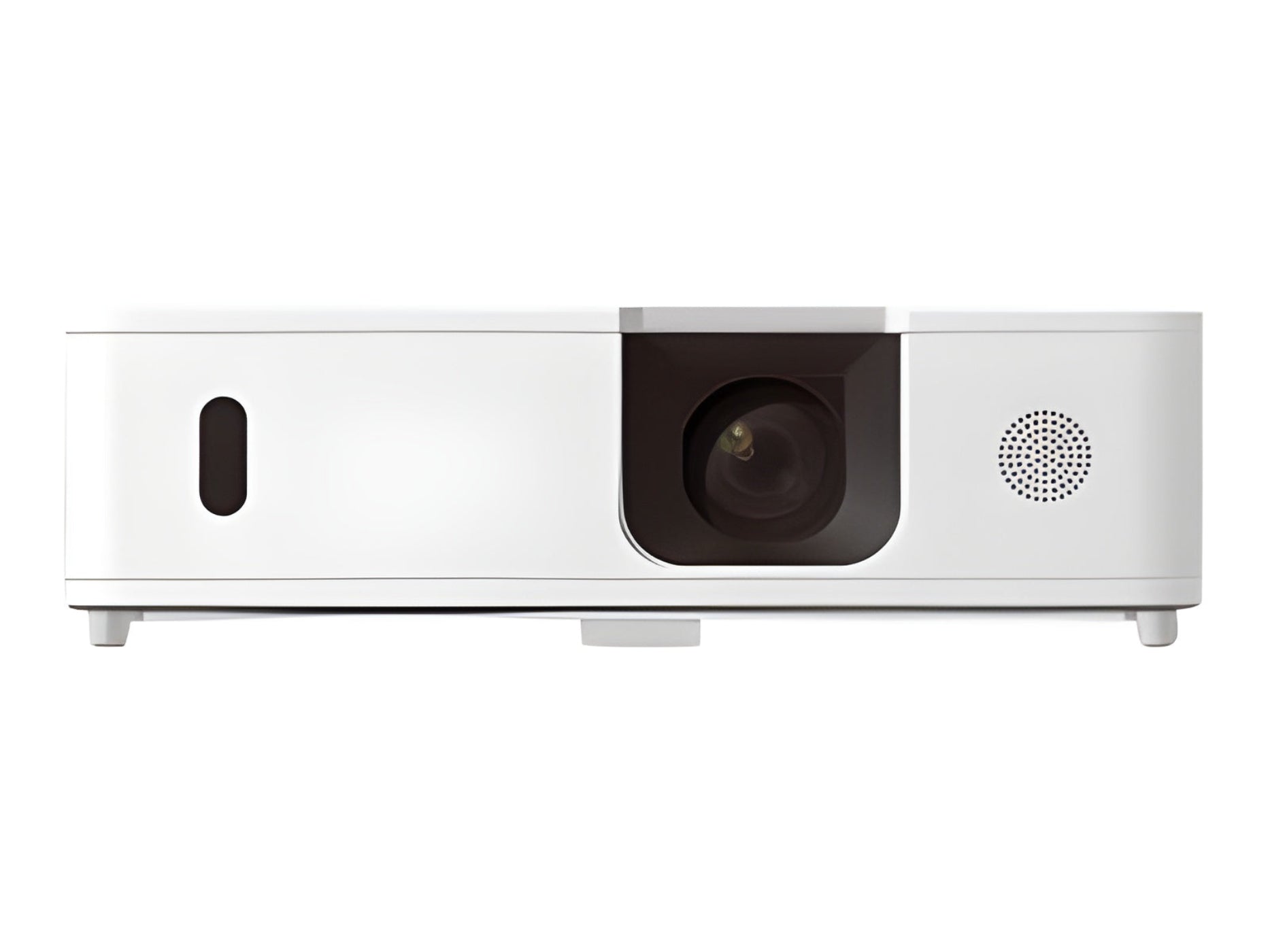

Hitachi WUXGA 3LCD - CPWU5500
Hitachi's CP-WU5500 LCD projector provides maximum impact in mid to large venue applications with WUXGA resolution and 5000 lumens
- 5000 ANSI Lumens
- WUXGA Resolution (1920 x 1200)
- Dual HDMI Connectivity
Specifications
| Custom Aspect Ratio |
16:10 (WUXGA) |
| Native Resolution |
1920 x 1200 |
| Contrast Ratio |
10,000:1 |
| Throw Distance |
5.8 - 25.6 ft. |
| Lens |
F = 1.6 ~ 1.74 |

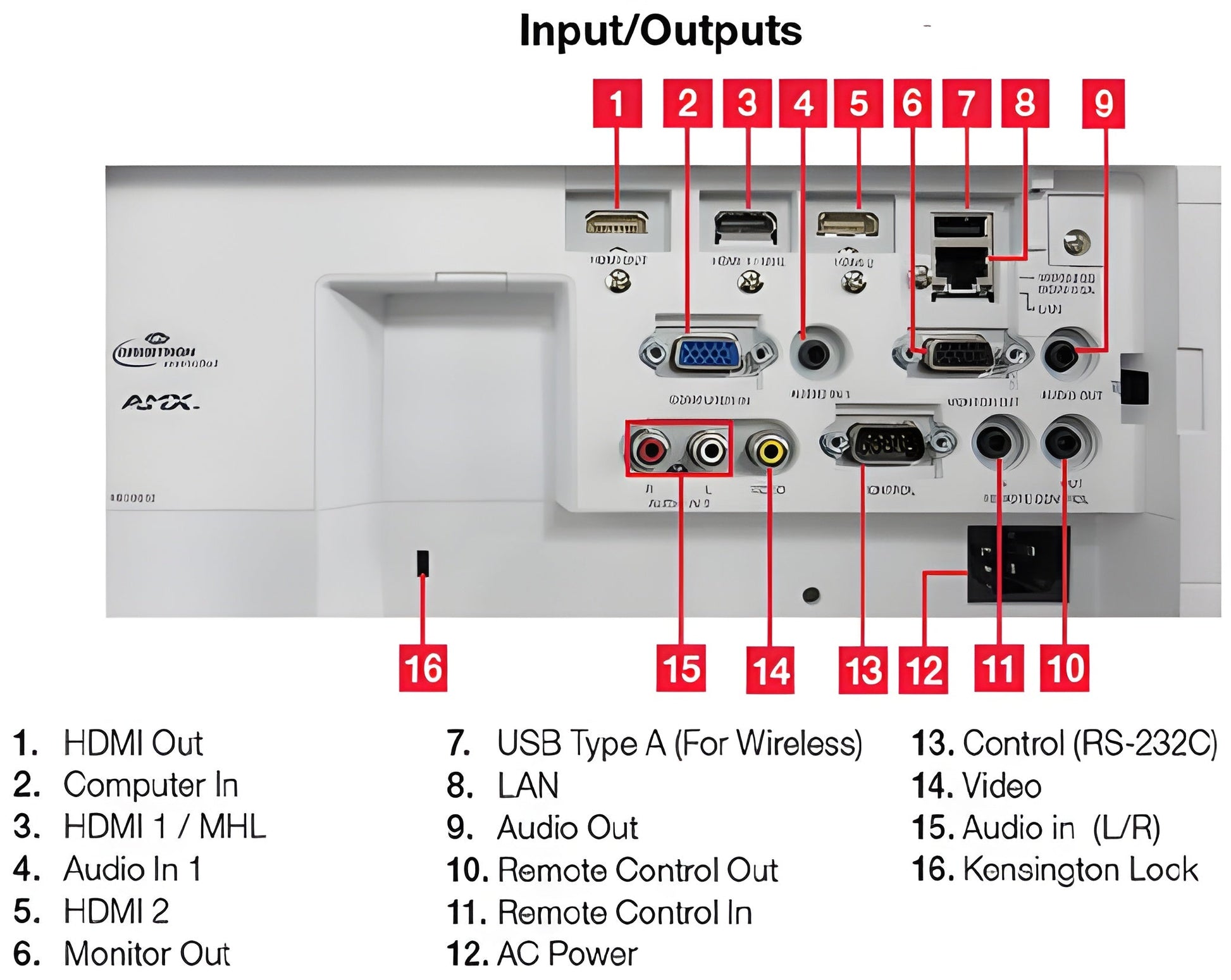

| Inputs |
- |
| Outputs |
1 x RGB D-Sub 15pin, 1 x Stereo Mini Jack |
| Display Technology |
LCD |
| Wireless Networking |
No |
| Speakers |
1 x 1W Mono Speaker |
| Economode |
6000 Hours |
| Audible Noise |
28 dB (Normal), 30 dB (Bright Mode) |
| Lamp Life |
4000 hrs |
| Short Throw |
No |
| Aspect Ratio |
16:10 (WUXGA) |
| Image Size Diagonal |
50.0 - 250.0 in. |
| Lens Shift |
Horizontal & Vertical |
| Data / Video Signals |
720p, 1080i, 1080p/60, 576i, 576p |
| Digital Keystone |
Horizontal & Vertical |
| Unit Weight |
14.0 lbs. (6.35 kg) |
| Projector Methods |
Front, Rear, Ceiling |
| Dimensions (WxDxH) |
18.5in. x 13.3in. x 5.9in. |
| Power Consumption |
233W (Bright Mode), 207W (Normal) |
What our Experts Think
-
High WUXGA Resolution – 1920x1200 resolution with 3LCD technology for crisp, detailed visuals.
-
Impressive Brightness – 5,500 lumens deliver clear, vibrant images even in well-lit environments.
-
Flexible Connectivity – Features HDMI, USB, VGA, and LAN for seamless integration with a variety of devices.
-
Low Maintenance – Long lamp life and energy-efficient features reduce operational costs.
-
Ideal for Large Spaces – Perfect for conference rooms, lecture halls, and auditoriums needing high-quality projection.
Q&A
Q: What is the resolution and brightness of the CPWU5500?
A: The CPWU5500 features WUXGA (1920x1200) resolution with 5,500 lumens brightness, ensuring bright and crisp visuals even in well-lit rooms.
Q: What projection technology does the CPWU5500 use?
A: The CPWU5500 utilizes 3LCD technology for vibrant, true-to-life colors and high image quality.
Q: What is the contrast ratio of the CPWU5500?
A: It has a 2,000:1 contrast ratio, enhancing image clarity and depth with sharp details and deep blacks.
Q: What connectivity options are available with the CPWU5500?
A: The CPWU5500 offers HDMI, VGA, USB, and network connections for flexible integration with various devices.
Q: Is the CPWU5500 suitable for large venues?
A: Yes, it’s ideal for large conference rooms, auditoriums, and other large spaces, thanks to its high brightness and WUXGA resolution.
Q: What installation flexibility does the CPWU5500 offer?
A: With lens shift, keystone correction, and multiple lens options, this projector provides flexible installation in a variety of environments.
Maintenance Tips
-
Clean the Lens Regularly – Gently clean the lens with a soft, lint-free cloth to avoid dust and scratches.
-
Replace the Air Filter – Clean or replace the air filter every 500-1000 hours of use to maintain proper airflow and cooling.
-
Dust the Vents – Use compressed air to blow out dust from the vents and internal cooling components.
-
Monitor Lamp Life – Keep track of lamp usage and replace the lamp when it reaches its recommended lifespan to maintain optimal brightness.
-
Turn Off When Not in Use – Always power off the projector when not in use to extend the life of the lamp and filters.
-
Ensure Proper Ventilation – Ensure the projector is placed in a cool, well-ventilated area to prevent overheating.
