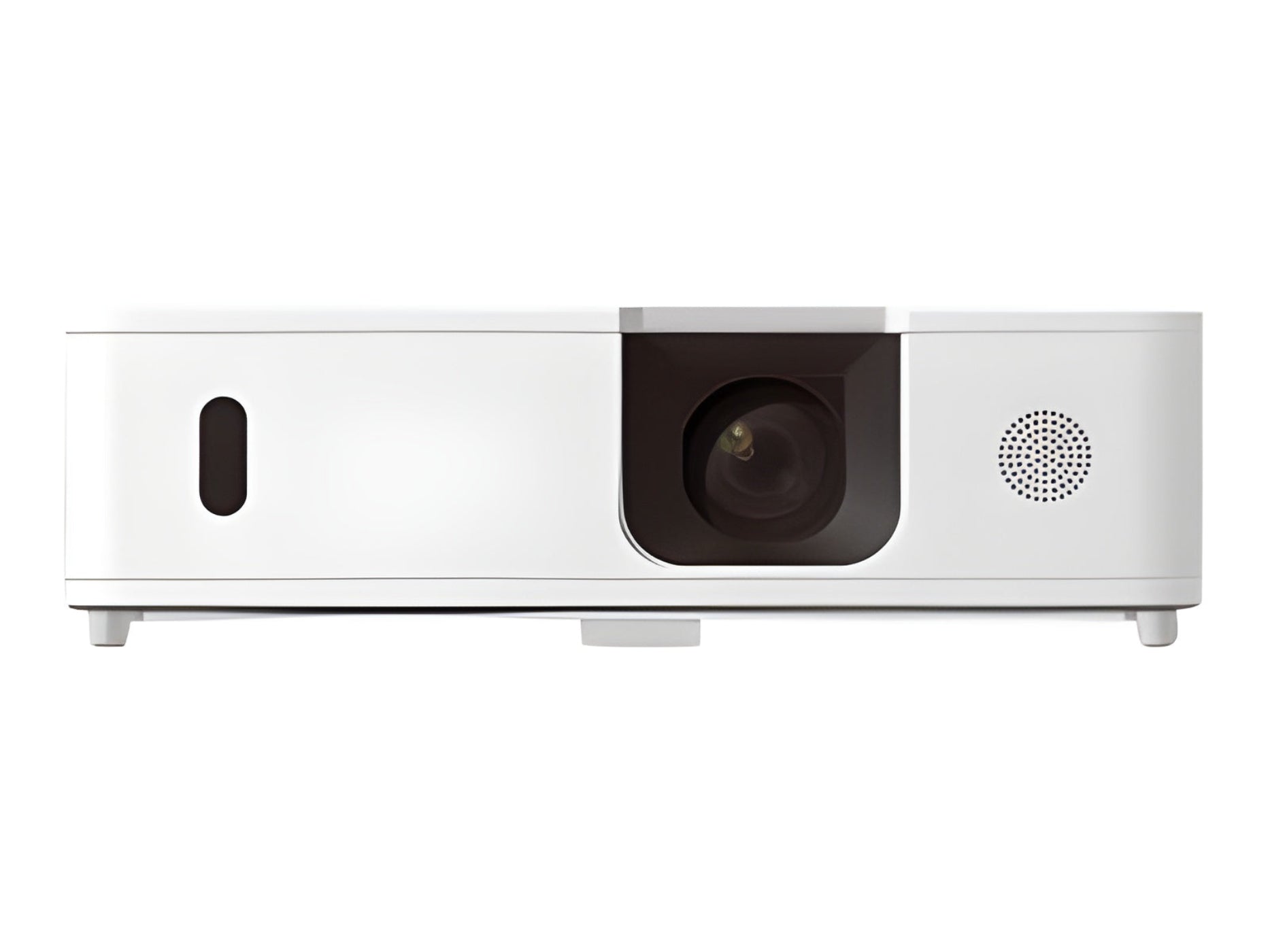

Hitachi WUXGA 3LCD Projector - CPWU5505
Hitachi's CP-WU5505 LCD projector provides maximum impact in mid to large venue applications with WUXGA resolution and 5000 lumens
- WUXGA Resolution (1920 x 1200)
- 5000 ANSI Lumens
- HDBase-T Connectivity
Specifications
| Custom Aspect Ratio |
16:10 (WUXGA) |
| Native Resolution |
1920 x 1200 |
| Contrast Ratio |
10,000:1 |
| Throw Distance |
5.8 - 25.6 ft. |
| Lens |
F = 1.6 ~ 1.74 |
| Inputs |
- |
| Outputs |
1 x RGB D-Sub 15pin, 1 x Stereo Mini Jack |
| Display Technology |
LCD |
| Wireless Networking |
No |
| Speakers |
1 x 1W Mono Speaker |
| Economode |
6000 Hours |
| Audible Noise |
28 dB (Normal), 30 dB (Bright Mode) |
| Lamp Life |
4000 hrs |
| Short Throw |
No |
| Aspect Ratio |
16:10 (WUXGA) |
| Image Size Diagonal |
50.0 - 250.0 in. |
| Lens Shift |
Horizontal & Vertical |
| Data / Video Signals |
720p, 1080i, 1080p/60, 576i, 576p |
| Digital Keystone |
Horizontal & Vertical |
| Unit Weight |
14.0 lbs. (6.35 kg) |
| Projector Methods |
Front, Rear, Ceiling |
| Dimensions (WxDxH) |
18.5in. x 13.3in. x 5.9in. |
| Power Consumption |
233W (Bright Mode), 207W (Normal) |
What our Experts Think
-
High WUXGA Resolution – 1920x1200 resolution with 3LCD technology for detailed and vibrant images.
-
Bright Projection – 5,000 lumens ensure clear visuals even in bright environments.
-
Versatile Connectivity – Offers HDMI, USB, VGA, and LAN options for easy connection to multiple devices.
-
Reliable Performance – Built to last with long lamp life and low maintenance costs.
-
Ideal for Large Venues – Perfect for conference rooms, auditoriums, and lecture halls needing high-quality, bright projection.
Q&A
Q: What is the resolution and brightness of the CPWU5505?
A: The CPWU5505 features WUXGA (1920x1200) resolution with 5,500 lumens brightness, providing sharp and vibrant visuals even in bright environments.
Q: What projection technology does the CPWU5505 use?
A: It uses 3LCD technology, delivering exceptional color accuracy and high-quality images for professional settings.
Q: What is the contrast ratio of the CPWU5505?
A: The CPWU5505 offers a 2,000:1 contrast ratio, ensuring clear and detailed images with rich colors.

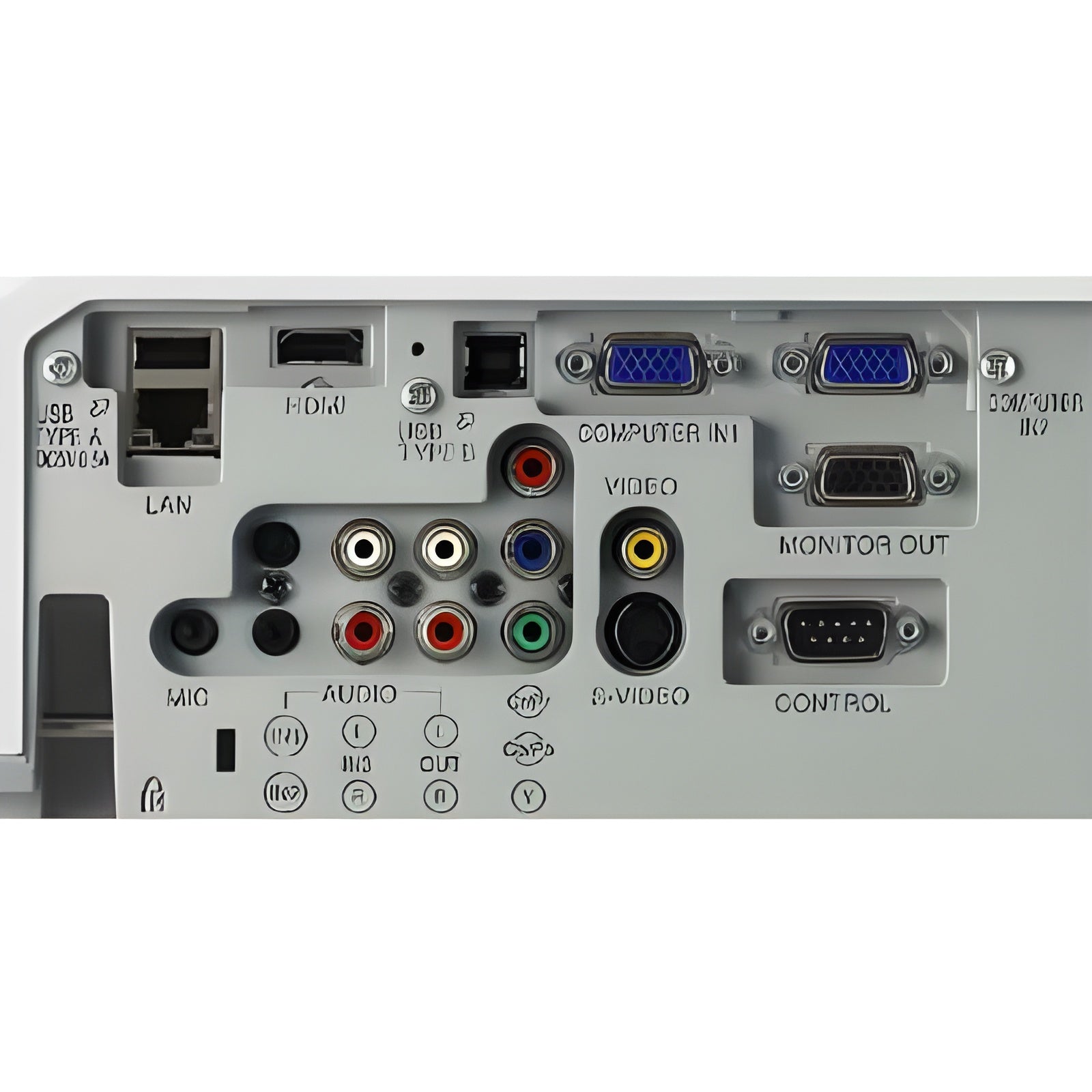

Q: What connectivity options are available with the CPWU5505?
A: It supports HDMI, VGA, USB, and network connections, allowing seamless integration with a variety of devices.
Q: Is the CPWU5505 suitable for large venues?
A: Yes, with its high brightness and WUXGA resolution, it's ideal for large conference rooms, auditoriums, and other large venues.
Maintenance Tips
-
Clean the Lens Regularly – Use a soft, lint-free cloth to gently clean the lens and avoid scratches.
-
Replace the Air Filter – Clean or replace the air filter every 500-1000 hours to maintain proper ventilation and prevent overheating.
-
Clear Dust from Vents – Use compressed air to clear dust from the vents and cooling areas to ensure efficient operation.
-
Monitor Lamp Life – Track lamp usage and replace the lamp when it reaches its maximum recommended hours to maintain brightness and performance.
-
Power Off When Not in Use – Always turn off the projector after use to extend the lifespan of the lamp and other components.
-
Ensure Adequate Ventilation – Place the projector in a well-ventilated area to avoid overheating and ensure optimal performance.
