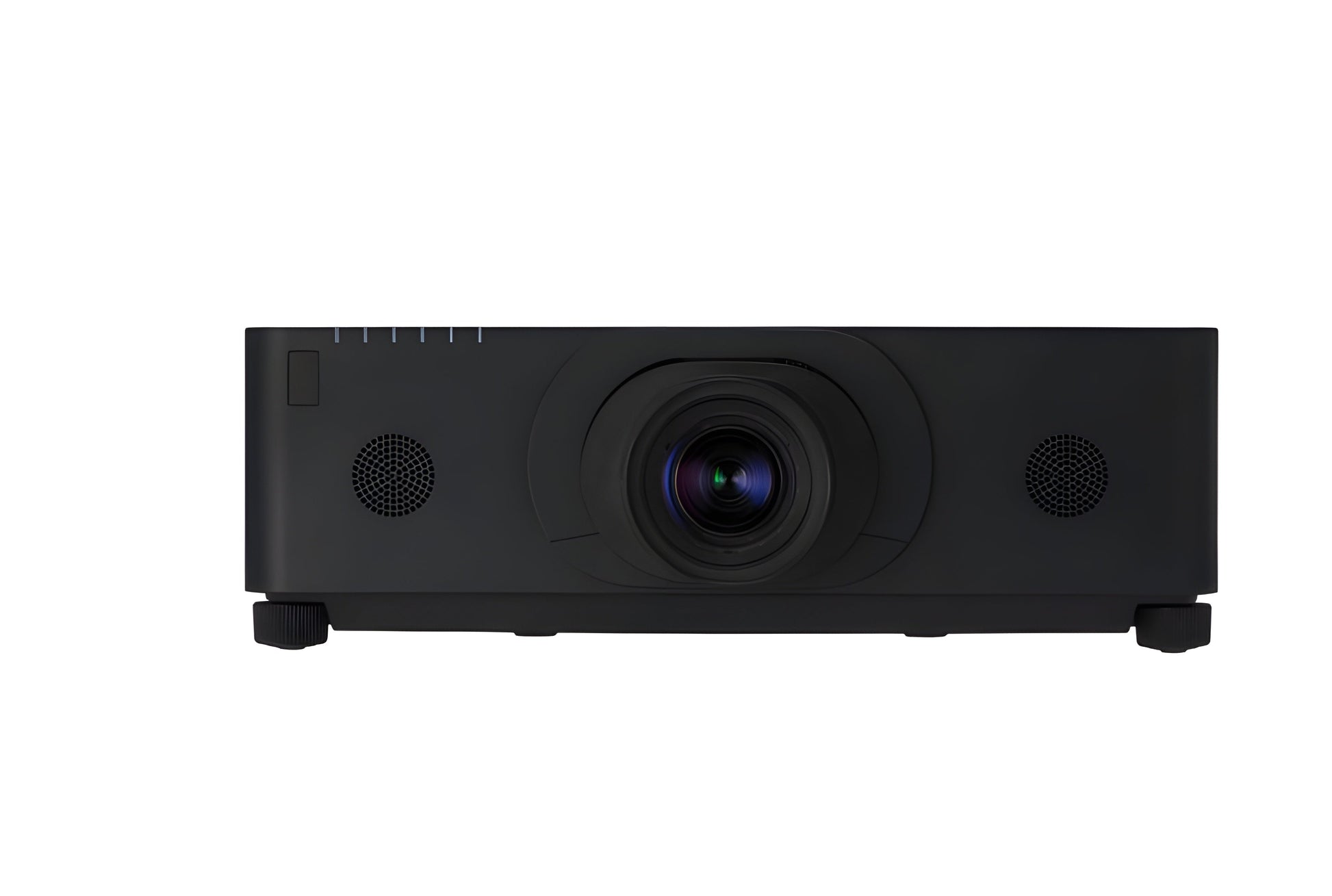

Hitachi CP-WU8700B 3LCD Projector - CPWU8700B
The Hitachi CP-WU8700B LCD projector is installation friendly and designed to provide maximum presentation impact in mid to large applications
Features
- 7000 ANSI Lumens
- WUXGA Resolution (1920 x 1200)
- HDBase-T Connectivity
Specifications
| Custom Aspect Ratio |
16:10 (WUXGA) |
| Native Resolution |
1920 x 1200 |
| Contrast Ratio |
10000:1 |
| Throw Distance |
5.8 - 25.6 ft |
| Lens |
F = 1.6 ~ 1.74 |
| Inputs |
None |
| Outputs |
1 x RGB D-Sub 15pin, 1 x Stereo Mini Jack |
| Display Technology |
LCD |
| Wireless Networking |
No |
| Speakers |
1 x 1W Mono Speaker |
| Economode |
4000 hours |
| Audible Noise |
28 dB (Normal), 30 dB (Bright Mode) |
| Lamp Life |
2000 hours |
| Short Throw |
No |
| Aspect Ratio |
16:10 (WUXGA) |
| Image Size Diagonal |
50.0 - 250.0 in. |
| Lens Shift |
No |
| Data / Video Signals |
720p, 1080i, 1080p/60, 576i, 576p |
| Digital Keystone |
+/- 40 Degrees |
| Unit Weight |
24.3 lbs |
| Projector Methods |
Front |
| Dimensions (WxDxH) |
To be specified |
| Power Consumption |
233W (Bright Mode), 207W (Normal) |
What Our Experts Think
-
Exceptional Brightness: 8000 lumens for vibrant, sharp visuals in large and well-lit rooms.
-
WUXGA Resolution (1920 x 1200): Delivers ultra-high-definition clarity for detailed presentations and multimedia.
-
Advanced 3LCD Technology: Provides rich, accurate colors and consistent brightness for superior image quality.
-
Versatile Connectivity: Includes HDMI, VGA, and LAN ports, supporting a wide range of devices and setups.
-
Long Lamp Life: Engineered for extended operation, reducing the need for frequent lamp replacements.
-
Energy Efficient: Optimizes power consumption while maintaining high performance.
-
Professional-Grade Performance: Ideal for large venues, auditoriums, and conference rooms requiring high-performance projection.
Q&A
Q: What type of projector is the Hitachi CP-WU8700B?
A: The CP-WU8700B is a high-performance 3LCD projector designed for large venues, conference rooms, and auditoriums, providing superior image quality.
Q: What is the brightness level of the CP-WU8700B?
A: This projector delivers an impressive 6,500 ANSI lumens, ensuring vivid, bright images in various lighting conditions.
Q: What is the native resolution?
A: The CP-WU8700B offers WUXGA (1920x1200) resolution for high-definition, sharp, and detailed visuals.
Q: What connectivity options does the CP-WU8700B offer?
A: The projector includes multiple input options including HDMI, VGA, DisplayPort, and audio, allowing for flexible connectivity.
Q: What is the lamp life of this projector?
A: The lamp lasts up to 2,000 hours in standard mode and up to 3,000 hours in eco mode.
Q: Is the CP-WU8700B easy to install?
A: Yes, the CP-WU8700B offers flexible installation options and is designed for easy setup in large spaces.
Maintenance Tips
-
Clean Air Filters Regularly – Clean or replace air filters every few months to prevent dust build-up and ensure proper ventilation.
-
Keep the Lens Clean – Use a microfiber cloth to gently wipe the lens and remove any dust, dirt, or fingerprints that could affect image quality.
-
Check Ventilation – Ensure the projector’s vents are unobstructed to allow for efficient cooling and prevent overheating.
-
Replace Lamp as Needed – When the lamp reaches its end of life, replace it with a genuine Hitachi lamp to maintain image clarity and brightness.
-
Turn Off Properly – Always use the power button to turn off the projector, allowing it to cool down fully before unplugging.
