Hitachi CP-WX625 3LCD Projector - CPWX625
The Hitachi CP-WX625 LCD Projector features a brightness of 4,000 ANSI lumens and a 2,000-hour hybrid filter, along with networking functionality and Hitachi’s proprietary My Image Campus Notification system. It is specially designed for use with widescreen-format laptops and imaging applications that use 16:10 aspect ratios. Additionally, the CP-WX625 features picture-by-picture functionality as well as an HDMI terminal, allowing digital signals such as DVD players/recorders and HD to be transmitted digitally to the projector. A 16-watt speaker output provides sufficient audio coverage, while the hybrid filter is side-mounted, allowing for easier maintenance. Further simplifying maintenance, the CP-WX625 also features a top-door lamp, making replacement much easier.

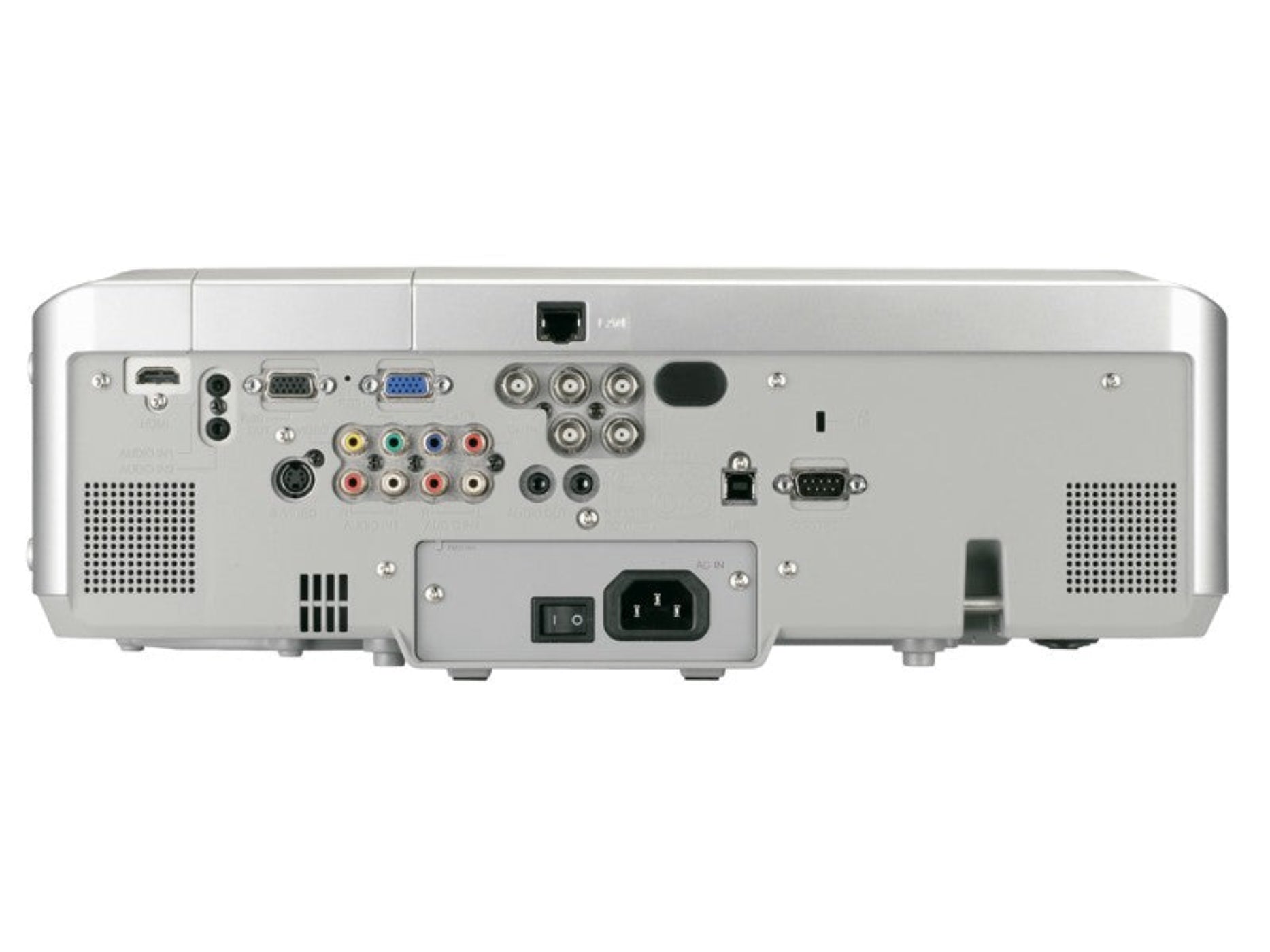

The CP-WX625 also features one RGB input, one RGB output and one BNC input, as well as component, composite and S-Video connections. It offers horizontal and vertical lens shift, an Instant On/Off option and a lamp life of approximately 3,000 hours in Whisper Mode. Providing advanced anti-theft capabilities, the CP-WX625 features a security bar and transition detector.
Virtually Maintenance Free Installation Projector
Performance
16:10 Aspect ratio for ultimate laptop compatibility4000 ANSI Lumens with optical zoomFull connectivity including HDMIQuick Start and Instant OffAuto vertical keystoneInput Source NamingMy Button4W monoWhiteboard Mode and Blackboard ModeAnti Theft features:PIN-LockMyScreen LockTransition Detector
- 4000 ANSI LUMENS
- WXGA 1280 X 800
Specifications
| Custom Aspect Ratio |
16:10 (WXGA) |
| Native Resolution |
1280 x 800 |
| Contrast Ratio |
1000:1 |
| Throw Distance |
7.5 - 31.6 ft. |
| Lens |
1.20:1 |
| Inputs |
1 x HDMI, 1 x RGB D-Sub 15pin, 1 x BNC, 1 x Component, 1 x Composite, 1 x S-Video, 2 x Stereo Mini Jack, 2 x RCA Audio |
| Outputs |
1 x RGB D-Sub 15pin, 1 x Stereo Mini Jack |
| Display Technology |
LCD |
| Wireless Networking |
No |
| Speakers |
16W Mono |
| Economode |
3000 hrs, 29 dB, 3200 ANSI |
| Audible Noise |
35 dB |
| Lamp Life |
2000 hrs |
| Aspect Ratio |
16:10 (WXGA) |
| Image Size Diagonal |
60.0 - 300.0 in. |
| Lens Shift |
Horizontal & Vertical |
| Data / Video Signals |
NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, HDTV (480i, 480p, 576i, 576p, 720p, 1080i) |
| Digital Keystone |
Horizontal & Vertical |
| Unit Weight |
15.8 lbs (7.17 kg) |
| Dimensions (WxDxH) |
16.5in. x 12.6in x 5.5in. |
| Power Consumption |
460W |
What Our Experts Think
-
WXGA Resolution (1280 x 800) – Offers widescreen projection with sharper and more detailed visuals compared to standard XGA projectors, perfect for presentations, videos, and data projections.
-
4000 Lumens Brightness – Provides vibrant, high-quality images even in rooms with ambient light, making it ideal for larger rooms and medium-to-large venues.
-
3LCD Technology – Ensures bright and accurate color reproduction with enhanced contrast for vivid, true-to-life projections.
-
Long Lamp Life (up to 5,000 hours) – Offers extended use, reducing maintenance costs and the frequency of lamp replacements.
-
Multiple Connectivity Options – Includes HDMI, VGA, and more, ensuring compatibility with a variety of devices.
-
Easy Installation – Offers flexible mounting options and simple setup, making it perfect for both permanent installations and portable use.
Q&A
Q: What is the Hitachi CP-WX625 Projector?
A: The Hitachi CP-WX625 is a 3LCD projector designed for professional and educational use, providing high-quality, bright, and clear image projection for presentations and meetings.
Q: What is the resolution of the CP-WX625?
A: The CP-WX625 features WXGA resolution (1280x800), offering a widescreen format for clearer, more detailed images, ideal for presentations, videos, and graphics.
Q: How bright is the CP-WX625?
A: The CP-WX625 offers 3,200 lumens of brightness, ensuring vibrant and sharp images even in rooms with ambient light.
Q: How long does the lamp last?
A: The CP-WX625 projector lamp lasts up to 4,000 hours in standard mode and up to 6,000 hours in eco mode, providing reliable performance for extended use.
Q: What are the connectivity options for the CP-WX625?
A: The CP-WX625 includes multiple connectivity options, such as HDMI, VGA, USB, and composite video inputs, making it compatible with a wide range of devices like laptops, media players, and more.
Q: Is it easy to install?
A: Yes, the CP-WX625 is designed for easy installation with flexible mounting options, keystone correction, and user-friendly controls for smooth setup.
Q: Does it support wireless connectivity?
A: The CP-WX625 does not come with built-in wireless functionality, but it can be connected to external wireless adapters to enable wireless presentations.
Maintenance Tips
-
Clean Air Filters Regularly – Dust accumulation can cause overheating. Clean the air filters every few weeks to ensure proper airflow and cooling.
-
Wipe the Lens – Use a microfiber cloth to clean the lens gently to maintain sharp, clear image quality.
-
Monitor Lamp Hours – Track the lamp’s usage and replace it when it reaches its recommended life span to maintain brightness.
-
Ensure Proper Ventilation – Keep vents clear of obstruction to prevent overheating and ensure efficient cooling.
-
Allow Cool-Down Time – Let the projector cool down fully before turning it off or unplugging to prevent damage to internal components.
