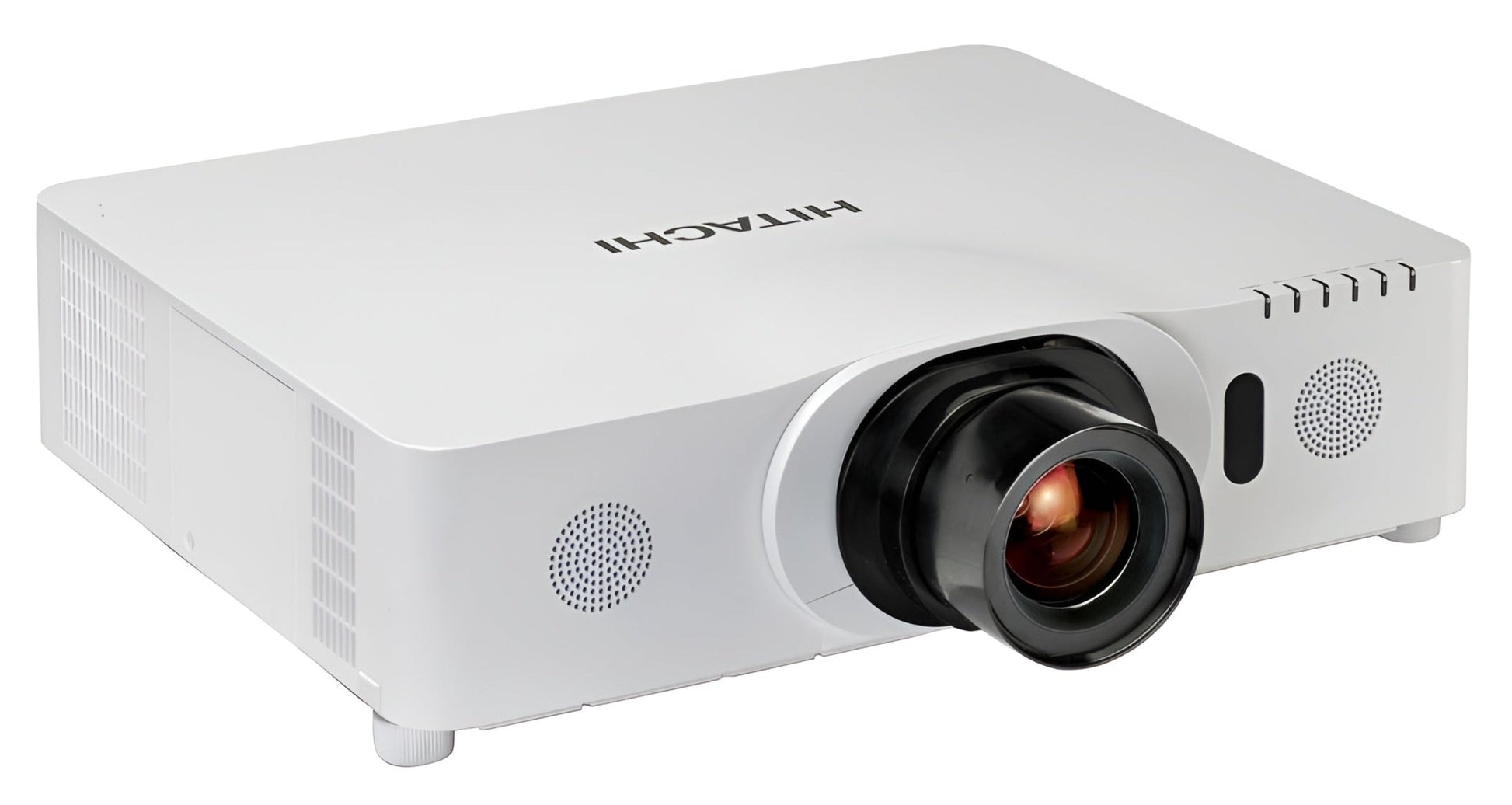

Hitachi CP-WX8240A 3LCD Projector - CPWX8240A
The Hitachi CP-WX8240A 3LCD Projectoris convenient and easy to use with advanced technology and 4,000 ANSI lumens brightness in a low profile design. It is designed to provide maximum presentation impact in mid to large venue applications such as auditoriums and conference halls. It offers a versatile array of performance-enhancing features along with advanced video display technology providing bold, brilliant colors with crisp image clarity and uniformity. It features motorized zoom, focus and superior lens shift, and a variety of lens options.
The CP-WX8240A Installation LCD Projector delivers clear and crisp images with WXGA 1280 x 800 resolution and brightness of 4,000 ANSI lumens. Incorporating Hitachi’s leading-edge technology, the projector features good contrast ratio, long lamp life, a variety of lens options to accommodate your specific application, and is wireless presentation ready.
Features
- 4000 LUMENS
- WXGA RESOLUTION
- 2 HDMI CONNECTIONS
Specifications
| Custom Aspect Ratio |
16:10 (WXGA) |
| Native Resolution |
1280 x 800 |
| Contrast Ratio |
3000:1 |
| Throw Distance |
5.0 - 63.4 ft. |
| Lens |
Power, 1.50:1 |

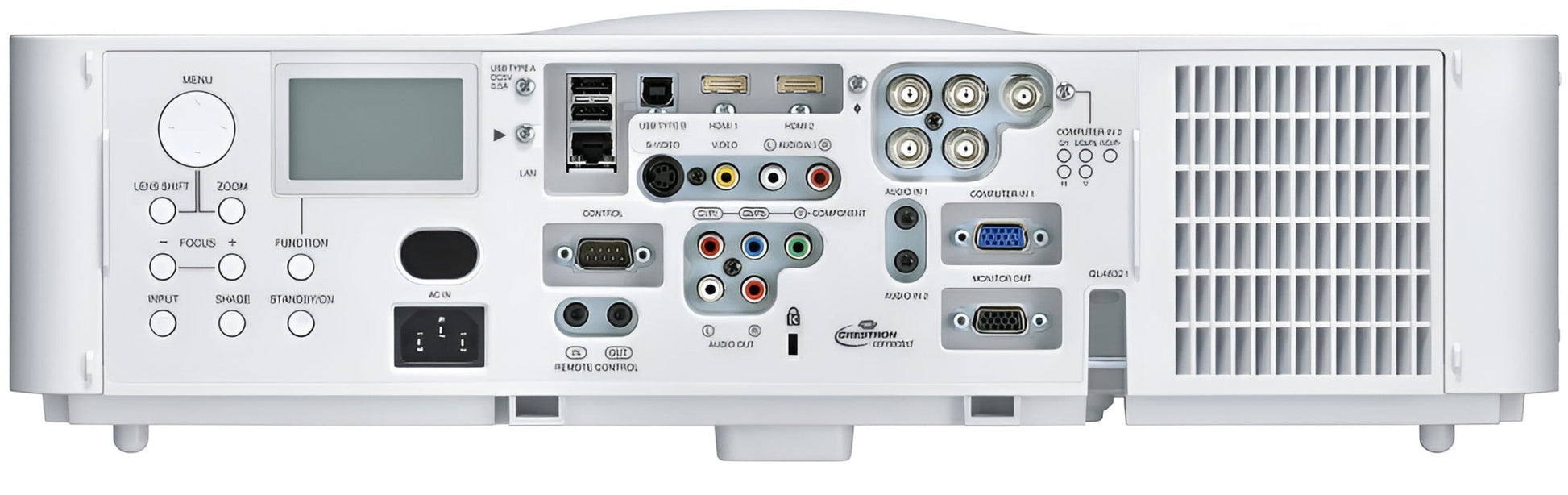

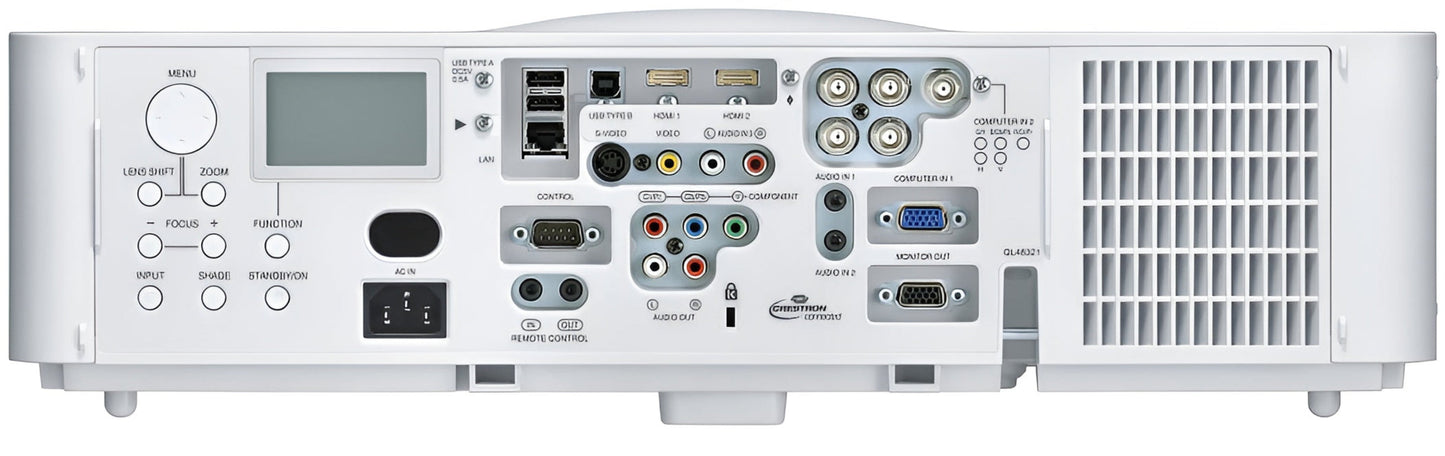

| Inputs |
2 x HDMI, 1 x 15-pin Mini D-sub, 1 x BNC, 1 x S-Video, 1 x RCA Composite Video, 3 x RCA Component Video, 2 x Stereo Mini Jack, 2 x RCA Jack, 1 x 9-pin D-Sub for RS232C Control, 2 x USB Type A, Input: 1 x Stereo Mini Jack |
| Outputs |
1 x 15-pin Mini D-sub, 1 x Stereo Mini Jack |
| Display Technology |
LCD |
| Wireless Networking |
Yes (with optional accessory) |
| Speakers |
8.0 W x 2 |
| Economode |
4000 hrs |
| Audible Noise |
35.0 dB |
| Lamp Life |
2500 hrs |
| Aspect Ratio |
16:10 (WXGA) |
| Image Size (Diagonal) |
32.2 - 598.1 in. |
| Lens Shift |
Horizontal & Vertical |
| Data / Video Signals |
NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, HDTV (480i, 480p, 576i, 720p, 1080i, 1080p) |
| Digital Keystone |
Horizontal & Vertical |
| Unit Weight |
18.3 lbs |
| Projector Methods |
Front, Rear, Ceiling |
| Dimensions (WxDxH) |
19.6 x 15.6 x 5.3 in. |
| Power Consumption |
355W |
What Our Experts Think
-
Bright & Clear Projection: 6000 lumens deliver vibrant and sharp images, even in well-lit environments.
-
WXGA Resolution (1280 x 800): Provides crisp, high-definition visuals perfect for presentations, meetings, and multimedia.
-
Advanced 3LCD Technology: Ensures rich, accurate colors and exceptional image quality with consistent brightness.
-
Versatile Connectivity: Equipped with HDMI, VGA, and LAN ports for seamless integration with various devices.
-
Long Lamp Life: Designed for extended use with reduced need for lamp changes, lowering maintenance costs.
-
Energy Efficient: Optimizes power consumption without sacrificing performance or brightness.
-
Ideal for Large Venues: Perfect for large conference rooms, classrooms, and auditoriums requiring high-performance projection.
Q&A
Q: What type of projector is the Hitachi CP-WX8240A?
A: The CP-WX8240A is a high-brightness 3LCD projector designed for large venues, conference rooms, and auditoriums, delivering exceptional image quality.
Q: What is the brightness level of the CP-WX8240A?
A: This projector offers 5,000 ANSI lumens, ensuring vivid and bright images even in well-lit environments.
Q: What is the native resolution of the CP-WX8240A?
A: The CP-WX8240A has WXGA (1280x800) resolution, providing clear, sharp images with wide compatibility for presentations.
Q: What connectivity options are available on the CP-WX8240A?
A: The projector includes HDMI, VGA, and various audio and video inputs for flexible connectivity with a variety of devices.
Q: What is the lamp life of this projector?
A: The lamp can last up to 3,000 hours in standard mode and up to 4,000 hours in eco mode, providing long-lasting performance.
Q: Is the CP-WX8240A easy to install?
A: Yes, the CP-WX8240A offers flexible installation options and can be easily mounted in large spaces, making it ideal for fixed installations in venues.
Maintenance Tips
-
Regular Cleaning: Clean the air filter and lens every 1-2 months to prevent dust buildup.
-
Lamp Maintenance: Replace the lamp after 2,000-3,000 hours of use or when the lamp indicator turns on.
-
Optimal Storage: Store in a dry, cool environment to avoid overheating and humidity damage.
-
Firmware Updates: Periodically check for firmware updates for improved performance.
-
Proper Ventilation: Ensure the projector has ample airflow to prevent overheating.
-
Lens Protection: Always cover the lens when not in use to prevent dust and scratches.
