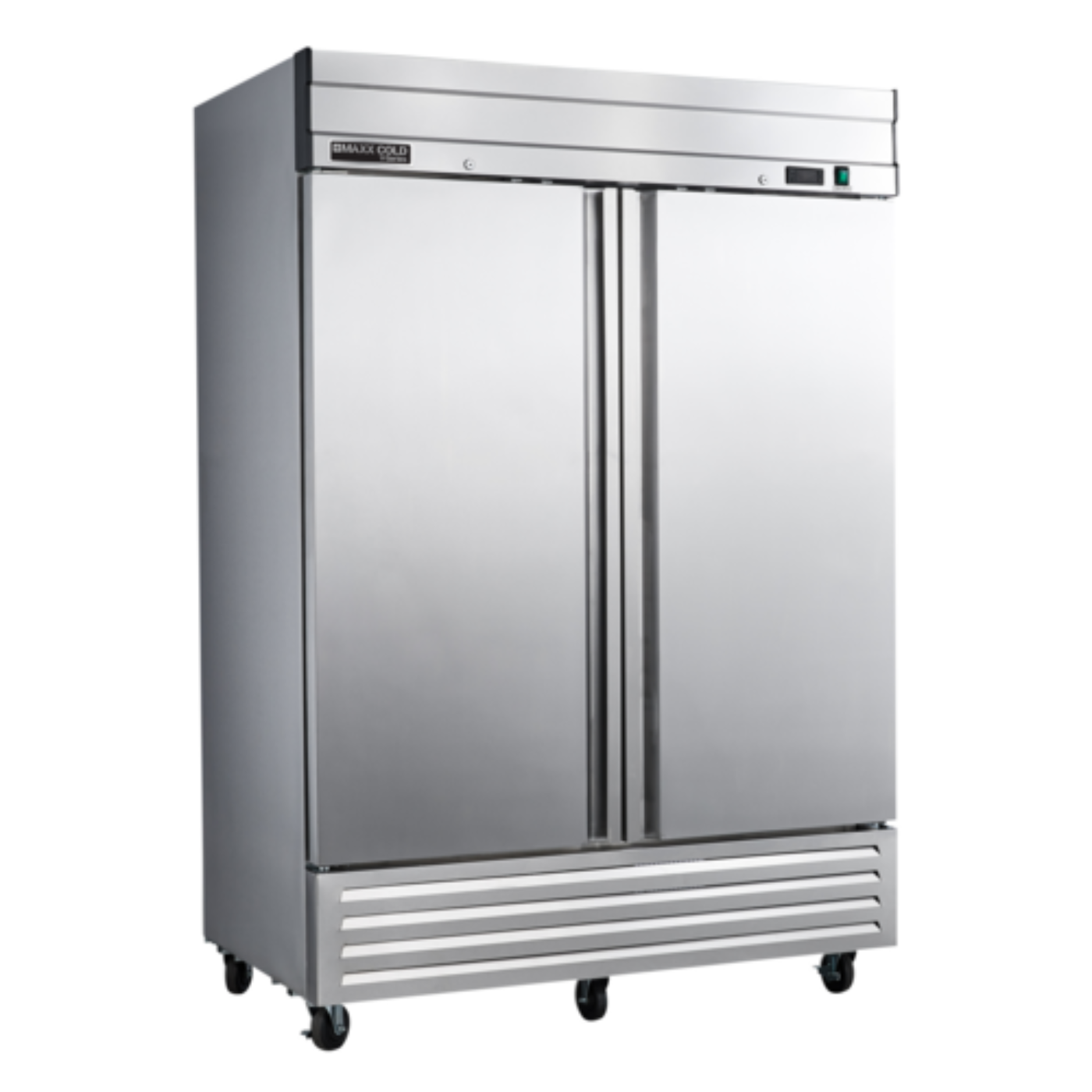

Maxximum MVF-49FDHC Maxx Cold V-Series Reach-In Refrigerators & Freezers
Maxx Cold V-Series Freezer, reach-in, two-section, 54"W, 42 cu. ft. storage capacity, temperature range -10°F to 10°F (-23°C to -12°C), (2) solid hinged doors, (6) shelves, aluminum interior, stainless steel exterior, casters, bottom mount self contained refrigeration, R600A, 2.2 amps, 610 watts, 115v/60/1-ph, ETL, cETL
Specifications
| Manufacturer |
Maxximum |
| Brand Name |
Maxx Cold V-Series |
| Height |
78.78 in |
| Width |
54.17 in |
| Depth |
34.61 in |
| Shipping Weight |
399.0 lbs |
| Door Type |
Solid door(s) |
| Door Style |
Full hinged |
| Refrigeration |
Self-contained, bottom mounted |
| Exterior Finish |
All stainless steel exterior |
| Capacity |
38 – 53 cu. ft. |
| Interior Finish |
All aluminum interior |
| Size |
2 section |
| Specifications |
Maxx Cold V-Series Freezer, reach-in, two-section, 54"W, 42 cu. ft. storage capacity, temperature range -10°F to 10°F (-23°C to -12°C), (2) solid hinged doors, (6) shelves, aluminum interior, stainless steel exterior, casters, bottom mount self-contained refrigeration, R600A, 2.2 amps, 610 watts, 115v/60/1-ph, ETL, cETL |
Documents
What our Experts Think
-
High Storage Capacity: Offers 42 cubic feet of storage, providing ample space for large quantities of frozen goods.
-
Efficient Temperature Control: Maintains temperatures between -10°F and 10°F, ensuring optimal preservation of frozen items.
-
Durable Construction: Built with a stainless steel exterior and aluminum interior, making it both durable and easy to clean.
-
Energy Efficient: Uses R290 hydrocarbon refrigerant and high-density foam insulation for improved energy efficiency.
-
User-Friendly Features: Features self-closing, locking doors, LED temperature display, and an automatic defrost system for easy maintenance.
-
Mobility: Equipped with 4" swivel casters and front brakes, allowing for easy movement and stability.
Q&A
Q: What type of unit is the Maxximum MVF-49FDHC?
A: The Maxximum MVF-49FDHC is a reach-in freezer, designed to store frozen goods at low temperatures.
Q: What is the storage capacity?
A: It offers 42 cubic feet (1,187 liters) of storage space, providing ample room for bulk frozen items.
Q: What is the temperature range?
A: The freezer maintains temperatures between -10°F and 10°F (-23°C to -12°C), ideal for preserving frozen items.
Q: Is it energy-efficient?
A: Yes, it uses R290 hydrocarbon refrigerant and features an automatic defrost system to enhance energy efficiency.
Q: What are the installation requirements?
A: The MVF-49FDHC operates on 115V, 60Hz, 1-phase power and comes with a NEMA 5-15P plug, which fits standard outlets.
Q: Is the MVF-49FDHC easy to maintain?
A: Yes, it has a bottom-mounted compressor for easy access, an automatic defrost system, and an integrated condensate evaporator, eliminating the need for a drain line.
Maintenance Tips
-
Condenser Coils:
Clean every 30–90 days using a brush, vacuum, or compressed air. For grease buildup, use a degreasing agent.
-
Interior Surfaces:
Wipe with mild detergent and warm water. Rinse and dry thoroughly.
-
Door Gaskets:
Inspect for wear or damage. Replace if necessary to maintain a tight seal.
-
Open Door Alert:
Address any alerts that indicate the freezer door has been open for more than 3 minutes.
-
Evaporator Fan:
Confirm it’s operating correctly to maintain consistent temperature.
-
Drain Line:
Inspect the drain line for blockages to prevent water buildup.
