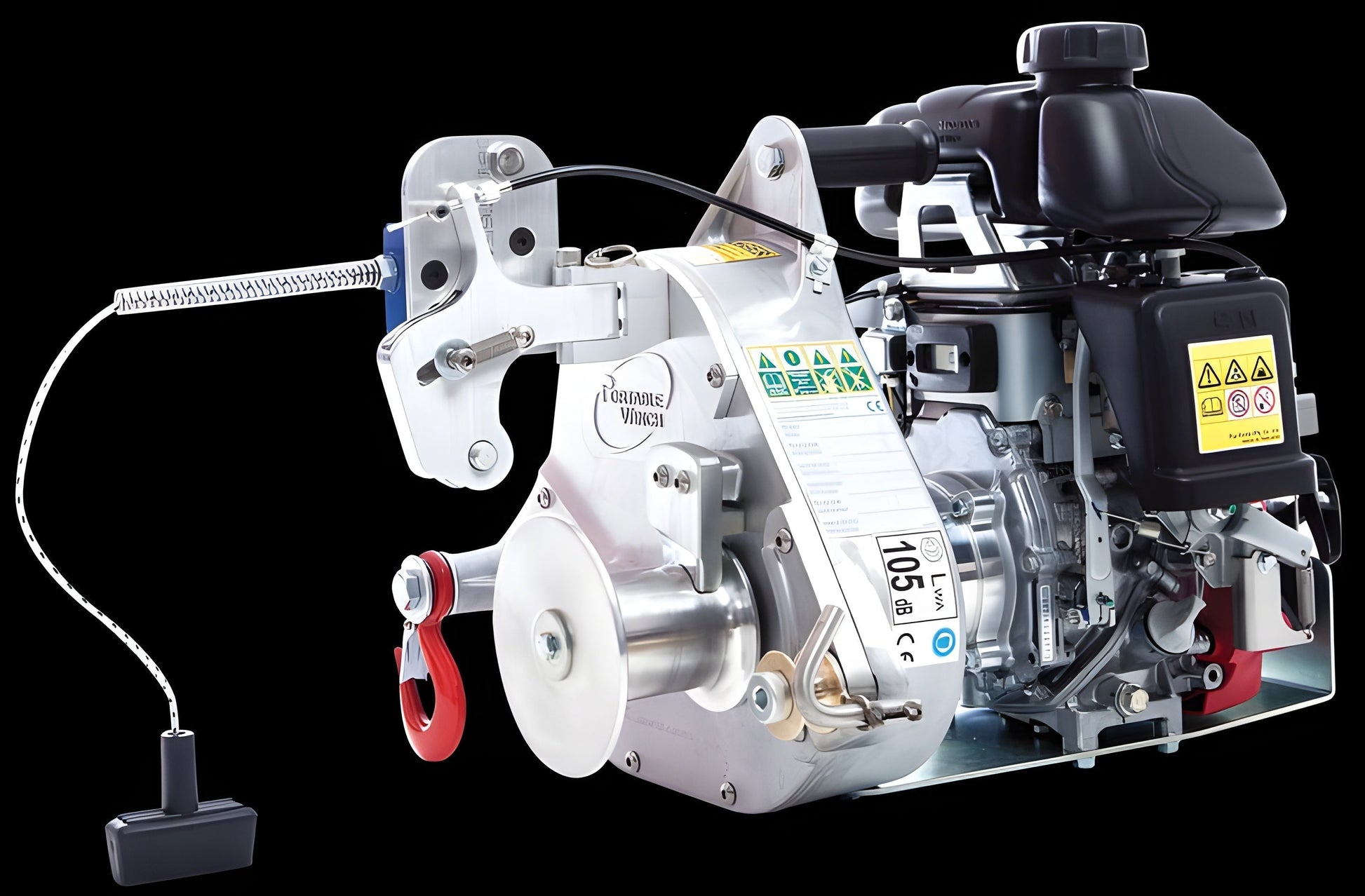

Lifting in complete safety: Specifically designed for the lifting needs of the industrial sector, the PCH1000 features the Progressive Capture System (PCS), which is essential for lifting, lowering and holding loads safely. Whether for telecommunications structures assembly, for lifting various equipment on a site or simply for pulling loads, the PCH1000 is versatile and safe. In addition, a wide variety of anchoring systems are available so you can easily do your setup.

Design: Located between the engine and the gearbox, the clutch system ensures that the capstan drum does not rotate when the engine idles. Once the rope is inserted into the PCS, the operator activates the clutch and initiates the movement simply by pulling on the rope horizontally. The rope grabbing system prevents the rope from slipping on the drum and holds the load when the rope is released. The winch can also be used to lower a load by disengaging the Progressive Capture System. To do this, the operator should simply pull the handle of the grabbing system cord and control the main rope during the descent.

Performance: Equipped with the 4-stroke GXH50 Honda engine, the PCH1000 develops a pulling force of 1,710 lb and offers a lifting capacity of 550 lb in a single line setup. Of course, a block and tackle system will allow you to increase its capacity!

Specifications

What Our Experts Think

• Compact & Powerful – Honda GXH50 engine delivers 1,550 lbs of pulling force and 450 lbs of lifting capacity.
• Lightweight & Portable – Easy to transport, making it perfect for remote job sites.
• Safe & Secure – Features an automatic anti-roll-back system for controlled lifting and pulling.
• Versatile Use – Ideal for forestry, construction, marine, and industrial applications.
• Reliable & Durable – Built with high-quality materials for long-lasting performance in tough environments.

Q&A

Q: What is the pulling and lifting capacity of the PCH1000?
A: It delivers 1,100 lbs (500 kg) of pulling force and 550 lbs (250 kg) of lifting capacity.

Q: What engine powers this winch?
A: A Honda GXH50 4-stroke engine provides reliable and efficient performance.

Q: What type of rope is compatible?
A: Designed for use with double-braid polyester rope, 10mm diameter recommended.

Q: Is it easy to carry and transport?
A: Yes, it has a lightweight, compact design for maximum portability.

Q: What applications is it best for?
A: Ideal for lifting and pulling in forestry, construction, and industrial settings.

Q: Does it come with accessories?
A: Sold separately; ropes, hooks, and slings are available.

Maintenance Tips

• Check & Change Engine Oil: Use high-quality oil and follow the Honda GXH50 engine manual for regular oil changes.
• Inspect & Clean the Air Filter: Keep the air filter free from dust and debris to maintain optimal engine performance.
• Use Fresh Fuel: Ensure the use of clean, fresh fuel and check for leaks or blockages in the fuel lines.
• Examine the Rope & Drum: Inspect for fraying, wear, or debris buildup to maintain a secure grip.
• Lubricate Moving Parts: Apply lubricant to gears and bearings to reduce friction and prolong component life.
• Tighten Loose Bolts: Regularly check and secure bolts and fasteners to prevent issues caused by vibration.
• Test the Brake System: Ensure the automatic anti-roll-back mechanism is working properly for safe operation.
• Store Properly: Keep the winch in a dry, clean area and cover it to protect against dust, moisture, and corrosion.
• Follow Manufacturer’s Service Schedule: Perform routine maintenance and replace worn parts as needed for long-lasting performance.
