The GE FANUC QPI-2D100-E2P QuickPanel is a Total Control Operator Interface. With advanced features, it provides efficient and intuitive control for industrial automation, enhancing user interaction and system monitoring.

Information About QPI-2D100-E2P

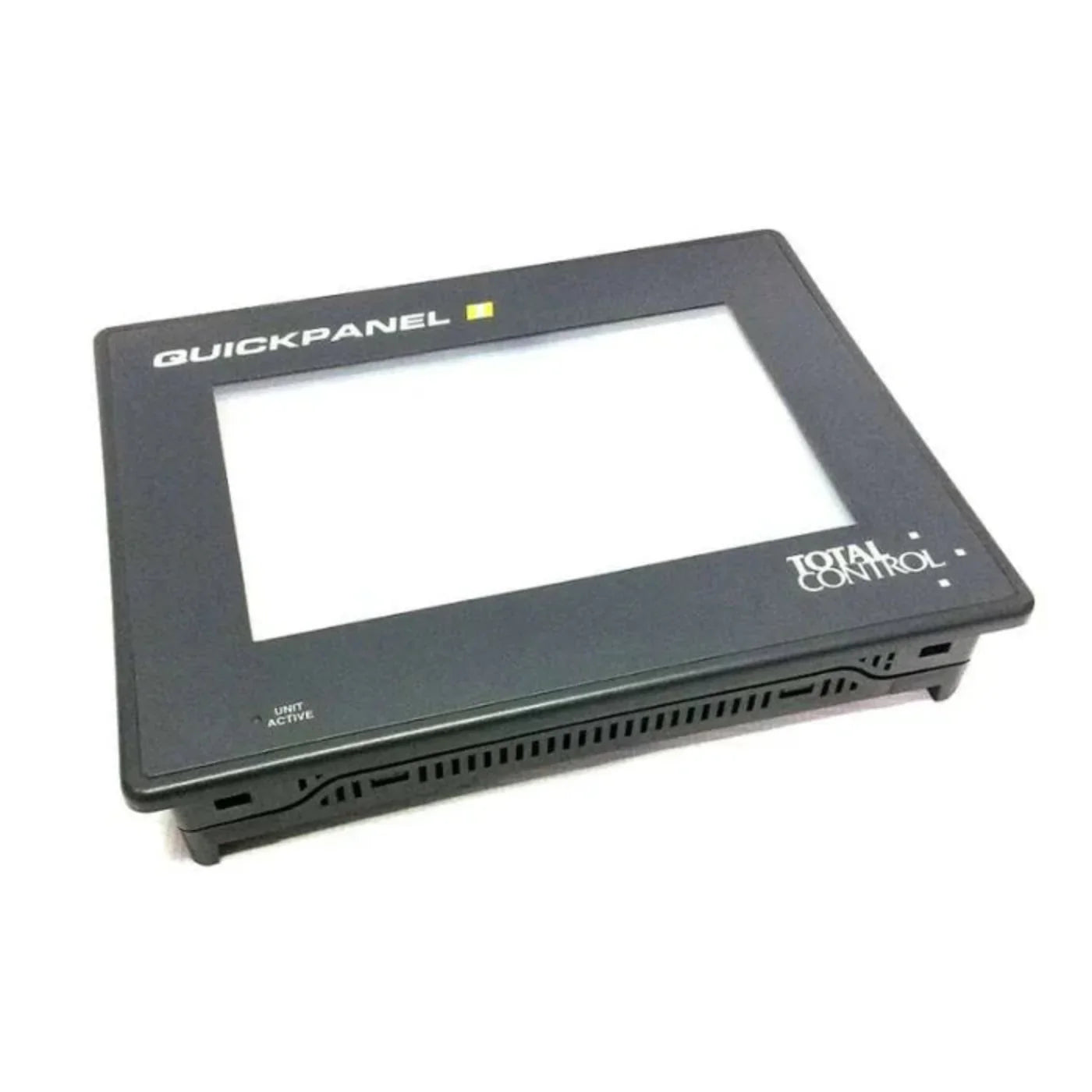

This variant of the QuickPanel series is designated their QPI2D100E2P unit; a 9 diagonal inch, electroluminescent touch screen display. This model is capable of a high intensity contrast ratio to allow users to operate and manage the industrial line’s information and reports while on site, even if the external lighting system is extremely bright.

The QPI2D100E2P module has a viewing screen with a height of 7.92 inches, or 201 millimeters, and then a width of 10.2 inches, or 259 millimeters. The overall dimensions of this model give it a height of 8.5 inches/216 millimeters, and a width of 10.79 inches/274 millimeters. The depth that the QPI2D100E2P module reaches is up to 2.23 inches/56.5 millimeters.

The standard weight of the unit is just under 2.5 kilograms, or, 5.5 pounds, which then factors in the additional weight of the 4X/12 NEMA graded protective case. This IP-65 rated case protects from the possibility of any workplace accidents damaging the unit, or any possible environmental danger. Dust particles may be invasive and mess with the internal systems, and then water damage may corrode the unit.

The image resolution of the QPI2D100E2P model’s display is in 640 by 400 pixels. The electroluminescent display is in an amber monochromatic hue. The optimal power intake requires a V/DC range of 20 to 24 volts, and while in use, consumes up to 50 watts of energy.

Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.

Specifications

What our Experts Think

• Precision Output Control: Delivers 6 analog current outputs (0–20 mA or 4–20 mA), ideal for accurate process control.

• Dual Power Compatibility: Operates on both 115VAC and 125VDC, offering flexible installation options.

• Heavy-Duty Industrial Use: Rugged design built for harsh environments—resistant to vibration, moisture, and electrical noise.

• Built-In Diagnostics: Real-time fault detection and LED status indicators for each channel enhance reliability and ease of maintenance.

• Modular Flexibility: Compatible with GE Genius I/O systems, making it easy to scale or upgrade your automation setup.

• Safe & Isolated Channels: Individual channel isolation helps prevent cross-talk and improves system safety.

Q&A

Q: What is the GE Fanuc IC660BBA105?
A: The IC660BBA105 is a Genius I/O analog output module designed for GE Fanuc Series 90-30 PLCs. It provides six independent 4-20 mA current-sourcing outputs, commonly used in industrial automation applications

Q: What are the electrical specifications?
A: It operates on a 115 VAC or 125 VDC power supply and offers a resolution of 6 µA. The module has an accuracy of 0.15% of full-scale reading and a thermal drift of 35 PPM per degree Celsius.

Q: What is the update rate and baud rate?
A: The output update rate is 25 milliseconds, and it supports baud rates of 76.8/38.4 kbaud for communication

Q: What is the physical size of the module?
A: The module measures 22.44 cm (H) x 8.89 cm (W) x 10.00 cm (D) and weighs approximately 3.15 lbs

Q: What are the wiring recommendations?
A: For field signal wires, AWG #14 (2.1 mm²) is recommended, with a minimum of AWG #20 (0.54 mm²). For serial bus wiring, AWG #12 (3.3 mm²) is recommended for single-wire connections, and AWG #14 (2.1 mm²) for dual-wire connections.

Q: Is the module compatible with other Genius I/O modules?
A: Yes, the IC660BBA105 is compatible with all Genius bus controllers and can be configured using a handheld monitor (version 3.7 or later) and Logicmaster 6 software (version 4.02 or later)

Maintenance Tips

• Regularly Inspect for Physical Damage: Check for signs of wear, corrosion, or physical damage, especially around connectors and mounting points.

• Ensure Proper Ventilation: Maintain adequate airflow around the module to prevent overheating.

• Verify Secure Module Connections: Ensure that all modules are securely seated in their respective slots to prevent communication issues.

• Monitor Power Supply: Check that the power supply is stable and within the specified voltage range to prevent damage to the module and connected devices.

• Keep the Environment Clean: Regularly clean the module to remove dust and debris, which can affect performance and cause overheating.

• Check Expansion Connections: If using expansion modules, ensure that the connections are secure and that the total system does not exceed the maximum supported configuration.

• Update Firmware as Necessary: Keep the firmware updated to ensure compatibility with other modules and to benefit from performance improvements
