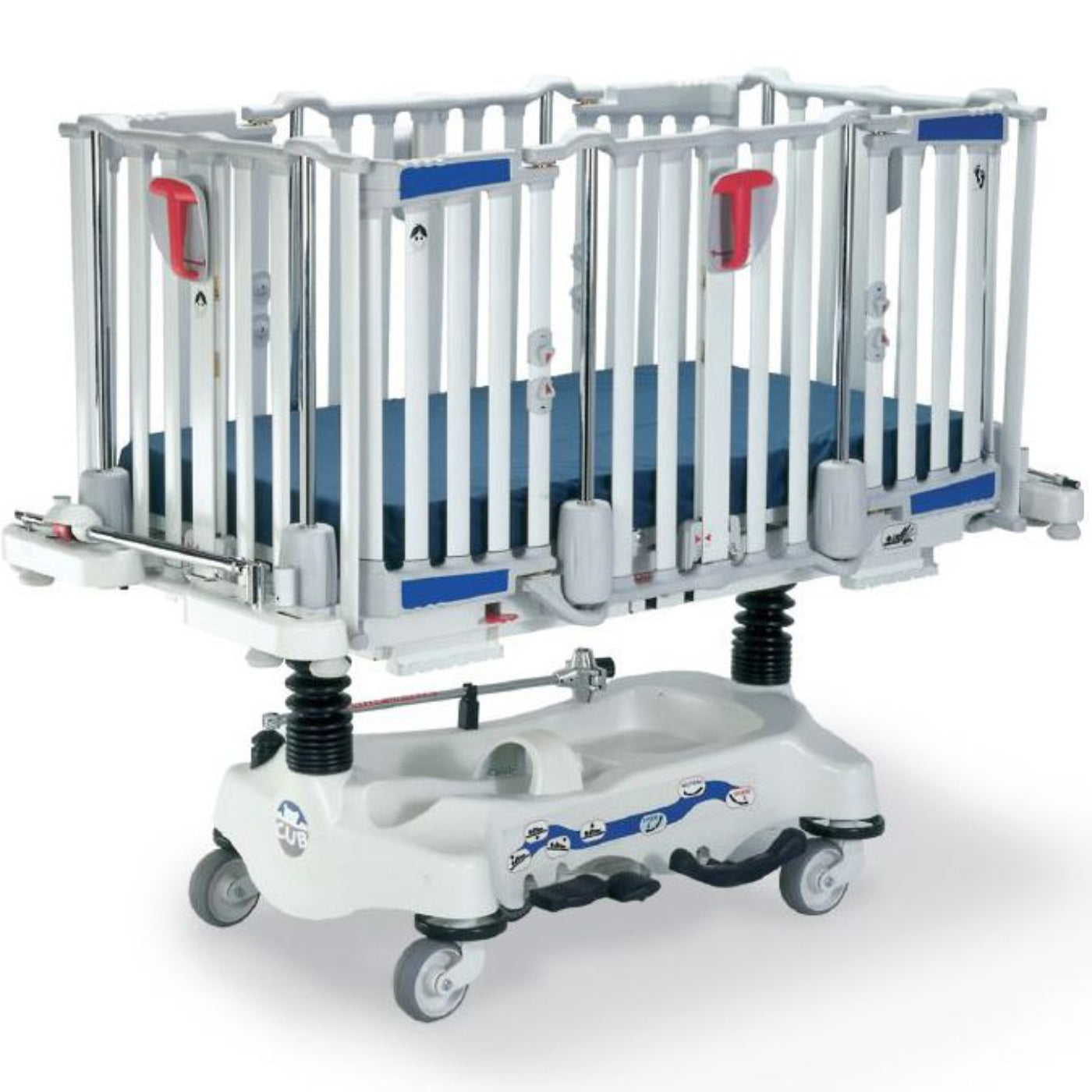

Stryker Cub Pediatric Crib Stretcher - MFI-SYK-FL19F
The Stryker Cub Pediatric Crib Stretcher includes a new mattress pad.
Effective pediatric care requires a crib specifically designed around safety, access, and ease-of-use. The Cub Pediatric Crib supports safe and efficient care practices while the warm, friendly appearance creates a positive environment for small children and their families. The Cub's four independent, low impact siderails incorporate a slatted design, and offer 360° of unobstructed access for the caregivers.
Options with hydraulic base include dual side-mounted foot control hydraulics with uni-lower pedal. Hands-free Trendelenburg and Reverse Trendelenburg also included with hydraulic configurations.
Fixed height models feature four locking casters. Hydraulic models have a four-wheel ring brake system. The integrated scale (option) has a patient weight capacity of 4 to 100 lb (1.8 to 54.4 kg).
Features
Features
- Manually-operated pneumatic-assist backrest.
- Manual foot prop.
- Siderail with 9" (23 cm) mandatory stop.
- Counterbalance system on siderail for easy raising and lowering.
- Oxygen bottle holder.
- Access doors at all four corners.
- Retractable fifth wheel steering.
- Hydraulic Base Models only:
- 6" (15 cm) Omni Surface casters.
- Central locking brake system.
- Dual side-mounted foot control hydraulics with uni-lower pedal.
- Hands-free Trendelenburg and Reverse Trendelenburg.
Specifications
Specifications
| Overall Length and Width |
No Accessory Supports: 65.5" x 37" (166 cm x 94 cm) |
| With Accessory Supports: 72.25" x 37.5" (184 cm x 95 cm) |
|
| Weight Capacity |
400 lb (181 kg) |
| Safe Working Load |
100 lb (45 kg) |
| Overall Weight (without options) |
Fixed Height Models: 310 lb |
| Hydraulic Models: 375 lb |
|
| Height Range (to litter top) |
Fixed Height Models: 33" (84 cm) |
| Hydraulic Models: 33 to 40" (84 to 102 cm) |
|
| Litter Positioning |
Manual Activated: 0° / 25° / 40° / 55° |
| Pneumatic Assist: 0 to 50° |
|
| Foot Section Angle |
0° / 6° / 12° |
| Trendelenburg/Reverse Trendelenburg |
Fixed Height Models: 0° / 6° / 12° with manual foot prop |
| Hydraulic Models: ± 9.5° |
|
| Patient Surface |
29.5" x 57" (75 cm x 145 cm) |
| Caster Diameter |
Fixed Height Models: 5" (13 cm) |
| Hydraulic Models: 6" (15 cm) |
|
| Brake System |
Fixed Height Models: Four Locking Casters |
| Hydraulic Models: Four Wheel Ring Brake System |
|
| Optional Scale Capacity |
4 to 100 lb (1.8 to 54.4 kg) |
| Scale Accuracy |
± 0.5 lb (0.2 kg) at 50 lb (22 kg) |
| ± 1 lb (0.4 kg) at ≥ 50 lb (22 kg) |
|
| Power System |
Battery operated - 4 x "C" Type, Alkaline, 1.5 VDC |
| Electrical Rating |
6 VDC, 0.15 A |
Configurations
-
#FL19F: Fixed Height Base - Standard.
-
#FL19F-SC: Fixed Height Base with Integrated Scale.
-
#FL19H: Hydraulic Base - Standard.
-
#FL19H-SC: Hydraulic Base with Integrated Scale.
Literature
Literature
Stryker Cub Pediatric Crib Operations Manual
Stryker Cub Pediatric Crib Spec Sheet
What our Experts Think
-
Enhanced Safety: The Stryker Cub Pediatric Crib Stretcher features four low-impact siderails with a slatted design, offering 360° unobstructed access, allowing caregivers to easily attend to the patient from all angles.
-
Improved Mobility: With its retractable fifth wheel steering system, this crib stretcher enhances maneuverability in tight spaces, making it easier to transport pediatric patients in busy healthcare environments.
-
Positioning Flexibility: The crib is equipped with a pneumatic-assist backrest and a manual foot prop, allowing for versatile positioning to accommodate different care needs.
-
Durable & Reliable: Designed with a sturdy frame and locking casters, the Cub Pediatric Crib ensures stability and safety during transport and patient care, supporting up to 100 lbs (45 kg).
-
Child-Friendly Design: With its comforting, child-friendly appearance, the stretcher is designed to make pediatric patients feel more at ease during their treatment or transport.
Q&A
Q: What is the Stryker Cub Pediatric Crib Stretcher (Model FL19F)?
The Stryker Cub Pediatric Crib Stretcher (Model FL19F) is a pediatric crib designed to provide a safe, accessible, and child-friendly environment for young patients. It features a fixed-height base, four independent side rails, and swing-open access doors for ease of use by caregivers.
Q: What configurations are available for the Cub Pediatric Crib Stretcher?
-
FL19F: Fixed Height Base - Standard.
-
FL19F-SC: Fixed Height Base with Integrated Scale.
-
FL19H: Hydraulic Base - Standard.
-
FL19H-SC: Hydraulic Base with Integrated Scale.
Q: Where can I purchase the Stryker Cub Pediatric Crib Stretcher?
The Stryker Cub Pediatric Crib Stretcher is available through authorized medical equipment suppliers and distributors.
Maintenance Tips
-
Inspection Frequency:
-
Light use: Inspect every 6 months.
-
Moderate use: Quarterly.
-
Heavy use: Monthly.
-
Routine Checks:
-
Ensure all mechanical parts operate smoothly.
-
Check for loose or missing hardware.
