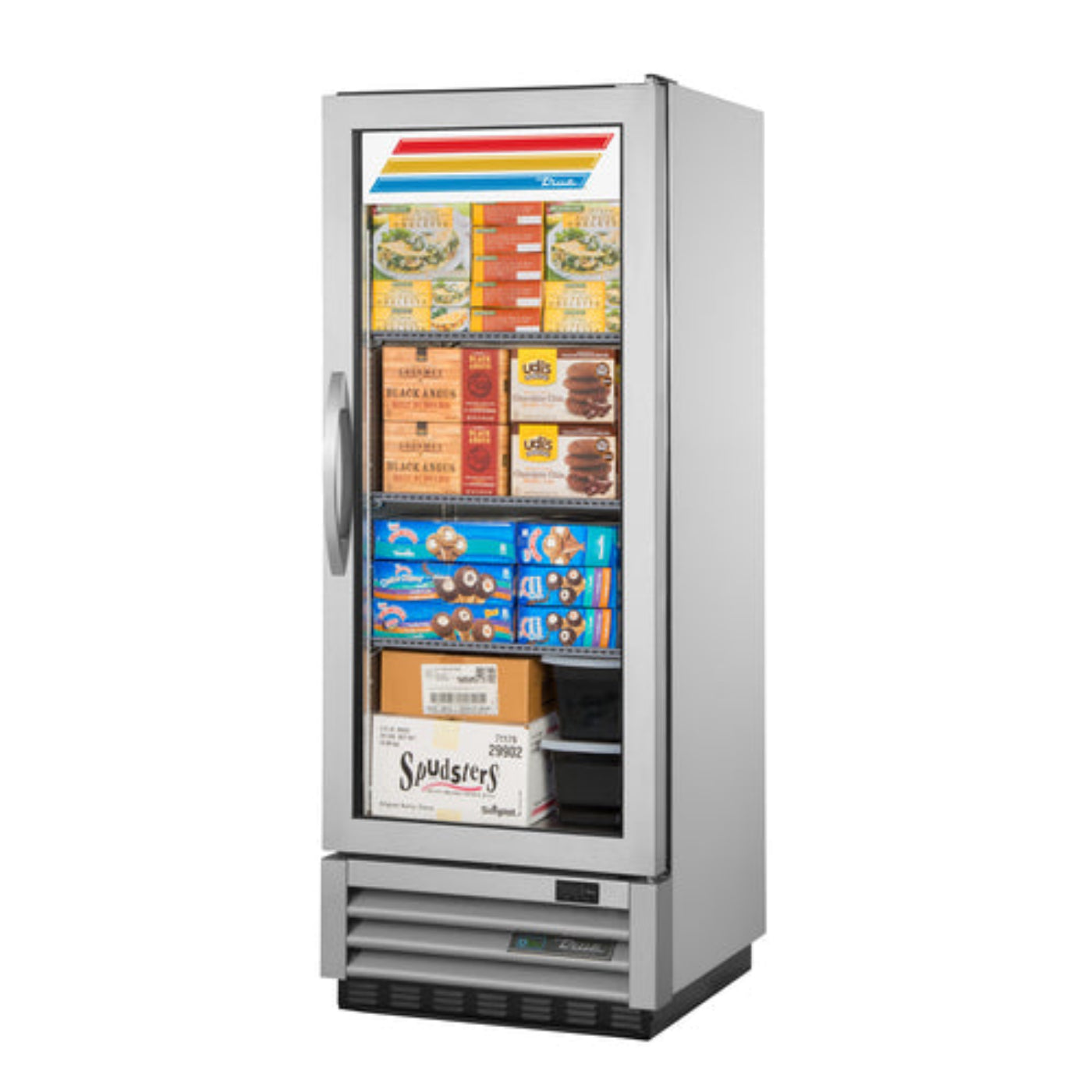

True Mfg. - General Foodservice T-12FG-HC~FGD01 Reach-In Refrigerators & Freezers
Freezer, reach-in, one-section, -10°F, framed glass door version 01, (1) glass door, (3) PVC coated adjustable wire shelves, LED interior lighting, stainless steel front, aluminum sides, clear coated aluminum interior with stainless steel floor, leg levelers, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 4.5 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA, ENERGY STAR
Drawings
Documents
Specifications
| Manufacturer |
True Mfg. – General Foodservice |
| Certifications |
cULus, UL EPH Classified, Made in USA, ENERGY STAR® |
| Height |
63.0 in |
| Width |
24.88 in |
| Depth |
23.25 in |
| Shipping Weight |
255.0 lbs |
| Size |
1 Section |
| Compressor HP |
1/2 HP |
| Temperature Range |
-10°F |
| Capacity |
10 – 23 cu. ft. |
| Refrigeration |
Self-contained, bottom mounted |
| Door Type & Style |
(1) Full-hinged framed glass display door |
| Shelving |
(3) PVC-coated adjustable wire shelves |
| Interior Lighting |
LED |
| Interior Finish |
Clear-coated aluminum with stainless steel floor |
| Exterior Finish |
Stainless steel front, aluminum sides |
| Refrigerant Type |
R290 Hydrocarbon refrigerant |
| Electrical |
115v/60/1-ph, 4.5 amps, NEMA 5-15P |
| Mobility/Base |
Leg levelers |
| Energy Efficiency |
ENERGY STAR® Certified |
What our Experts Think
-
Efficient Freezing Performance – Maintains a steady -10°F (-23.3°C) ideal for frozen foods and ice cream, ensuring long-term storage reliability.
-
Glass Door Convenience – Features energy-efficient glass doors for quick visual access without the need to open the unit, reducing cold air loss.
-
Eco-Friendly Refrigerant – Uses R290 hydrocarbon refrigerant, which provides energy-efficient and environmentally friendly cooling.
-
Durable & Stylish – Stainless steel front and aluminum sides with a glass door design combine functionality with modern aesthetics.
-
Ample Storage Space – Includes adjustable, heavy-duty shelves for organized storage of various frozen goods.
-
Low Maintenance – Self-cleaning condenser keeps the unit running efficiently with minimal upkeep, extending the life of the compressor.
Q&A
Q: What is the True T-12FG-HC~FGD01 used for?
A: It’s a dual-section reach-in refrigerator and freezer unit, perfect for storing both chilled and frozen items in commercial kitchens.
Q: What is the storage capacity of this unit?
A: The T-12FG-HC~FGD01 offers a total of 12 cu. ft. of refrigerated space and 12 cu. ft. of frozen storage, combining the functionality of a refrigerator and freezer in one unit.
Q: What type of doors does it have?
A: This model features two solid stainless steel doors—one for refrigeration and one for freezing, both with self-closing mechanisms for energy efficiency.
Q: How does it maintain temperature?
A: The T-12FG-HC~FGD01 uses a high-efficiency refrigeration system with eco-friendly R290 hydrocarbon refrigerant, keeping the refrigeration section at 33°F to 38°F (0.5°C to 3.3°C) and the freezer section at -10°F (-23.3°C).
Q: What materials is the unit made from?
A: The exterior is made from durable stainless steel, with an aluminum interior and stainless steel floor, ensuring easy cleaning and longevity.
Maintenance Tips
-
Clean condenser coils every 30–90 days to ensure efficient operation.
-
Wipe down the interior and exterior regularly with a mild detergent to prevent residue buildup.
-
Inspect door gaskets for wear or damage and replace as needed to maintain an airtight seal.
-
Ensure the unit is level for proper door function and optimal drainage.
-
Regularly clear drain lines to avoid blockages and water buildup.
-
Verify temperature settings to maintain consistent cooling and freezing.
-
Avoid blocking air vents to ensure proper airflow for even cooling.
