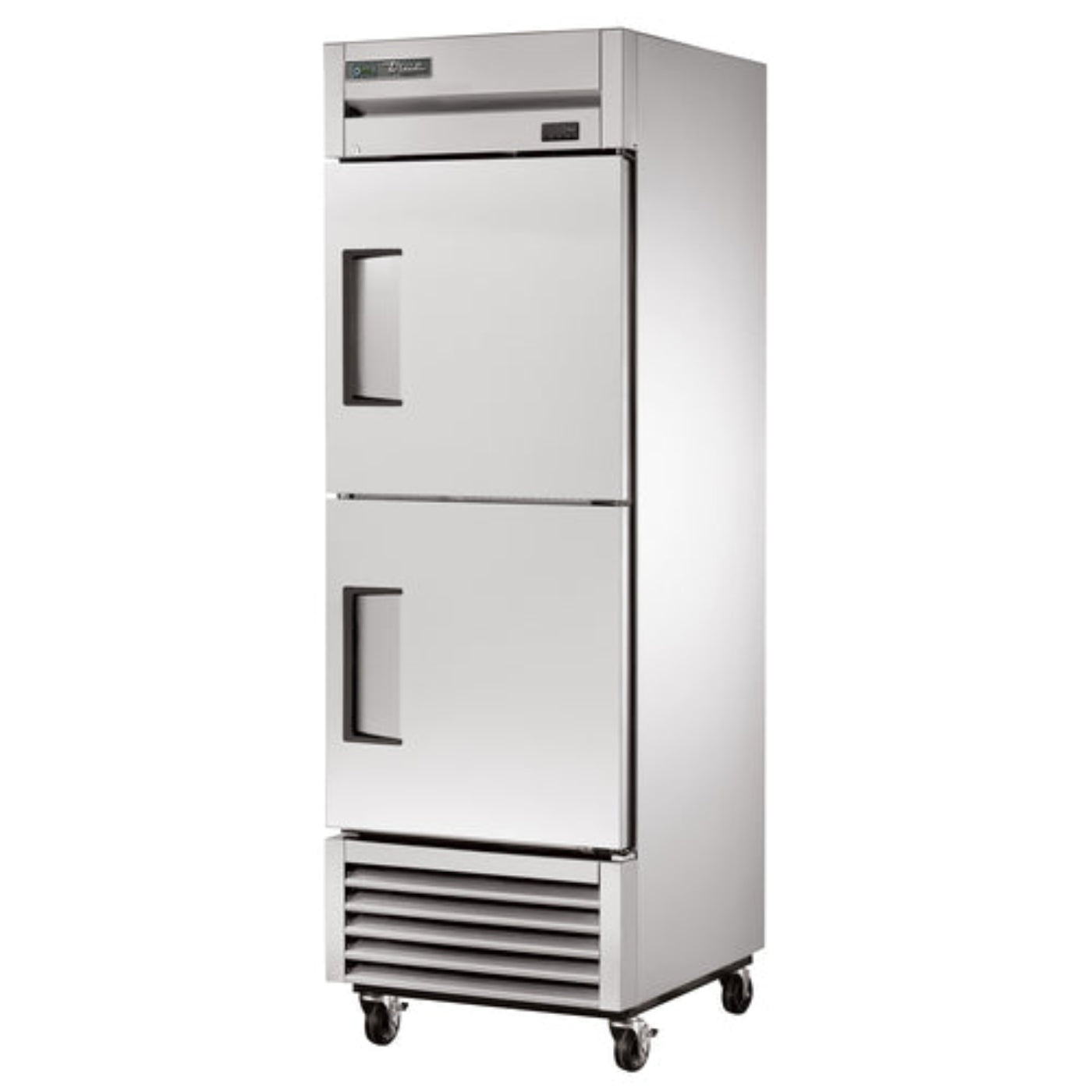

True Mfg. - General Foodservice T-23F-2-HC Reach-In Refrigerators & Freezers
Freezer, reach-in, one-section, -10°F, (2) stainless steel half doors, (3) PVC coated adjustable wire shelves, interior lighting, stainless steel front, aluminum sides, aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 3.7 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
Drawings
Documents
Specifications
| Manufacturer |
True Mfg. – General Foodservice |
| Certifications |
cULus, UL EPH Classified, Made in USA |
| Height |
78.38 in |
| Width |
27.0 in |
| Depth |
29.5 in |
| Shipping Weight |
300.0 lbs |
| Size |
1 Section |
| Compressor HP |
1/2 HP |
| Capacity |
10 – 23 cu. ft. |
| Temperature Range |
-10°F |
| Refrigeration |
Self-contained, bottom mounted |
| Door Type & Style |
(2) Stainless steel half-hinged solid doors |
| Shelving |
(3) PVC-coated adjustable wire shelves |
| Interior Lighting |
Yes |
| Interior Finish |
Aluminum with stainless steel floor |
| Exterior Finish |
Stainless steel front, aluminum sides |
| Refrigerant Type |
R290 Hydrocarbon refrigerant |
| Electrical |
115v/60/1-ph, 3.7 amps, NEMA 5-15P |
| Mobility |
4" Castors |
What our Experts Think
-
Dual Half-Door Design – Reduces cold air loss and improves energy efficiency during frequent access.
-
Powerful Freezing Performance – Factory-balanced refrigeration system with R290 hydrocarbon refrigerant maintains consistent -10°F (-23.3°C).
-
Self-Cleaning Condenser – HC model includes a self-cleaning feature to optimize performance and extend compressor life.
-
Built to Last – Stainless steel front with aluminum sides and interior ensures durability in busy commercial environments.
-
Efficient Storage – Includes adjustable heavy-duty PVC-coated shelves for organized storage of frozen goods.
-
Ergonomic & Secure – Recessed handles, self-closing doors, and door locks enhance usability and security.
-
Certified Commercial Quality – NSF/ANSI and UL listed, ideal for restaurants, institutions, and high-volume kitchens.
Q&A
Q: What is the True T-23F-2-HC used for?
A: It’s a single-section reach-in freezer designed to keep food safely frozen in commercial kitchens, cafes, and foodservice operations.
Q: What is the storage capacity of this unit?
A: The T-23F-2-HC offers approximately 23 cu. ft. of frozen storage, ideal for compact spaces with steady freezer needs.
Q: What type of doors does it have?
A: This model features two half-height solid stainless steel doors, providing better temperature retention and reduced cold air loss.
Q: How is temperature controlled?
A: It uses a factory-engineered capillary tube system and eco-friendly R290 hydrocarbon refrigerant to maintain consistent -10°F (-23.3°C) temperatures.
Q: What materials are used in construction?
A: The unit features a stainless steel front, aluminum sides, and an aluminum interior with a stainless steel floor for durability and easy cleaning.
Q: Are adjustable shelves included?
A: Yes, the freezer comes with three heavy-duty, PVC-coated wire shelves that can be adjusted to meet your storage needs.
Q: Is professional installation recommended?
A: Yes, for best performance and warranty compliance, professional installation is advised.
Maintenance Tips
-
Clean condenser coils every 30–90 days to maintain energy efficiency.
-
Wipe interior and exterior with a non-abrasive cleaner to prevent buildup.
-
Inspect split door gaskets frequently for cracks or air leaks.
-
Ensure the unit is level to support proper door alignment and drainage.
-
Keep drain lines clear to avoid clogs and standing water.
-
Regularly verify that temperature settings are accurate and stable.
-
Avoid overloading shelves to promote proper air circulation.
