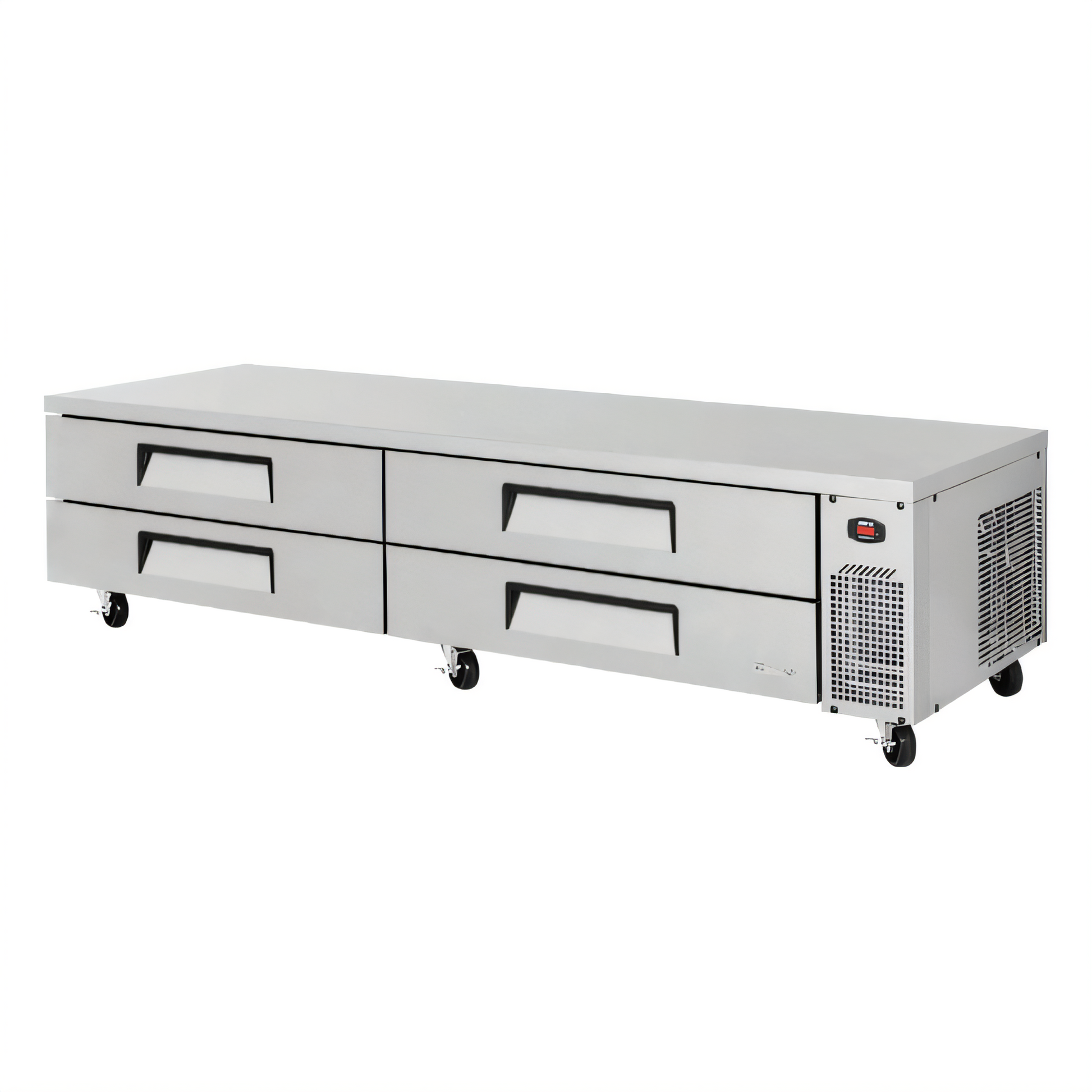

Turbo Air Super Deluxe 96" Chef Base Refrigerator
Model TCBE-96SDR-N | 4-Drawer Side-Mounted Self-Contained Unit
Maximise your cookline efficiency with the Turbo Air Super Deluxe chef base that keeps 18.6 cu. ft. of chilled ingredients
right where you need them—directly beneath up to 1,435 lb of countertop equipment.
From its patented self-cleaning condenser to its heavy-duty 16-gauge stainless top, this is the rugged,
low-maintenance refrigeration solution kitchens count on every shift.
Key Features
-
Patented Self-Cleaning Condenser sweeps dust away daily to help prevent costly downtime.
-
4 durable drawers with recessed handles; each holds three 6"-deep full-size pans (pans not included).
-
Reinforced 16 ga. one-piece stainless top is insulated to block heat migration and supports heavy equipment.
-
Eco-friendly R-290 refrigerant and high-efficiency 2/5 HP side-mounted compressor with front air intake.
-
Digital temperature control maintains 33 °F – 38 °F for optimum food safety.
- High-density, CFC-free polyurethane insulation & anti-corrosion coated evaporator prolong cabinet life.
- 4" swivel casters (locking front) standard; optional 6" stainless legs available.
-
5-Year parts & labour / 7-Year compressor warranty for total peace of mind.
Specifications
| Exterior dimensions |
96 3⁄8" W × 32" D × 20 1⁄4" H* |
| Net capacity |
18.6 cu. ft. |
| Drawers / pan capacity |
4 drawers | 3 full-size pans per drawer (6" deep) |
| Temperature range |
33 °F – 38 °F |
| Countertop load rating |
1,435 lb |
| Refrigerant |
R-290 (hydrocarbon) |
| Compressor horsepower |
2/5 HP, side-mounted |
| Voltage / phase |
115 V / 60 Hz / 1-ph |
| Amperage |
6.3 A |
| Plug |
NEMA 5-15P, 9 ft cord |
| Net / ship weight |
484 lb / 517 lb |
| Certifications |
cETLus, ETL-Sanitation |
| Warranty |
5 yr parts & labour | 7 yr compressor |
*Height shown excludes 5" caster height. Depth shown excludes 1" rear spacers. Drawer pans are not included.
