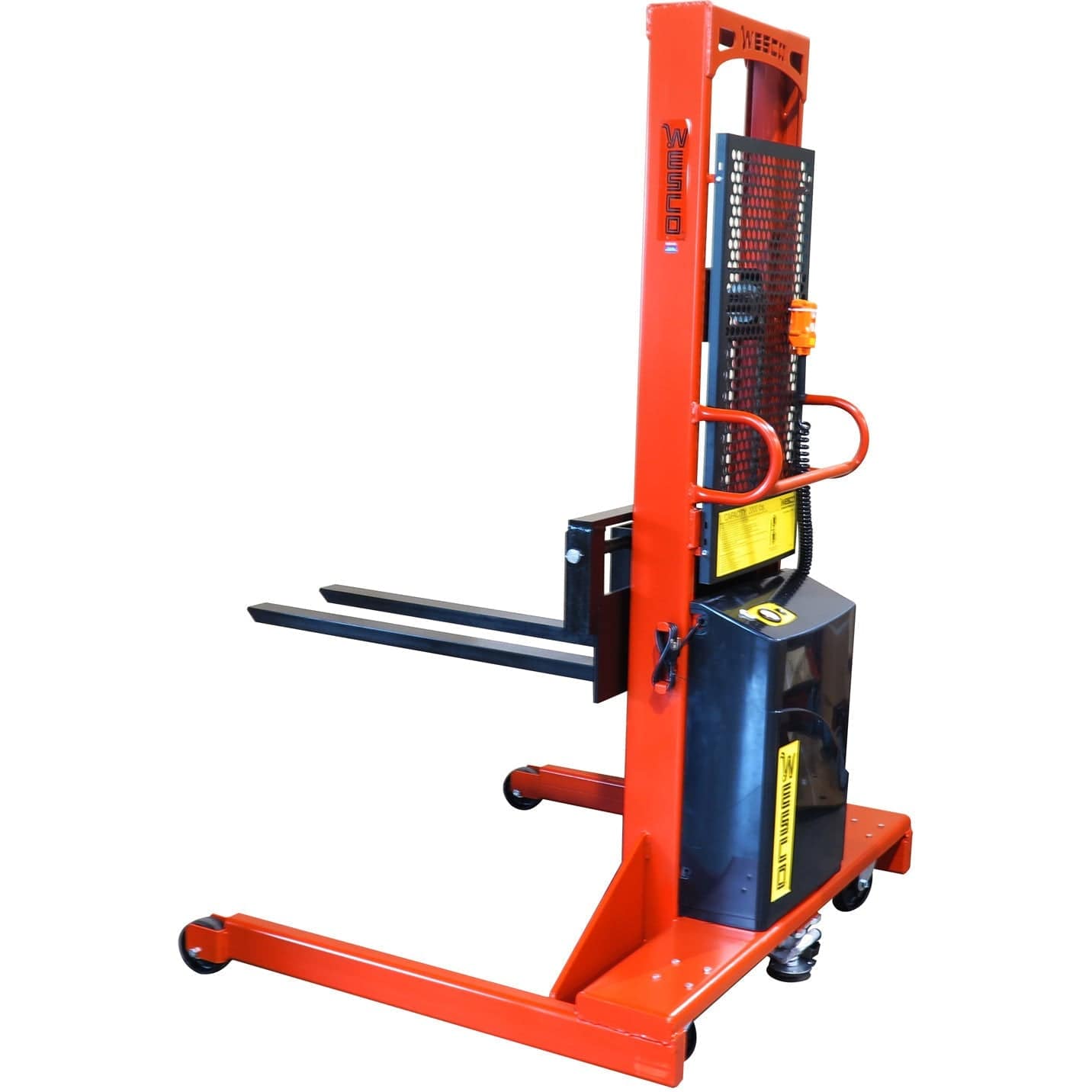

Wesco Industrial Products 1,500 lb. Hydraulic Power Lift Fork Stacker with 30" Forks and 86" Lift Height 261061

Wesco 3" X 30" FORK / 36" O.D. FIXED BASE POWERED STACKER - 261061

Features

• 1-year warranty.

• Proven quality: Wesco® manufactured Hydraulic Cylinder.
• Meets ANSI B56.10 specifications.
• Battery and charger included.
• Forks lower to floor on all models.
• Reinforced frame and fixed base.
• Double chain, lift support.
• Heavy-duty pump.
• Ergonomic "D" handles.
• 5th wheel and power drive options available.
• 110V AC models available (Special order no cancellations or returns).
• To order add AC to the end of the battery powered stacker part #.
  Example:
  Battery Powered #2610761
  110V AC Powered #261061AC

Videos

Specifications

Drawing

• Drawing for 1,500 & 2,000 lb Capacity Powered Stacker - Fork Model (261061)
• Power Drive & Lift Option
• 261061 Operating Instructions and Parts Manual

What Our Experts Think

• Strong Capacity: Supports up to 1,500 lbs, perfect for lifting and stacking medium-duty loads.
• Extended Fork Length: 30" forks are ideal for larger pallets and varied load types.
• High Reach: 86" lift height provides enhanced vertical clearance for efficient material handling.
• Hydraulic Precision: Features a hydraulic system for smooth and controlled lifting, reducing manual effort.
• Built for Durability: Engineered with sturdy construction to withstand tough industrial environments.

Q&A

Q: What is the weight capacity of this fork stacker?
A: The Wesco 261061 can lift up to 1,500 lbs.

Q: What is the maximum lift height?
A: This stacker offers a lift height of up to 86 inches.

Q: What are the fork dimensions?
A: The forks measure 30 inches in length.

Q: Is this stacker hydraulic-powered?
A: Yes, it features a hydraulic power lift for efficient and smooth lifting.

Q: What are the primary applications for this stacker?
A: Perfect for lifting heavy loads, pallets, and material handling in warehouses and factories.

Q: Is it easy to maneuver?
A: Yes, it’s designed for smooth movement and precise control.

Q: Does it require assembly?
A: Minimal assembly may be required, with clear instructions included.

Q: Is it durable?
A: Yes, it is built with heavy-duty materials for long-lasting performance.

Maintenance Tips

• Inspect Components: Check forks, base legs, and hydraulic system for any damage or wear monthly.
• Lubricate Moving Parts: Apply grease to rollers, chains, and hinges every 3 months for smooth operation.
• Check Hydraulic Fluid: Inspect fluid levels and ensure there are no leaks in the hydraulic system.
• Battery Care: Charge fully before use and inspect cables for any signs of wear or corrosion.
• Clean After Use: Wipe down forks, frame, and legs to remove dirt and prevent rust.
• Secure Fasteners: Tighten bolts and screws regularly to maintain stability and safety.
• Test Functionality: Ensure lift, lowering, and braking systems are working correctly.
• Follow Load Limits: Do not exceed the 1,500 lb. capacity or 86" lift height for optimal safety.
